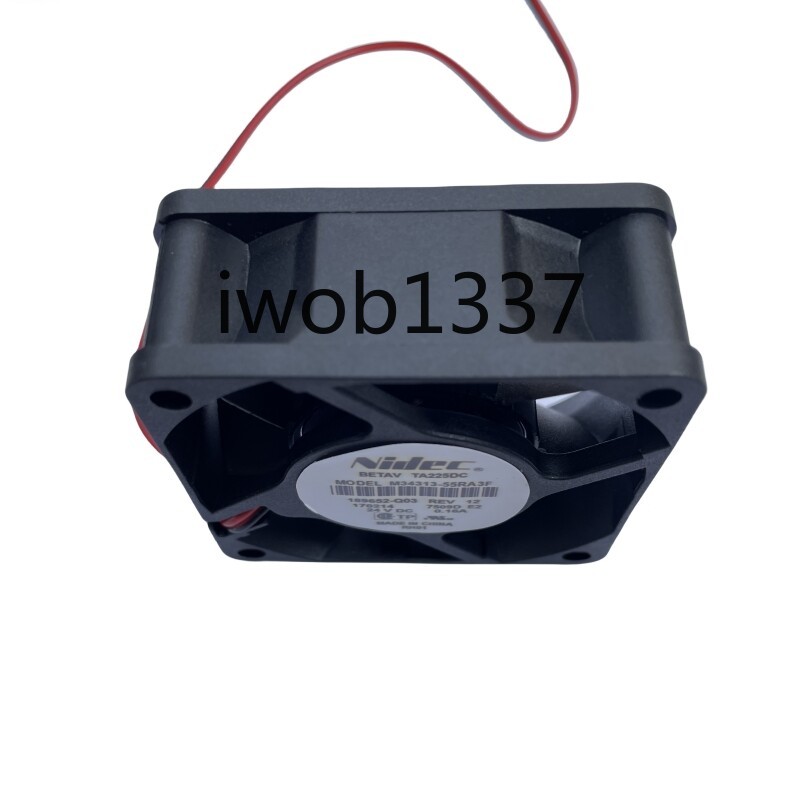

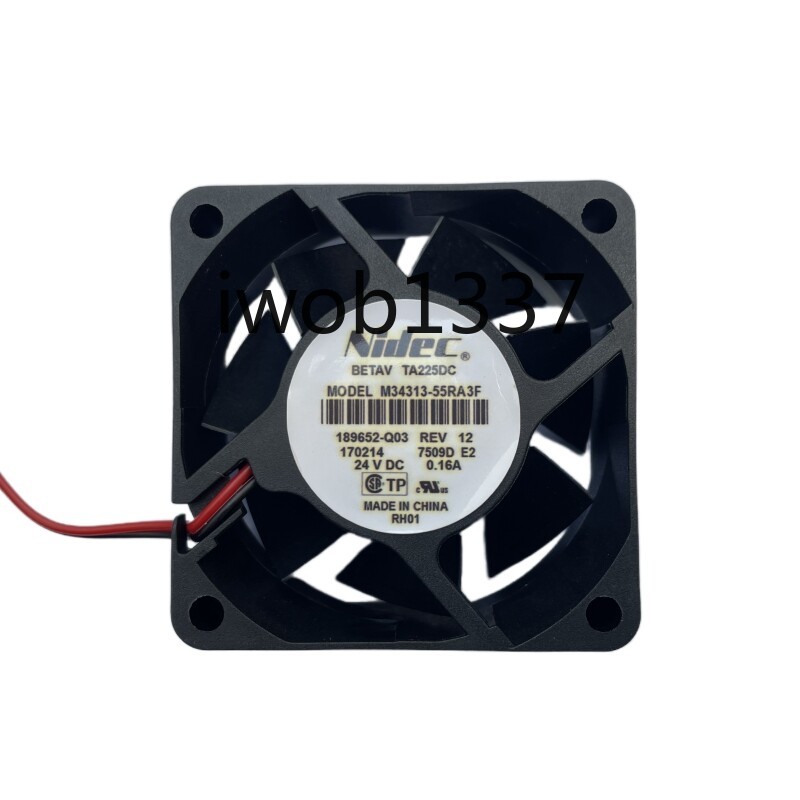

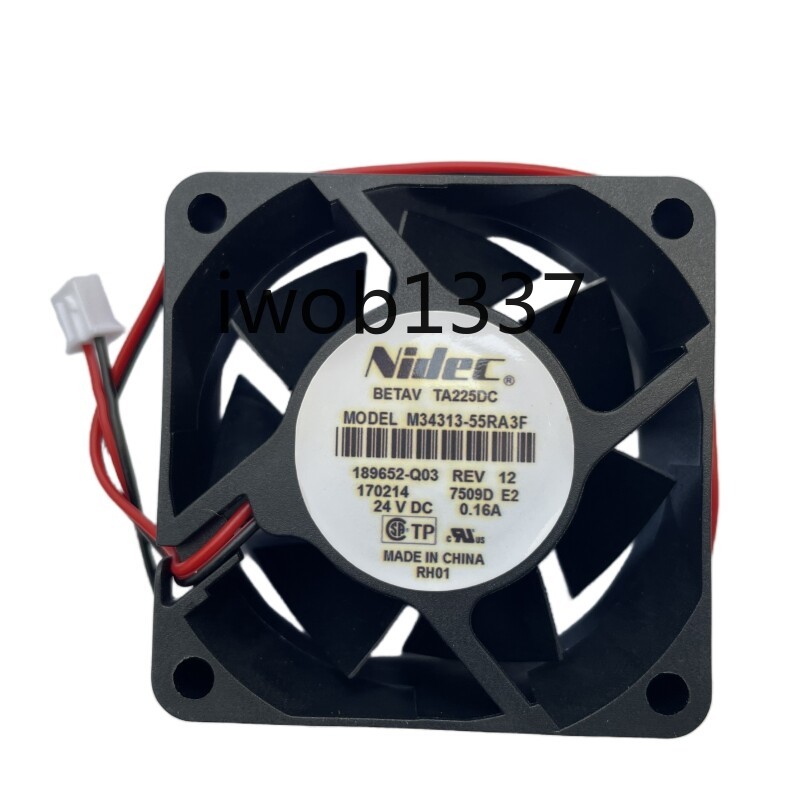

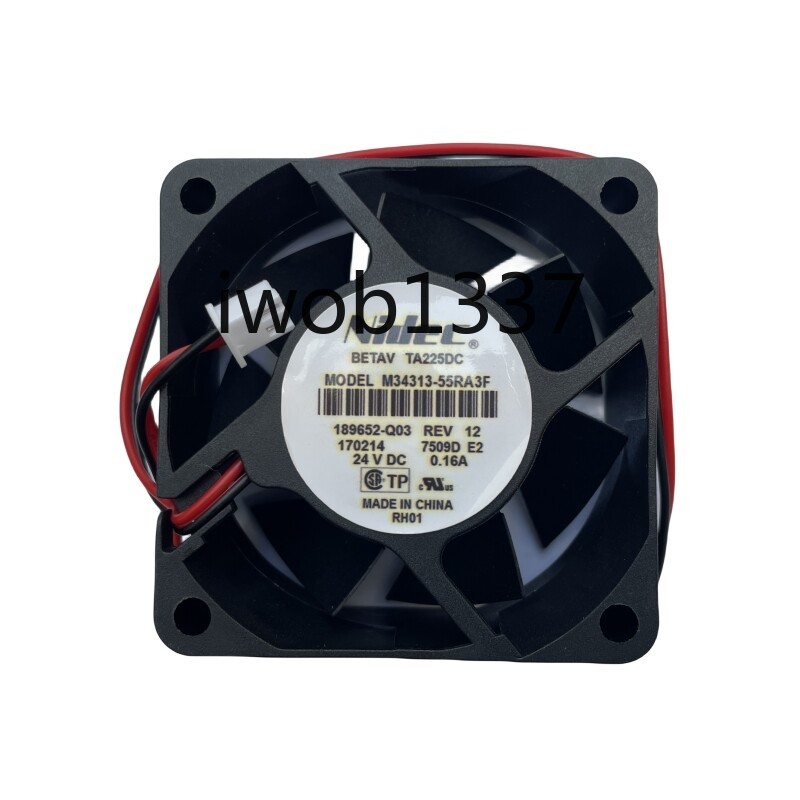

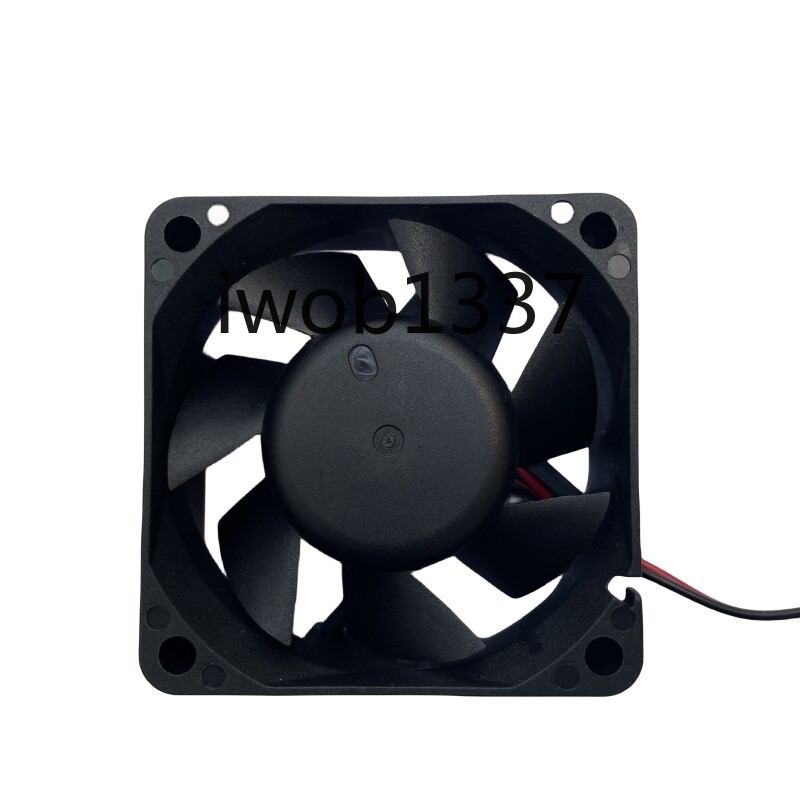

Original M34313-55RA3F DC24V 0.16A 2 wire ABB inverter fan
Model: M34313-55RA3F
Fan size: 60x60x25mm
Rated voltage: 24V
Rated current: 0.16A
Input power: 3.84W
Service life: 8.0000 hours (25°C, 45~85% relative humidity environment)
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Wind blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation direction: counterclockwise from the direction of the fan blades;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearings: high-precision ball bearings;
Power supply range: plus or minus 15% of rated power supply;
Insulation resistance: more than 500 megaohms;
Withstand voltage: leakage current 0.5mA 500V/1 minute;
Working life: 80,000 hours when the ambient temperature is 25 degrees
Model: M34313-55RA3F
Fan size: 60x60x25mm
Rated voltage: 24V
Rated current: 0.16A
Input power: 3.84W
Service life: 8.0000 hours (25°C, 45~85% relative humidity environment)
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Wind blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation direction: counterclockwise from the direction of the fan blades;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearings: high-precision ball bearings;
Power supply range: plus or minus 15% of rated power supply;
Insulation resistance: more than 500 megaohms;
Withstand voltage: leakage current 0.5mA 500V/1 minute;
Working life: 80,000 hours when the ambient temperature is 25 degrees
