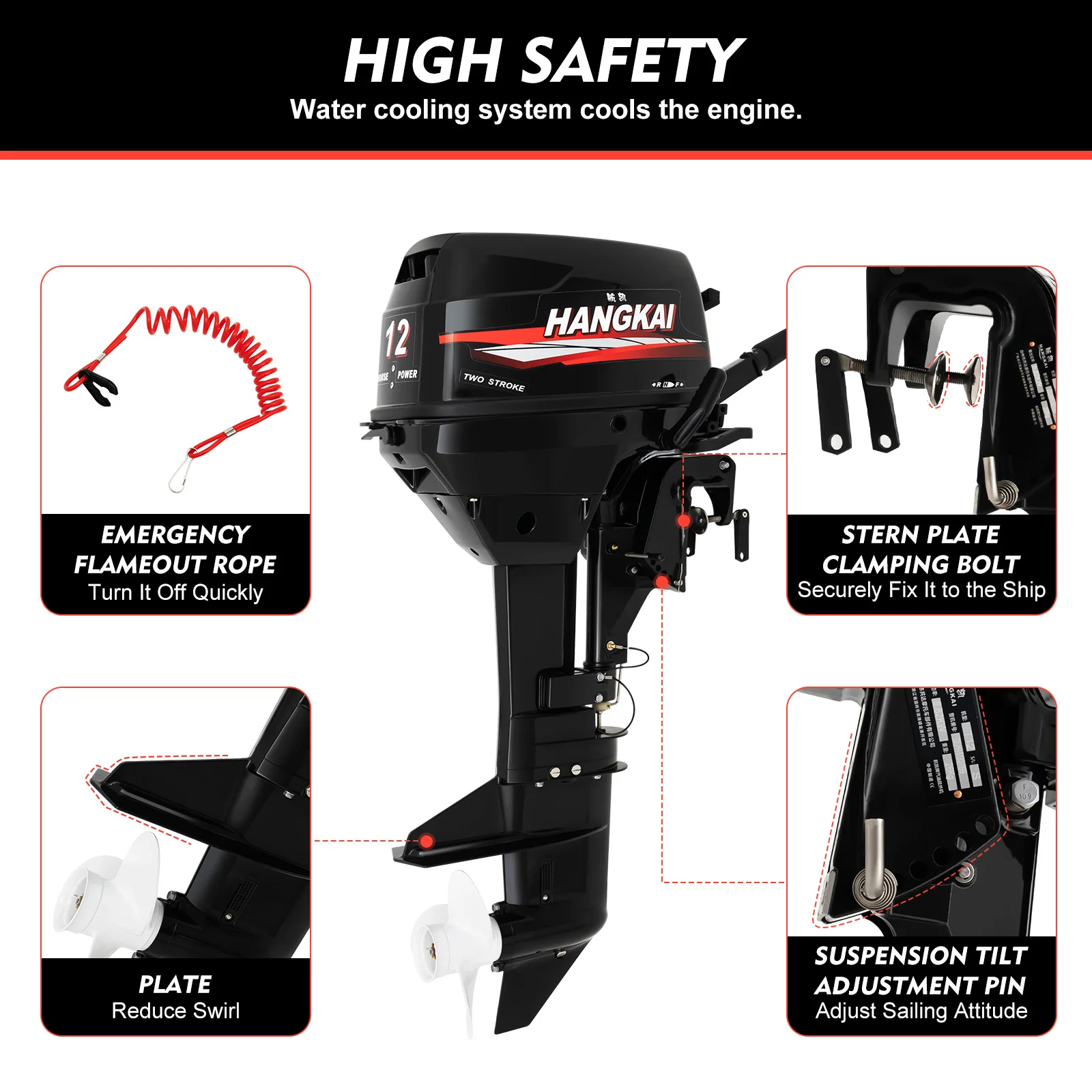

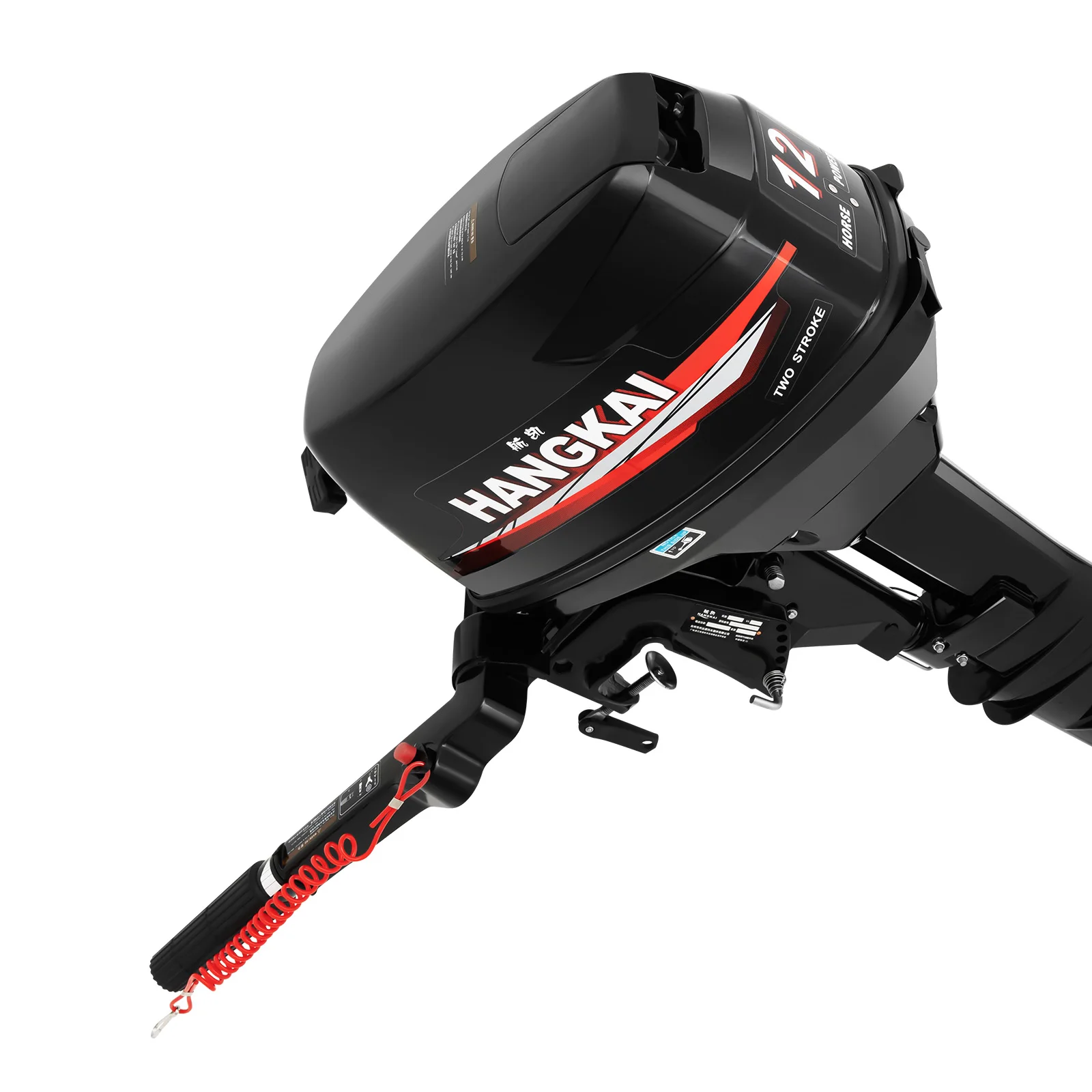

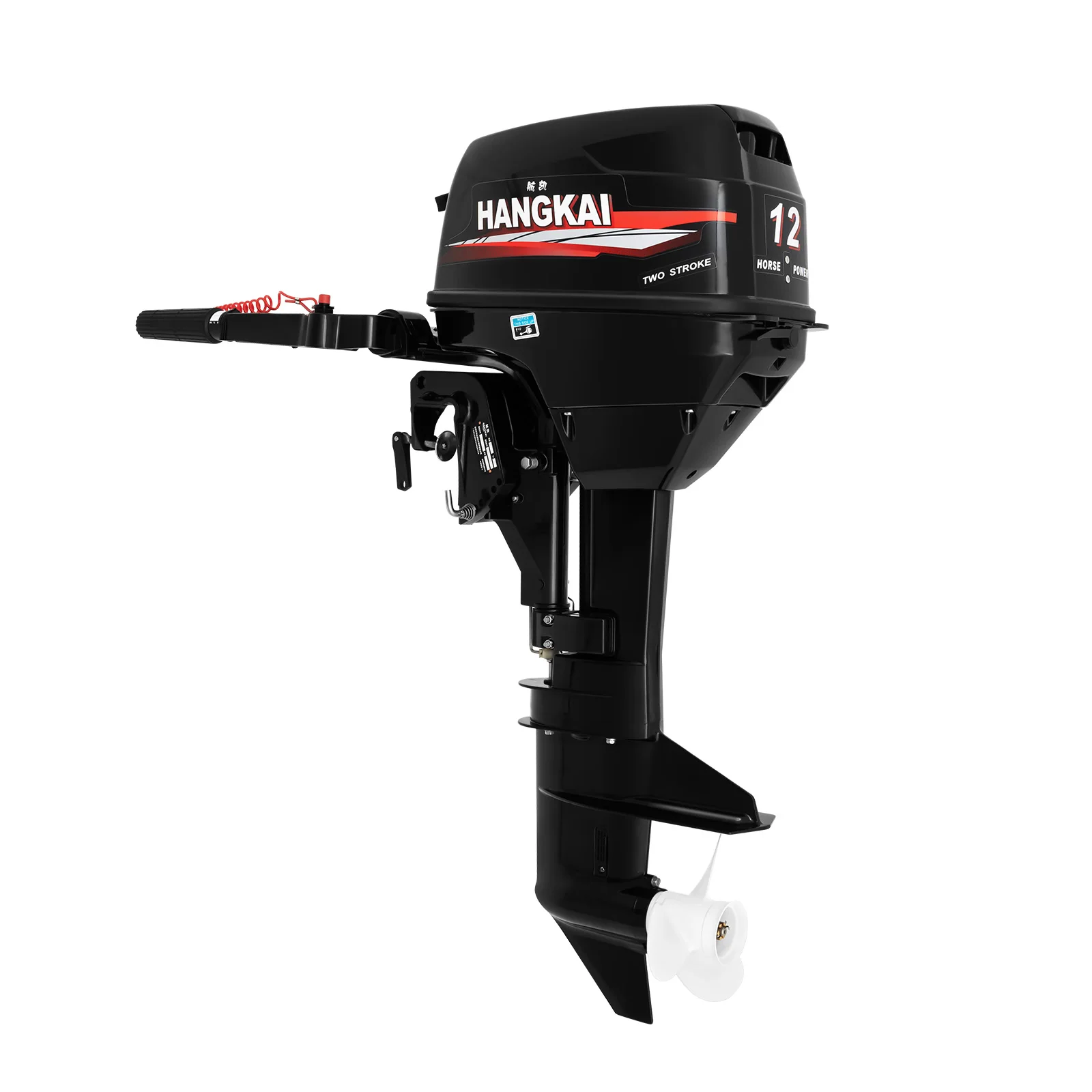

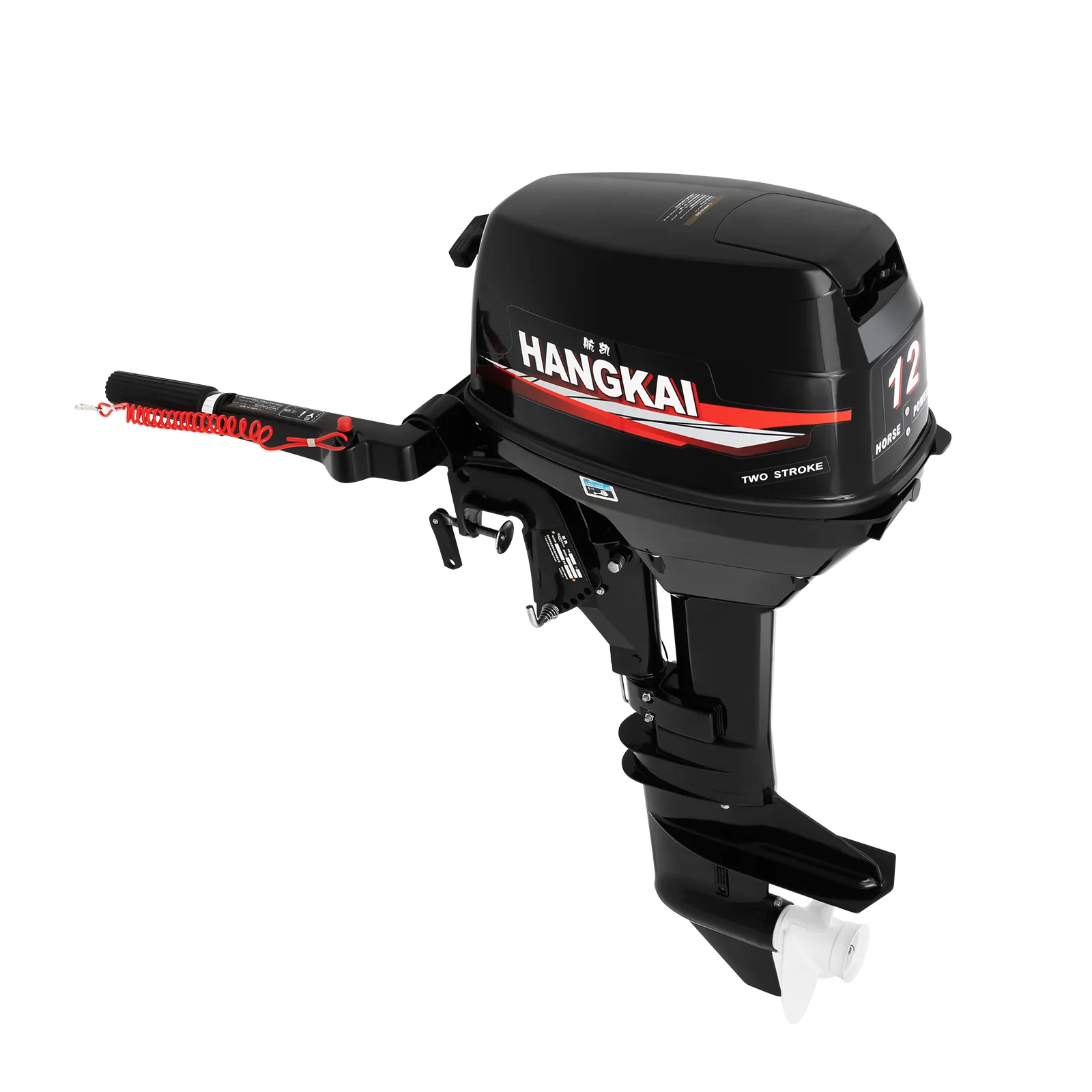

Two-Stroke 12 HP Technical Specifications
Model: 12 HP
Displacement: 169cc
Gear Ratio: 2.08 (27:13) HANGK
Number of Cylinders: 2

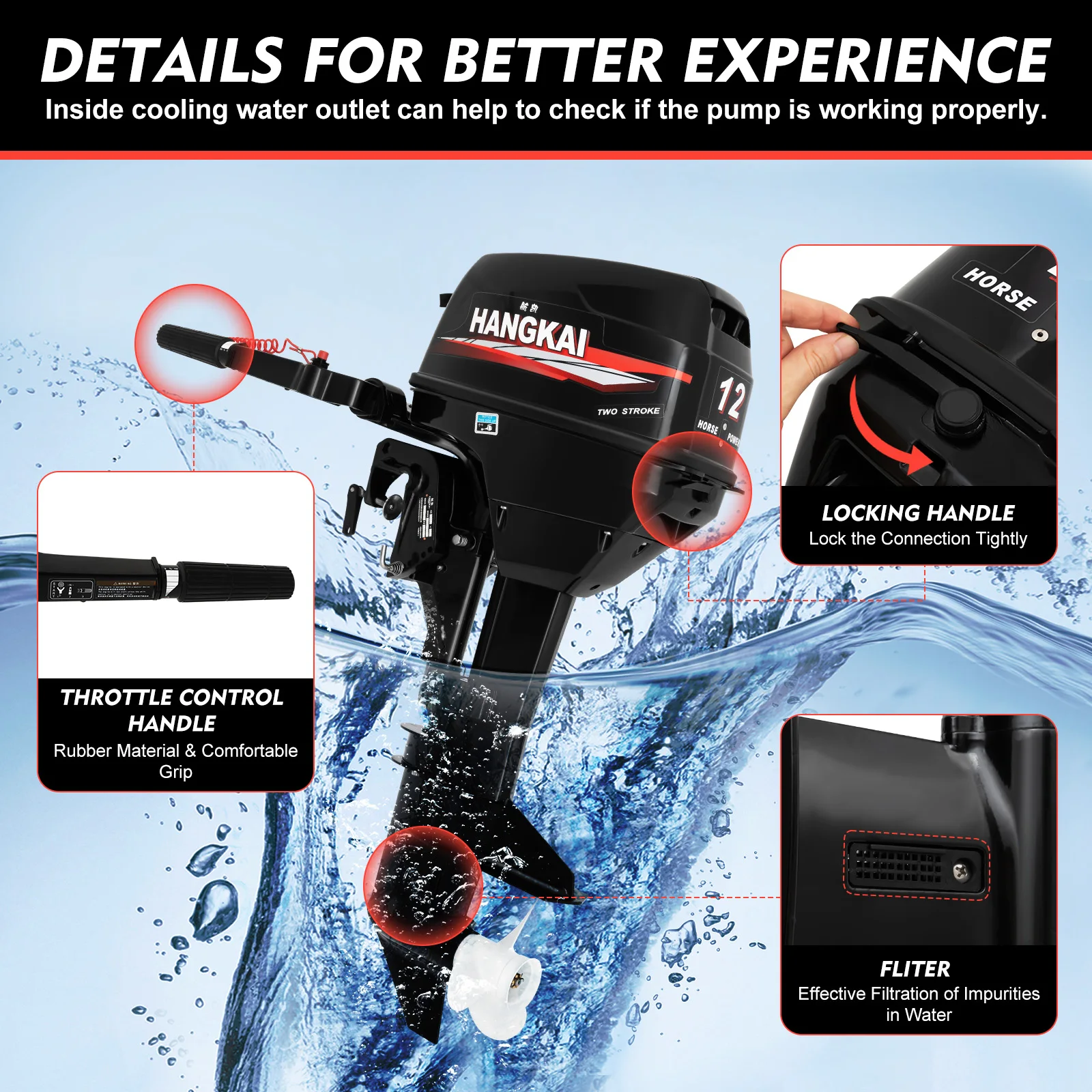

Cooling System: Water-cooled

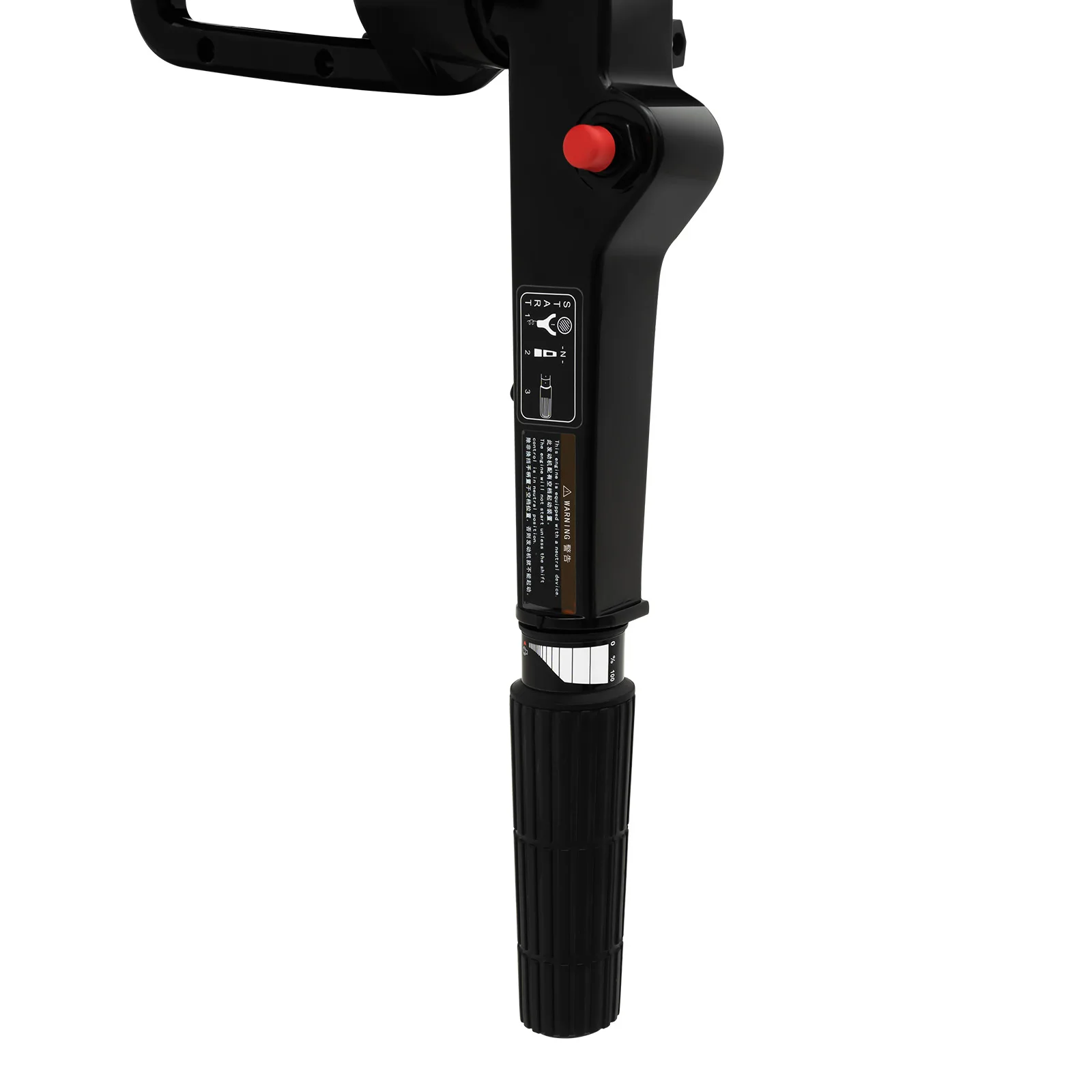

Control System: Tiller Control
RPM: 4500-5500 RPM
Shift Pattern: Forward-Neutral-Reverse
Net/Gross Weight: 27/31 kg
Propeller Specification: 3-9 1/4“ x 8” inches
Standard Fuel Tank Capacity: 24L
Compatible Transom: 440mm
Bore x Stroke: 50 x 43mm
Length x Width x Height: 873 x 332 x 1040mm
Packaging Dimensions: 705 x 375 x 1200mm
Two-Stroke 18 HP Technical Specifications
Model: 18 HP
Displacement: 246cc
Gear Ratio: 2.08 (27:13) HANGKAI
Number of Cylinders: 2
Cooling System: Water-cooled
Control System: Tiller Control
RPM: 4500-5500 RPM
Shift Pattern: Forward-Neutral-Reverse
Net/Gross Weight: 38.6/49.5 kg
Propeller Specifications: 3-91/4“ x 8” inches
Standard Fuel Tank Capacity: 24L
Compatible Transom: 450 mm
Bore x Stroke: 56 x 50 mm
Length x Width x Height: 873 x 332 x 1053 mm
Packaging Dimensions: 710 x 385 x 1330 mm
