The 110V Solar Inverter is a new all-in-one MPPT charge inverter, which integrates solar

energy storage &means charging energy storage and AC sine wave output.

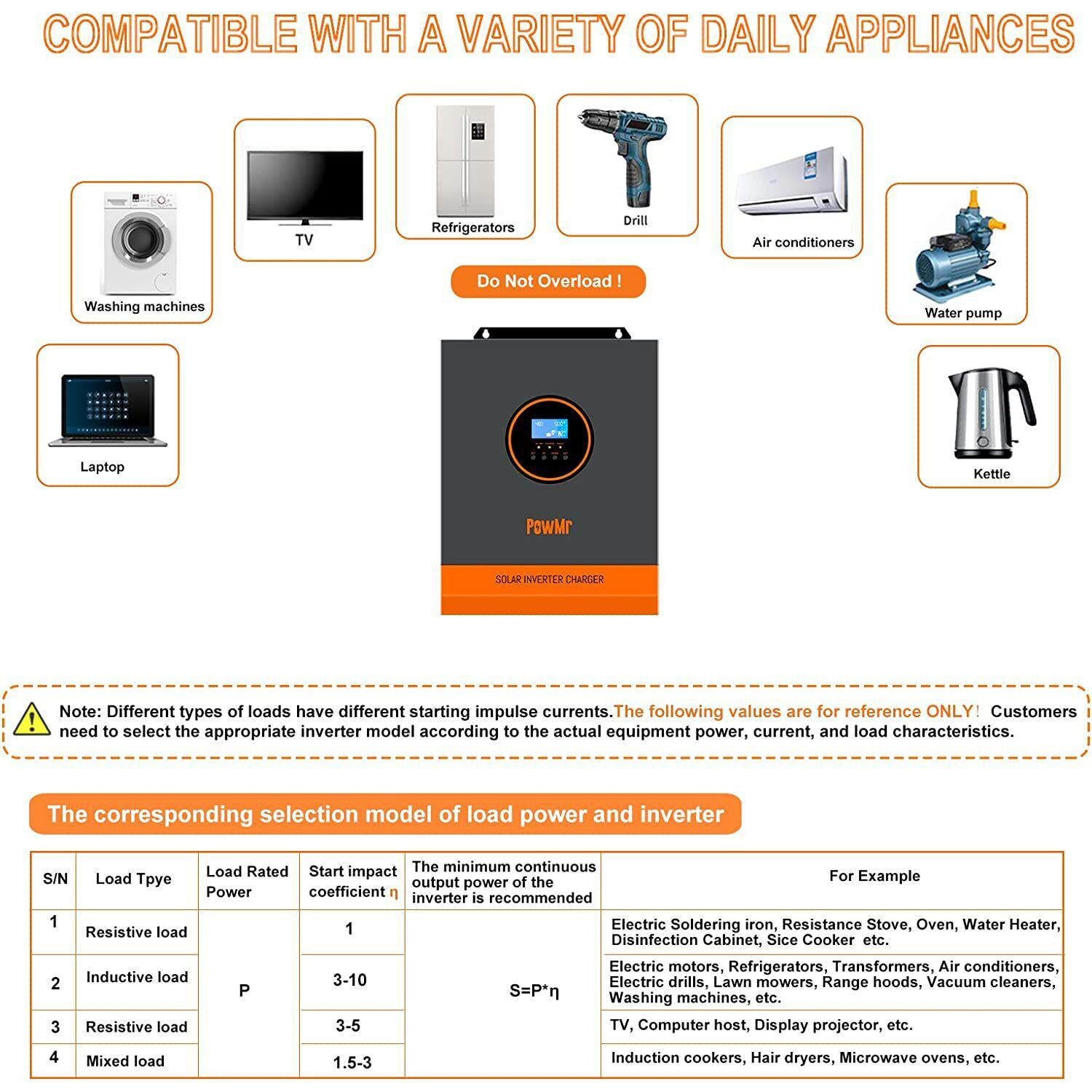

It Can be accessed by a variety of household appliances and office loads, power tools,

industrial equipment, and electronic audio and video equipment, including refrigerators,

lamps, televisions, fans, air conditioning, and other AC loads.

Advantages:

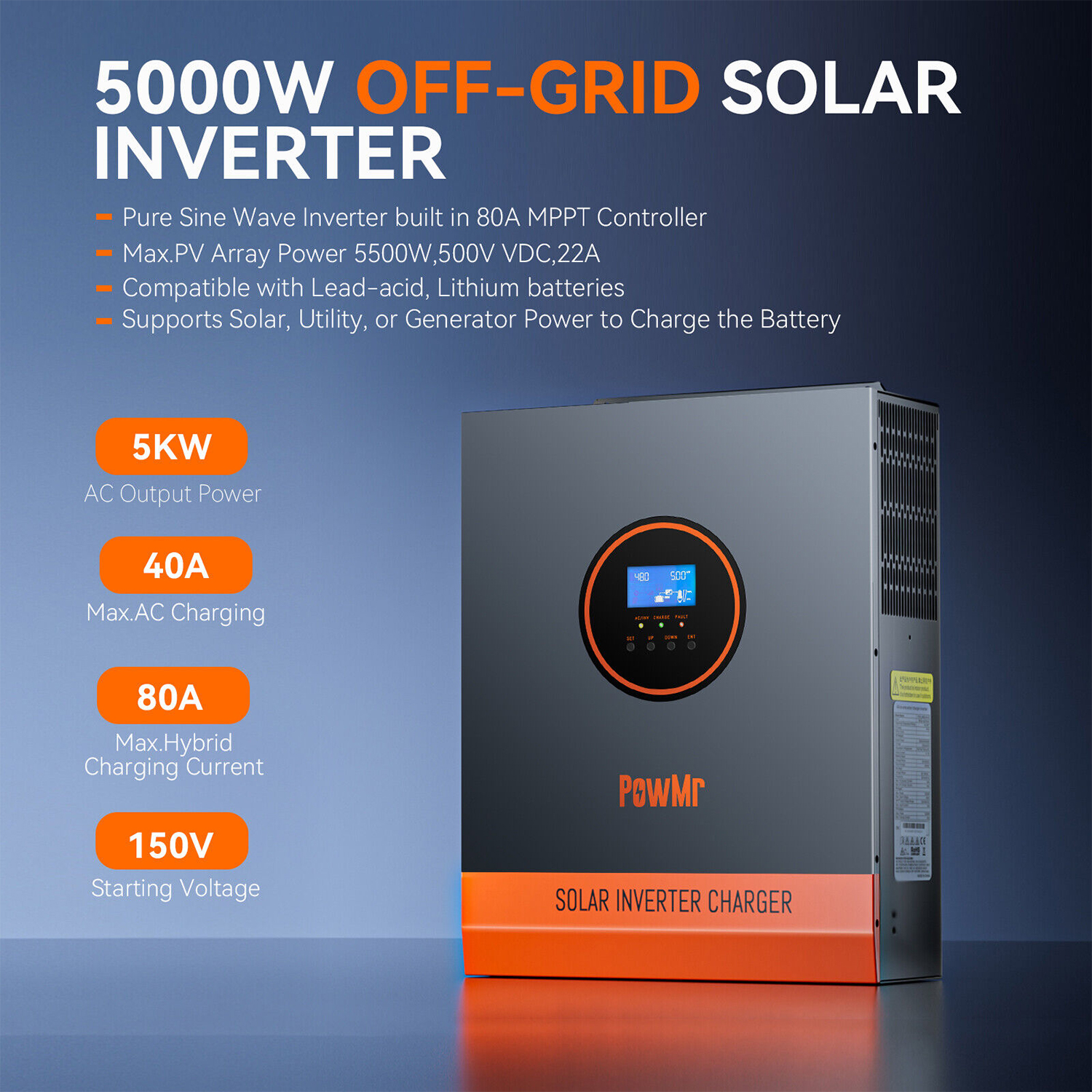

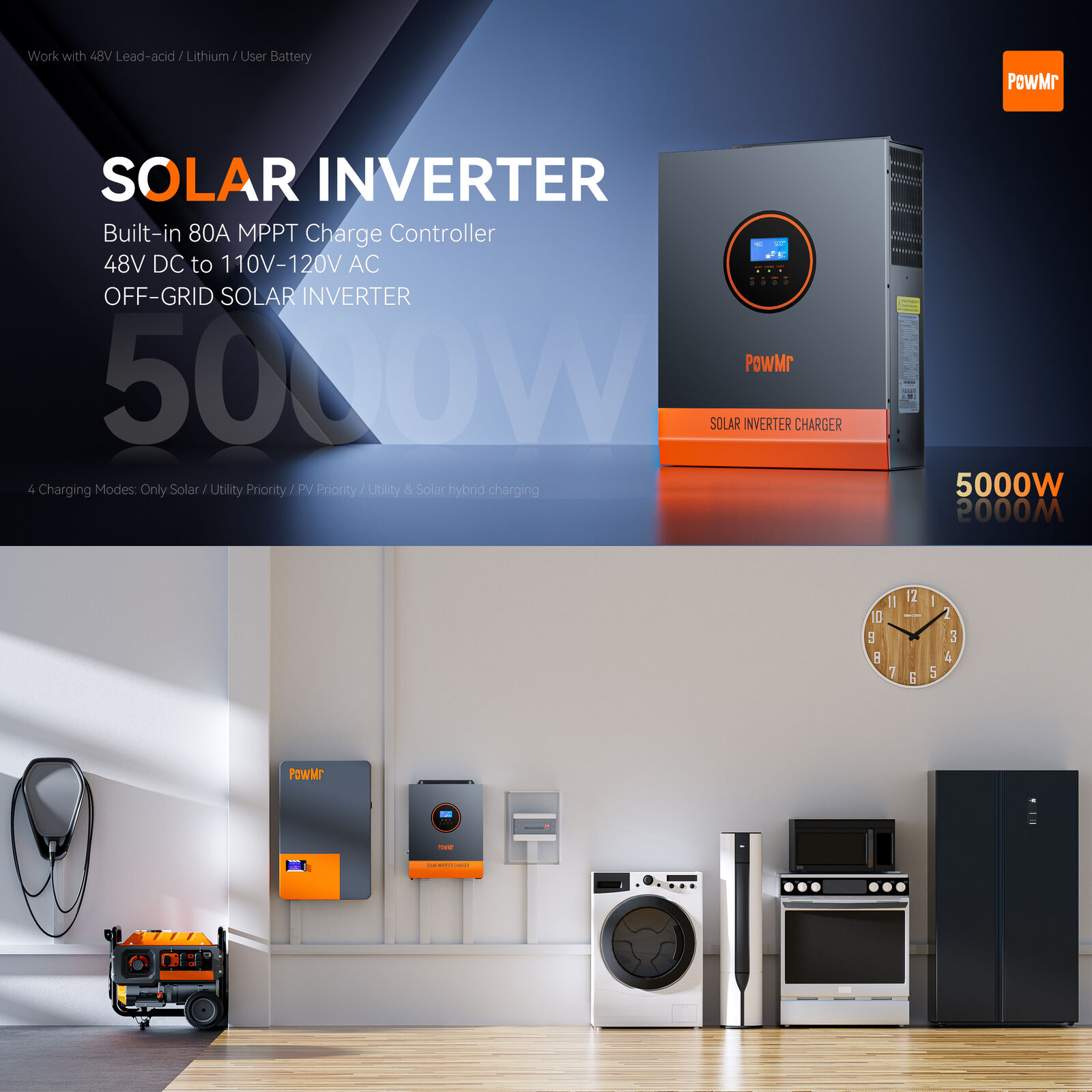

🌞【New Upgrade Solar Hybrid Inverter】5000W pure sine wave inverter 48VDC to 110V/120VAC,

built-in 80A MPPT charge controller. With full digital voltage, current double closed-loop control,

and advanced SPWM technology, the charging efficiency is up to 99.9%. With high safety performance,

it can protect your home circuit!

🌞【Technical Parameters】All in One Solar Hybrid Inverter Max Input Power: 5500W,

Voltage range:120-500Vdc,  Max.Power output: 5500W, max charge current: 80A.

AC input Voltage range: 90-140Vac, Output 100/105/110Vac ±5%.

🌞【LCD Display&Real-Time Monitoring】Solar hybrid inverter has an LCD display that shows

the system data and operation status in real-time. When you encounter a problem during use,

the corresponding fault code will be displayed, which can help you solve the problem easily.

In addition, this inverter has LED indicators, so you can see the operation of the inverter at a

glance, which is very convenient.

🌞【Circuit & Power Security Guard】Hybrid inverter features short-circuit protection,

overload protection, reverse protection, and overvoltage and under voltage protection, which

greatly ensures the safety of your circuit as well as power supply. In addition, the solar hybrid

inverter adopts advanced pure sine wave technology, which can provide high-quality and stable

AC power to your appliances, protect your electronic products or appliances and prolong their

service life.

🌞【Diversifies Uses】48V Inverter with Smart battery charger design for optimized battery

performance; Compatible with mains voltage or generator power; Can be accessed to a variety

of household and office loads.3 output modes can be set: PV priority/utility priority/Inverter

priority meet your different requirement. 4 charging modes support: solar/utility priority/solar

priority/utility hybrid charging.

Characteristic:

⚫ Pure Sine Wave inverter.

⚫ Higher output power up to 5000W.

⚫ 120Vac AC output.

⚫ Supports single-phase devices.

⚫ Fast switching time of 10ms.

⚫ Compatible with 48V lithium-ion and lead-acid battery, support user-define.

⚫ Max. PV charging current up to 80A.

⚫ Max. AC charging current up to 40A.

⚫ Max. hybrid charging current up to 80A.

⚫ 90~140Vac AC input voltage range.

⚫ 120~450Vdc wide voltage range for PV access.

⚫ 1 MPP Tracker, with 99.9% efficiency.

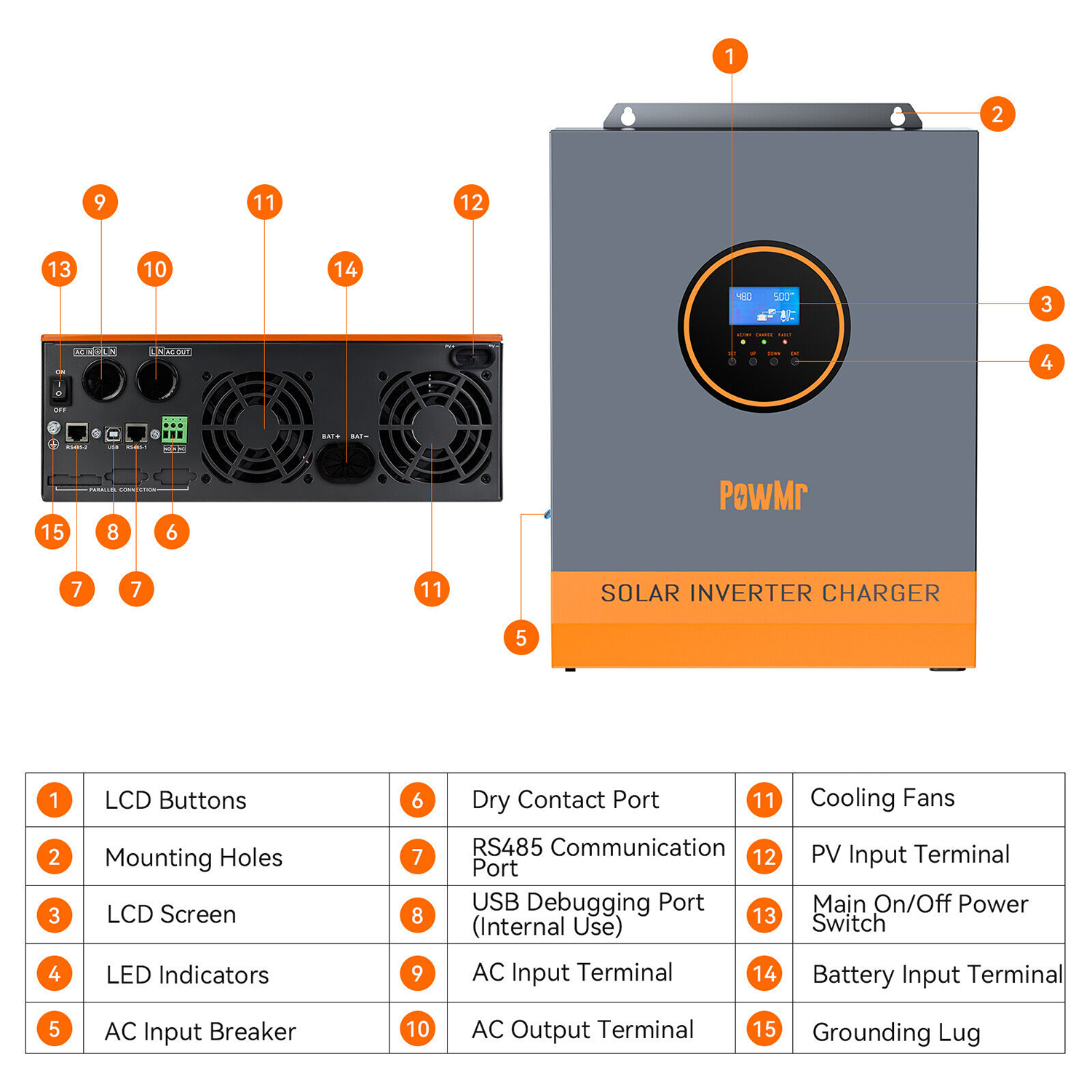

⚫ Configure multiple communication interfaces (USB/RS485(WiFi/GPRS)/Dry node control).

⚫ Durable finish with high anti-corrosion.

⚫ Effective forced air cooling to ensure that the equipment runs stably

Specification:

UTILITY/GRID

Rated input Voltage:110/120Vac

Input voltage range:(90Vac~140Vac) ±2%

Frequency:50Hz/ 60Hz (auto-detect)

Overload / Short circuit Protection:Breaker

Efficiency:>95%

Conversion time (Bypass and reverse):10ms

Max Bypass Current load:63A

INVERTER

Waveform:Pure Sine Wave

Rated Output (VA):5000

Rated Output (W):5000

Power factor:1

Output AC Voltage:120Vac(100/105/110Vac Settable)

Unstable Input Error:±5%

Efficiency:>90%

Peak power:10000VA

Motor Capability:4HP

Output Short-circuit Protection:Breaker

Rated Battery Voltage:48V (minimum start-up voltage 44V)

Battery voltage range:40.0Vdc~60Vdc ± 0.6Vdc

Power Saving Mode Self-Consumption:≤50W

UTILITY/GRID CHARGING

Battery type:Lead Acid or Lithium

Maximum Charging Current (AC):40A

Unstable Condition Error:± 5Adc

Charging Voltage Range:40 –60Vdc

Short-circuit protection:Breakers and blown fuses

Circuit Breaker Specifications:63A

Overcharge Protection:Yes; Automatically alerts and then turns off

charging after1 minute

SOALR (PV) CHARGING

Recommended PV Max:500Vdc

PV Operating Voltage:120-500Vdc

MPPT Voltage Range:120-450Vdc

Battery Charging Range:40-60Vdc

Maximum Input Power:5500W

Maximum Input Current:80A

PV Charging Current Range:0-80A

Short-circuit Protection:Internal Fuse

Wiring Protection:Reverse Polarity

GENERAL

Certifications:CE(IEC62109)/CETL(UL 1741 C22.2 NO.107.1) /FCC/SAA

Operating Temperature:5°F ~ 131°F/ -15°C ~ 55°C

Storage Temperature:-13°F ~ 140°F / -25°C ~ 60°C

Humidity:5% to 95% (three-layer paint protection)

Noise:≤60dB

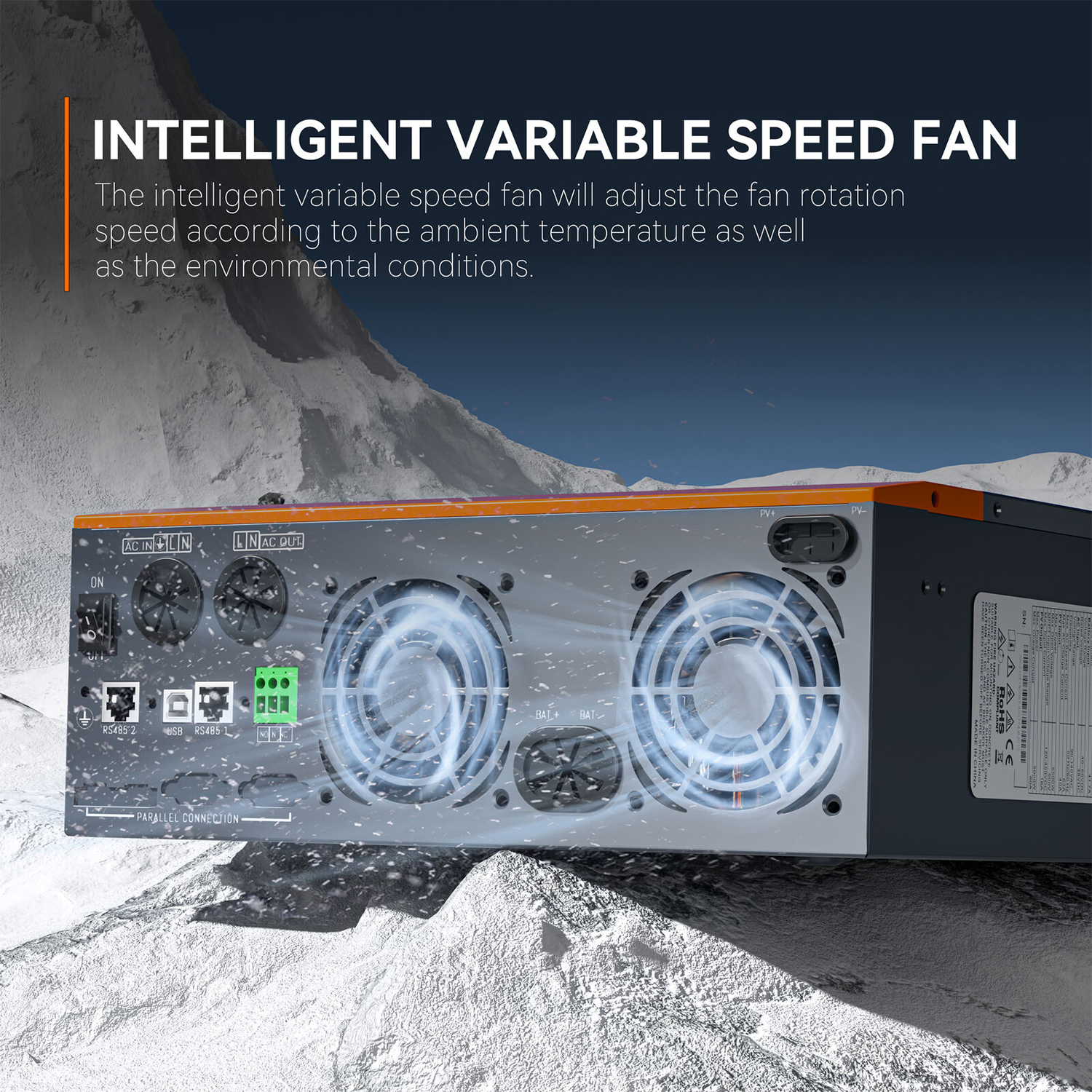

Cooling:Fans, Forced cooling with adjustable air speed

IP Grade:IP 20

Communication interface:USB/RS485 (WiFi/GPRS)/dry node control

Dimensions (L-W-D):426*322*126 mm

Weight:25.6 lbs /11.6kg

Four Battery Charging Mode：

CSO: Solar energy will charge the battery as a priority. The utility will charge the battery only

when solar energy is not available.

CUB: Utility will charge the battery as a priority. Solar energy will charge the battery only when

utility power is not available.

SNU (Default): Solar energy and utility will charge the battery at the same time.

OSO: Solar energy will be the only charging source even if utility is available.

Three-Load Working Mode:

SOL: Solar energy provides power to the loads as a priority, then Battery, then Utility AC power.

UTI(Default): Utility will provide power to the loads as a priority, then Solar and Battery power.

SBU: Battery power load first, then Utility.

NOTE :

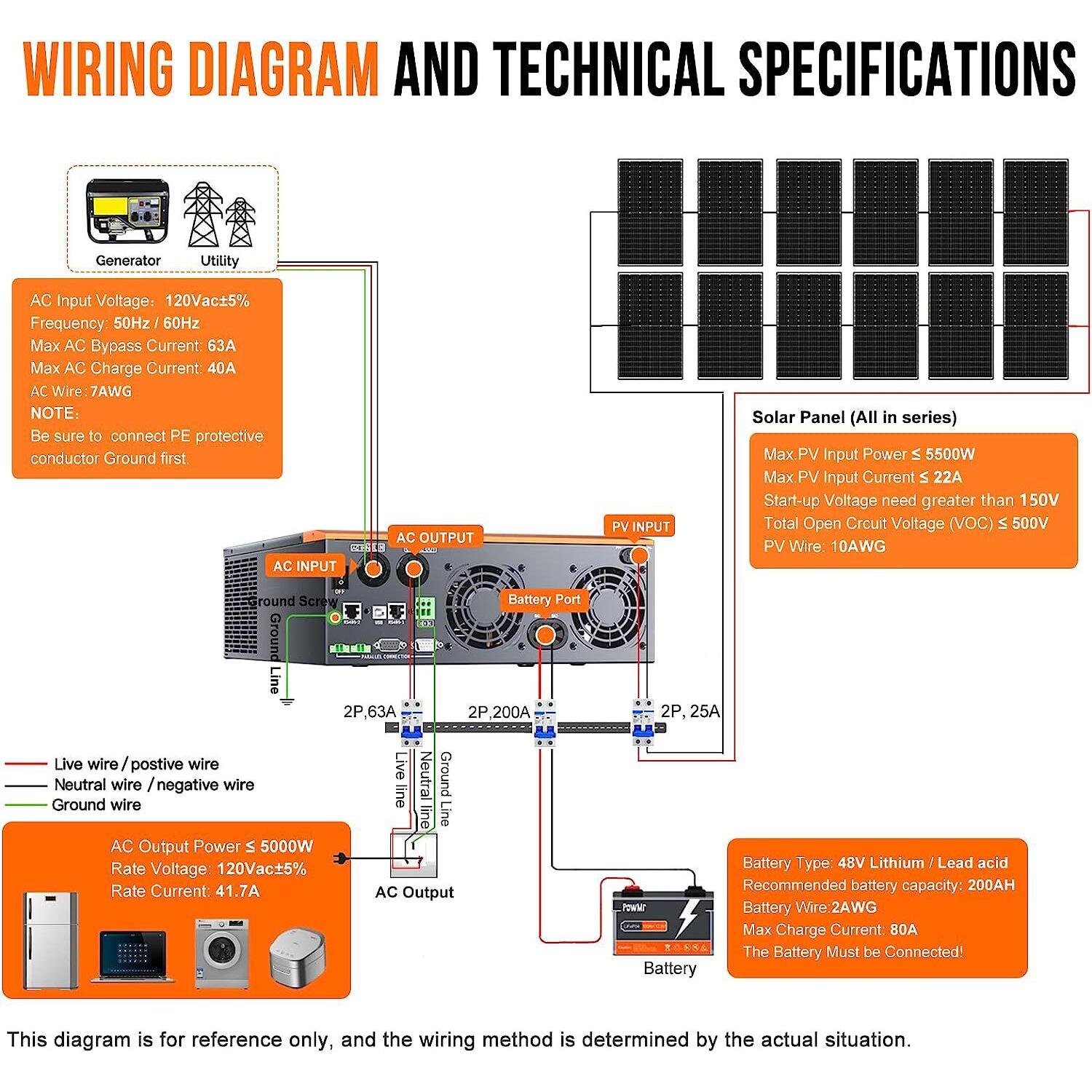

This is a wide-voltage Hybrid inverter, The voltage that starts to connect to the solar panel must

be above 120V for the Hybrid inverter to work normally.

（This means you can connect solar panels in series, saving you the cost of buying wires）

Setting item voltage value: [12]<[04]<[14]

Warning:

1.Never install the all-in-one solar charge inverter and lead-acid battery in the same confined space!

Also do not install in a confined place where battery gas may collect.

2.Ensure that there is enough air flowing through the heat sink, and space of at least 200m to the

left and right air outlets of the inverter shall be left to ensure natural convection heat dissipation.

3.This 5000W Solar Inverter is suitable for 48V battery bank systems ONLY！

4.For PV to charge 48V battery banks, you will need a minimum PV Voc voltage of 120VDC.

5.Setting item voltage value: [12]<[04]<[14]

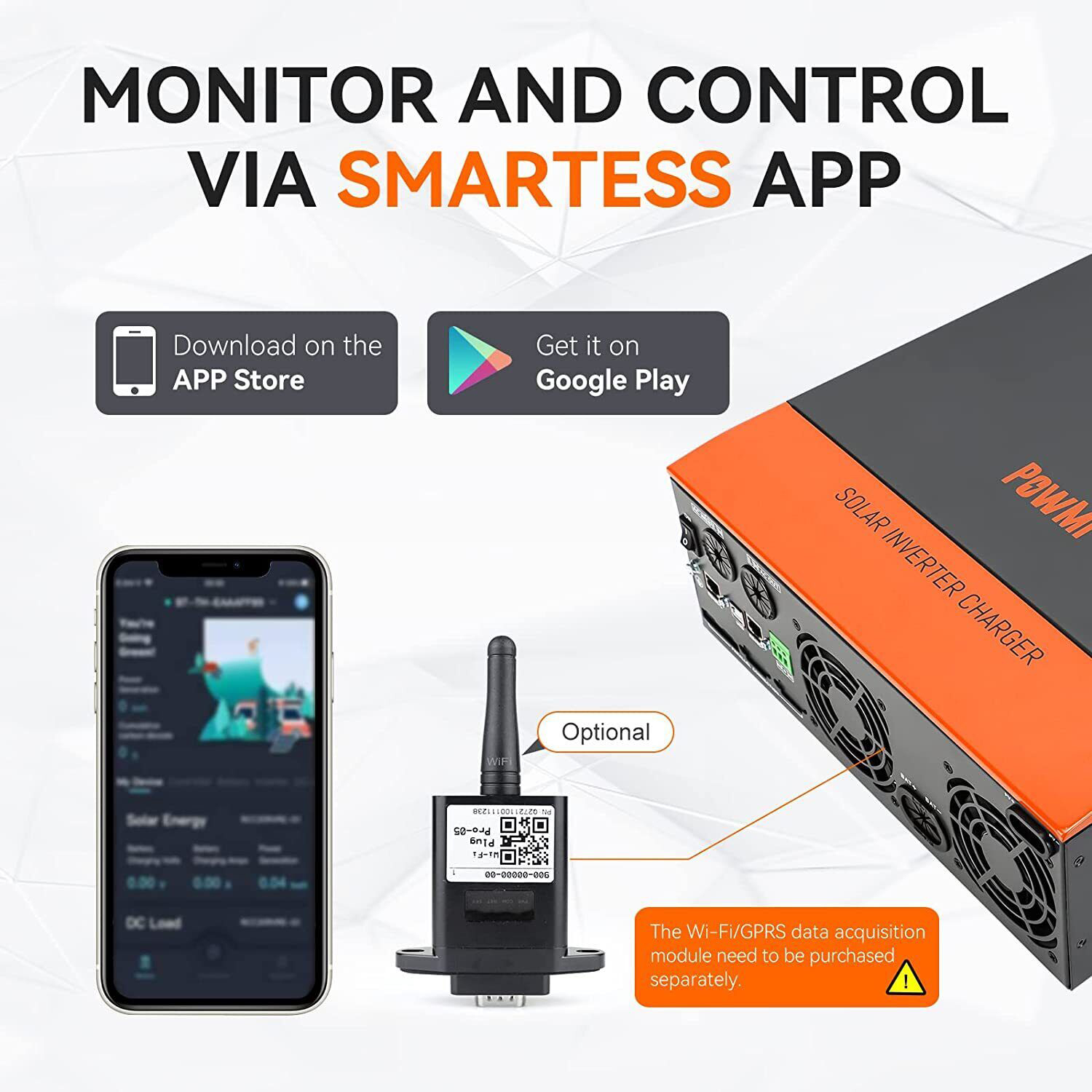

6.The Bluetooth module has been discontinued, and the wifi module needs to be purchased separately!

7.Does not support parallel.

Package includes:

Solar inverter*1

English user manual*1

Warranty card*1

Screw nail*4
