Type：KT-15A Controller(Square wave/Sine wave)

◆Controller Brand :KT (KUNTENG)

◆Size: 82 * 53 * 32 mm

◆Weight:200g

◆Cable length :all about 10-13cm

◆Mosfets:6 mosfets

◆Maximum current:15±1A

◆Rated voltage:DC36V/48V

◆Speed set:1-4.2V

◆Rated current:7A

◆Brake input :Low-Level

◆Low voltage protection:DC30/40±0.5V

◆Wave:Square wave/Sine wave

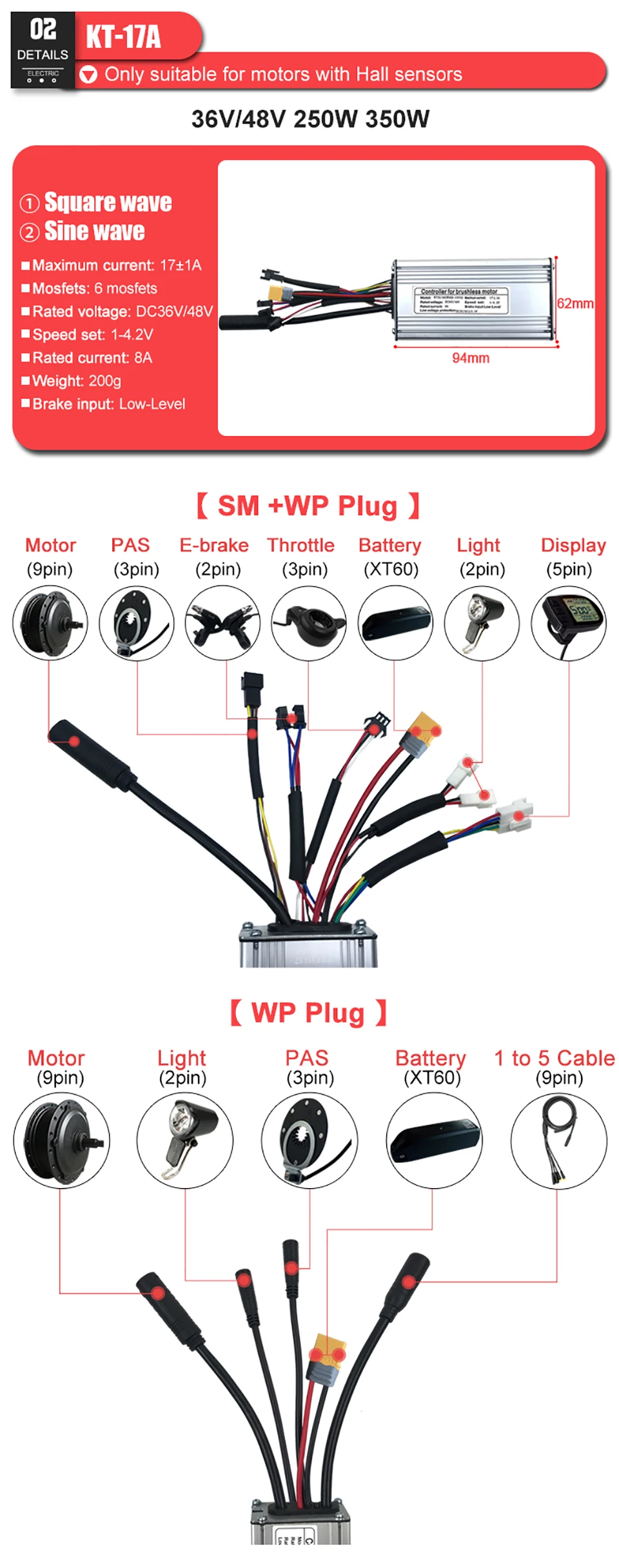

Type：KT-17A Controller(Square wave/Sine wave)

◆Controller Brand :KT (KUNTENG)

◆Controller dimension :about 94 * 62 * 35 mm

◆weight:250g

◆cable length :all about 10-13cm

◆Mosfets :Big6 better mosfets

◆Maximum current:17±1A

◆Rated voltage:DC36V/48V

◆Speed set:1-4.2V

◆Rated current:8A

◆Brake input :Low-Level

◆Low voltage protection:DC30/40±0.5VDC30/40±0.5V

◆Wave:Square wave/Sine wave

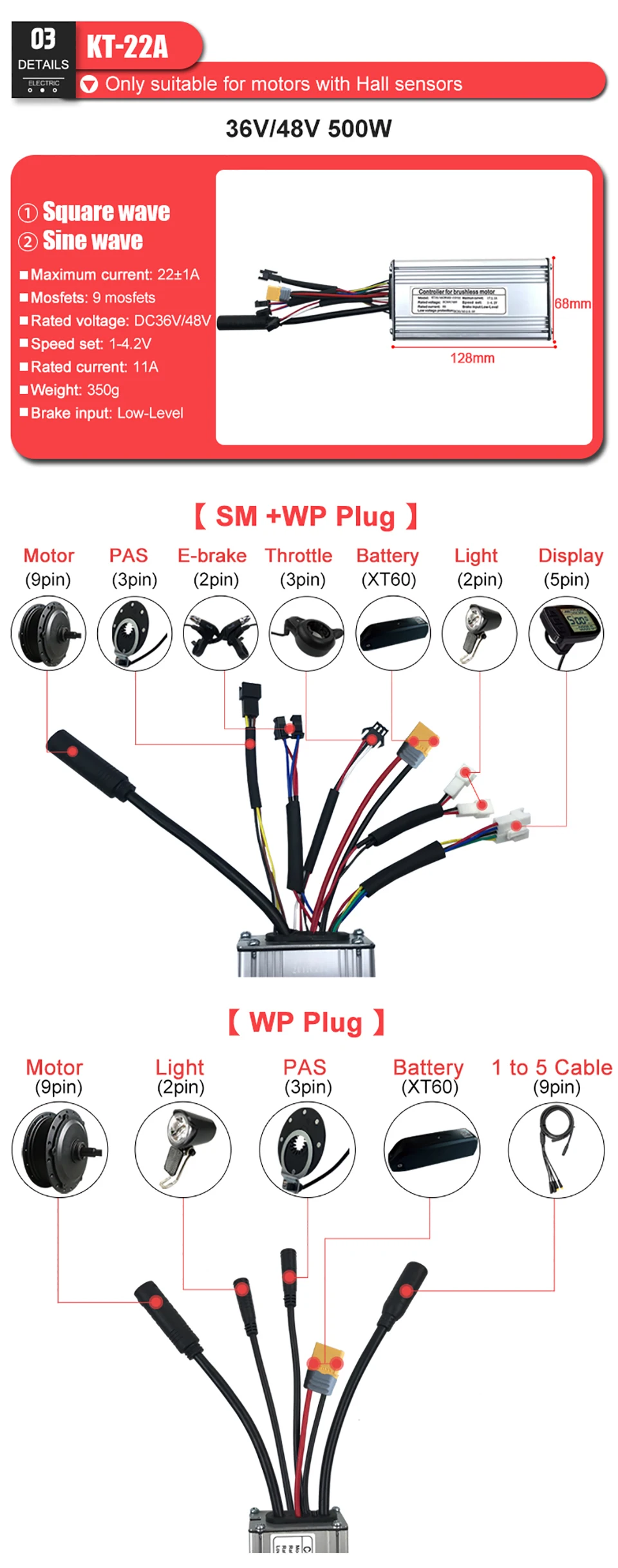

Type：KT-22A Controller(Square wave/Sine wave)

◆Brand :KT（KUNTENG）

◆Color :Silver

◆Dimension :about 128 * 68 * 38 mm

◆Mosfet :9  Mosfets

◆Maximum current :22±1A

◆Rated current :11A

◆Rated voltage :DC36V/48V

◆Speed set :1-4.2V

◆Brake input :Low-Level

◆Low voltage protection :DC30/40±0.5V

◆Cable Length :all about 13-18cm

◆Weight:450g

◆Wave:Square wave/Sine wave


Type：KT-25A Controller(Square wave/Sine wave)

Brand :KT（KUNTENG）

Color :Silver

Dimension :about 128 * 68 * 38 mm

Mosfet :9  Mosfets

Maximum current :25±1A

Rated current :11A

Rated voltage :DC36V/48V

Speed set :1-4.2V

Brake input :Low-Level

Low voltage protection :DC30/40±0.5V

Cable Length :all about 13-18cm

Weight:450g

Wave:Square wave/Sine wave

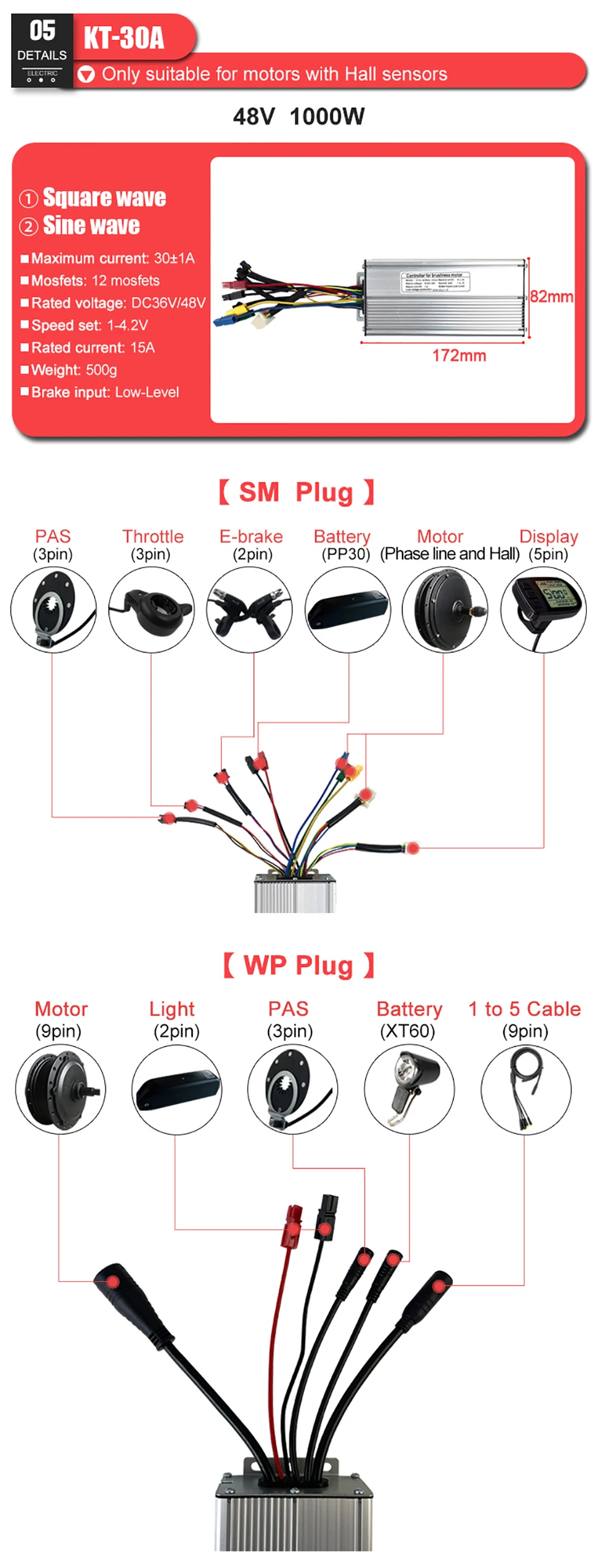

Type：KT-30A Controller(Square wave/Sine wave)

◆Brand :KT（KUNTENG）

◆Color :Silver

◆Dimension :about 170 * 88 * 43 mm

◆Mosfet :12 Mosfets

◆Maximum current :30±1A

◆Rated current :17A

◆Rated voltage :DC36V/48V

◆Speed set :1-4.2V

◆Brake input :Low-Level

◆Low voltage protection :DC30/40±0.5V

◆Cable Length :all about 13-18cm

◆Weight:about 650g

◆Wave:Square wave/Sine wave

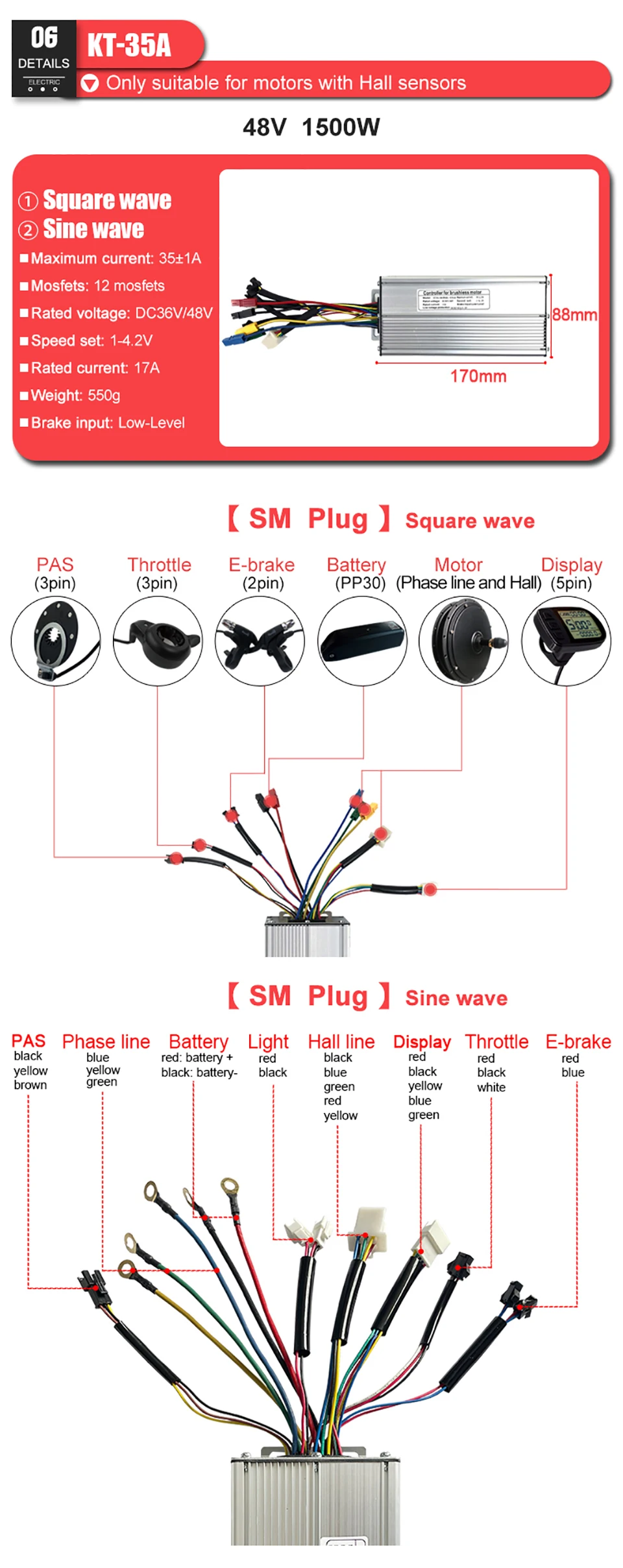

Type：KT-35A Controller(Square wave)

◆Brand :KT（KUNTENG）

◆Color :Silver

◆Dimension :about 170 * 88 * 43 mm

◆Mosfet :12 Mosfets

◆Maximum current :35±1A

◆Rated current :17A

◆Rated voltage :DC36V/48V

◆Speed set :1-4.2V

◆Brake input :Low-Level

◆Low voltage protection :DC30/40±0.5V

◆Cable Length :all about 13-18cm

◆Weight:about 650g

◆Wave:Square wave

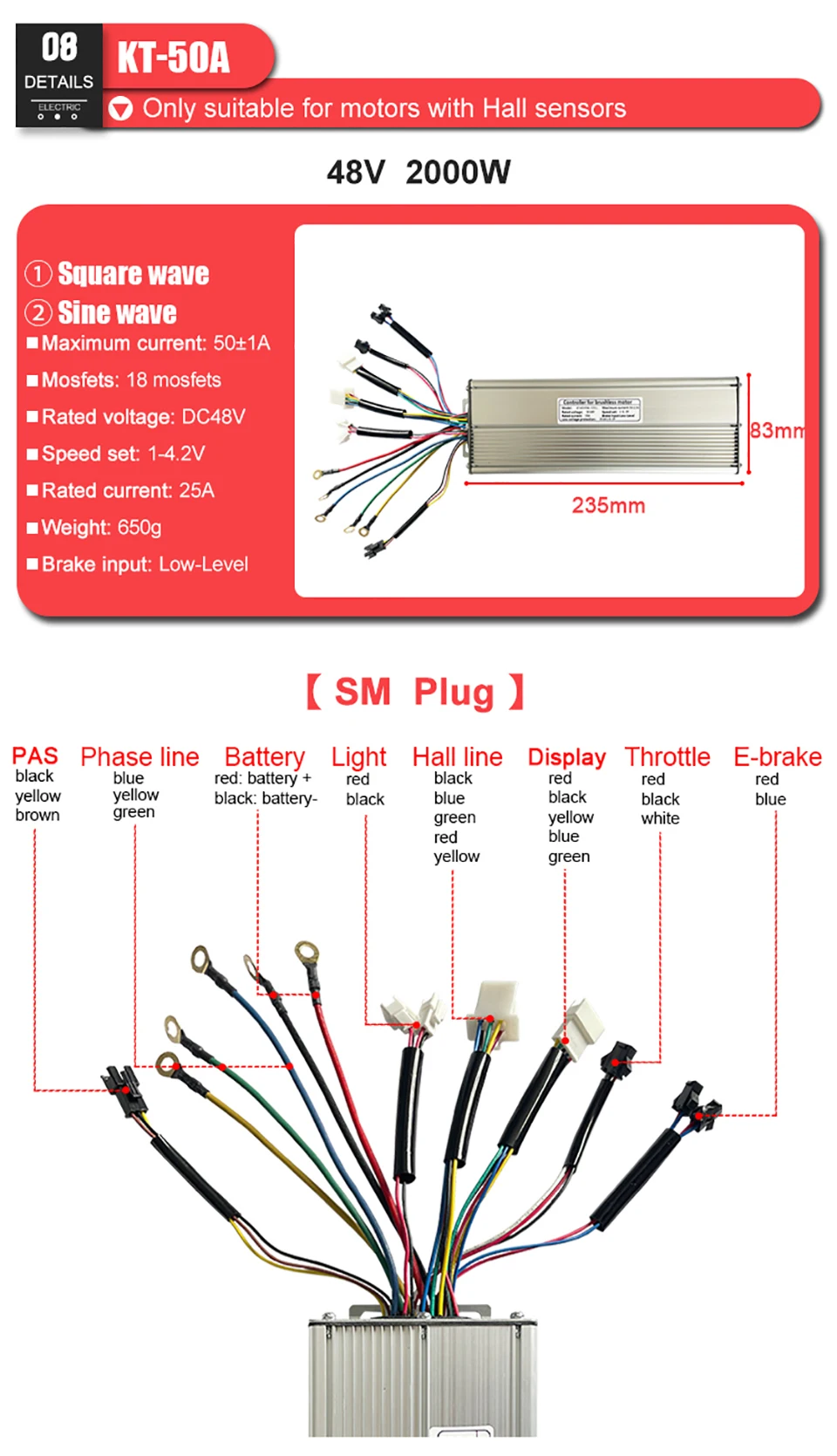

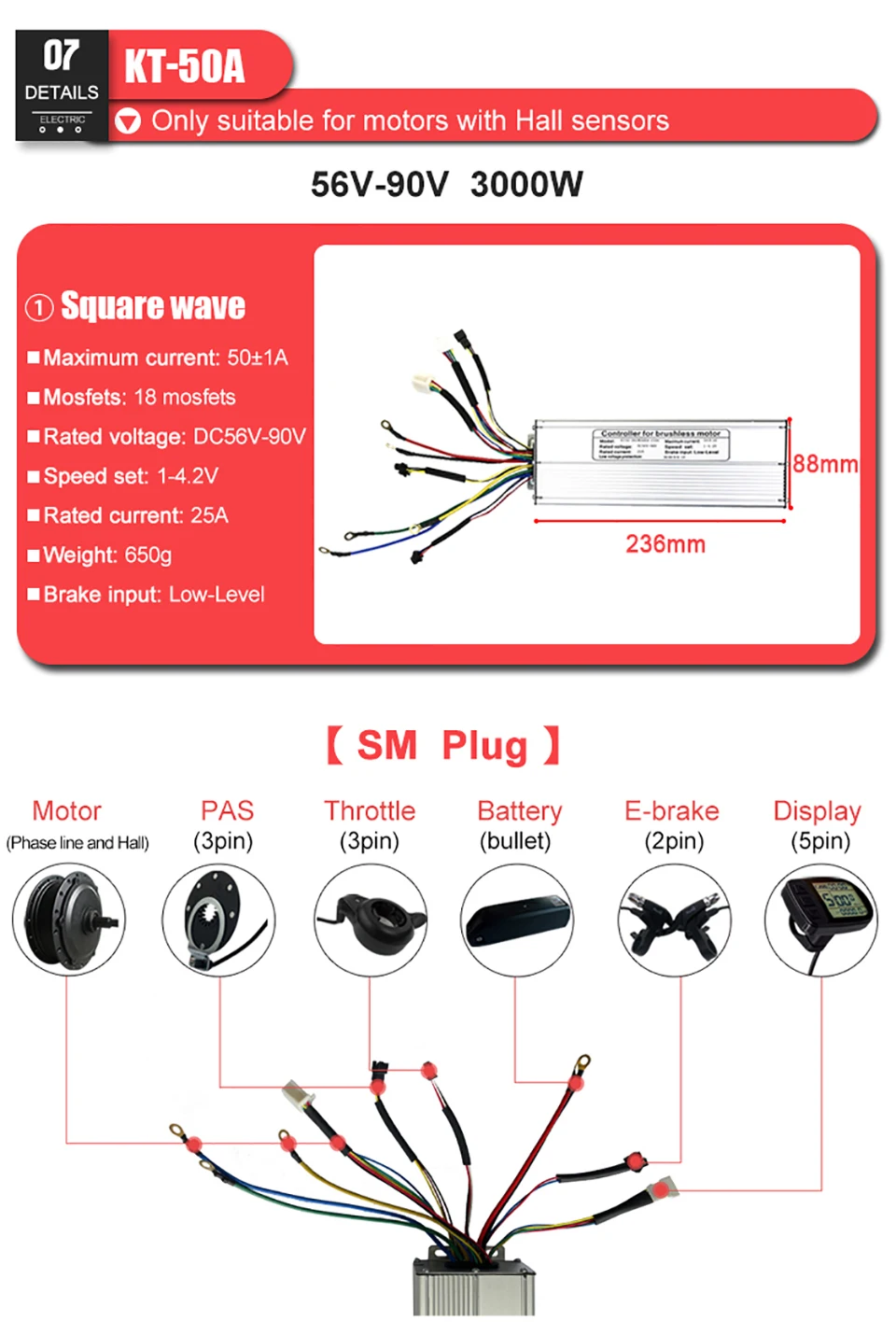

Type：KT-50A Controller(Square wave)

◆Brand :KT（KUNTENG）

◆Color :Silver

◆Dimension :about about 236 * 88 * 42 mm mm

◆Mosfet :18 Mosfets

◆Maximum current :50±2A

◆Rated current :25A

◆Rated voltage :DC36V/48V

◆Speed set :1-4.2V

◆Brake input :Low-Level

◆Low voltage protection :DC56±0.5V

◆Cable Length :all about 13-18cm

◆Weight:about 872g

◆Wave:Square wave
