Arduino Steuerung für 2 Schritt- oder 4 DC-Motoren Motor Driver Shield L293D
L293D is a monolithic integrated, high voltage, high current, 4-channel driver.Basically this means using this chip you can use DC motors and power supplies of up to 36 Volts, thats some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also what’s known as a type of H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.

- 2 interface for 5V Servo connected to the high-resolution dedicated timer - no jitter!

- Can drive 4 DC motors or 2 stepper motors or 2 Servo

- Up to 4 bi-directional DC motors with individual 8-bit speed selection

- Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.

- 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC

- Pull down resistors keep motors disabled during power-up

- reset button

- 2 external terminal power interface, for seperate logic/motor supplies

- Tested compatible for Mega, Diecimila & Duemilanove








Package Included:

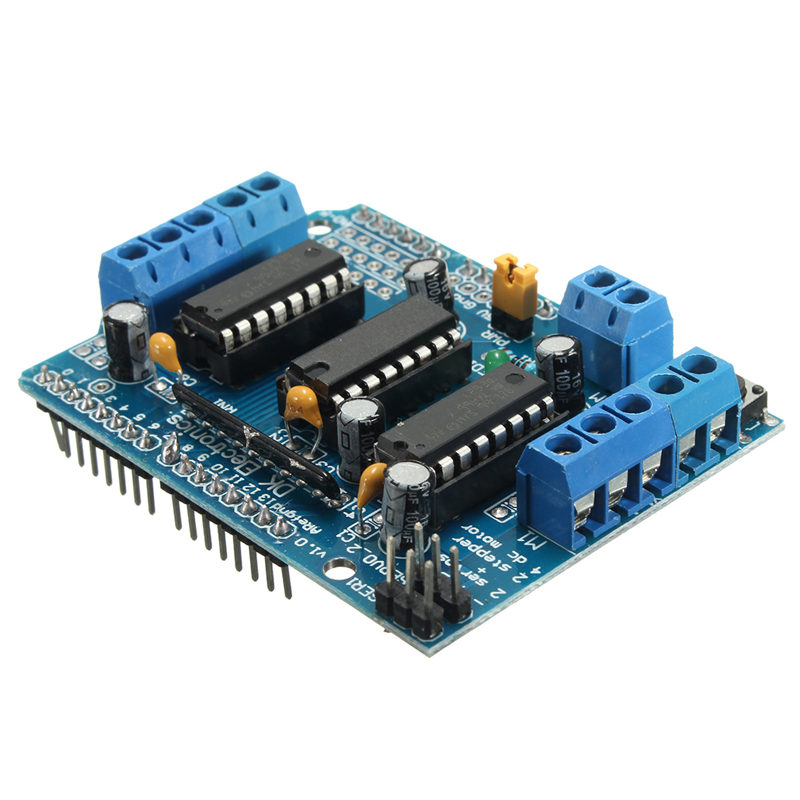

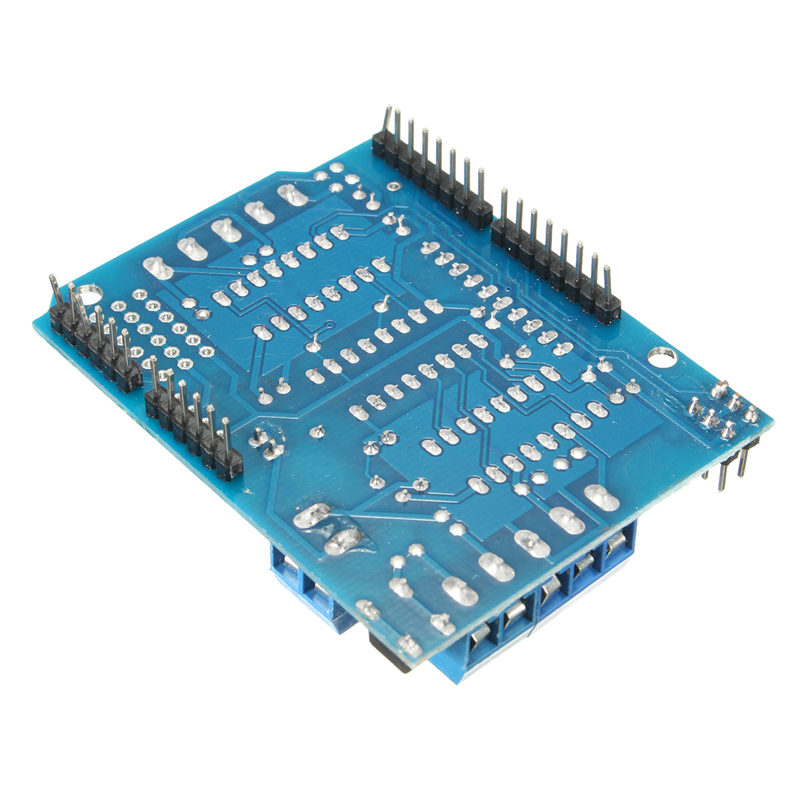

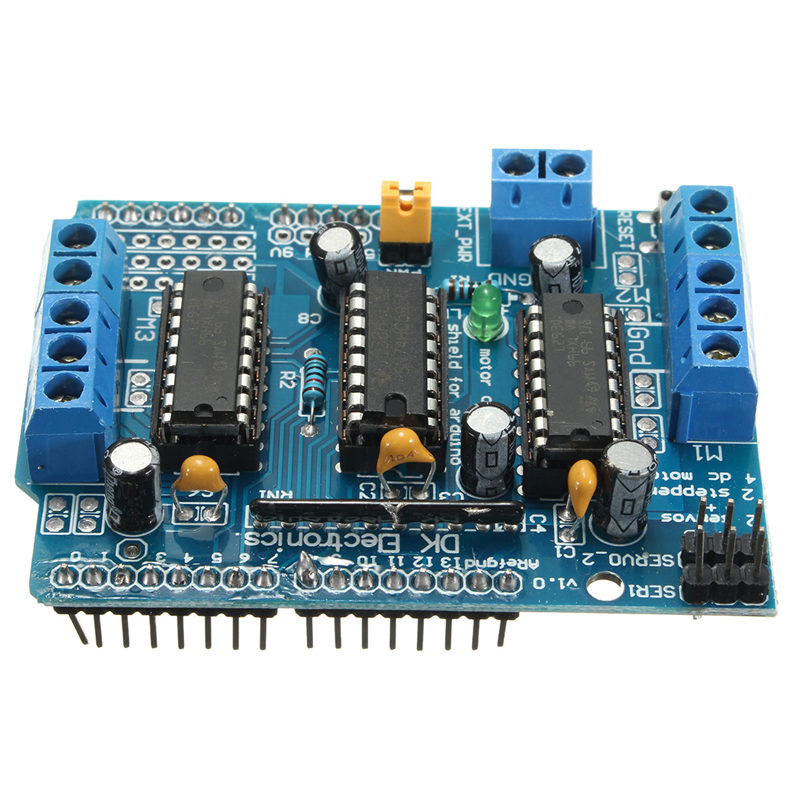

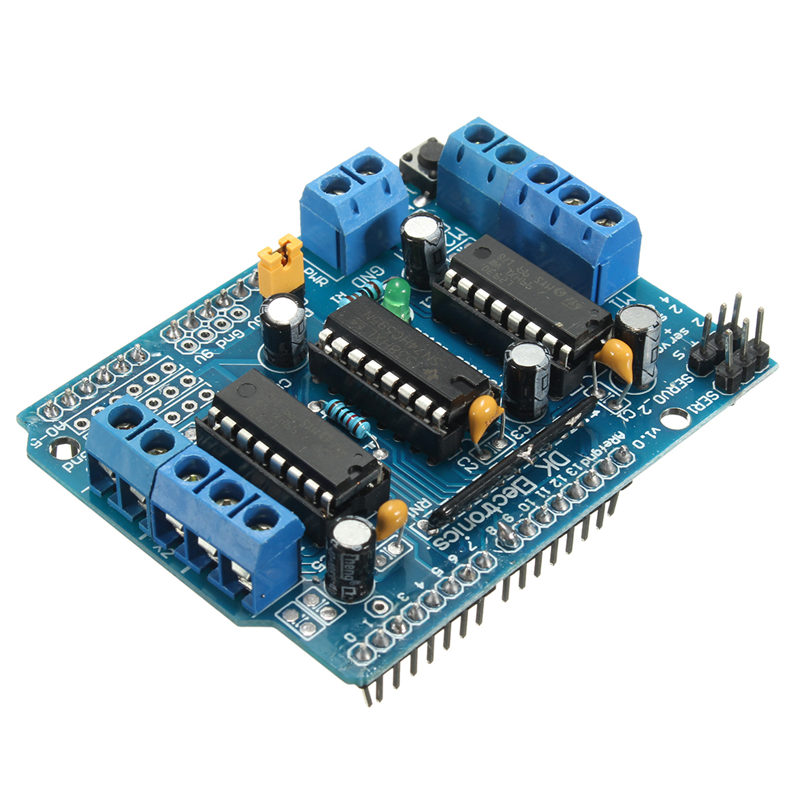

1pcs Motor Drive Expansion Shield Board Module L293D For Arduino Duemilanove Mega UNO
  • All package need to wait 30 days(US only need 7-10 days),Please take care it.Less than 30 days,we can't take a refund.
  • If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please keep in touch with us and double check the return address before you return it.
  • If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item.
  • We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you keep in touch with us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
  • We accept PayPal only. But we only Accept your Ebay Address,Please Make sure it's 100% right.
  • Payment must be received in 5 business days of auction closing.
  • Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order.
  • Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched.
