Super Mini PTZ IP Camera HD 5MP Dome Outdoor Waterproof CCTV Security PTZ Cameras 4X Optical Zoom Lens IR 20M P2P

This unit is 802.3af POE. This unit can also be used with a 12VDC2A power source as well.

***Power Adapter Not Included***

***Default username: admin, Password:

***Default IP Address: DHCP

Product overview：

5.0MP Low illumination CMOS,4X optical zoom；
Resolution: 5MP: 2592*1944, 15fps
Support protocol work with On-vif, XM
Support lightning protection, anti surge;

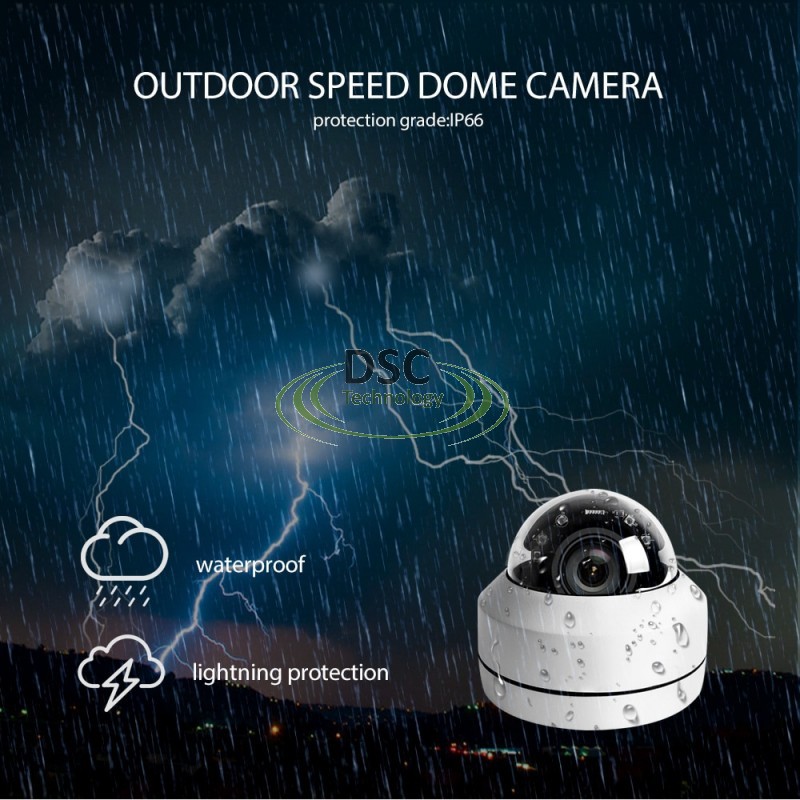

Outdoor speed dome camera protection grade:IP66;
Support Chinese and English IE interface and have operation tips function, user interface friendly；

Feature:

Adopt 4pcs infrared light, Effective exposure distance up to 40m

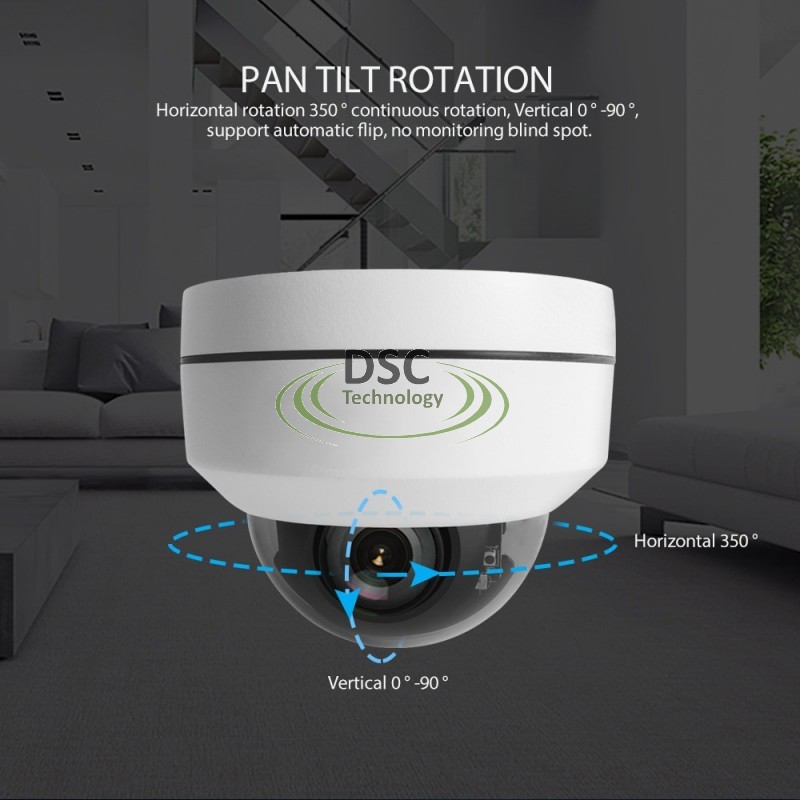

Horizontal rotation 350 ° continuous rotation, Vertical 0 ° -90 °, support automatic flip, no monitoring blind spot.
Pan speed max 25°/s, tilt speed max 20°/s
Pan speed 0°/s～25°/s, tilt speed 0°/s～20°/s,
Support 16 preset;1 patrols;1 patterns; support AB scan;
Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity
Support Mobile Phone APP View: Xmeye Pro or ICSEE
Support PoE function, Standard IEEE802.3af/at

(Power Adapter NOT INCLUDED, Sold Separately)

Specifications:

Model	HD46F-5MP-P
Resolution	5MP:2592*1944, 15fps
Low illumination	color:0.2Lux @ F1.2;black-white 0.01Lux @ F1.2
Signal / scan system	PAL/NTSC; Progressive
Electronic shutter	Auto/manual（1/5-1/50000 ）
Day-night mode	Auto ICR

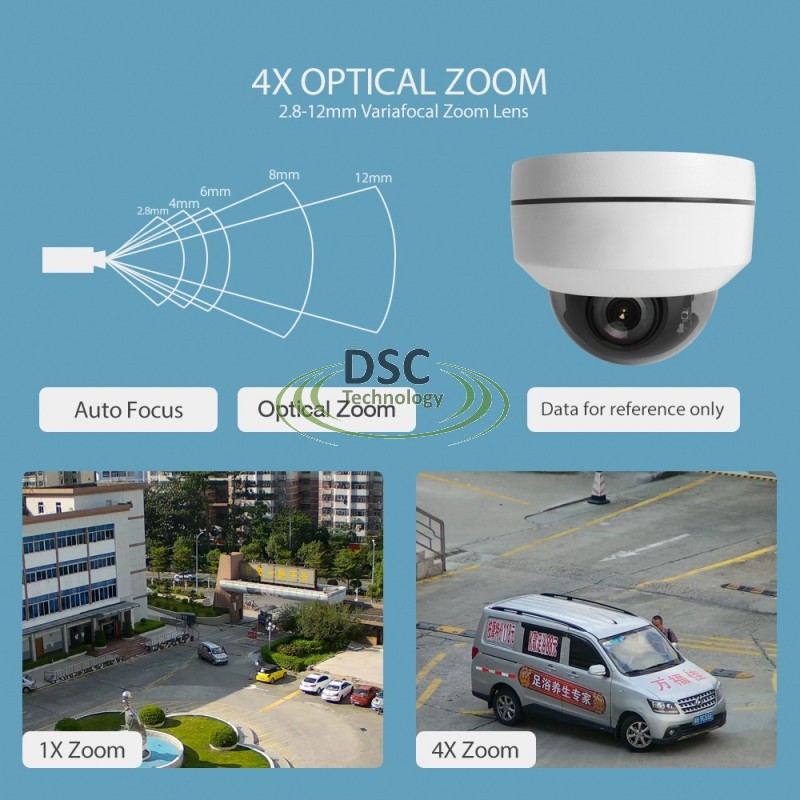

Optical zoom	2.8-12mm;4X Optical Zoom
Pan angel	89.9°-26.2°
IR distance	40M
Pan speed	Horizontal rotation 350 ° continuous rotation，0°～25°/S
Tilt speed	0-20°/S
Tilt range	0°-90°
Proportional zoom	Support, change the speed based on the zoom
Preset	16
Patrol	1
Pattern scan	1
A.B scan	Support
Park function	Support, preset, cruise, pattern scan, two-point line sweep, horizontal automatic
Max image size	2592*1944
Output bit rate	32Kbps-16Mbps
Video compression	H.265/H.264/MJPEG
Network protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP, RTSP, PPPoE, SMTP,NTP, UPnP
Interface protocol	On-vif ,xm protocol
Network interface	Built-in RJ45 network interface, support 10M/100M IP DATA
PTZ control protocol	Pelco-d, Pelco-p
Power consumption	DC 12V2A,10W(max)
Support 48V POE Function	YES
Working tem and hum	-30℃～+60℃,≤90%RH(no frostless)
Protection grade	TVS3000V lightning protection, surge protection and voltage
Protection grade	Transient protection, weather proof (for outdoor): IP66
Package Weight(kg)	0.7
Size(D×H)(mm)	110*95

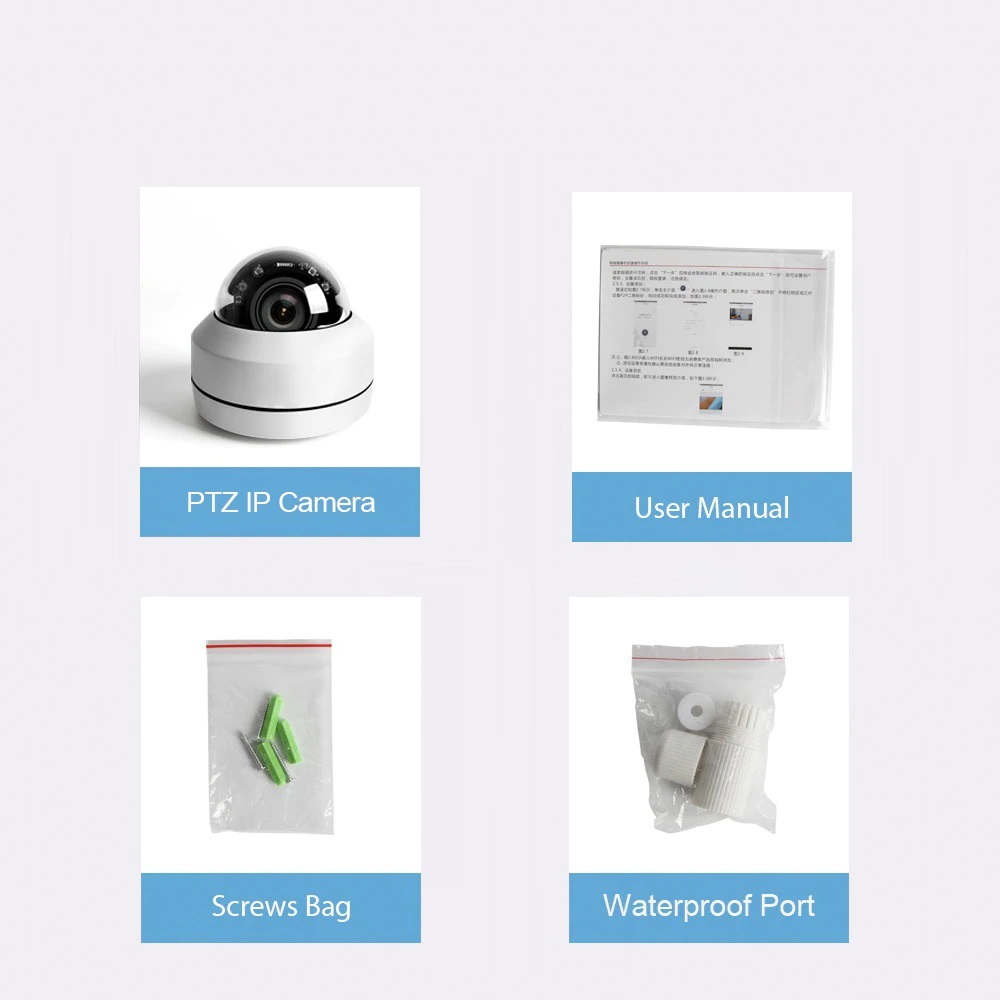

Packing List:
