Feature:
1. The most prominent feature is that the monitor supports for GH4, for A7S FS7, other 4K cameras with both interface and the output format of 4K resolution UHD 3840*2160p(29.97/25/23.98).
2. High brightness, contrast, high resolution, with portable frame and sunshade, the monitor can be visible under the sunshine. At the back of the monitor there is a built-in F970 battery plate for fixing various batteries.
3. Wider Viewing Angle: The monitor uses a 7" IPS LCD screen, which provides a wide 178°/178°viewing angle and brightness output of up to 400nit. So you will be able to see accurate, consistent and bright images from any point of view.
4. IPS: Wide color LCD panel and 1280 * 800 resolution ensure the monitor more precise color restoration exquisite picture quality and more rich color.

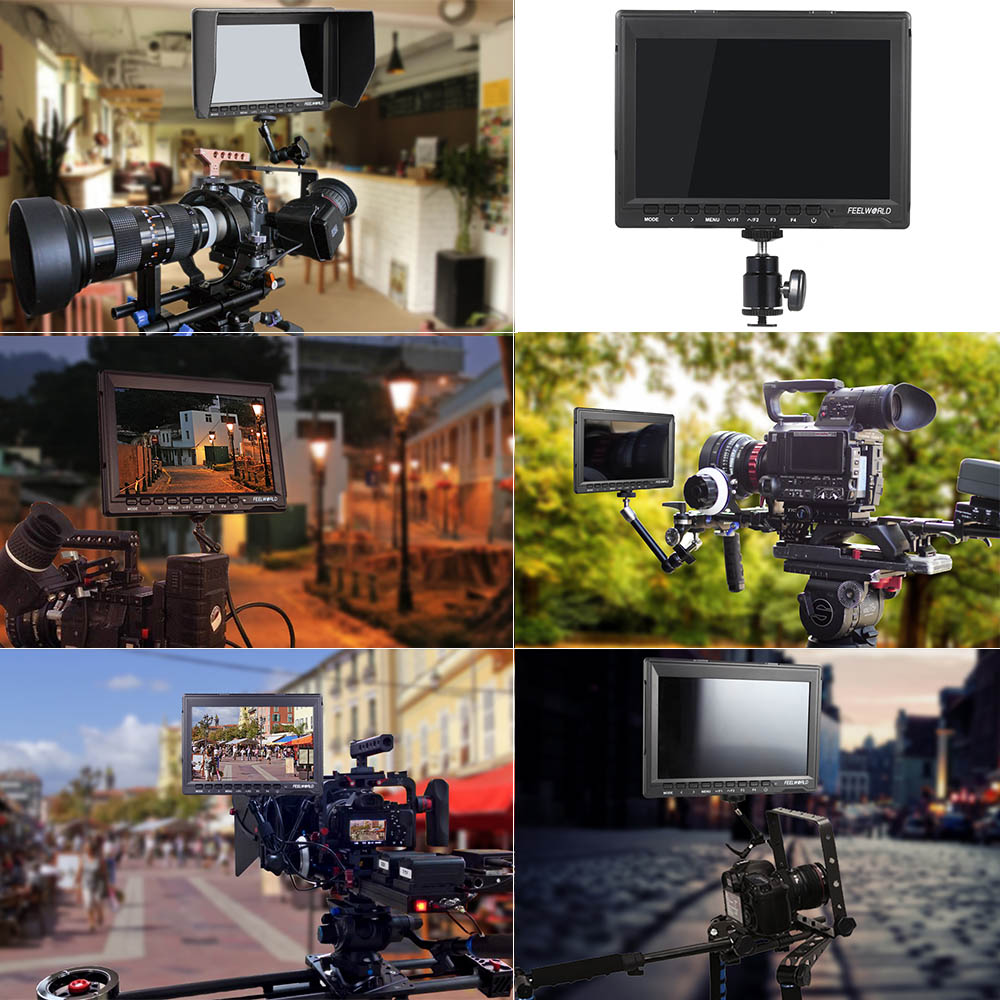

5. Slim, Lightweight Design: Specially designed to merge portability, and functionality, 17mm slim design, compatible for Steadycam, DSLR rig, camcorder kit, handheld stabilizer, video camera crane.
6. Support a Wide Range of Signal Inputs: The FW74K multiple input options include and AV, and support most DSLRs and camcorders.
Specification:

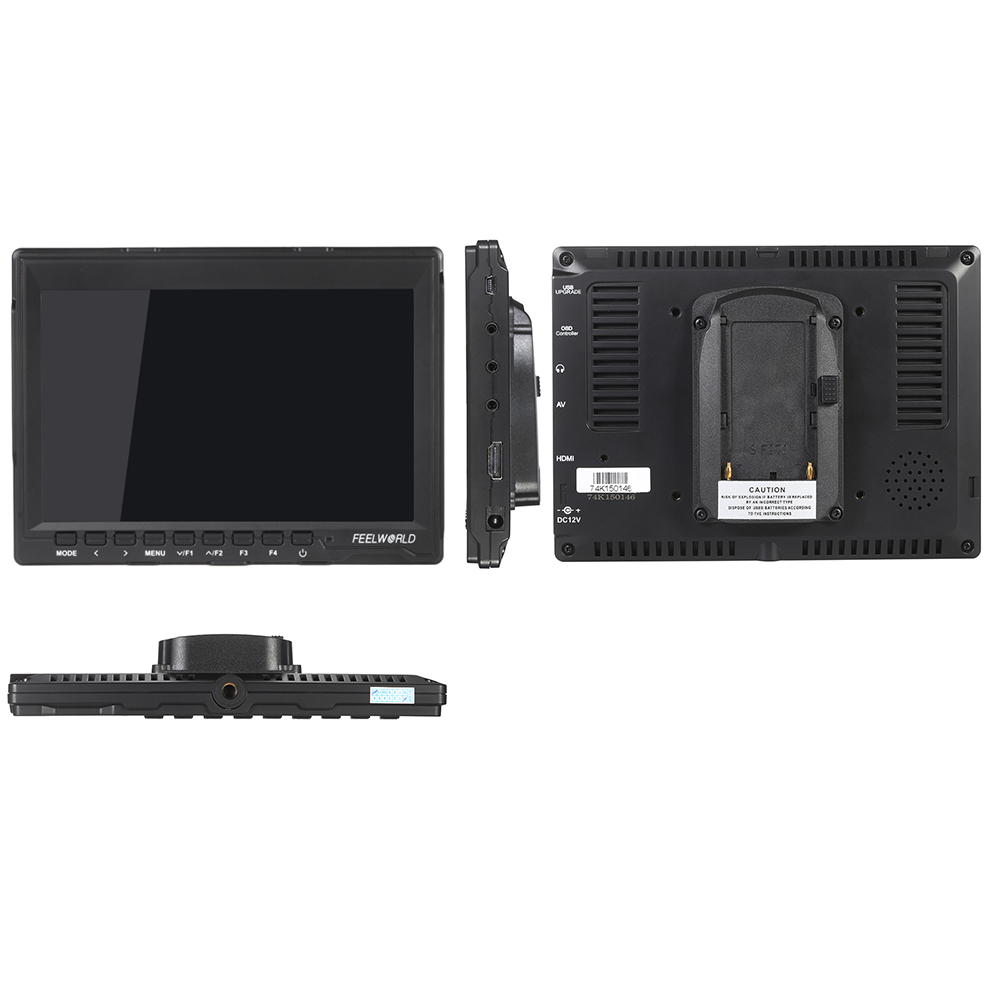

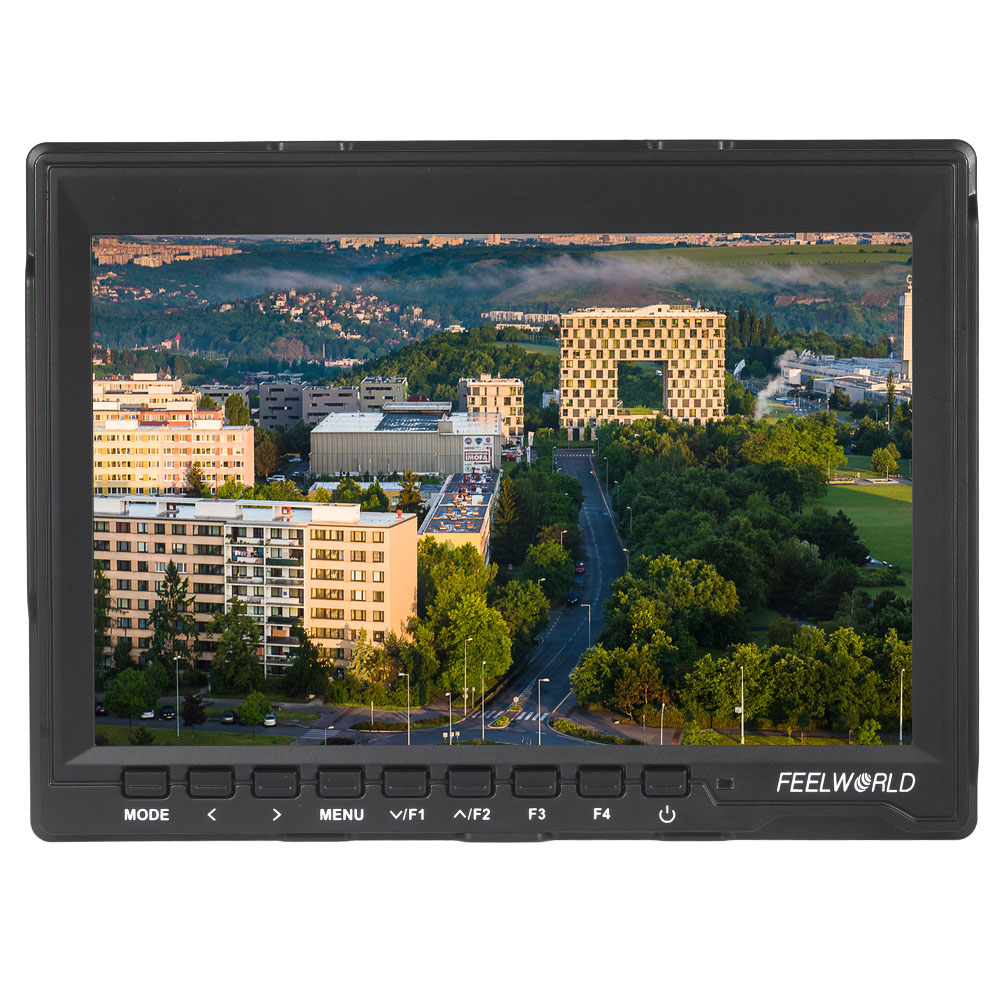

FW74K is a portable 7" IPS LCD screen camera monitor, which is designed for professional HDV and HD SLR users. Only 17mm ultra slim design. Wide viewing angle, IPS 1280 * 800. Professional peaking filter makes it more for outdoor shooting.
Features:
The most prominent feature is that the monitor supports for GH4, for A7S FS7, other 4K cameras with both interface and the output format of 4K resolution UHD 3840*2160p(29.97/25/23.98).
High brightness, contrast, high resolution, with portable frame and sunshade, the monitor can be visible under the sunshine. At the back of the monitor there is a built-in F970 battery plate for fixing various batteries.
Wider Viewing Angle: The monitor uses a 7" IPS LCD screen, which provides a wide 178°/178°viewing angle and brightness output of up to 400nit. So you will be able to see accurate, consistent and bright images from any point of view.
IPS: Wide color LCD panel and 1280 * 800 resolution ensure the monitor more precise color restoration exquisite picture quality and more rich color.
Slim, Lightweight Design: Specially designed to merge portability, and functionality, 17mm slim design, compatible for Steadycam, DSLR rig, camcorder kit, handheld stabilizer, video camera crane.
Support a Wide Range of Signal Inputs: The FW74K multiple input options include and AV, and support most DSLRs and camcorders.
Specail Features: Peaking Focus Assist(Red hightlight over parts of the monochrome image in focus); Camera 5D‖ Mode; Check Field(Red, Green, Blue, Mono); to ; Center Marker; Safe Marker(80%, 85%, 90%, 93%, 96%,2.35:1); Image Flip(Horizontal, Vertical, Hor&Ver); Image Freeze.
In order to avoid affecting the shooting from bad connection while use format for HD signal transmission, a lock is provided.
Specifications:
Brand:
Model: FW74K
Panel Type: 7.0 inch IPS LCD
Resolution: 1280×800 pixels
Backlight: LED
Dot Pitch: 0.11775(W)×0.11775(H)
Aspect Ratio: 16:10
Brightness: 400cd/㎡
Contrast Ratio: 800:1
Response Time: 25ms
Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)
Input Signal: Video, Audio,
Outputs: Wire remote OSD controller,Built-in Speaker,3.5mm Audio
Video Color System: PAL-4.43 / NTSC-3.58
Support Format:
480i/480p/576i/576p
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)
4K UHD 3840*2160p(29.97/25/23.98)
Input Voltage: DC: 7.5~35V
Power Consumption: ≤5W
Installation Method: 1/4 inch bracket screw holes, can be easily connected to the hot shoe mount, tripod fixed installation
Working Temperature: -20℃~50℃
Storage Temperature: -30℃~60℃
Monitor Size: 17.6 * 13 * 1.7cm / 6.9 * 5.1 * 0.7in
Monitor Weight: 290g / 10.2oz
Package Size: 22 * 19.3 * 6.5cm / 8.7 * 7.6 * 2.6in
Package Weight: 890g / 31.4oz

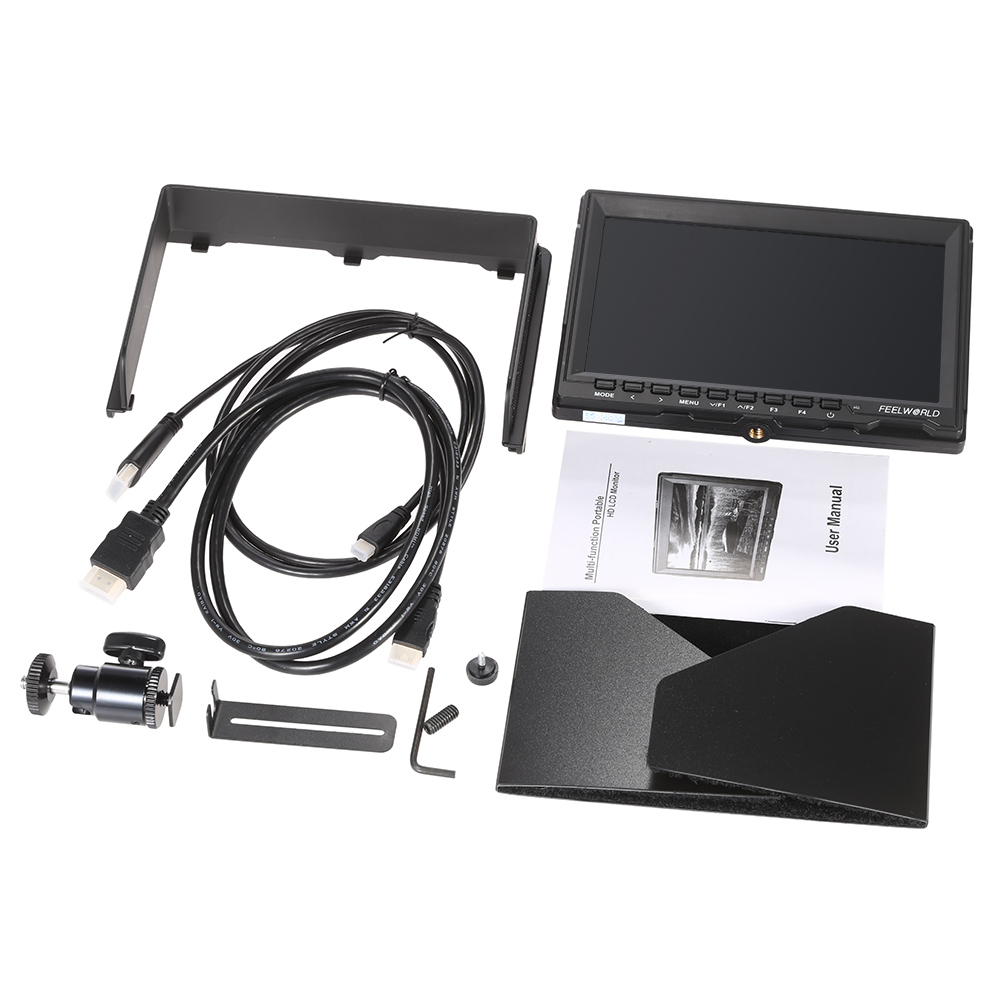

Package List:
1 * Monitor with Built-in F970 Battery Plate
1 * Monitor Frame
1 * Sunshade
1 * Micro to Cable
1 * Mini to Cable
1 * Plug Lock
1 * Hot Shoe Mount
1 * Wrench
1 * Screw
1 * User Manual(English)
