Note:

Current link items are not battery packs, they are empty boxes only!



For these style battery boxes, there are many versions, when place order, please choose the right version

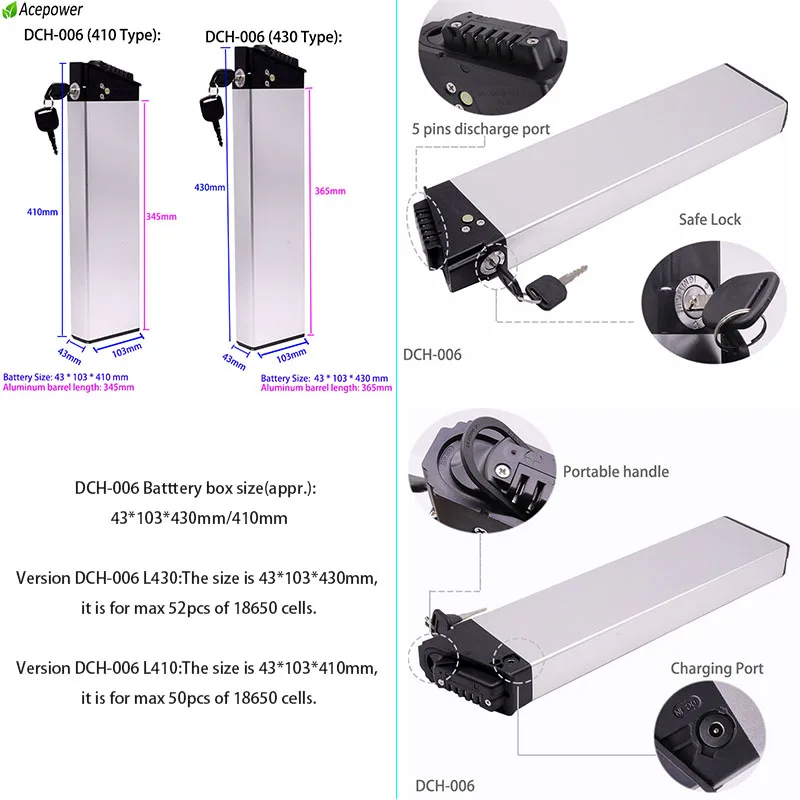

Version DCH-006 L430:The size is 43*103*430mm, it is for max 52pcs of 18650 cells.

Version DCH-006 L410:The size is 43*103*410mm, it is for max 50pcs of 18650 cells.

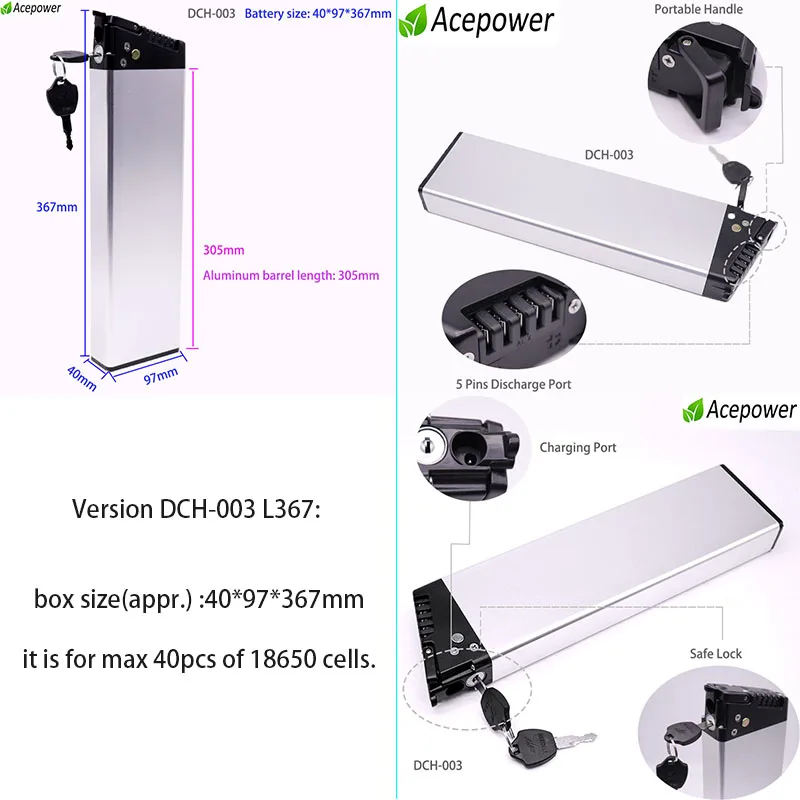

Version DCH-003 L367: The size is 40*97*367mm, it is for max 40pcs of 18650 cells.

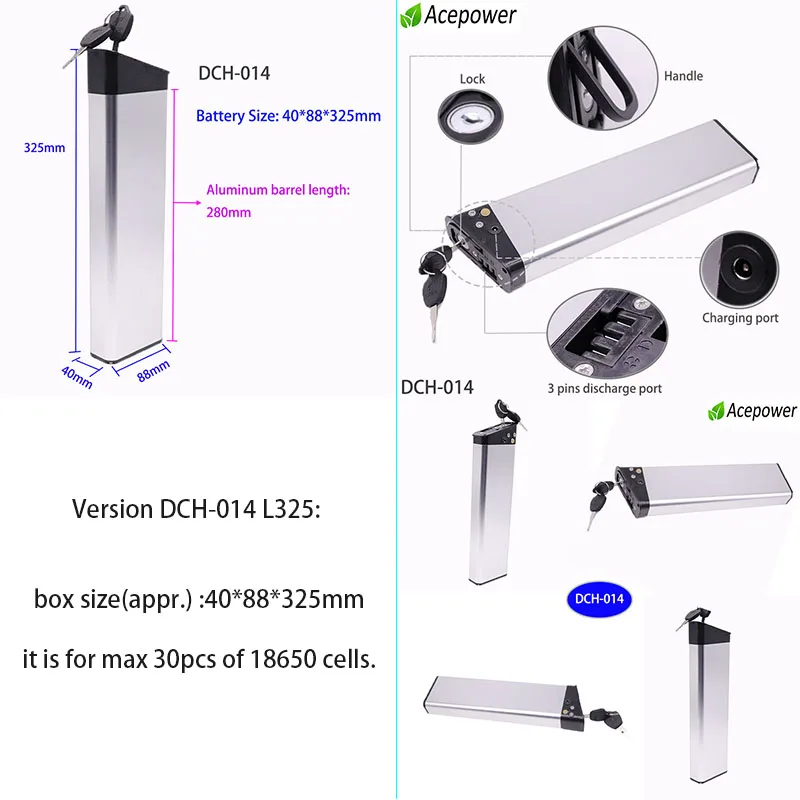

Version DCH-014 L325: The size is 40*88*325mm, it is for max 30pcs of 18650 cells.

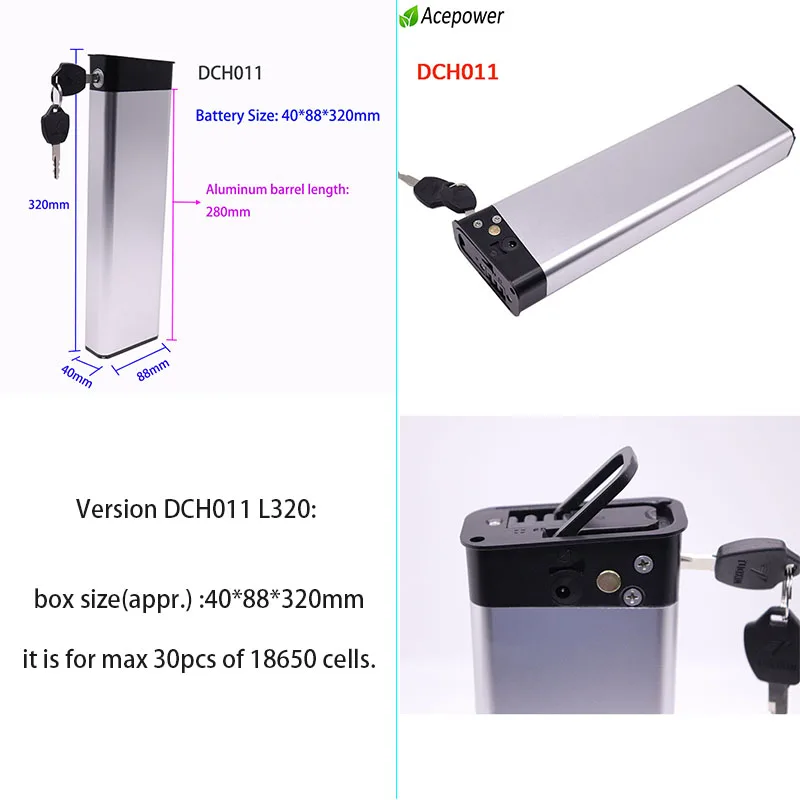

Version DCH011 L320: The size is 40*88*320mm, it is for max 30pcs of 18650 cells.

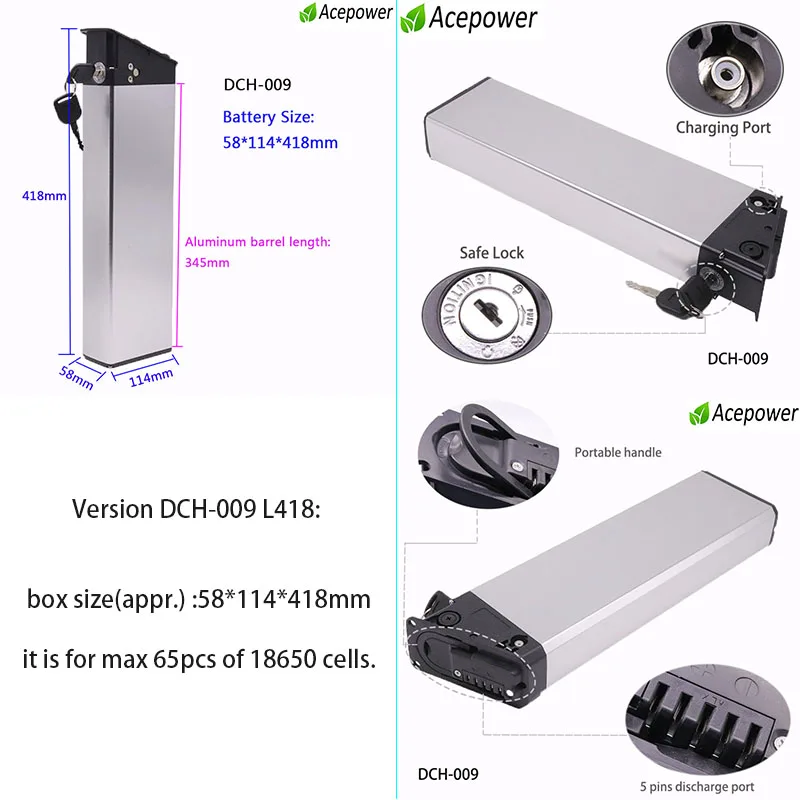

Version DCH-009 L418: The size is 58*114*418mm, it is for max 65pcs of 18650 cells.

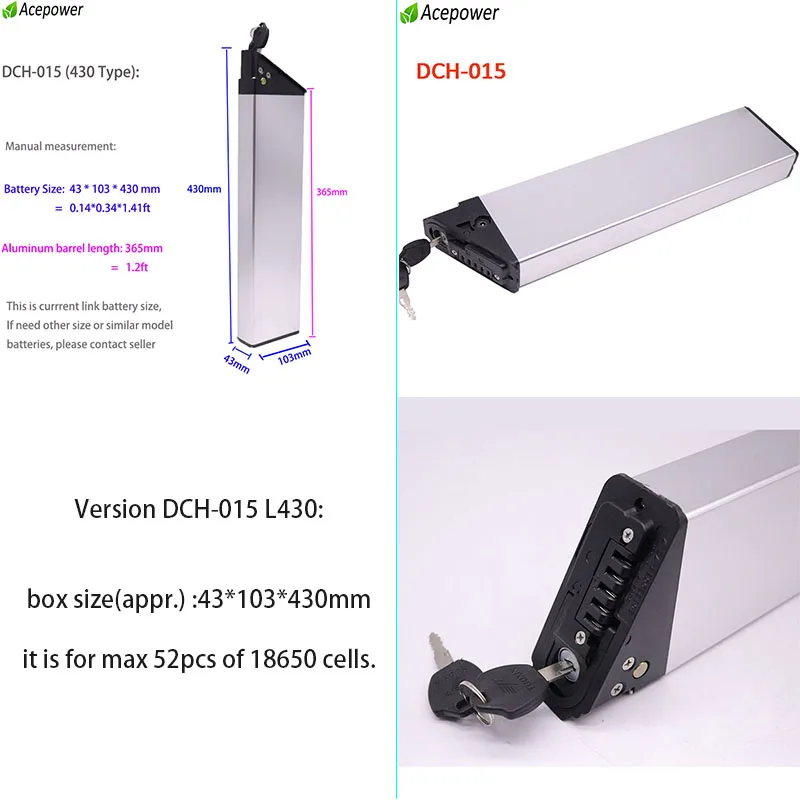

Version DCH-015 L430: The size is 43*103*430mm, it is for max 52pcs of 18650 cells.






How to check whether this battery box is same as mine?



Please take out and measure your old battery box's  size firstly, if size is almost same, then check the apperance, charging port/lock's position



DCH-006 430mm type battery box is same with Samebike LO26, 20LVXD30 battery box !  Welcome to share more fits model to us and other customers.



DCH-006 Batttery box size(appr.) 43*103*430mm/410mm







DCH-003 Battery box size(appr.) 40*97*367mm








DCH-014 L325 Battery box size(appr.) 40*88*325mm









DCH011 Battery box size(appr.) 40*88*320mm








DCH-009 Battery box size(appr.) 58*114*418mm








DCH-015 Battery box size(appr.) 43*103*430mm

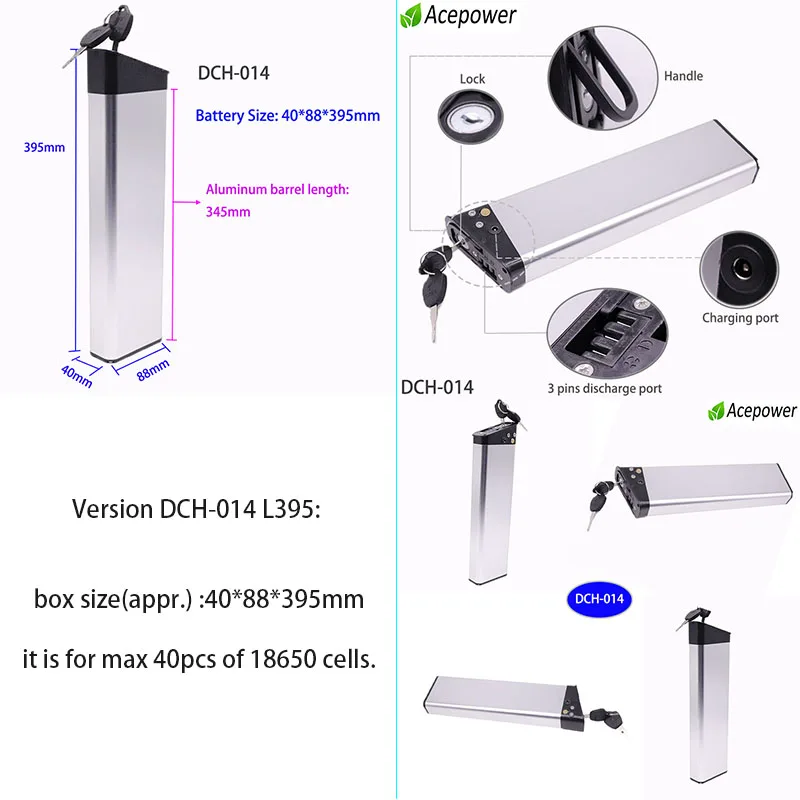

DCH-014 L395 Battery box size(appr.) 40*88*395mm
