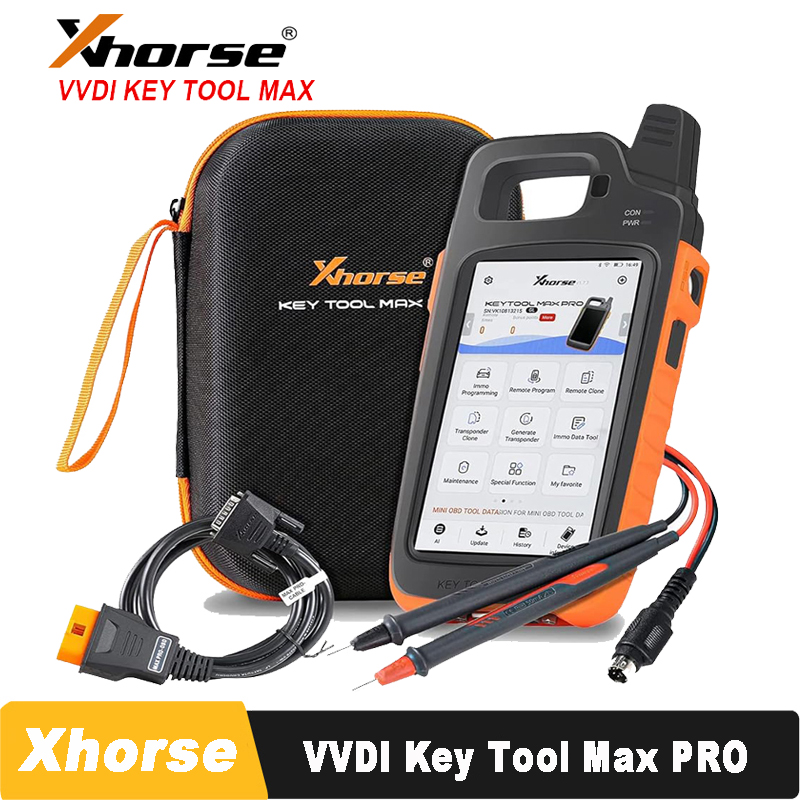

Xhorse VVDI Key Tool Max PRO Combines Key Tool Max and Mini OBD Tool Functions Adds Voltage and Leakage Current Functions

Xhorse VVDI KEY TOOL MAX PRO is a professional all-in-one smart device with multi-function, Bluetooth and WIFI communication interface, which is convenient for connecting and controlling Xhorse ke.y cut.ting machines. It supports various OBD functions such as vehicle diagnosis, IMM0 progarm, throttle progarm, TPMS, and maintenance light reset.

Xhorse's best, in a compact package, the Key Tool Max Pro. This l0cksmith powerhouse combines built-in OBD key progaramming with the core strengths of the Key Tool Max. Leverage an extended key progarmming coverage, allowing advanced Fit for BMW, Fit for Toyota, Fit for Ford and Fit for GM procedures. Generate/clone transponders & remotes, unl-o-c-k OEM remotes, and detect immobilizer/remote frequencies – all in one. Max out your key progarmming game.

Key Tool Max Pro Highlights:

1. with Built-in OBD module

2.Combines functions of Key Tool Max and Mini OBD Tool

3.Comes with integrated CAN FD for GM vehicles and All in One

4.Adds battery voltage measurement, and leakage current measurement

5.Supports Fit for Toyota H all keys lost with 8A AKL adapter

6.Control Xhorse Condor/Dolphin key cutting machines

7.Fit for BMW CAS1- CAS3 Key Progarmming and Mi-l-e-age Repair

8.Partial Fit for Toyota 8A/4D Add key and all keys lost (Fit for Corolla, Fit for Highlander, Fit for Camry, Fit for REIZ, Fit for VIOS, Fit for LEVIN, Fit for CROWN, Fit for RAV4, Fit for Hiraks, Fit for Lexus, Fit for PRADO, Fit for LAND CRUISER PRADO, Fit for LAND CRUISER)

9.ID48 96bit transponder cloning (unl-o-c-k by generating 10 universal remotes)

9. Control Xhorse Condor/ Dolphin k-e-y c-u-t-t-ing machine

10. NEW! TPMS progarmming and activation (June 2023)

Multi-Language: English, German, Spanish, Persian, French, Hebrew, Hindi, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese
(App language has no limitation. Free to switch now, database language is English)

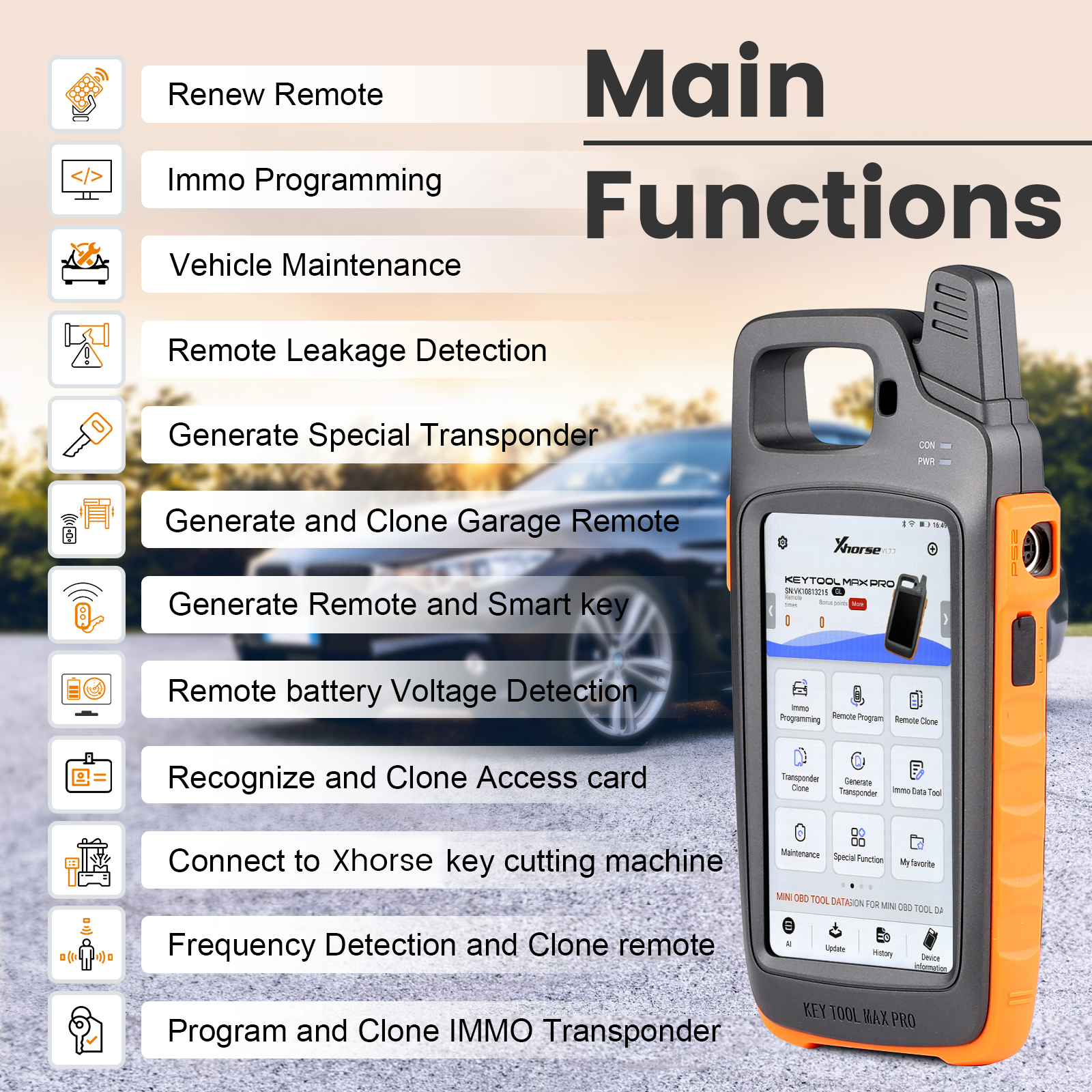

Key Tool Max Pro Functions list:

1.Immo Prog.armming

2.Vehicle Maintenance

3.Service Light Reset

4.Remote Signal Detection

5.Remote Battery Voltage Detection

6.Generate Wired/Wireless Remotes and Smart Keys

7.Progarm / Clone Transponders Using Xhorse Super Chips

8.Generate Special Transponders

9.Renew Remotes

10.Recognize and Clone Access Cards

11.Generate and Clone Fixed Code Garage Remotes

12.Frequency Detection and Remote Cloning

13.Control Xhorse Ke/y Machines

TPMS Function:

• Support XTPMS progarmming, up to 20 sensors simultaneously
• Reprogarm XTPMS sensor (Xhorse TPMS Sensor please more time)
• Activate original TPMS and XTPMS sensor (315Mhz, 433Mhz)
• Copy and change sensor ID
• Read TPMS data like tire pressure, temperature, battery, etc.
• Support OBD reading, writing, read & clear DTCs
• Compatible with multiple car models, more models coming soon

Key Tool Max Pro Features:

Key Tool Max Pro designed with lo-cksm.iths in mind this device has all the staple featues of Xhorse's excellent VVDI Key Tool range including transponder cloning & generation, RF testing and remote renewal. It also opens up the world of the Xhorse Super Chip and Xhorse Universal Remotes; increasing your vehicle coverage immensely.

This new device comes complete with an OBD cable allowing prog.armming directly through the Key Tool Max Pro rather than needing a separate prog.armmer. It also means the device receives power over OBD so you don't need to worry about losing charge on the job!

How to get free ID48 96bit function?
Generate new Xhorse remote key 10pcs, after collect points,2 hours later, server will open ID48 96bit function free.

The brand new Key Tool Max Pro from Xhorse comes with all the features of the existing Key Tool Max but with much, much more!

Designed with l-o-c-ksmiths in mind this device has all the staple featues of Xhorse's excellent VVDI Key Tool range including transponder cloning & generation, RF testing and remote renewal. It also opens up the world of the Xhorse Super Chip and Xhorse Universal Remotes; increasing your vehicle coverage immensely.

This new device comes complete with an OBD cable allowing progarmming directly through the Key Tool Max Pro rather than needing a separate progarmmer. It also means the device receives power over OBD so you don't need to worry about losing charge on the job!

NEW - Fit for BMW CAS3\Fit for Toyota Models Prog.armming

To make it a more powerful and competitive tool, KEY TOOL MAX PRO is projected to add prog.armming feature of Fit for BMW CAS3 and some Fit for Toyota models soon. Like always, Xhorse offers continuous upgrades on this very new machine and more can be expected!

It Support Fit for BMW CAS3+and Lower Modules

CAS1 IMMO system

EWS IMMO system

CAS2 IMMO system

E-C-U ISN

CAS3/CAS3+IMMO system

Instrument mileage repair

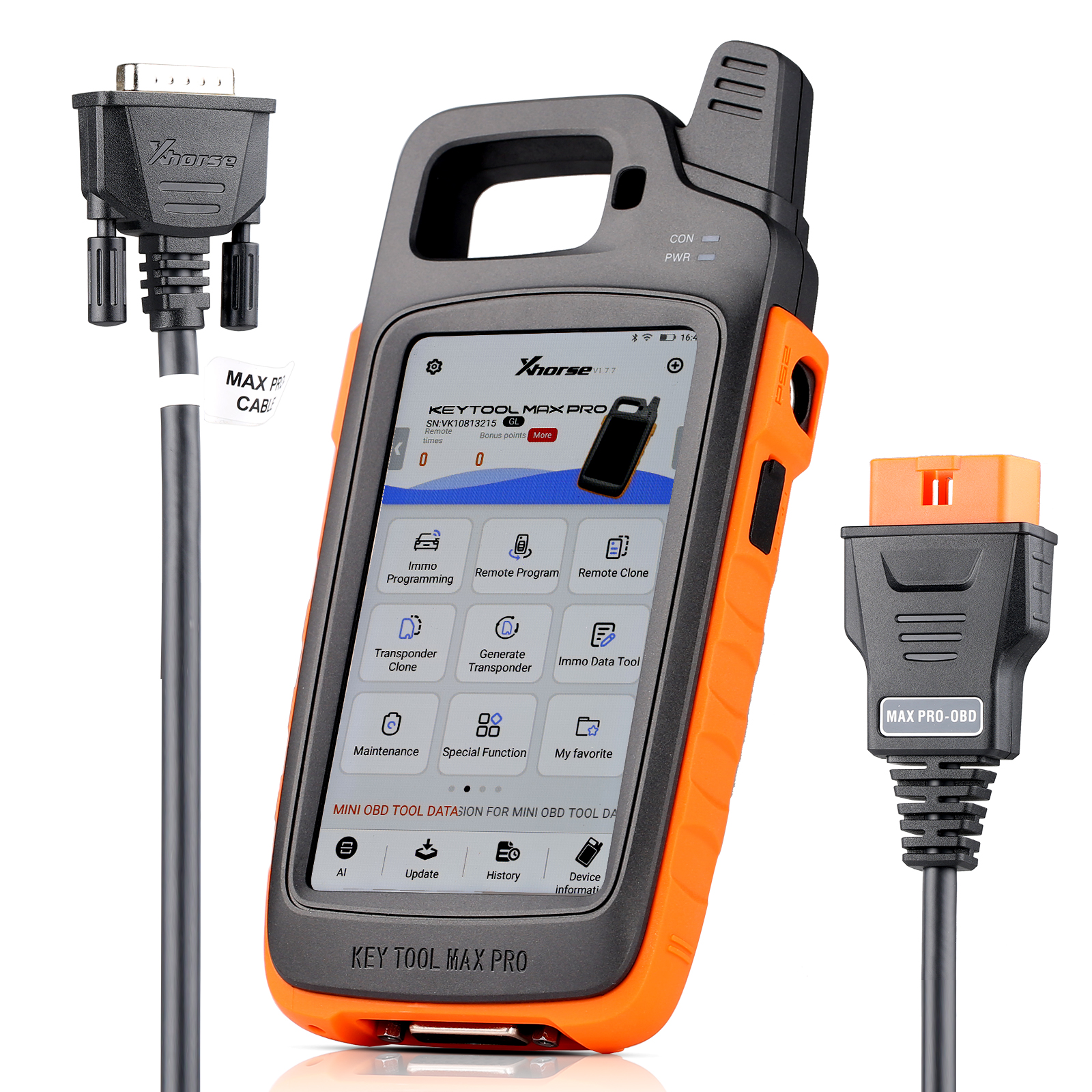

Newly Added OBD Module

KEY TOOL MAX and MINI OBD TOOL used to be a great combination, enabling users to finish various works via wireless connection. Now, MAX PRO comes with an OBD cable which could connect it to vehicle OBDⅡ port, which means you don't need to purchase MINI OBD TOOL for immo prog.armming and other functions. Meanwhile, wire connection usually can be highly secure and reliable with low risk.

Built-in CAN_FD Module, Expanded Function:

Concerning immo progarmming, MAX PRO is designed with a CAN_FD module, making it possible to complete immo prog.armming for various CAN_FD models such as Fit for Cadillac CT4/CT5, Fit for Buick GL8, Encore, etc. Of particular note, Xhorse offers continuous upgrades for free and car models supported keep increasing for your convenience.

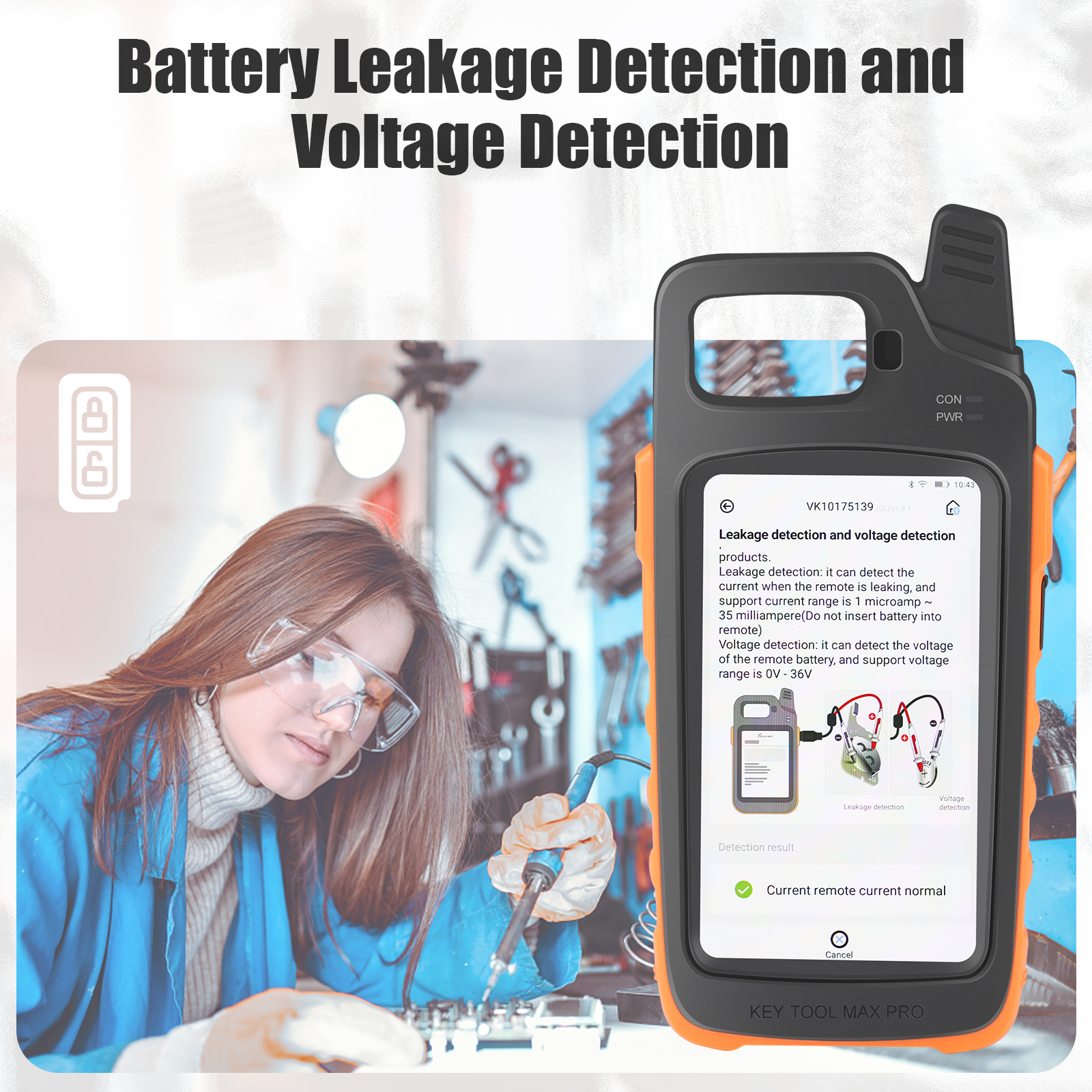

Read Voltage and Leakage Current:

This function is only used for leakage detection and voltage detection of remote, please do not use it for detection of other products.

Leakage detection: it can detect the current when the remote is leaking, and support current range is 1 microamp~35 milliampere(Do not insert battery into remote)

Voltage detection: it can detect the voltage of the remote battery,and support voltage range is 0V-36V




Battery Test Module

Combining the needs of automotive l-o-cks.miths with our innovations, KEY TOOL MAX PRO features a new battery test module. By simply connecting to the leakage detection cable, users can test whether a remote battery is having electric leakage (range: 1μA~35μA) and detect the voltage of a remote battery (range: 0V~36V).

Another feature that provides convenience to you! The OBD cable of KEY TOOL MAX PRO is equipped with lighting to facilitate your work, making you have a comfortable using experience.

NEW - BMW CAS3/Toyota Models Progarmming

To make it a more powerful and competitive tool, KEY TOOL MAX PRO is projected to add progarmming feature of Fit for BMW CAS3 and some Fit for Toyota models soon. Like always, Xhorse offers continuous upgrades on this very new machine and more can be expected!

Example: Key Tool Max Pro Adds Fit for BMW CAS3++ ISTAP Key by OBD

Transponder Identification & Clone:

• Supports transponder identification of most immobilizer transponders in the US Market
• Supports editing and coping of most common transponders
• Supports ID46, ID48(96bits), and Fit for Toyota 8A/H transponder online calculation

Generate Transponder:

• Generate immobilizer transponders for over 850 car models of 80 makes worldwide.
• Generate immobilizer transponders and write immobilizer data, especially for some special car models, old car models, etc.

lmmo Progarmming:

• Supports immo progarmming for thousands of popular car models.
• Supports CANFD models such as Fit for Cadillac CT4/CT5, Fit for Buick GL8, Fit for Encore, etc.

Powerful TPMS Functions:

• Support XTPMS progarmming, up to 20 sensors simultaneously
• Reprogarm XTPMS sensor
• Activate original TPMS and XTPMS sensor (315Mhz, 433Mhz)
• Copy and change sensor ID
• Read TPMS data like tire pressure, temperature, battery, etc.
• Support OBD reading, writing, read & clear DTCs
• Compatible with multiple car models, support for more models coming soon

Remote Clone:
Supports HCS/Fixed code cloning, non-HCS rolling code cloning, PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.
If cloud remote recognition function does not work, syncronize the device and update.

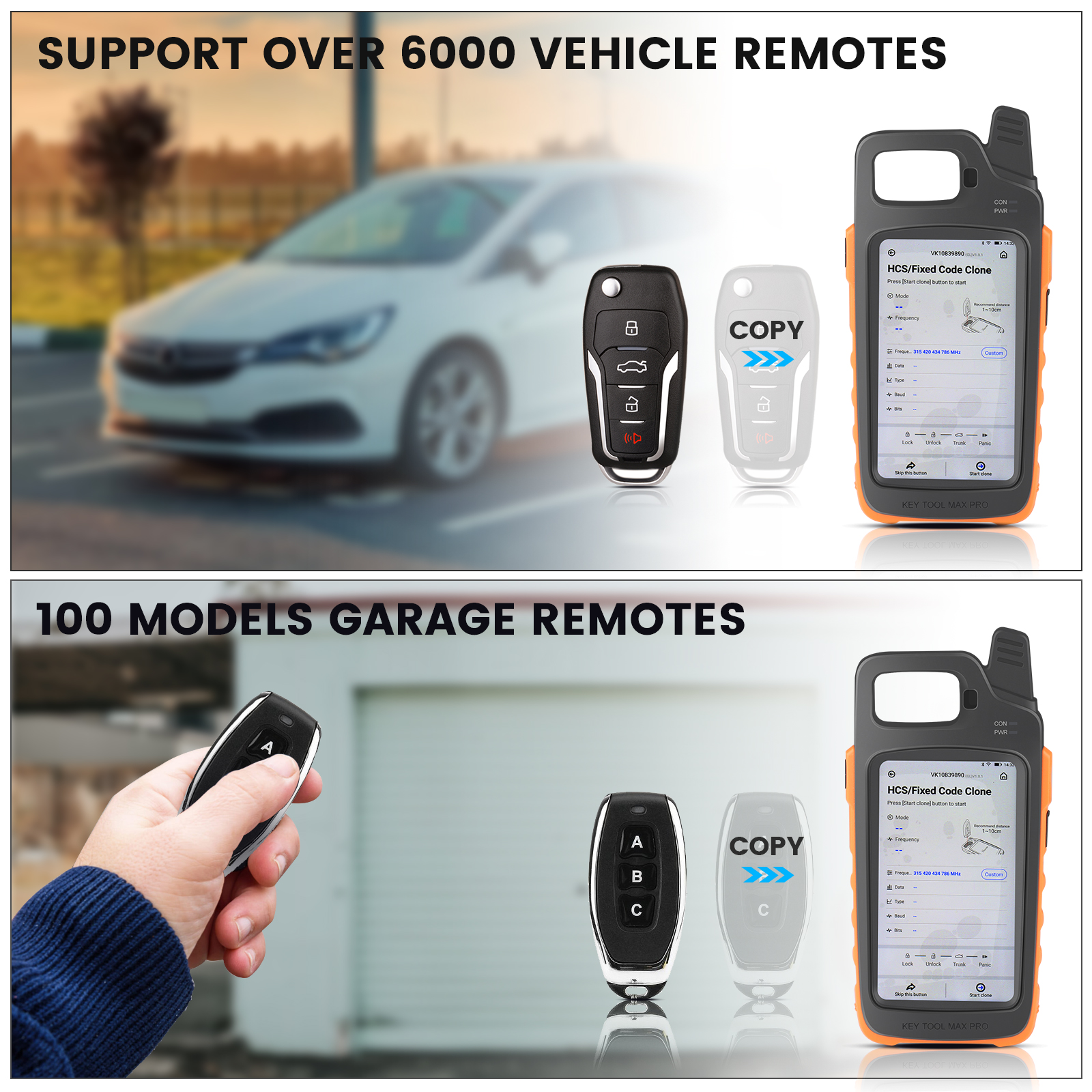

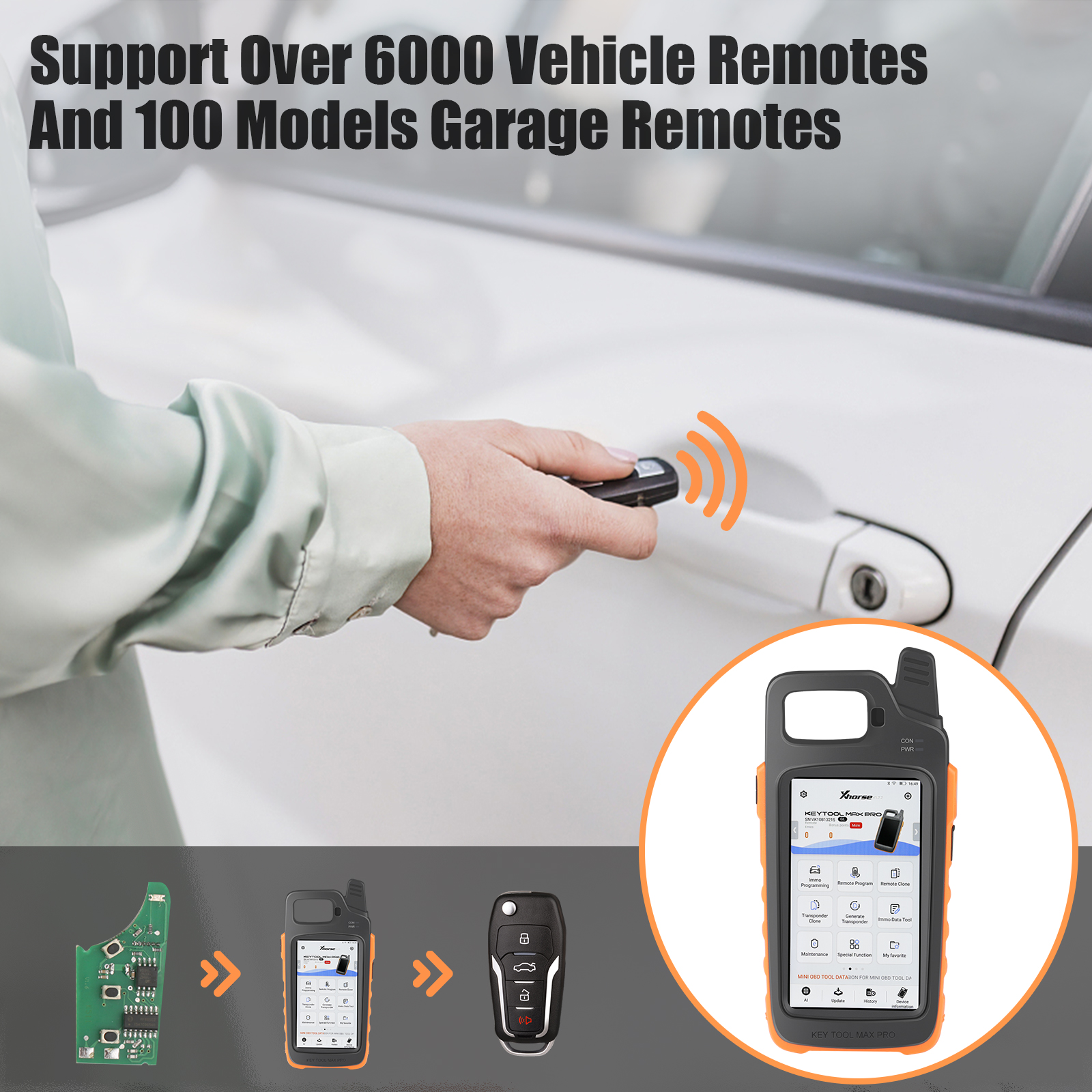

Generate Remote:
Generate remote for over 6000 vehicle remotes of 200 car brands worldwide.
Generate garage remote for over 100 models.

Frequency Detection:
Supports frequency detection within the range of 300-450MHz.

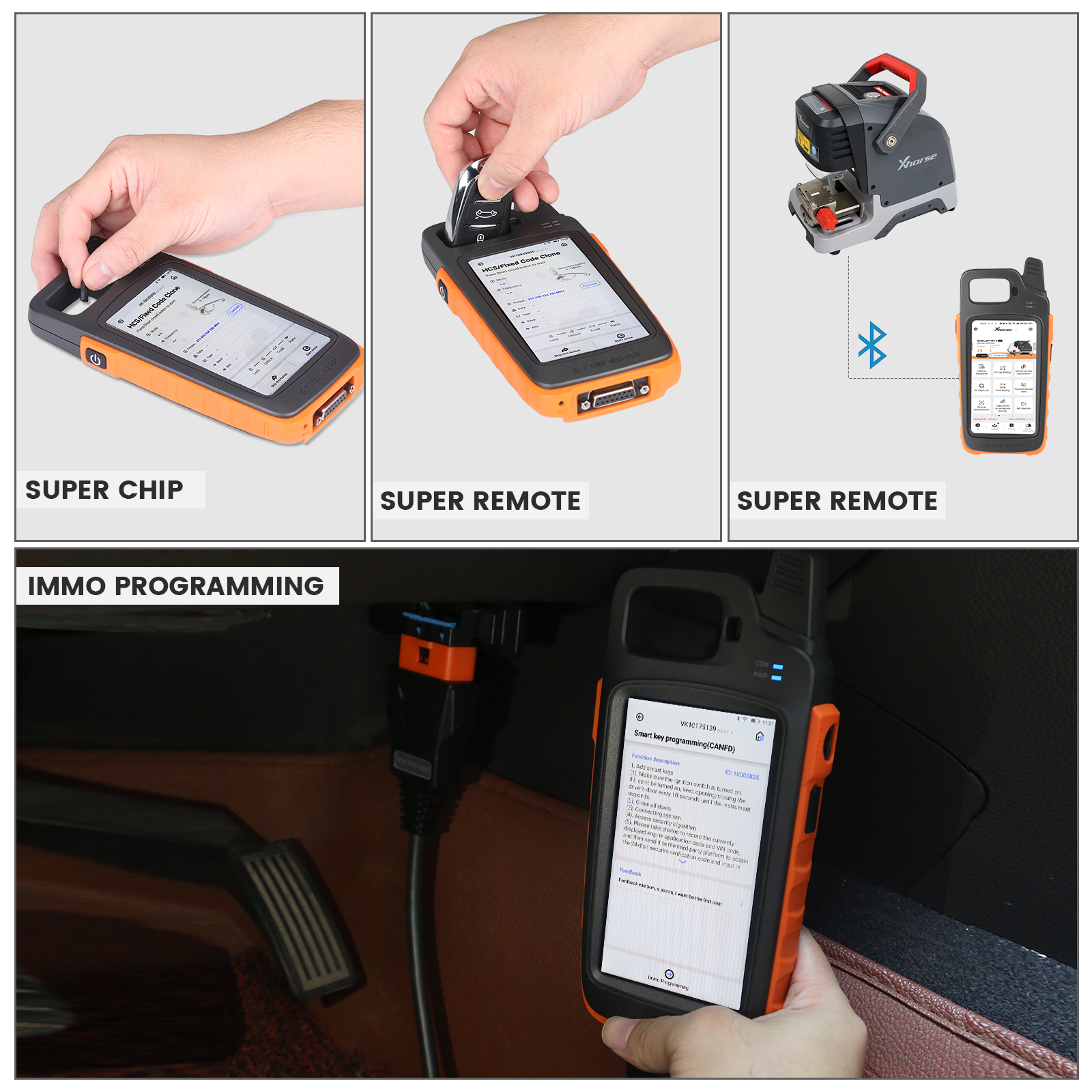

Compatible with Xhorse Key Cutting Machines:
KEY TOOL MAX PRO can be used to control Xhorse k-e-y c-u..t-ting machines via Blu-etooth to finish various tasks like all key lost, find bitting, c.u-t by bitting etc., saving much time for its users. (Support DOLPHIN, MINI PLUS, XC-MINI, etc.)

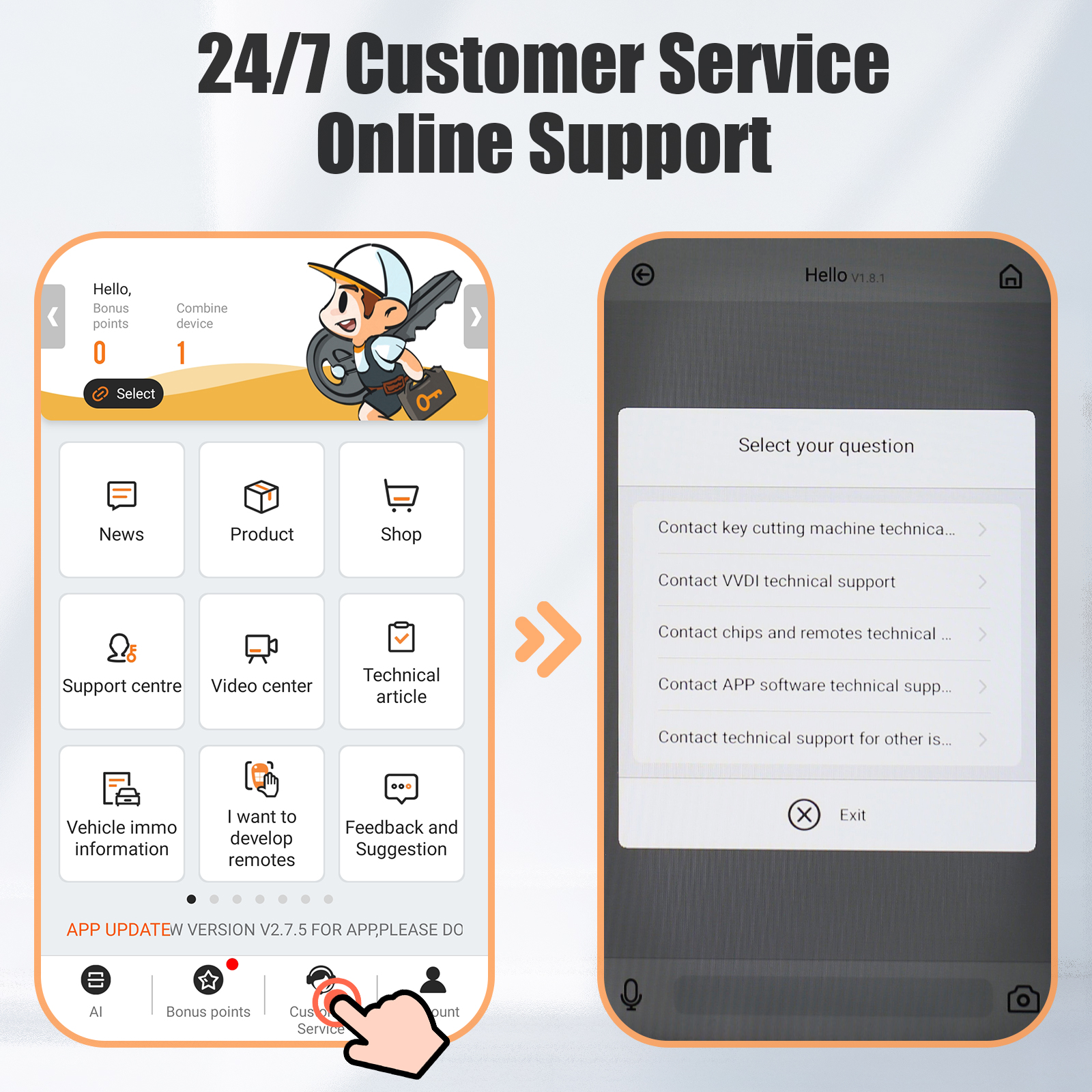

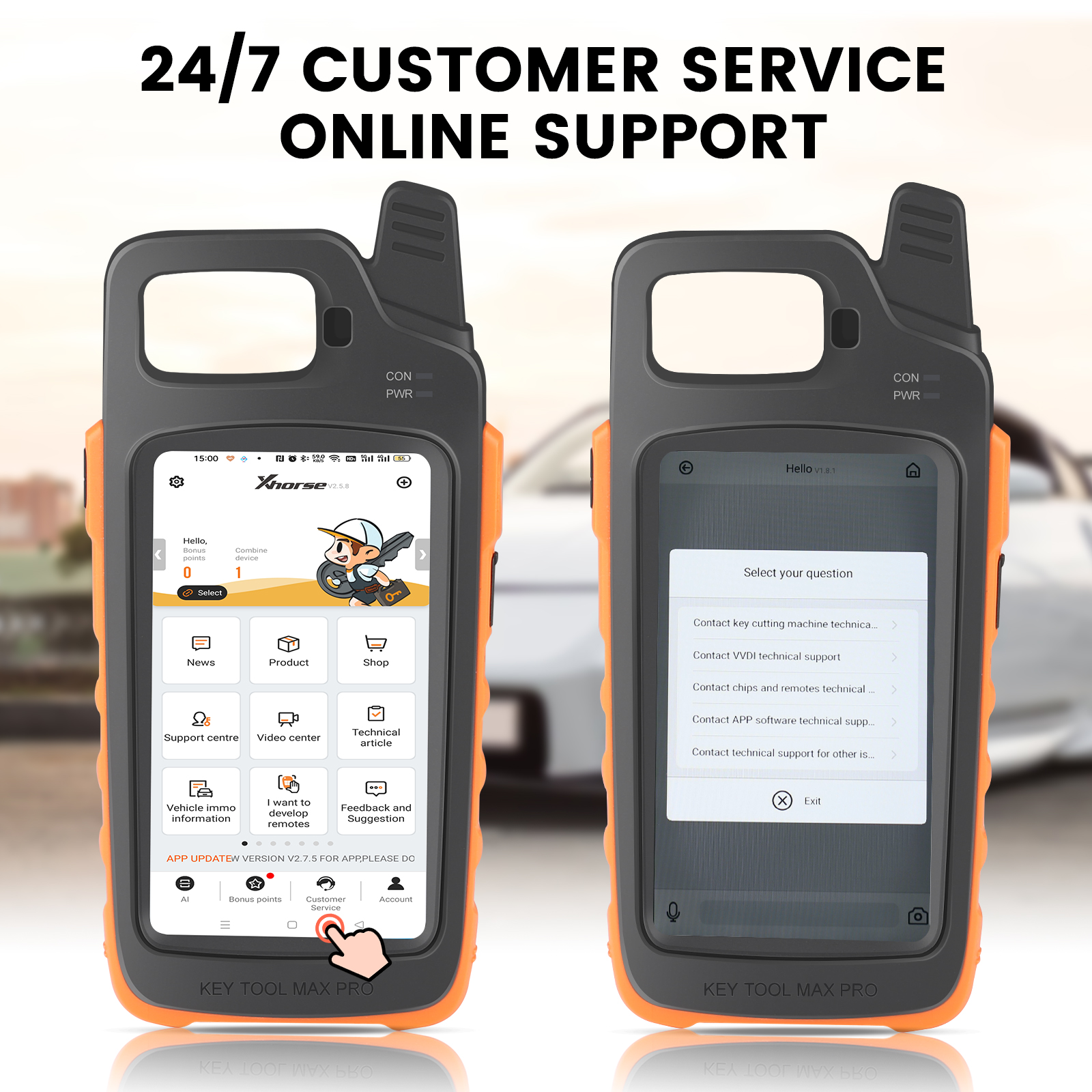

Technical Support:
With 'Customer Service' on Xhorse APP, you'll get live and free
technical support from a professional and dedicated team to help you tackle any problems.

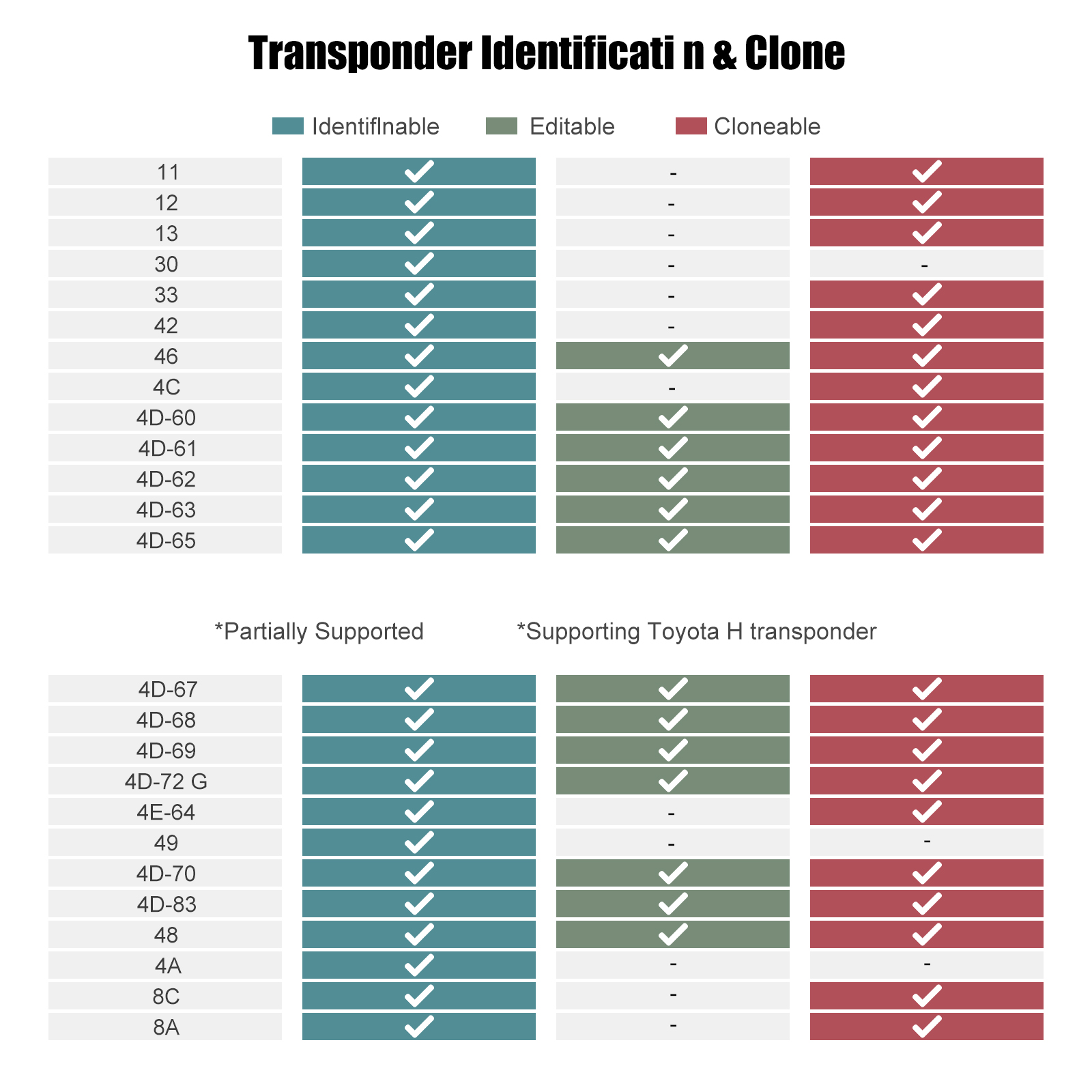

Transponder Identification & Clone Key Tool Max Pro VS Key Tool Max

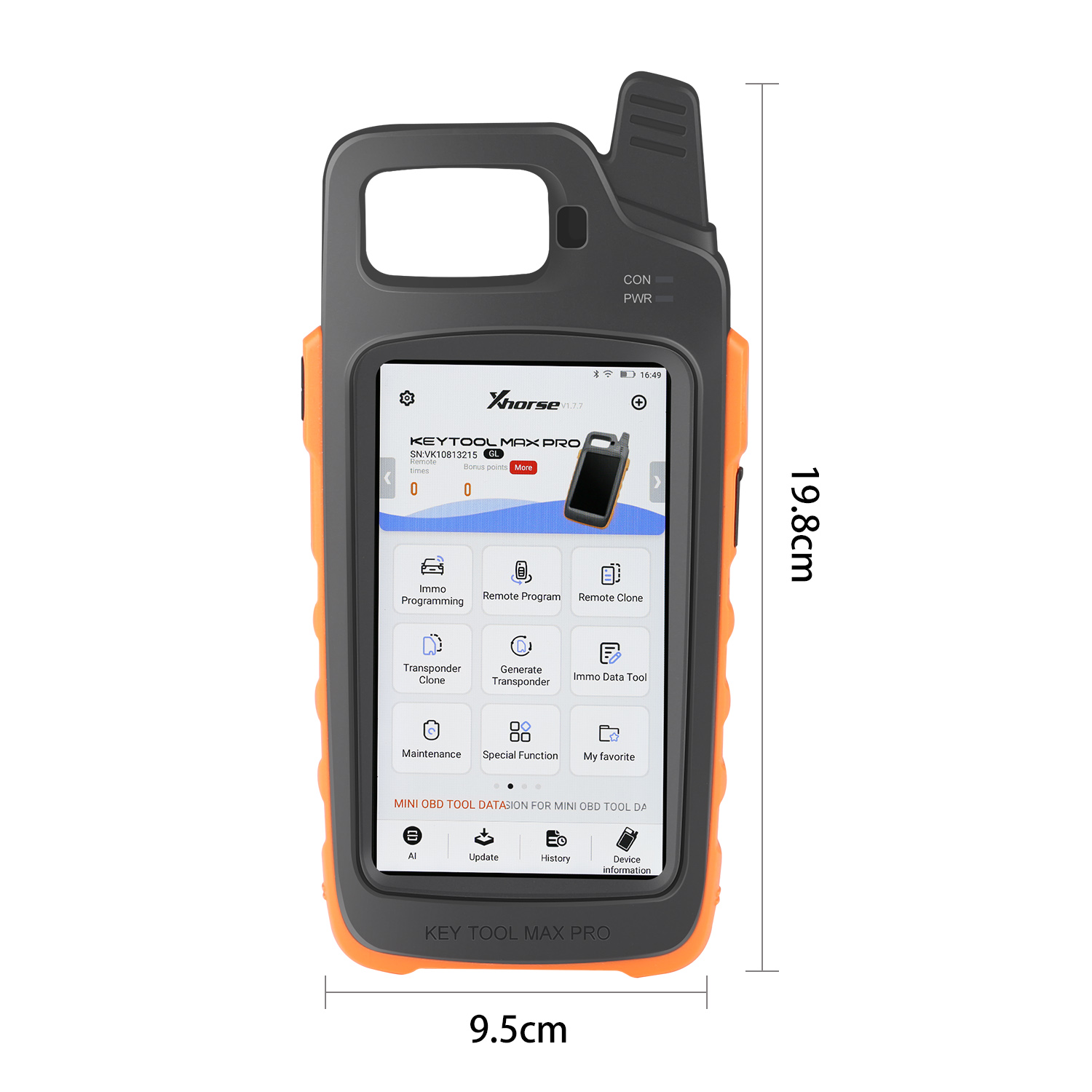

KeyTool Max Pro Specifications:

Battery: 3375mAh

Standby: >5 Days

Inoput: 1.5A

Light: >400nits

Screen Resolution: 1280*720P

Camera: 800W

WiFi& Bluetooth: 802.11a/g/g/n/ac & 4.2 BLE

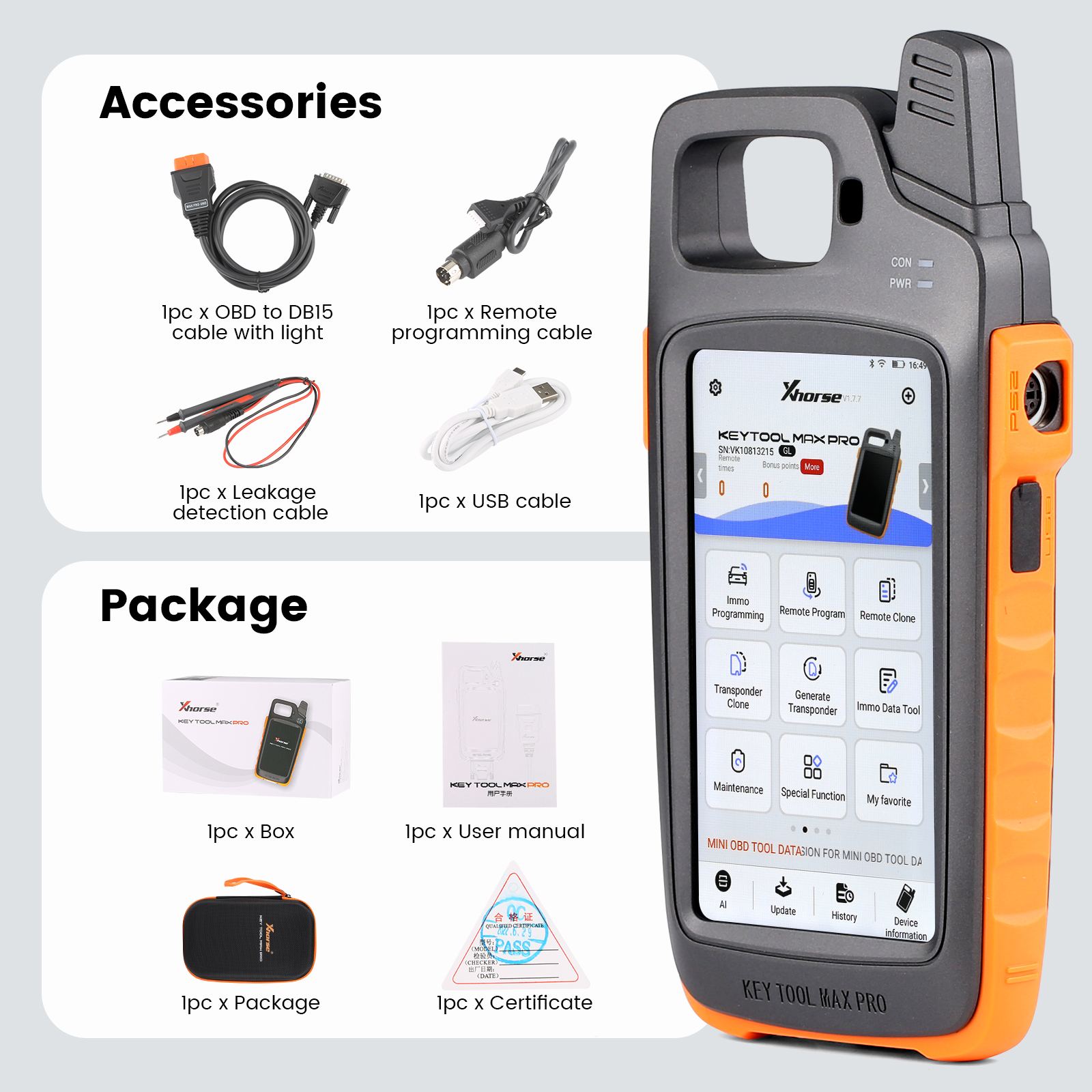

KEY TOOL MAX PRO Package List:

1pc x KEY TOOL MAX PRO deivce

1pc x OBD to DB15 cable with light

1pc x Remote prog.armming cable

1pc x Leakage detection cable

1pc x USB cable

1pc x User Manual
