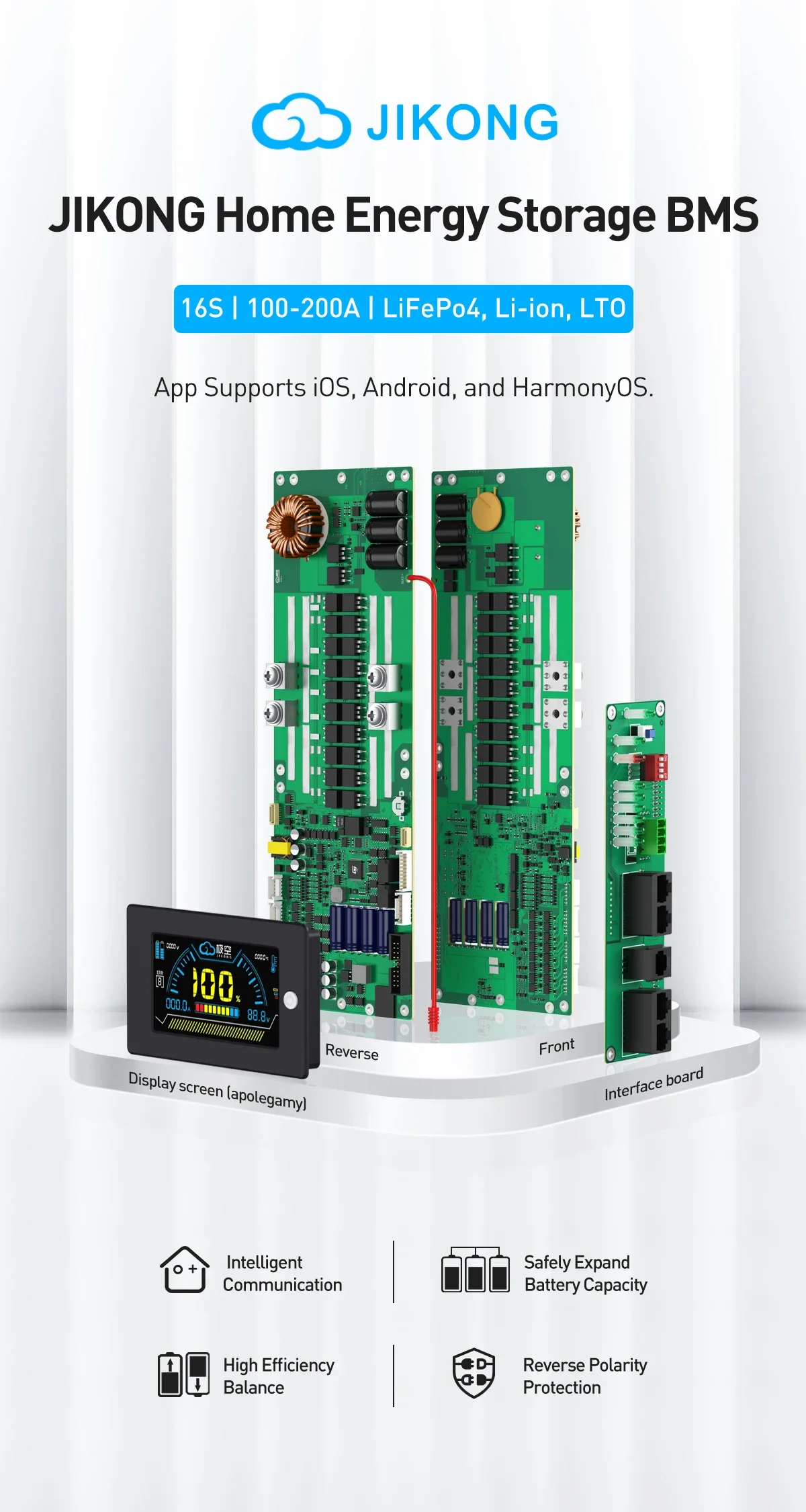

JK Inverter BMS RS485 For 8S-16S 100A-200A Battery Solar Home Energy Storage lot

Product Description

JK Smart Inverter BMS（V19 version）

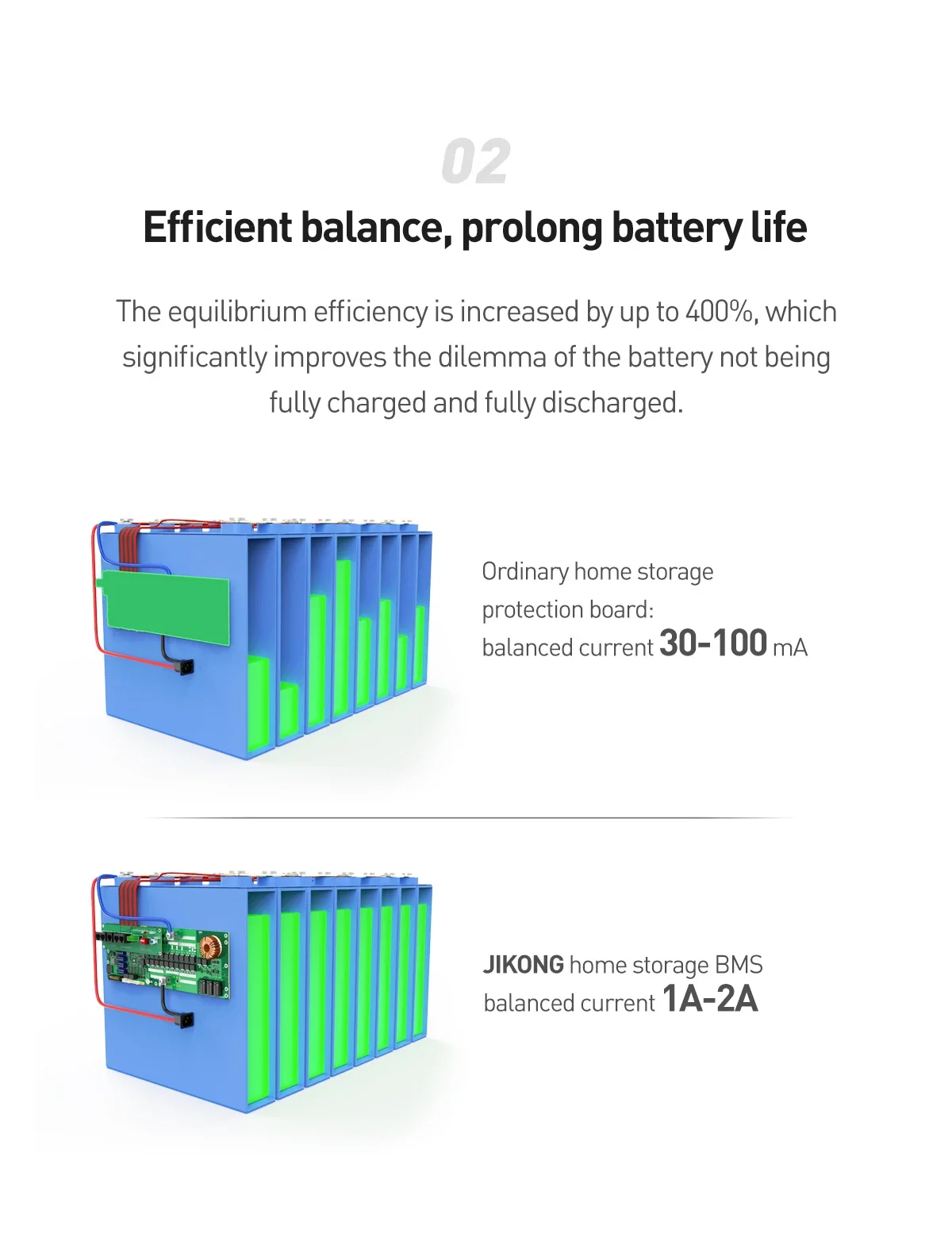

1. Active Balance

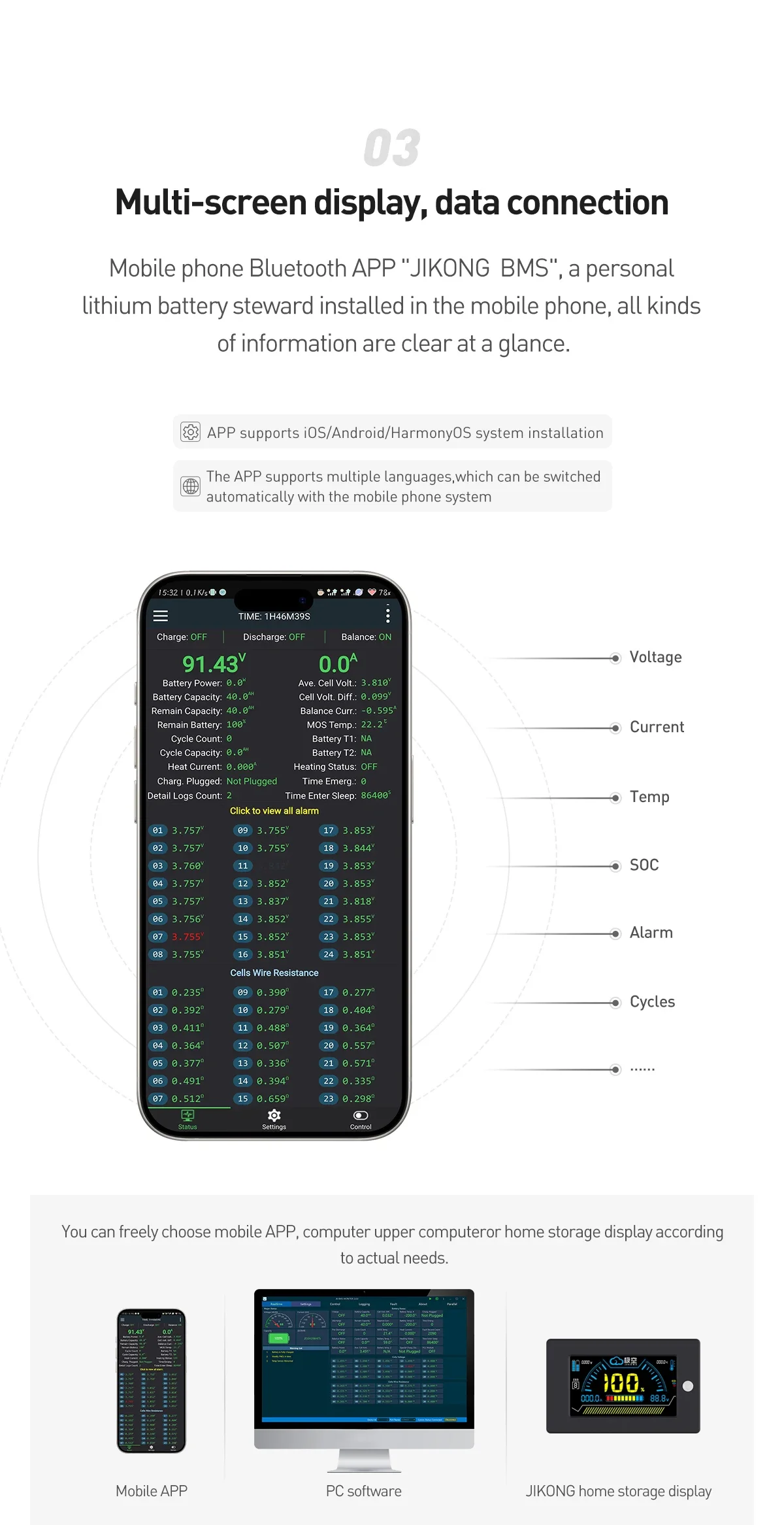

2. APP Operation

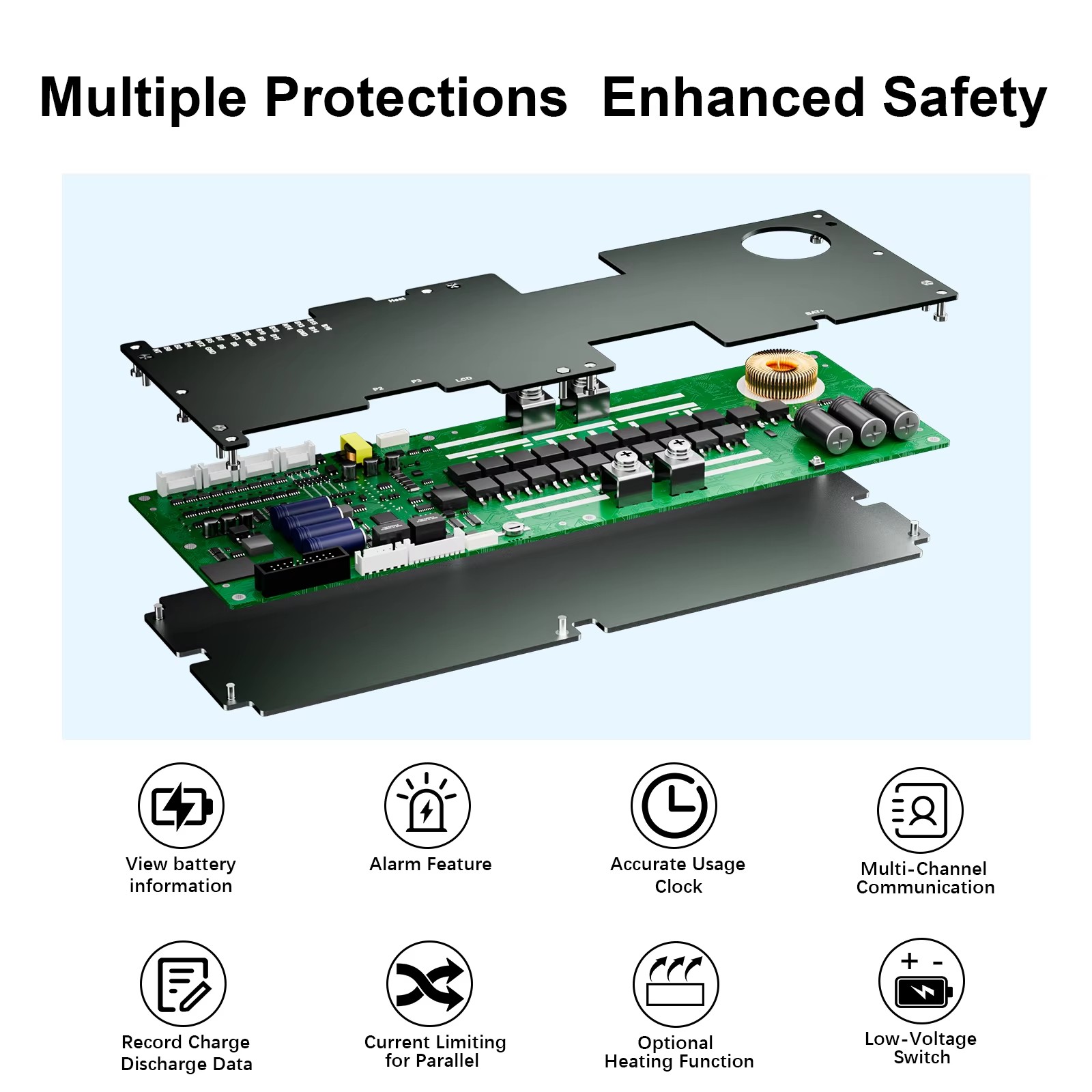

3. Over-voltage & Over-current protection

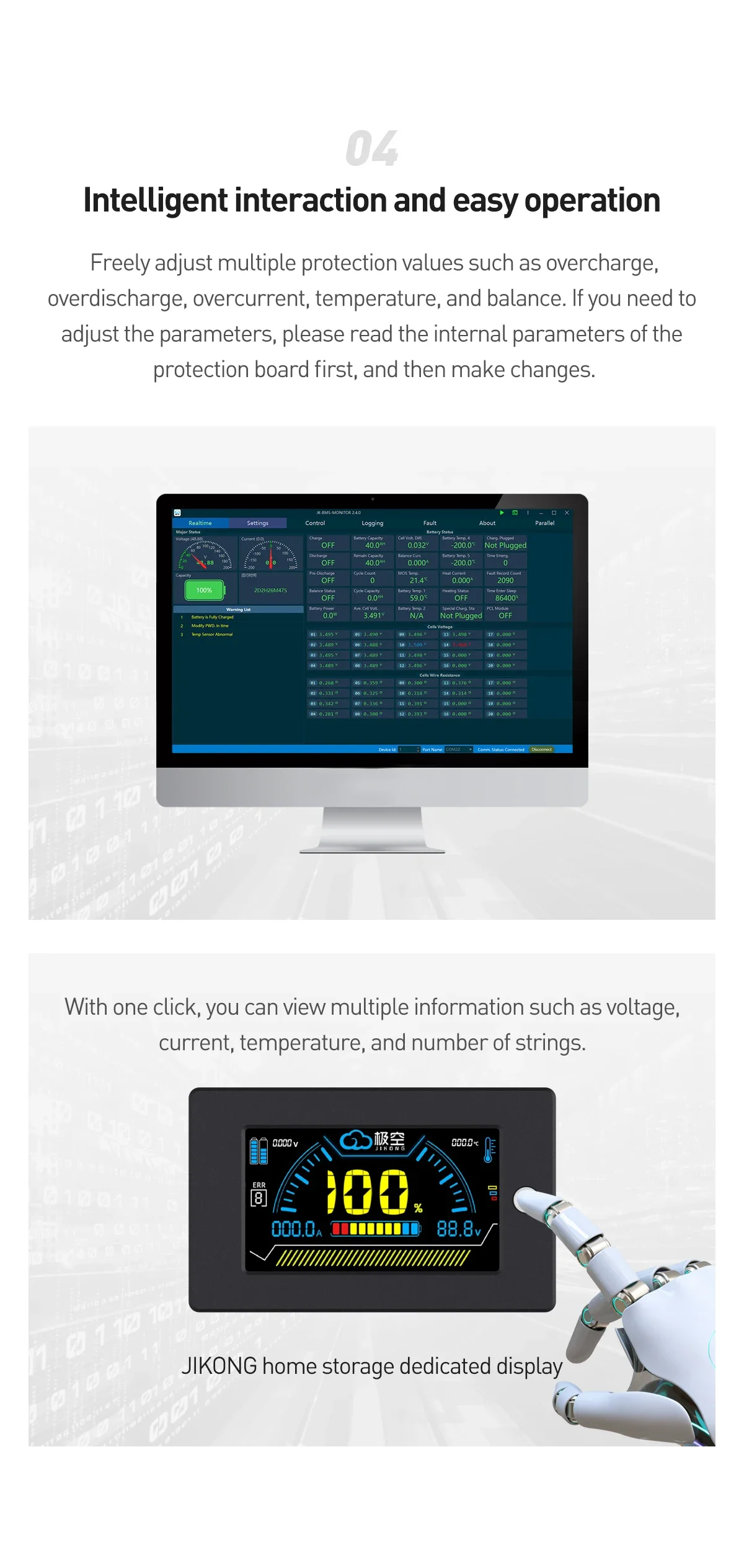

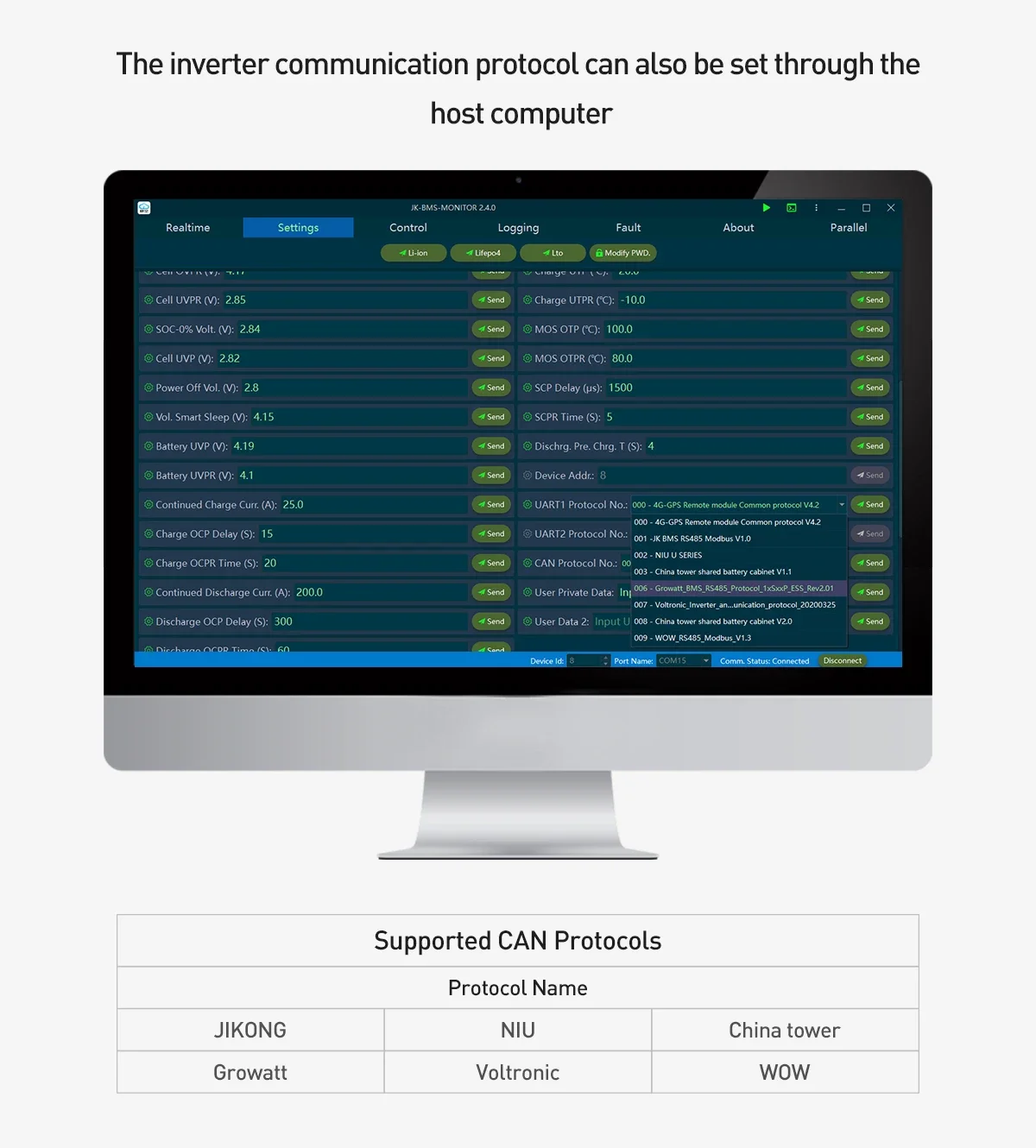

4.Support Software

5. LCD display Data

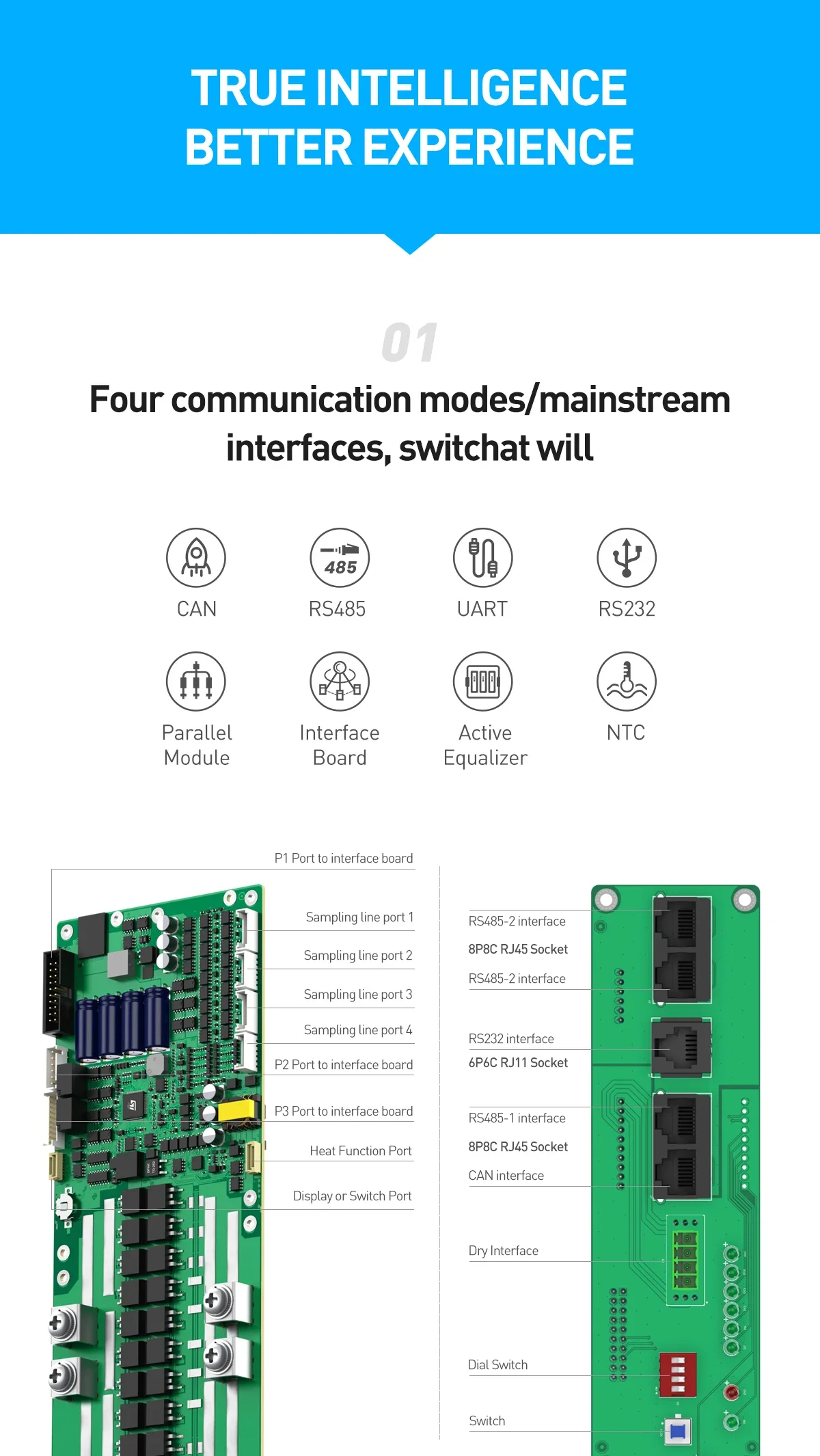

6.Support RS485\CAN\RS232  communcations

7. Capacity calculation

8.High accuracy current

9. Accurate time logging

10.Isolated power supply circuit

11. Short circuit protection

12. 4-way temperature detection protection

13. MOS Temperature detection and protection

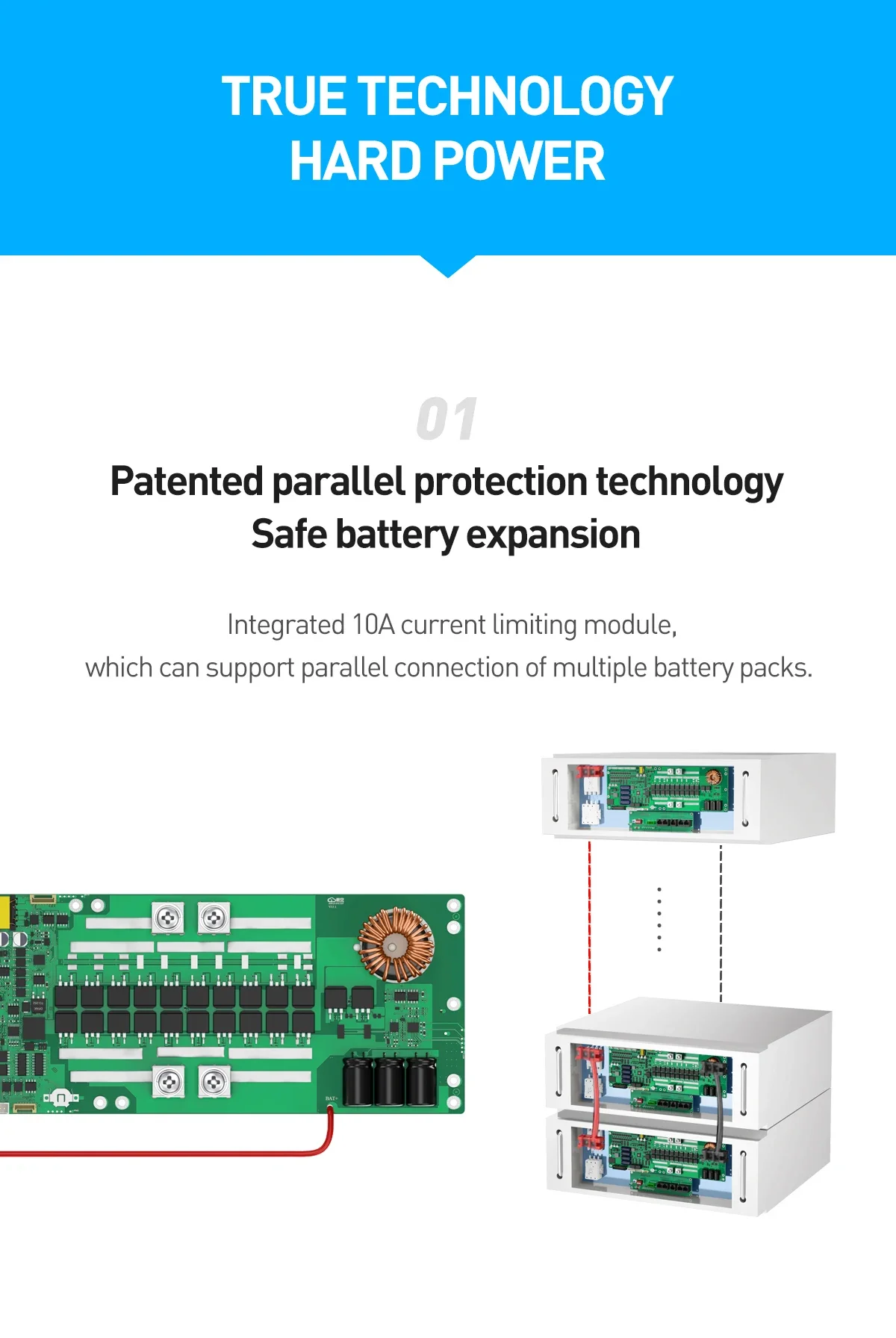

14. Parallel communication: It supports Max. 16 BMSs communication in parallel connection(Only BMS to BMS communication ok, does not support batteries in parallel connection)

15.High accuracy voltage

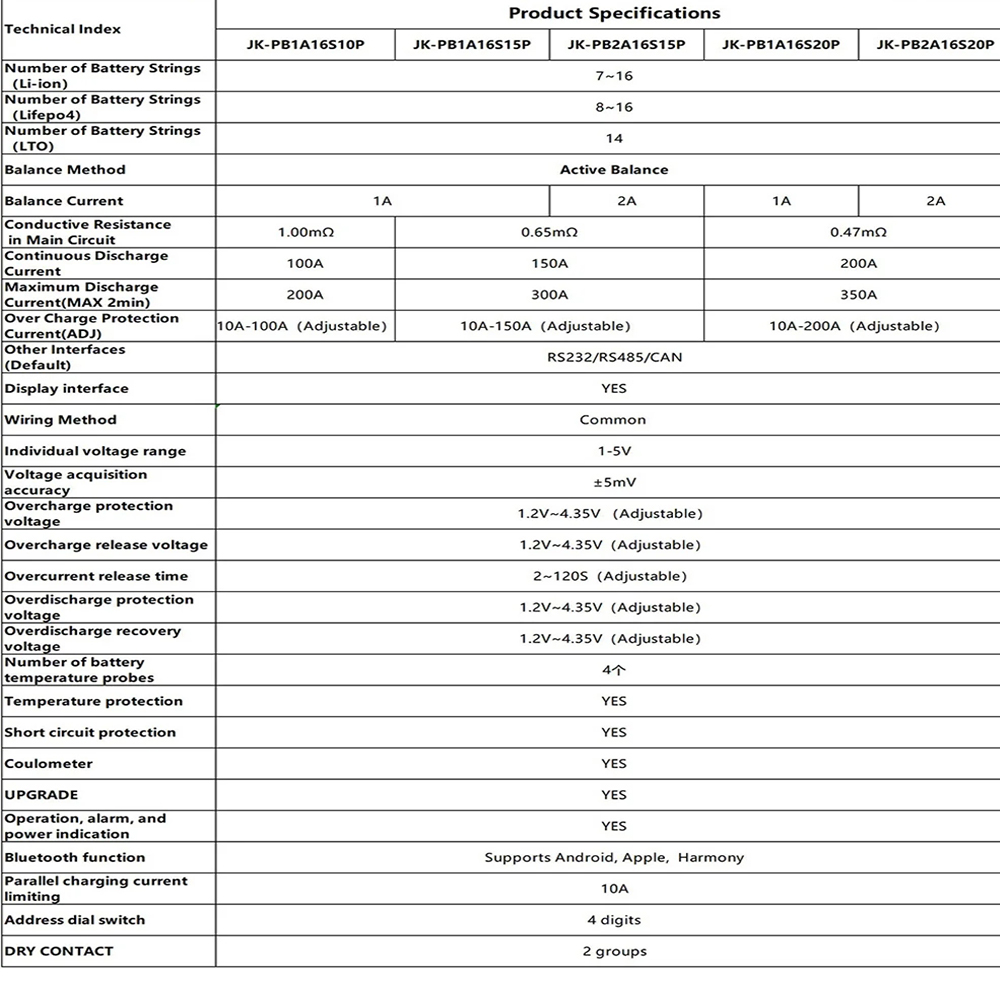

JK-PB1A16S10P

Active Balance: Inverter BMS

Active Balance Current: 1A

Adapt Battery Strings:(Li-ion)7-16S (Lifepo4)8-16S  (LTO)14S

Continuoous Discharge/Charge Current:100A



JK-PB1A16S15P

Active Balance: Inverter BMS

Active Balance Current: 1A

Adapt Battery Strings:(Li-ion)7-16S (Lifepo4)8-16S  (LTO)14S

Continuoous Discharge/Charge Current:150A



JK-PB2A16S15P

Active Balance: Inverter BMS

Active Balance Current: 2A

Adapt Battery Strings:(Li-ion)7-16S (Lifepo4)8-16S  (LTO)14S

Continuoous Discharge/Charge Current:150A



JK-PB2A16S20P

Active Balance: Inverter BMS

Active Balance Current: 2A

Adapt Battery Strings:(Li-ion)7-16S (Lifepo4)8-16S  (LTO)14S

Continuoous Discharge/Charge Current:200A

JK-PB2A16S30P

Active Balance: Inverter BMS

Active Balance Current: 2A

Adapt Battery Strings:(Li-ion)7-16S (Lifepo4)8-16S  (LTO)14S

Continuoous Discharge/Charge Current:300A



4.3 Inch Screen Display

Specifications：

Support wide power supply working range: default 9~36V

Language: Chinese/English/Thai/Vietnamese

Display category: TFT

Display size: 4.3 INCH

Size/Resolution: 480*272

OperatingTemperature /StorageTemperature: -20~+70℃/-30~+80℃



Please note:

only for JK-PB1A16S10P-V19 JK-PB1A16S15P-V19 JK-PB2A16S15P-V19 JK-PB2A16S20P-V19 JK-PB2A16S30P-V19


Description：

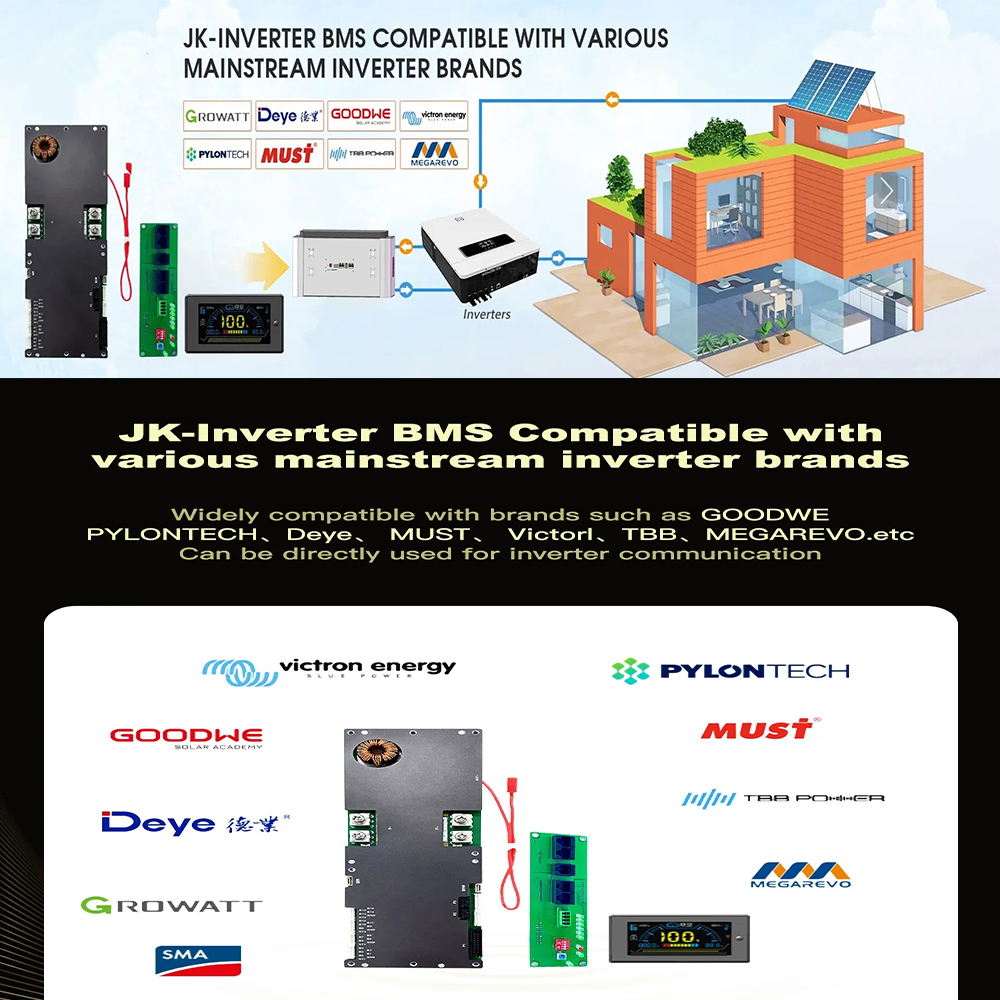

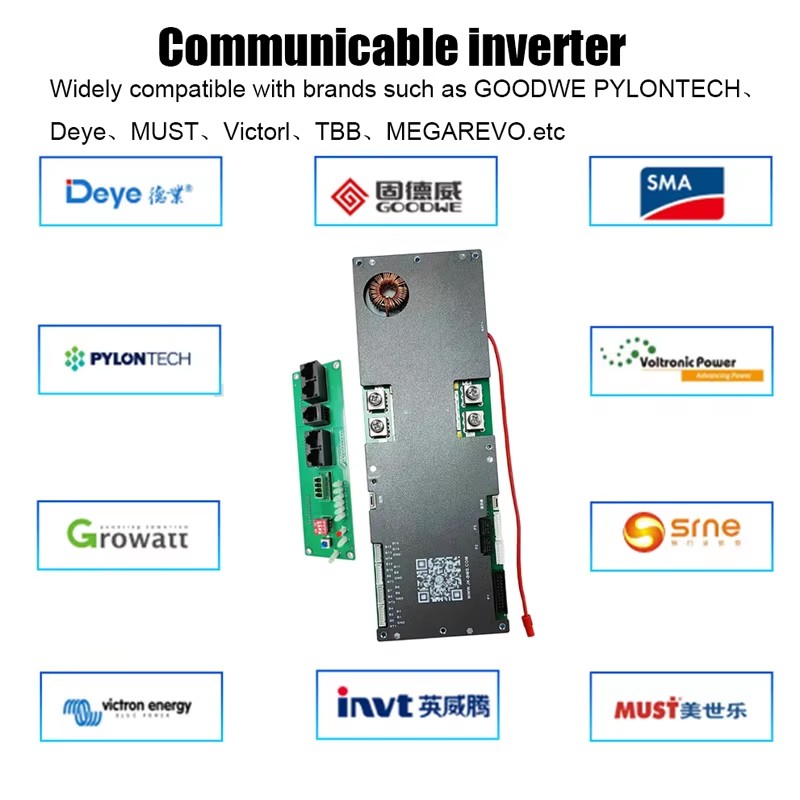

1. We've actually tested and matched most of the inverter brands on the market. and they work very well,and the BMS can also work offline without battery connection

This is the inverter brand we have actually tested: Pylontech, Growatt, DEYE,INVT...

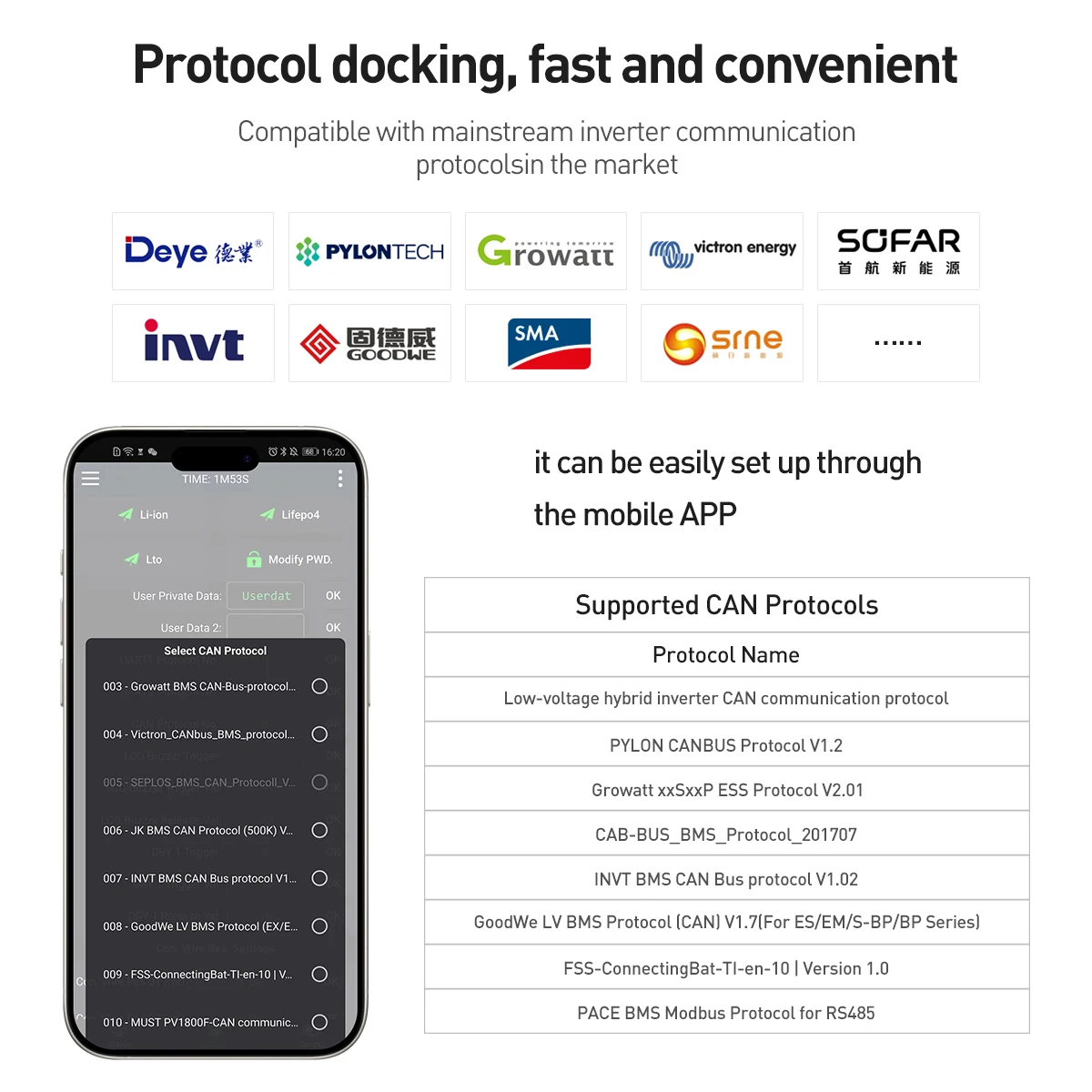

2. We use the CANBUS/RS485 communication protocol to communicate with the inverter, and BMS actively uploads the battery pack data, which is more secure

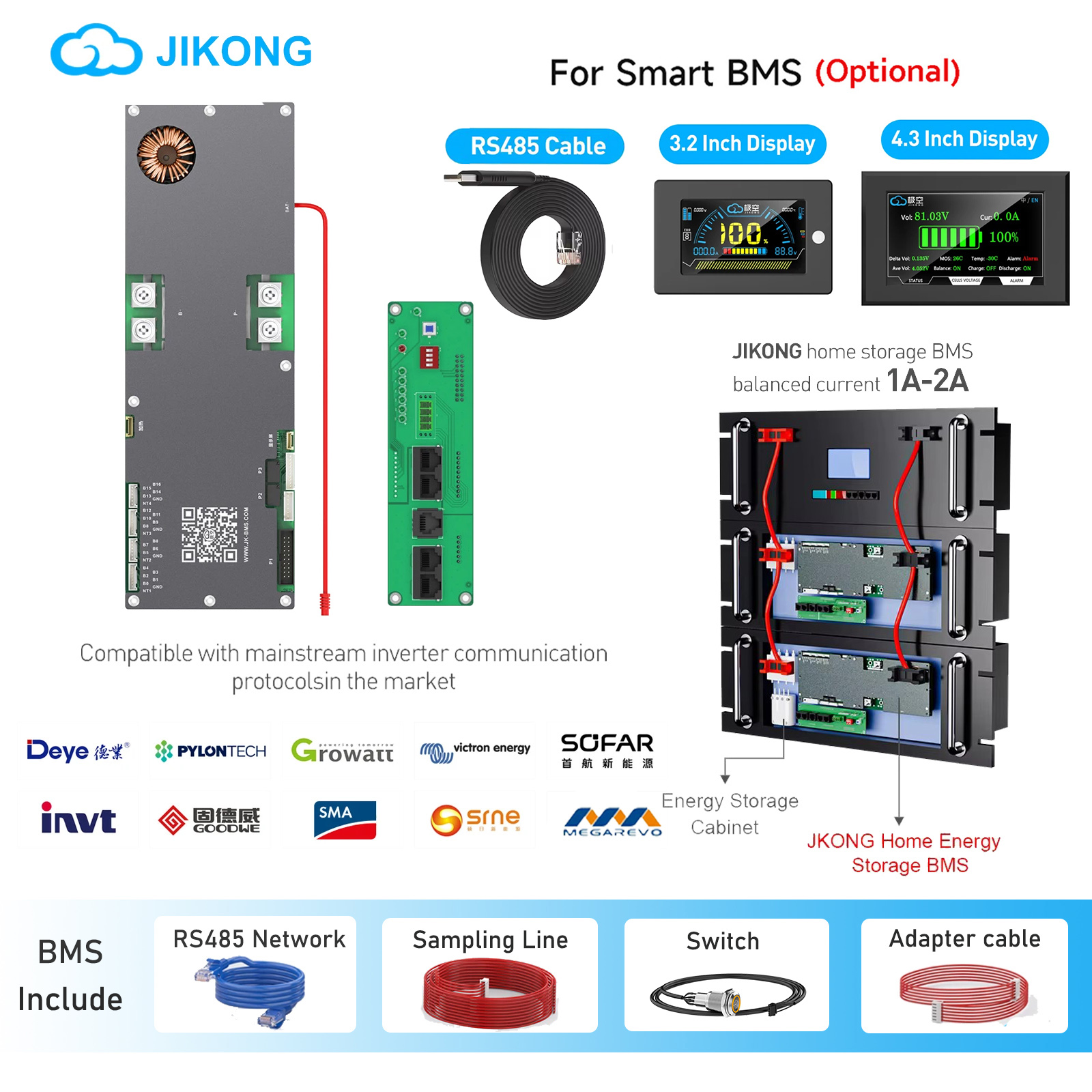

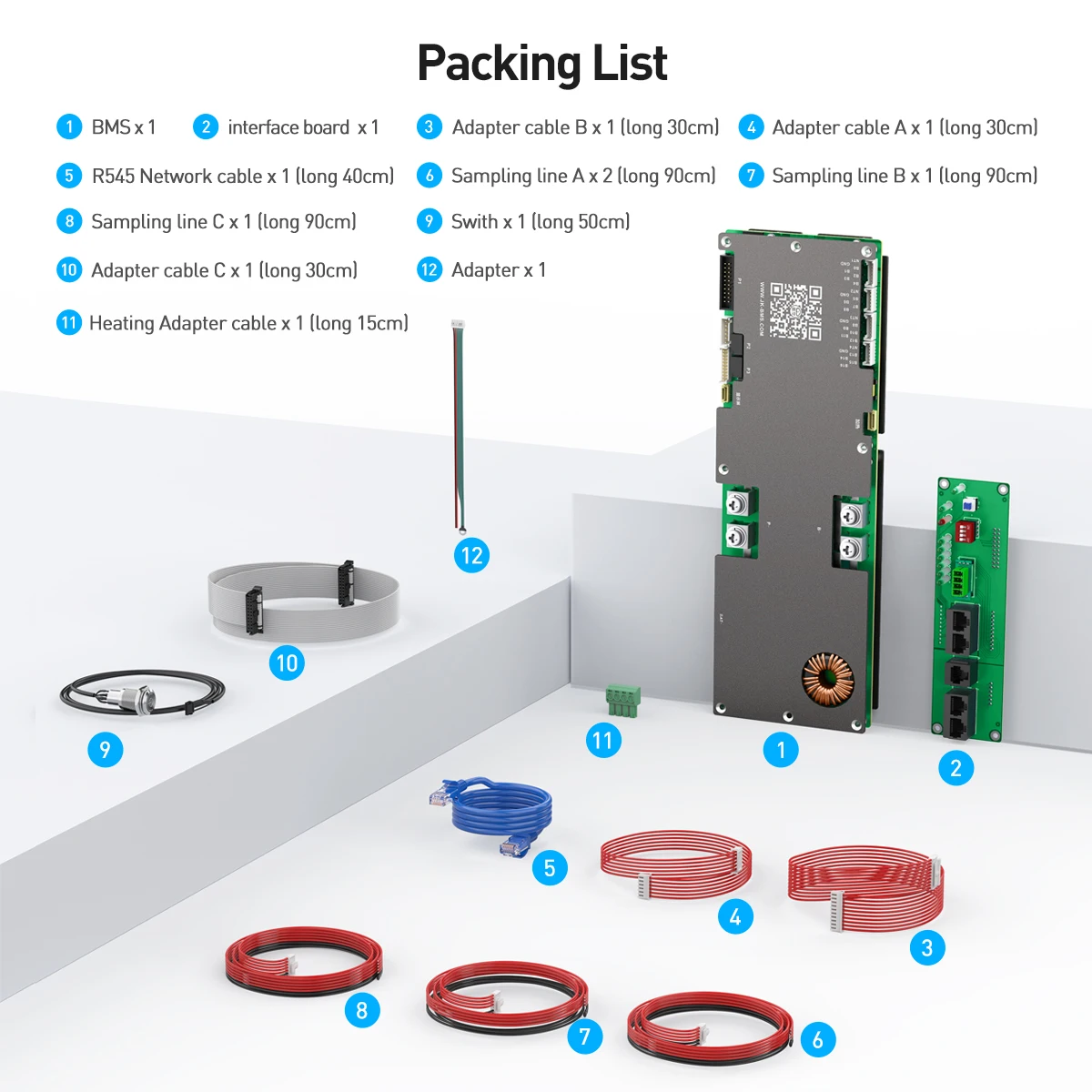

Package includes：(optional)

1*JK Inverter BMS

1*JK Inverter BMS+3inch LCD Display

1*JK Inverter BMS+4.3inch LCD Display

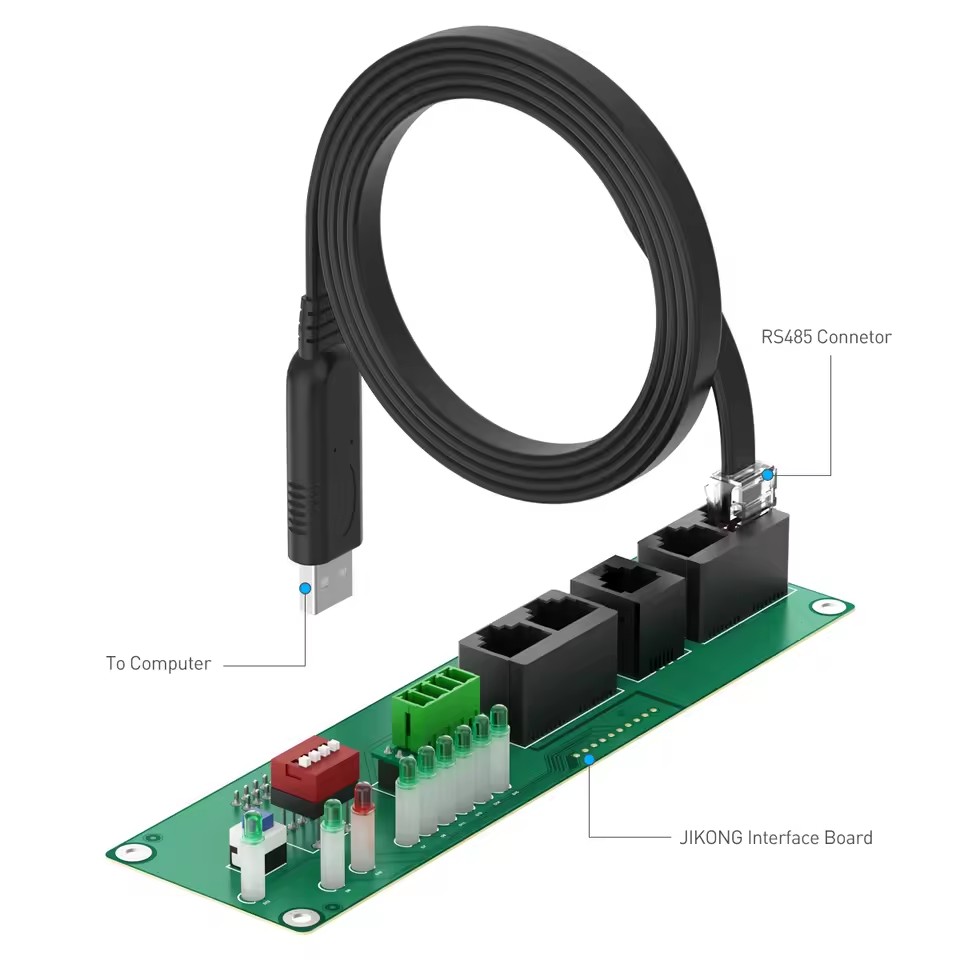

1*JK Inverter BMS+RS485 Cable

1*3inch LCD Display

1*4.3inch LCD Display

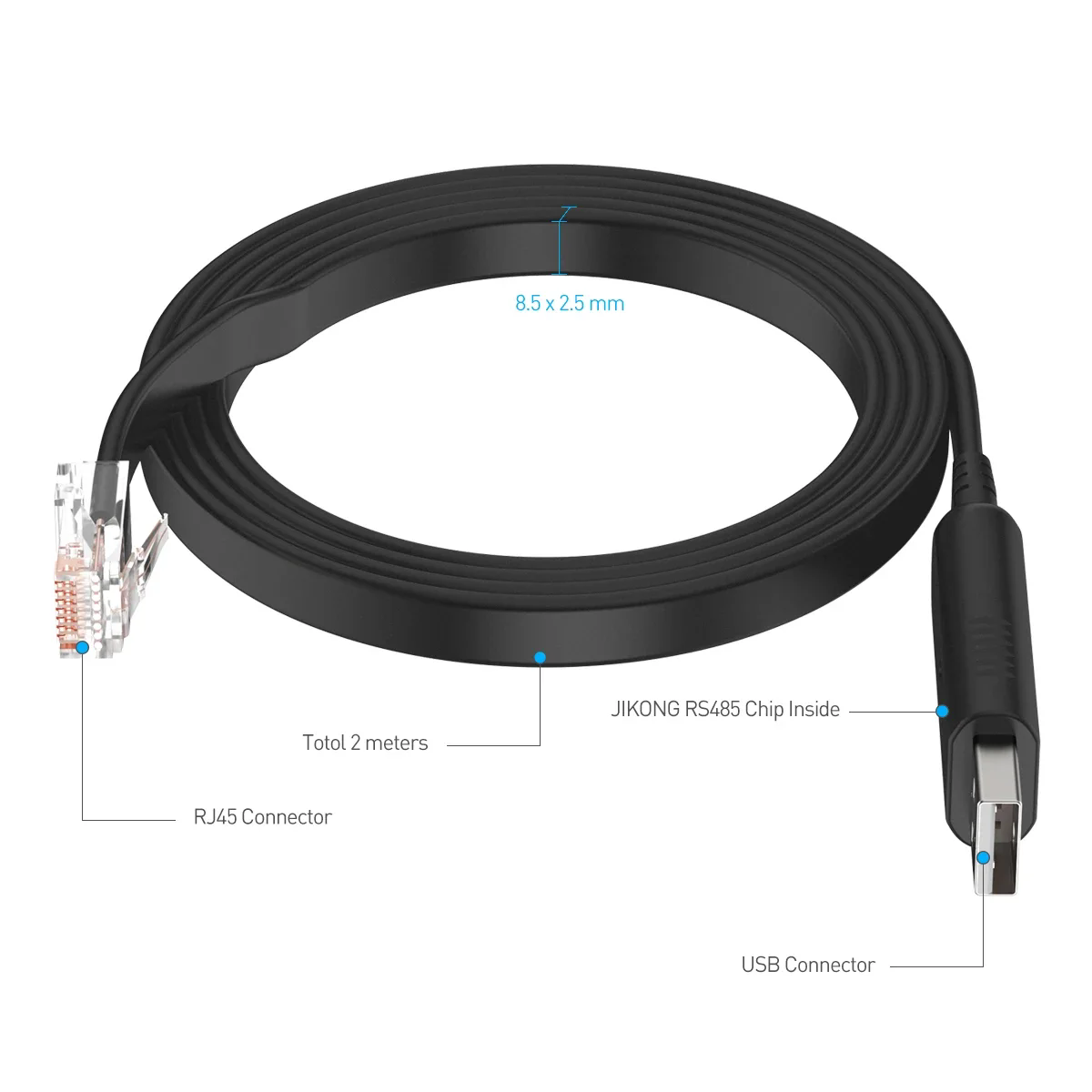

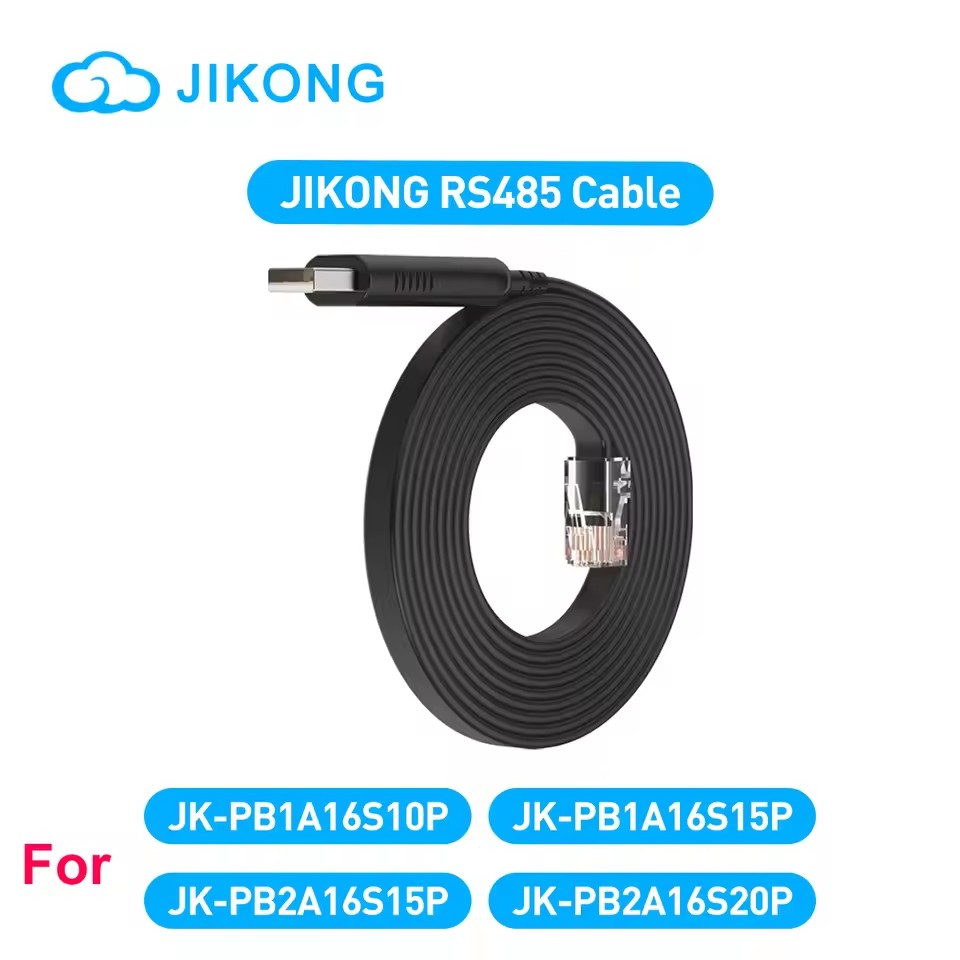

1*RS485 Cable
