Lathe and milling machine scale KA-300 digital meter displacement sensor
Parameter
Linear scale parameter
1. Travel (measuring) length: 70-1020mm
2. Total (overall) length: Travel length + 106mm
3. Plug: DB9
4. Resolution: 0.005mm
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)
7. Cable length: 3 Meter (about 9 feet)
8. Normal size: About 34.5*25
9.
KA-300
grating ruler is a kind of grating ruler which is widely used. It has reasonable structure, t
he shape design is beautiful, good rigidity, can meet the majority of general machine tool users use, use long Degree in 70~1020mm.
10. Moving speed: high speed ruler 120 m/min,
Ordinary ruler 60m/min.
11. Power supply: +5V + 5%, 80mA.
12. Working temperature: 0~45

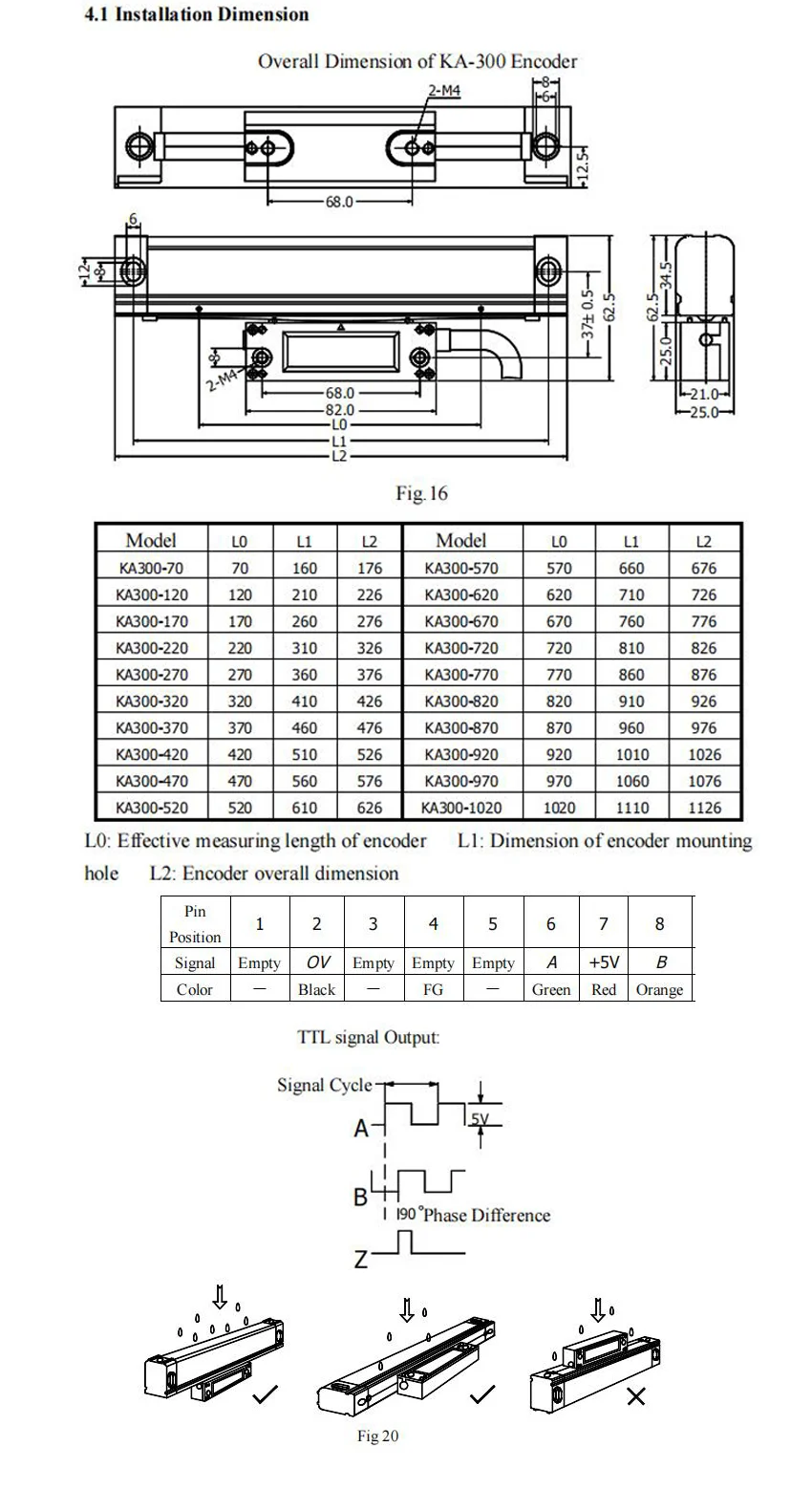

The S
ignal of
Linear optical ruler/Linear glass scales/Linear encoder/Linear sensor
If you order them, please confirm your dro can work with our linear scales or tell me your dro brand, so that I can change the signal for you, thanks.
Package includes
1 pcs linear scale
1 pcs scale cover
1 pcs L connecting bracket
1 pcs screw bag
Linear optical ruler/L
inear glass scales/Linear encoder/Linear sensor pictures
