DESCRIPTION:

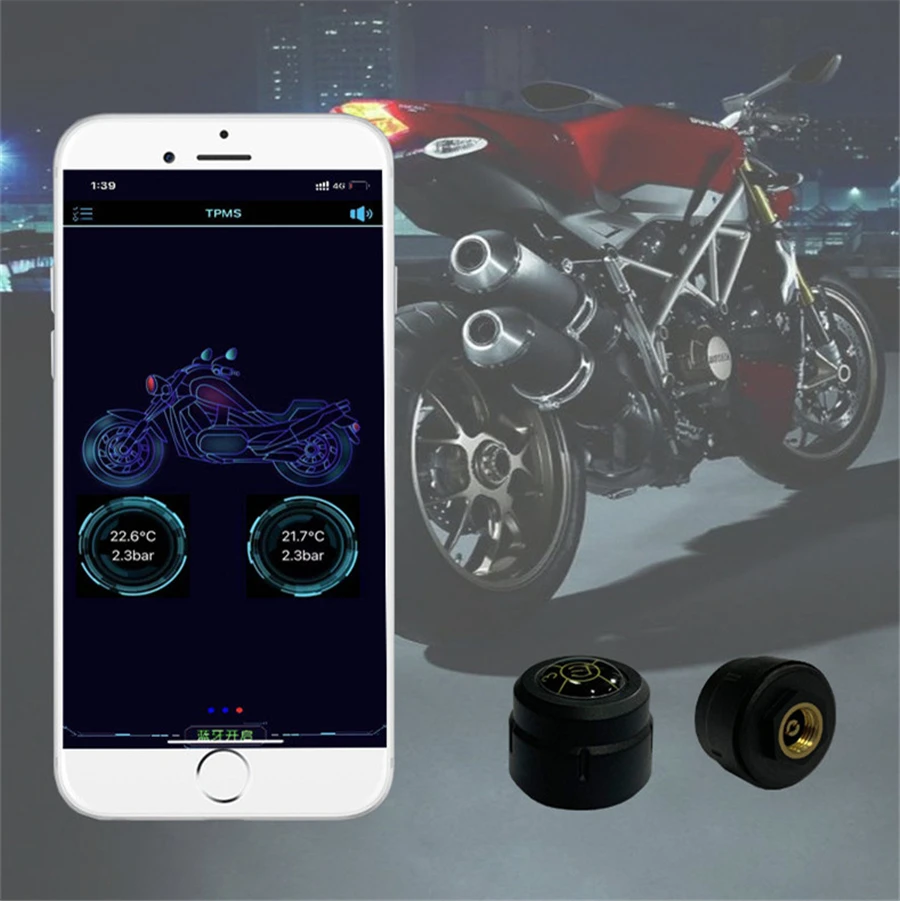

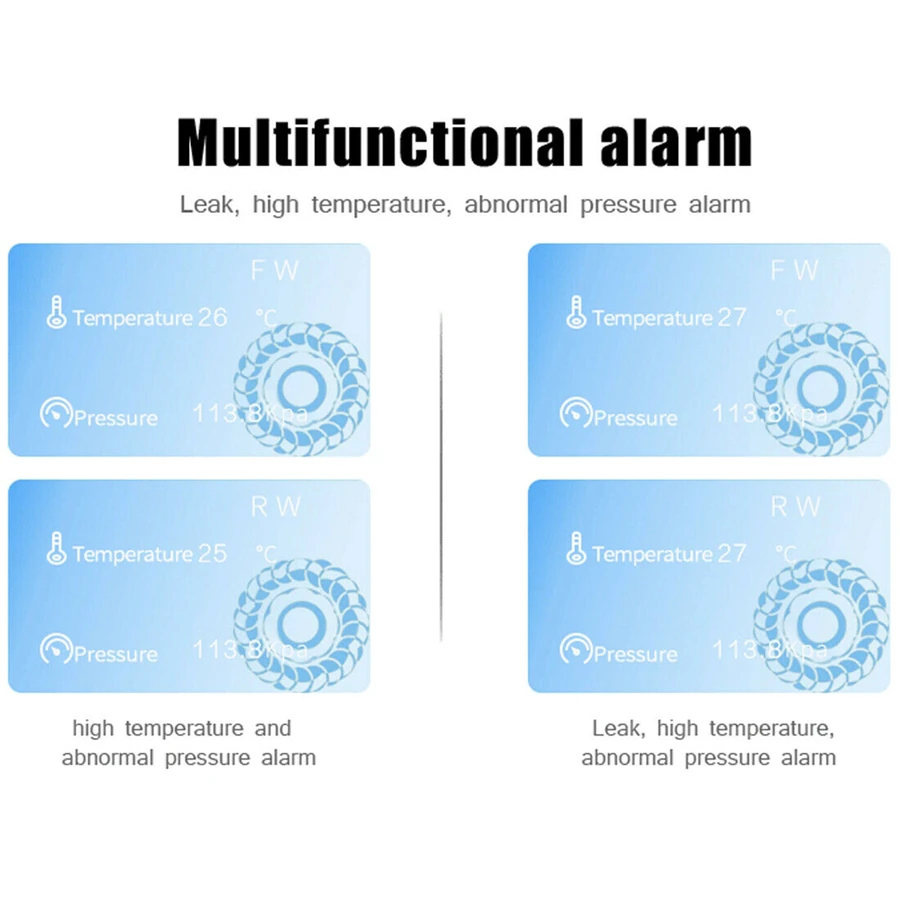

Thanks for choosing our BLE TPMS product which is designed for smart cellphones and supports cellphone with Bluetooth 4.0 or above. Once BLE tire sensor installed in wheel, tire pressure and temperature can be displayed in cellphone with APP. During travel, tire pressure and temperature displayed in real time and send alert when statistics abnormal For your safety, please read manua before using, thank you!

WARNING

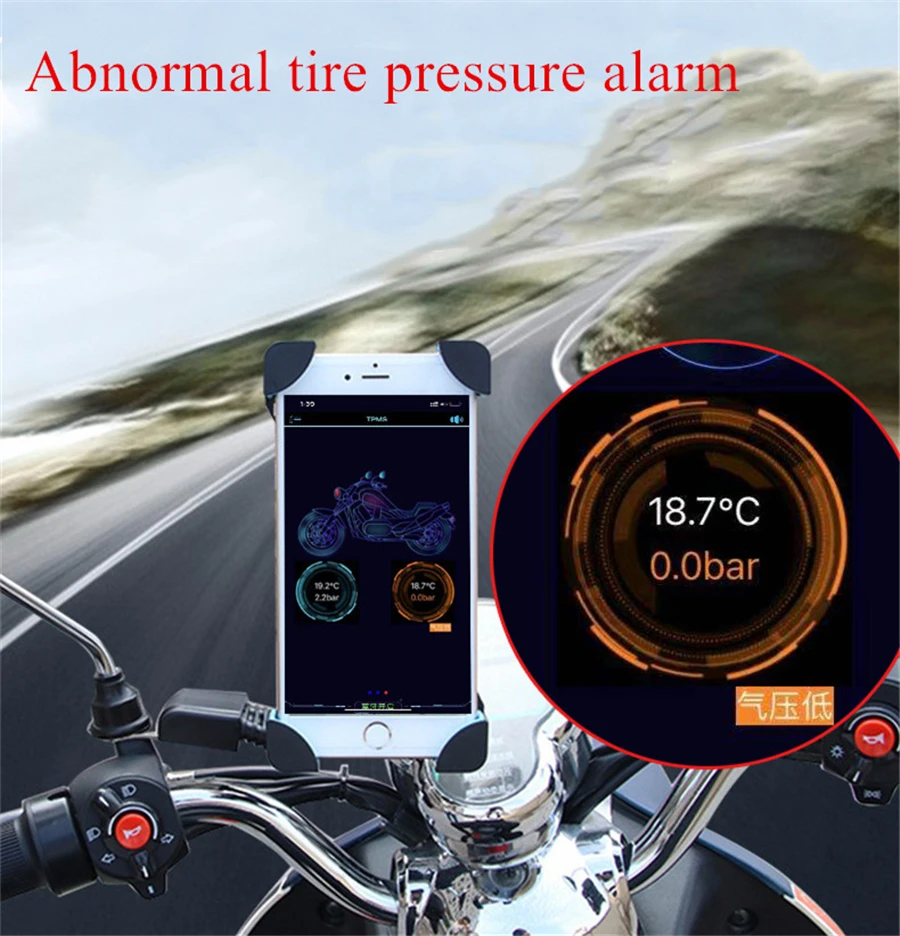

Support cellphone with Bluetooth 4.0 or above Do NOT support Cellphone with Bluetooth lower than 4.0. Product displays by cellphone. During driving, please be careful when viewing tire pressure and temperature in cellphone If tire pressure accelerates down or up continuously, please stop car and check if theres any problem with the tire. This product can read tire pressure and temperature, but it cannot avoid sudden accident motorcycle by tire It's important to use tire with high quality slightly tire leakage makes tire pressure decreases over time is normal. It has nothing to do with this product installation.

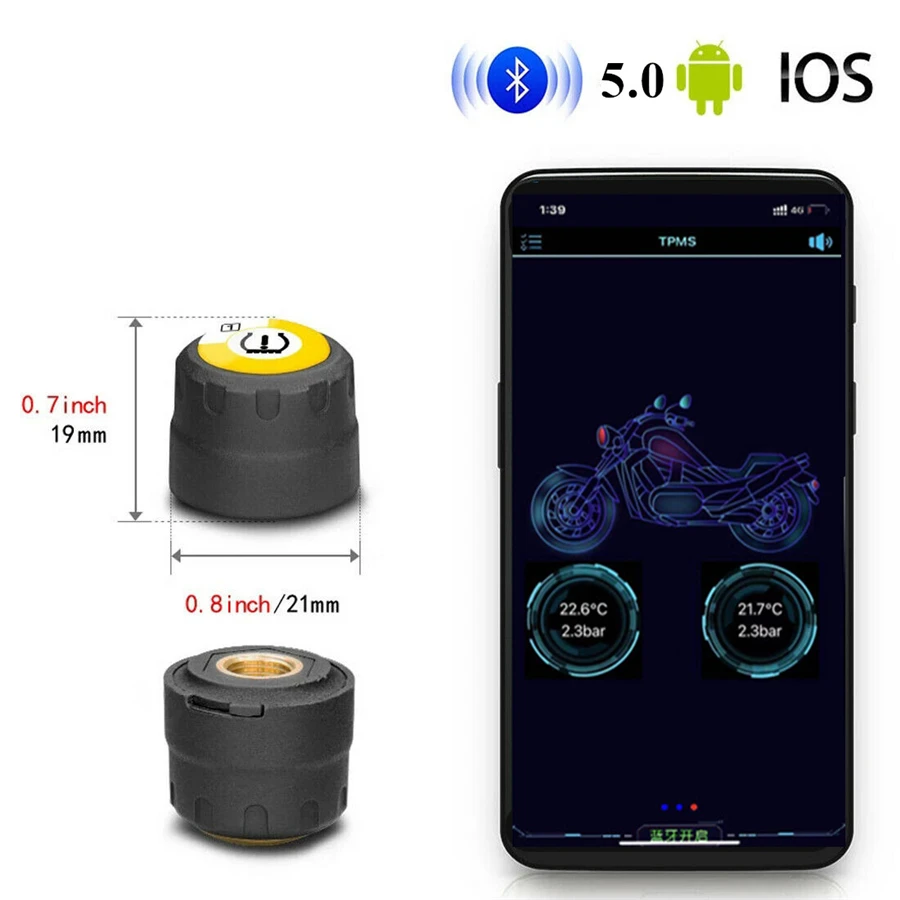

Sensor Specifications

Processor : ARM M0

Working voltage: 3V

Working Current: 100μA

Standby Current:≤2.2μA

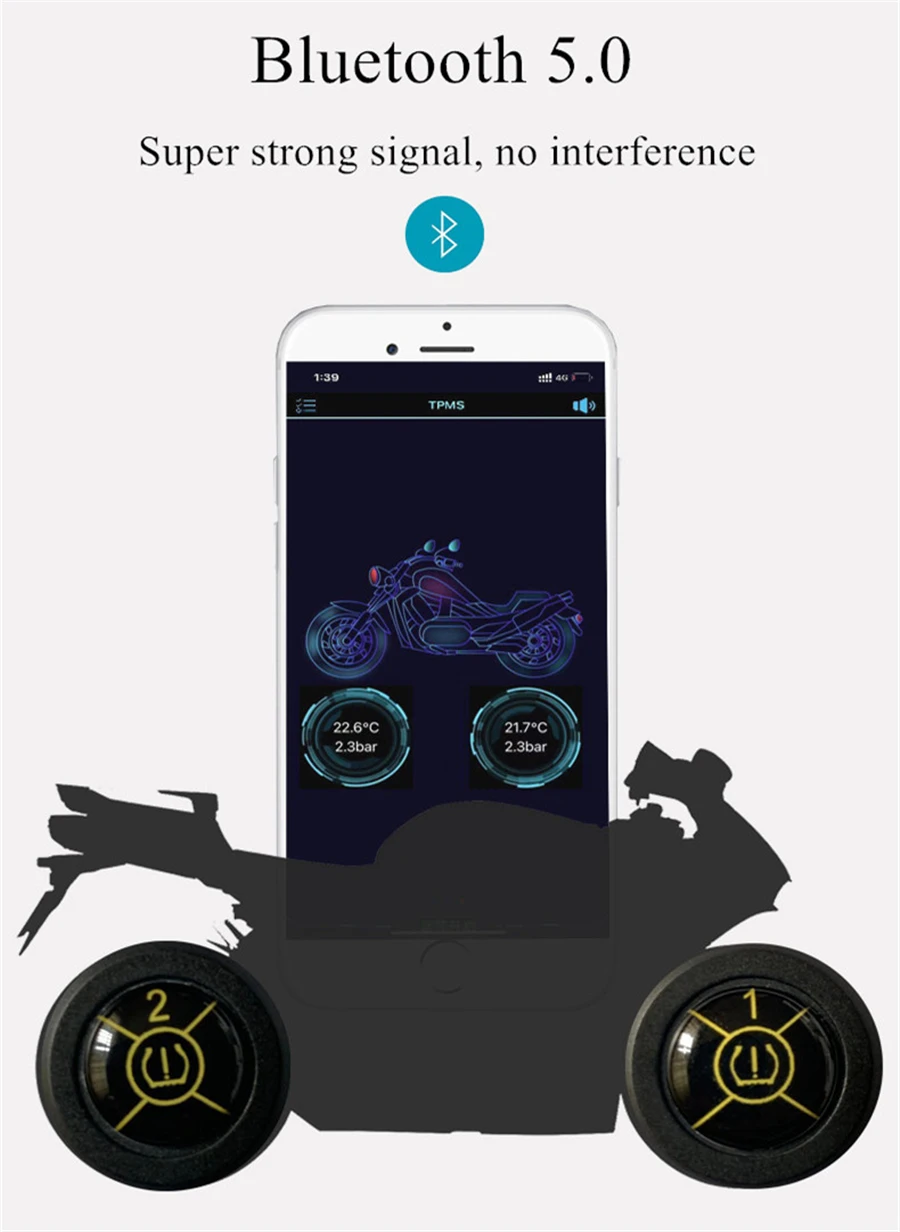

Bluetooth：5.0

Bluetooth Working Frequency: 2.4GHz

Bluetooth Transmitting Power: odBm MAX

Wait Time:≤5s

Display:Phone APP

Waterproof Standard: IP67

Working Humidity: 95% MAX

Tire Pressure Detection Range: 100-1300kPa

Tire Pressure Detection Accuracy: ±10kPa

Tire Temperature Detection Accuracy: ±3℃

Working Temperature:-30℃~+80℃

Storage Temperature:30C ~+85℃

Battery Capacity: 140mAh

Battery Life: 3-5 Years

Sensor Weight: 11 5g±1g

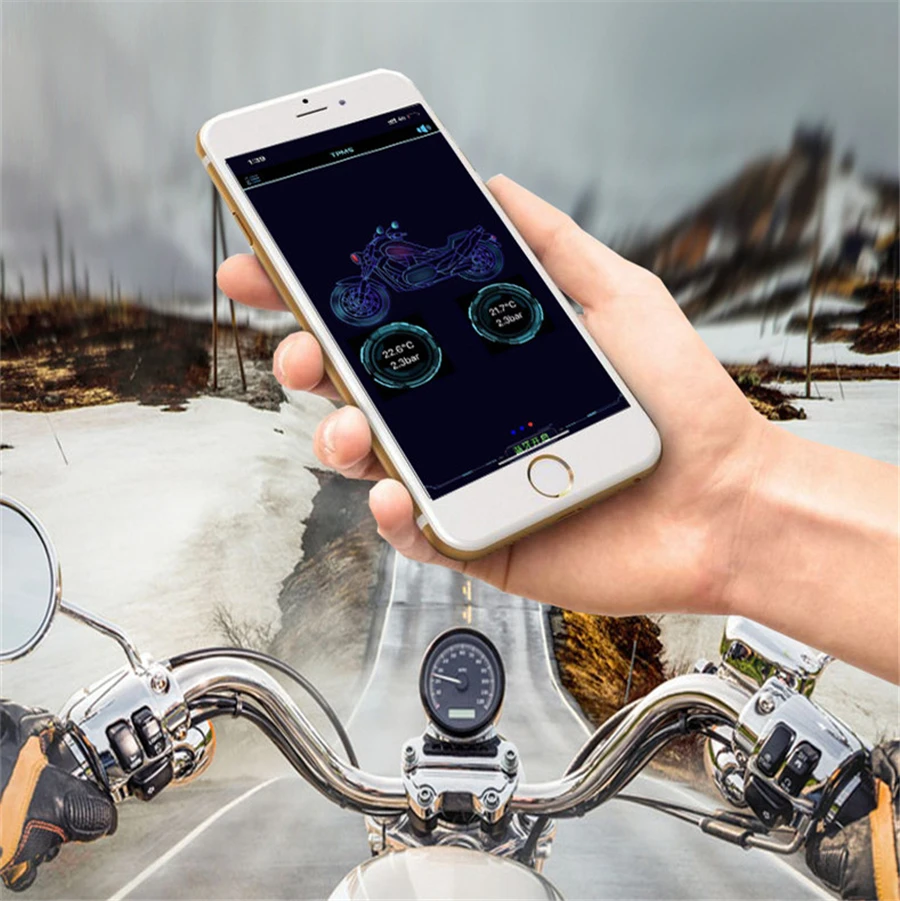

APP Description

Compatible Operating System

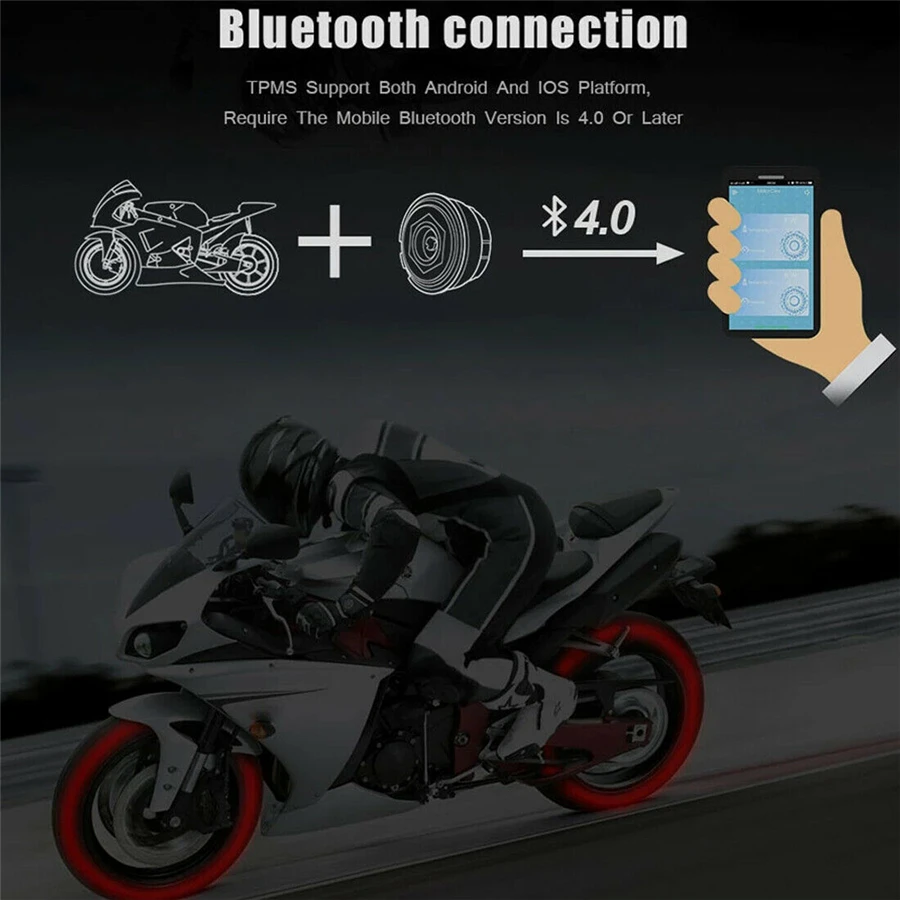

TPMS supports both Android and iOS, requires Bluetooth 4.0 or

above

APP Installation

Option 1: Scan QR code on card, then download and install;

Option 2: Search"motorcare"in APP Store or Google play store,

then download and install
