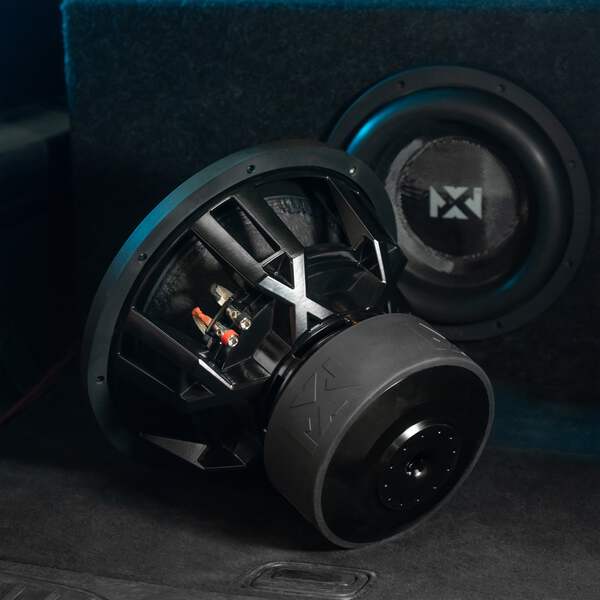

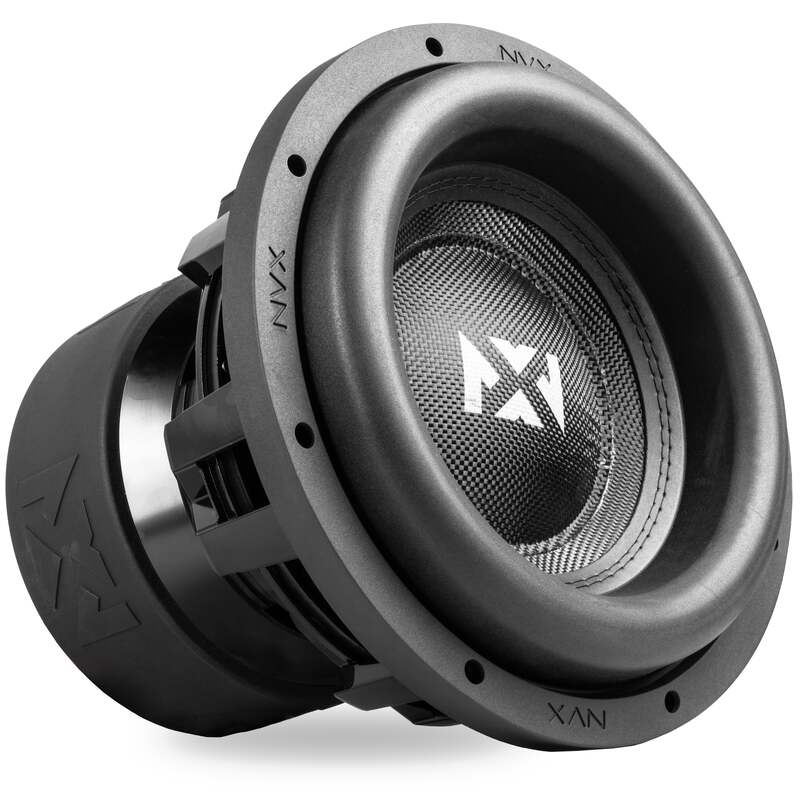

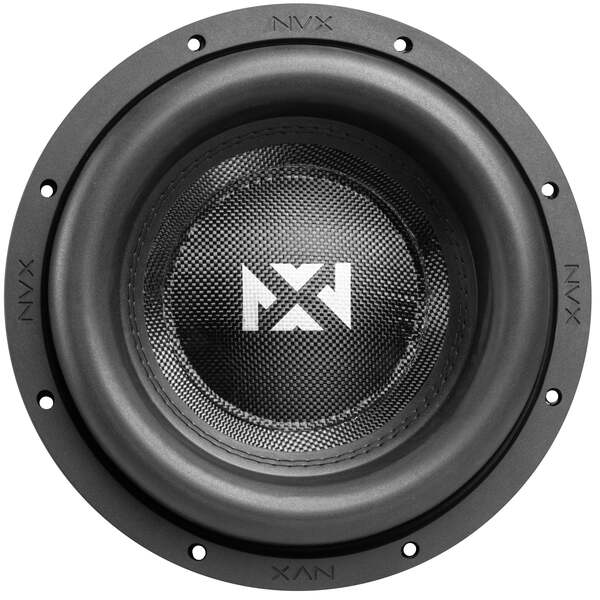

XCW122 4000 Watt Peak (2000W RMS) 12" X-Series Dual 2-Ohm SPL Subwoofer
Product Details:
- 12" Dual 2-ohm X Series SPL Subwoofer
- Power Handling:
- Peak: 4000 watts
- RMS: 2000 watts
- Designed for Extremely Low Bass
- 30 mm Xmax (One Way)
- Enhanced Woven Fiber Paper Composite Cone

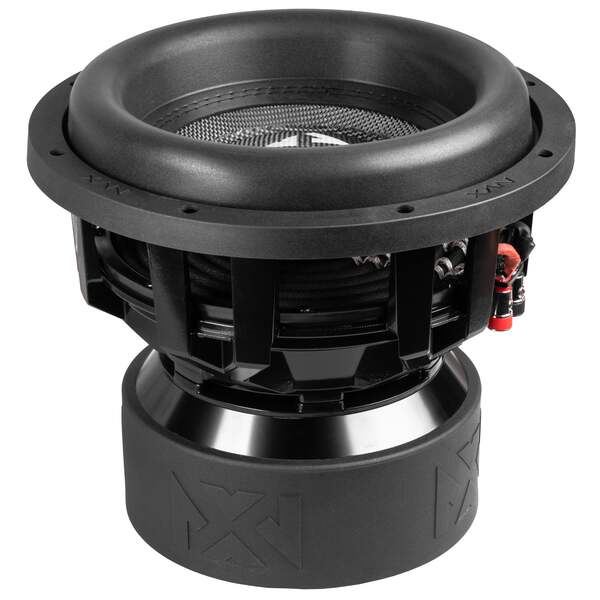

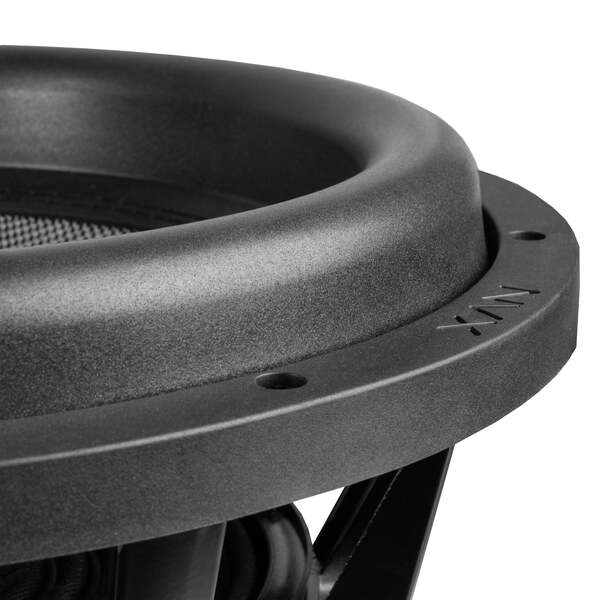

- Custom High-Roll Foam Surround with Black Nylon Stitching

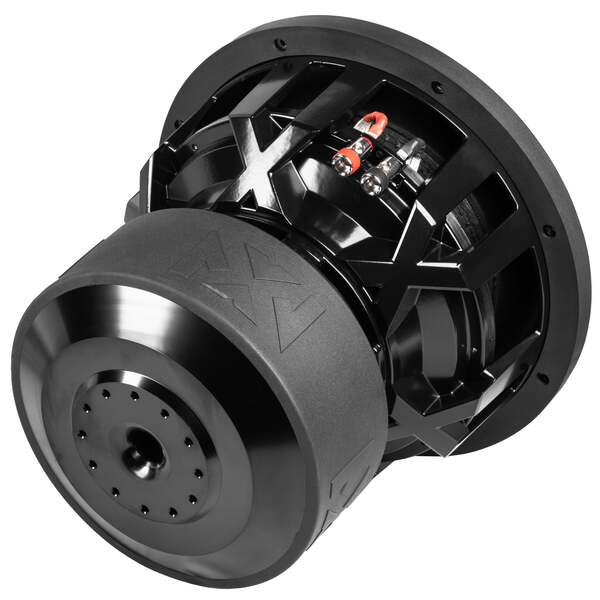

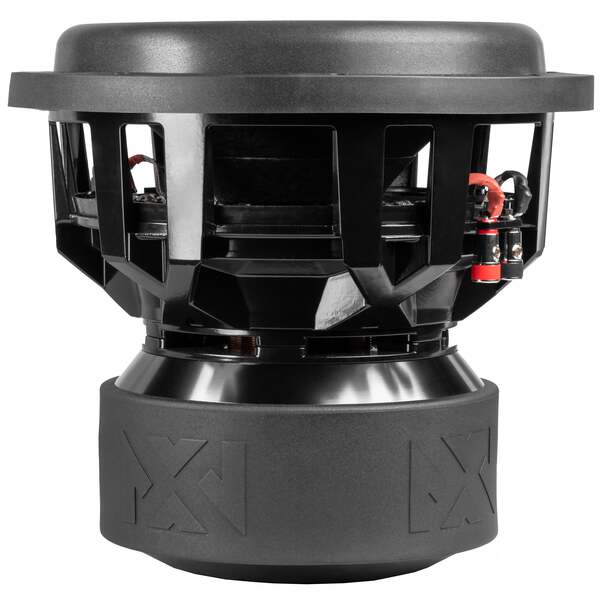

- Precision-Engineered Custom Tooled Die-Cast Aluminum Basket with Reinforced X Bracing for Structural Strength
- Vent Cooling Spacer to Maintain Optimal Airflow and Keep the Voice Coil Cool
- 3.0" High Temperature Flat Wire CCAW Aluminum Voice coil with Black Aluminum Former

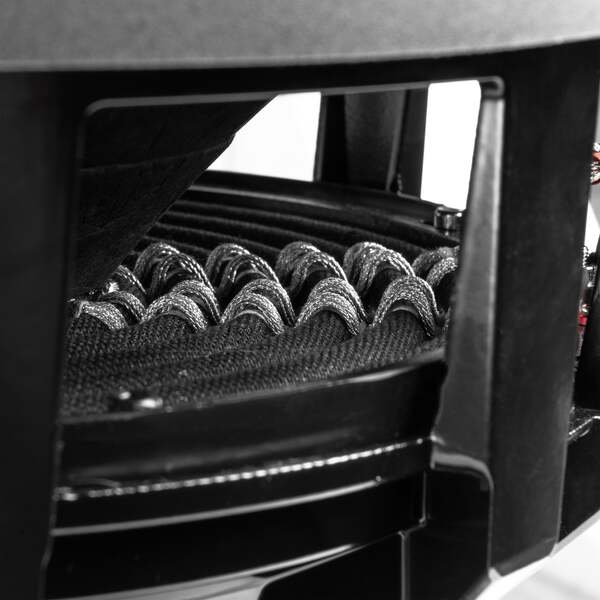

- 4-Layer Linear Roll Spider with Integrated Tinsel Leads for Enhanced Linearity and Durability
- Optimized High-Velocity Pole Vent
- One-piece T-yoke with Vented Magnet Gap for Efficient Heat Dissipation

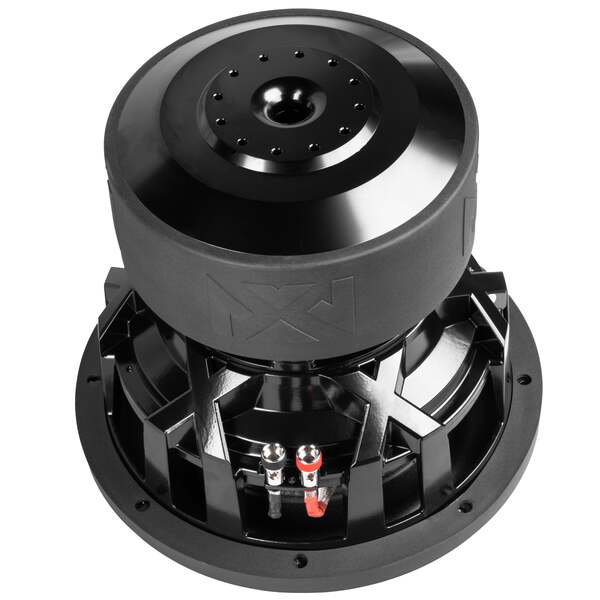

- 409 oz. Triple Stacked Ferrite Magnet with Protective Rubber Boot

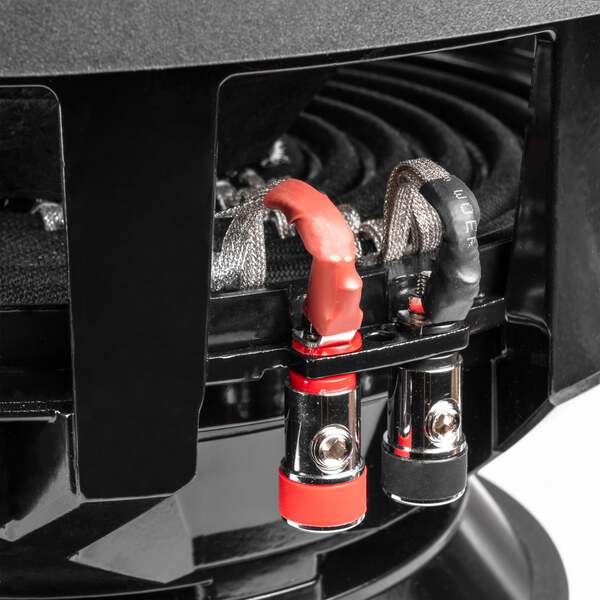

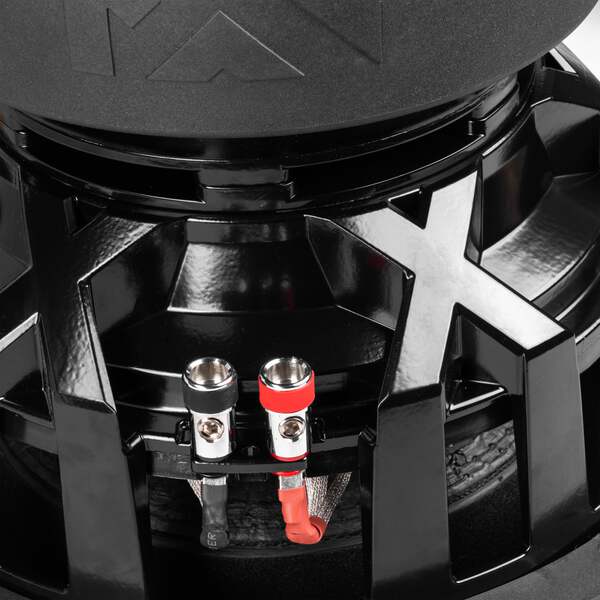

- Heavy-Duty 4-Gauge Hex Key Speaker Terminals
- Frequency Response: 20 - 200 Hz
- Resonance Frequency (Fs): 38.26 Hz
- Sensitivity: 85.6 dB
- Recommended ported box volume: 2.5 cubic feet
- Top-mount depth: 10.35"
- Cutout diameter: 11.22"
- CTA-2031 Compliant
- 1-year Warranty from the Original Purchase Date
T/S Parameters:
- Fs: 38.26 Hz
- QES: 0.545
- QMS: 3.806
- QTS: 0.477
- Vas: 19.38 L
- Xmax: 30 mm
- SPL (1W/1M): 83.7 dB
- Sd: 471.44 cm²
- Re: 1.8 Ω + 1.8 Ω
- BL: 14.75
- MMS (Grams): 336.70
- Cms (uM/N): 57.60
- Displacement: 0.20 cu ft
- Net Weight: 56.22 lbs
