Automatic Tool Setting Instrument  Jade Carving Machine Tool Setting Instrument Broken Tool Detection CNC Subminiature MP11-10-2

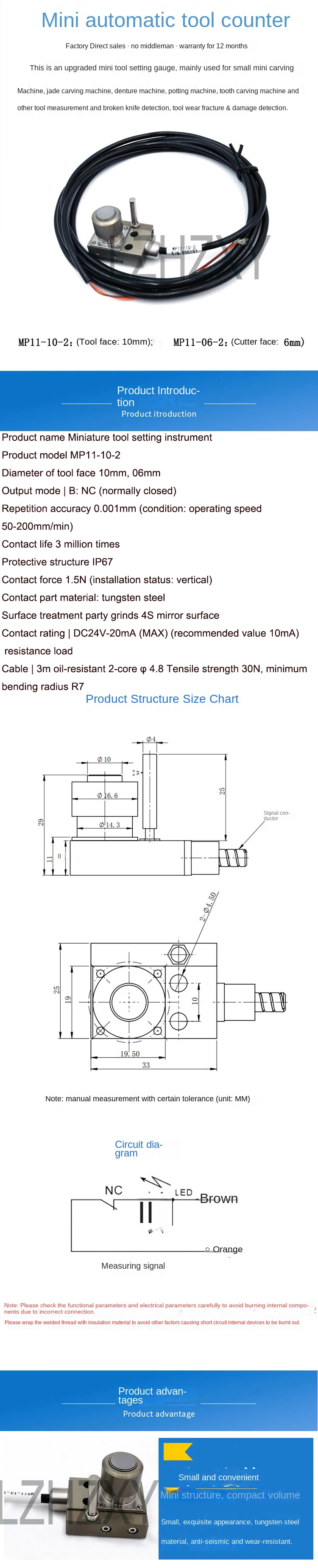

Product model: MP11-10-2

Diameter of tool face: 10mm

Output mode: B:NC normally closed

Pre-travel: zero

Stroke: 5mm

Repeatability: 0.001M (stripe: operating speed 50-200MM/MIN)

Contact life: 3 million times

Protection structure: IP67

Contact force: 1.5N Installation overstate: vertical

Contact part material: tungsten steel

Surface treatment method: grinding 4S mirror surface

Contact rating: DC24V-20 MA (MAX) recommended value 10MA resistive load

Cable: 3M to oil 2 cores, diameter 4.8 tensile strength 30N, minimum rationale and semi-light R7

Protection tube: 1M minimum bend by radius R25
