Product Type: Starter |
Replaces: 5090983A 5216040M025SM 50-90983A, 50-90983A1, 50-90983T1 |
  • Starter Type: PMDD |
  • Volts: 12 |
  • Teeth On Drive: 10 |
  • Rotation: Counterclockwise |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today

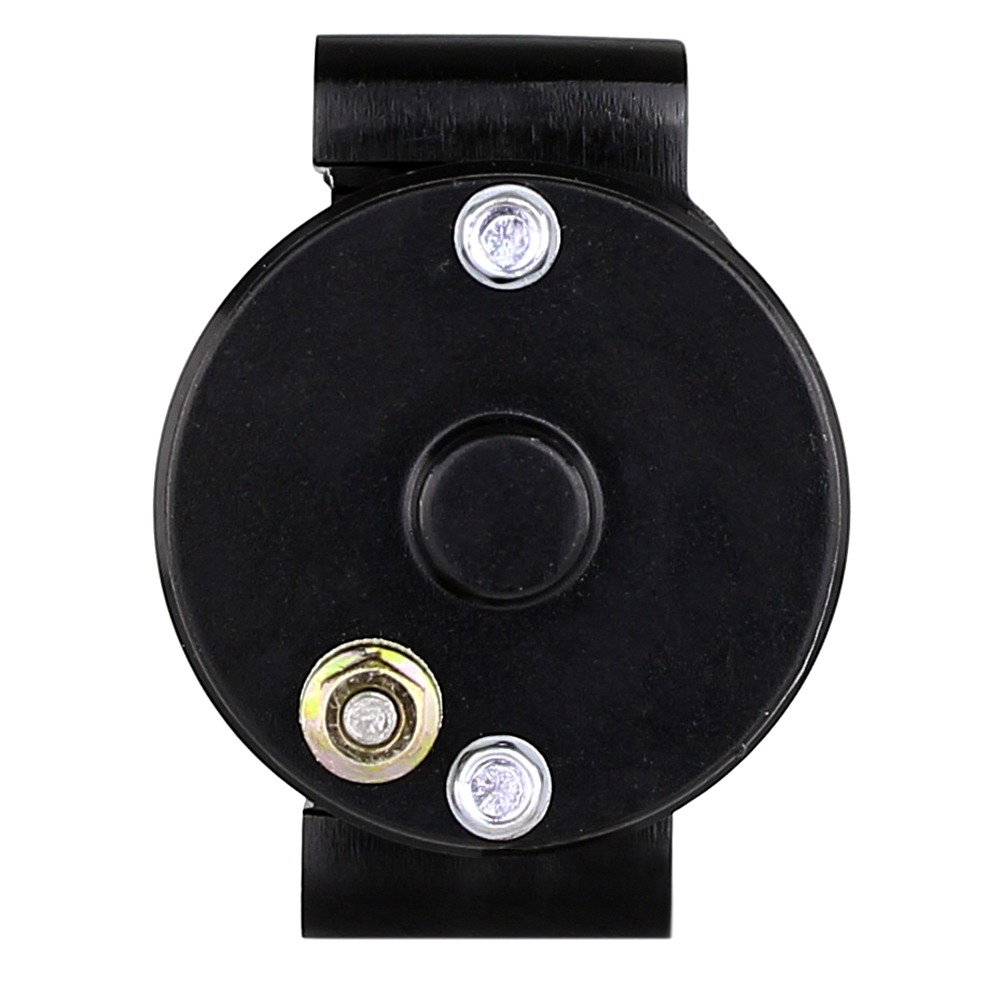

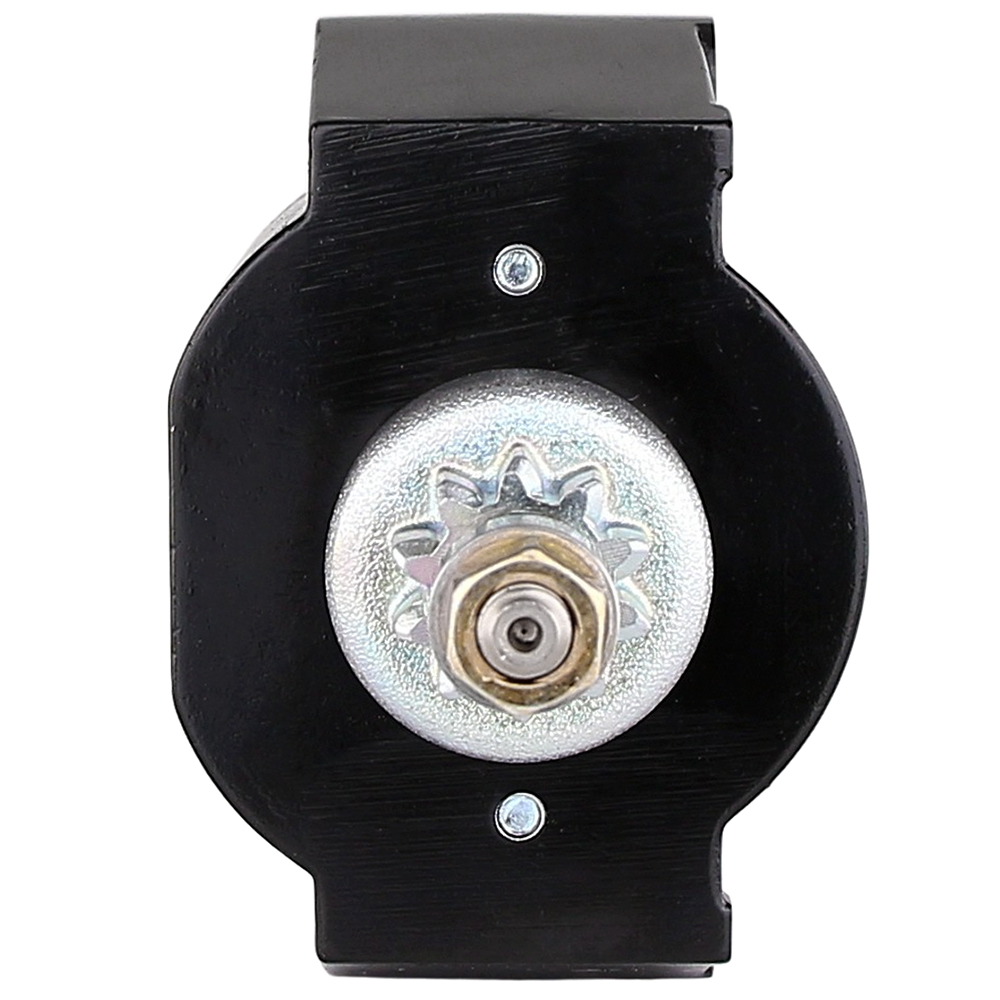

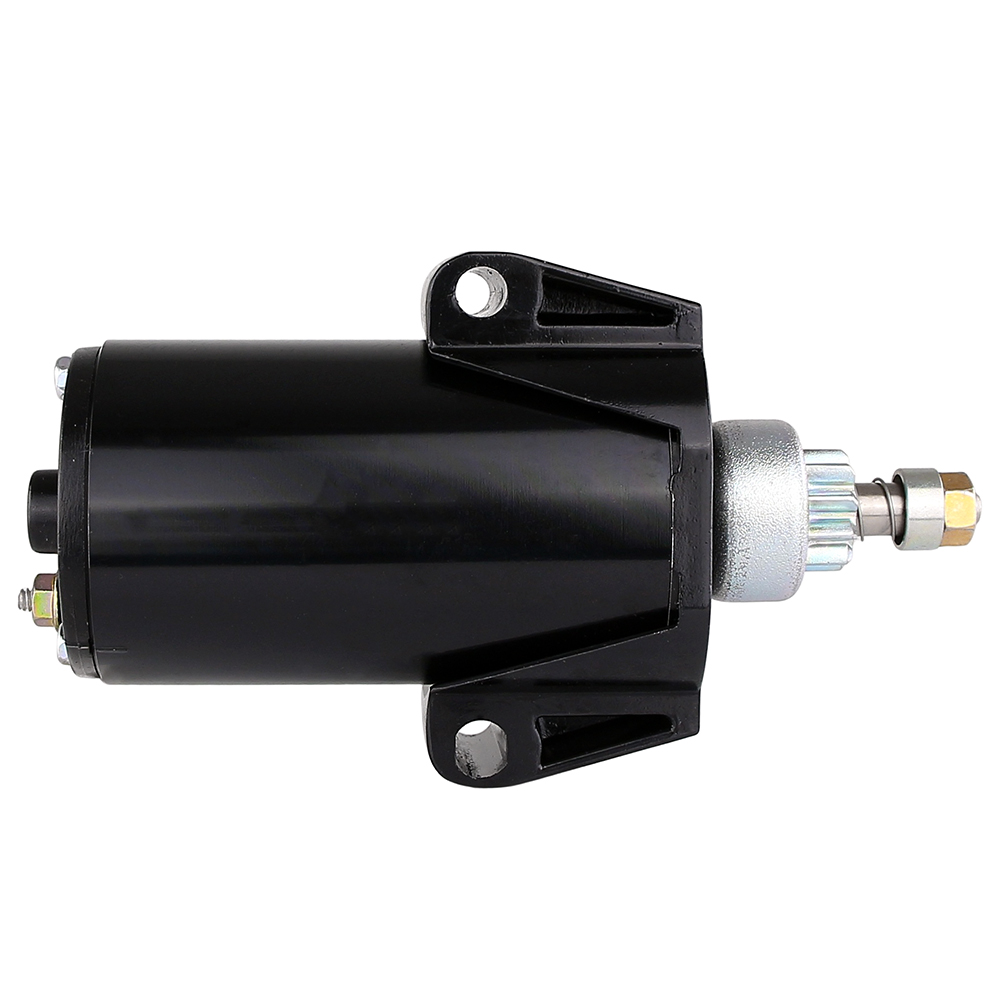

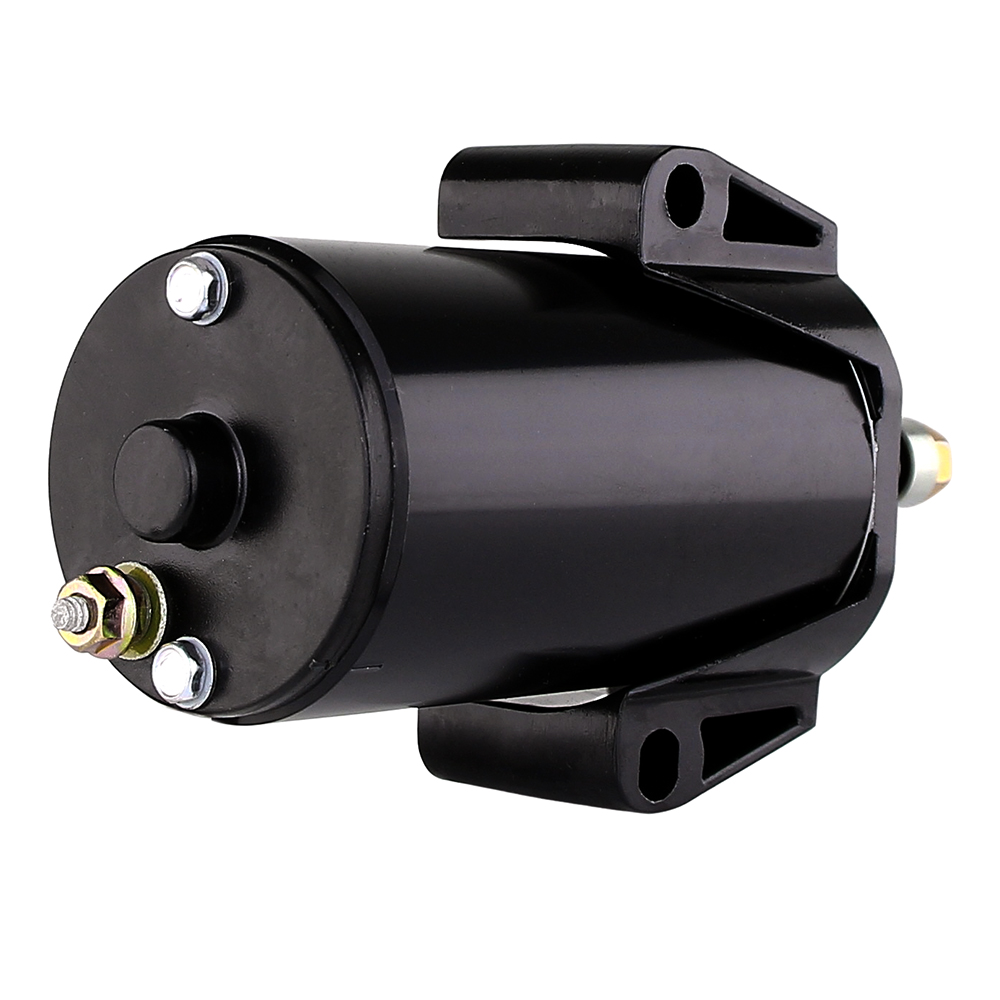

Starter 80-05 PMDD 12V 10T CCW Mercury 25EH 25EL 25E Mariner 50-90983A 10-Tooth

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• Mercury Marine: 50-90983A / 5090983A
• Mercury Marine: 50-90983A1 / 5090983A1
• Mercury Marine: 50-90983T1 / 5090983T1
• Mercury Marine: 50-893889T / 50893889T
• Mercury Marine: 50-8M0033984 / 508M0033984
• Johnson Electric: 5216040M025SM / 5216040M030SM / SM20521 / SM52160
• Arco Marine: 5367
• Prestolite: 20513524TBA
• API Marine: MOT3000
• Arrowhead: SAB0053
• J&N: 410-21024
• Lester: 5724

SPECIFICATIONS:
• Type: Starter Motor (PMDD — Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counter-Clockwise)
• Teeth/Splines: 10
• Pinion/Gear OD: 23.5mm / 0.925"
• Mounting Ear 1: 9.0mm ID Unthreaded
• Mounting Ear 2: 9.0mm ID Unthreaded (1 hole is oblong)
• Field Case Length: 103.6mm / 4.078"
• Weight: 3.675 lbs / 1.67 kg
• Condition: New

APPLICATIONS:
• Mariner 8-25HP (1984-2001) / Mercury 8-25HP (1980-2005)
• Includes: 8HP / 9.9E/EH/EL/ELRC / 15EH/EL/ELH / 18E/EL
• Also: 20E/EH/EL / 25E/EH/EL/ELH — all models above

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



MERCURY / MARINER OUTBOARD — PMDD STARTER 12V 10T CCW (1980-2005):

MARINER — 8HP:
• Mariner 8HP 12.8CI (1986-1994)

MARINER — 9.9HP:
• Mariner 9.9E 12.8CI 9.9HP (1987)
• Mariner 9.9EH 12.8CI 9.9HP (1988)
• Mariner 9.9EL 12.8CI 9.9HP (1987-1989)
• Mariner 9.9ELRC 12.8CI 9.9HP (1990-1994)
• Mariner 9.9ELRC 16.0CI 9.9HP (1995-2000)

MARINER — 15HP:
• Mariner 15EH 16.0CI 15HP (1992-2001)
• Mariner 15EL 16.0CI 15HP (1992-2001)
• Mariner 15ELH 16.0CI 15HP (1992-2001)

MARINER — 20HP:
• Mariner 20E 24.4CI 20HP (1984-1987)
• Mariner 20EH 24.4CI 20HP (1988-1998)
• Mariner 20EL 24.4CI 20HP (1984-1998)

MARINER — 25HP:
• Mariner 25E 24.4CI 25HP (1985-2001)
• Mariner 25EH 24.4CI 25HP (1992-2001)
• Mariner 25EL 24.4CI 25HP (1985-2001)
• Mariner 25ELH 24.4CI 25HP (1987-2001)

MERCURY — 8HP:
• Mercury 8HP 12.8CI (1986-1994)

MERCURY — 9.9HP:
• Mercury 9.9E 12.8CI 9.9HP (1986-1990)
• Mercury 9.9EH 12.8CI 9.9HP (1988-1989)
• Mercury 9.9EL 12.8CI 9.9HP (1986-1989)
• Mercury 9.9ELRC 12.8CI 9.9HP (1990-1994)
• Mercury 9.9ELRC 16.0CI 9.9HP (1995-2001)

MERCURY — 15HP:
• Mercury 15EH 12.8CI 15HP (1988)
• Mercury 15EH 16.0CI 15HP (1989-2005)
• Mercury 15EL 12.8CI 15HP (1988)
• Mercury 15EL 16.0CI 15HP (1989-2002)
• Mercury 15ELH 12.8CI 15HP (1988)
• Mercury 15ELH 16.0CI 15HP (1989-2002)

MERCURY — 18HP:
• Mercury 18E 24.4CI 18HP (1980-1984)
• Mercury 18EL 24.4CI 18HP (1980-1984)

MERCURY — 20HP:
• Mercury 20E 24.4CI 20HP (1984-1988)
• Mercury 20EH 24.4CI 20HP (1997-1998)
• Mercury 20EL 24.4CI 20HP (1984-1998)

MERCURY — 25HP:
• Mercury 25E 24.4CI 25HP (1980-2005)
• Mercury 25EH 24.4CI 25HP (1985-2005)
• Mercury 25EL 24.4CI 25HP (1980-2005)
• Mercury 25ELH 24.4CI 25HP (1985-2005)
