Product Type: Starter; Condition: New; Voltage: 12V; kW: 3.0; Rotation: CW; Tooth Count: 11; Country of Origin: IN

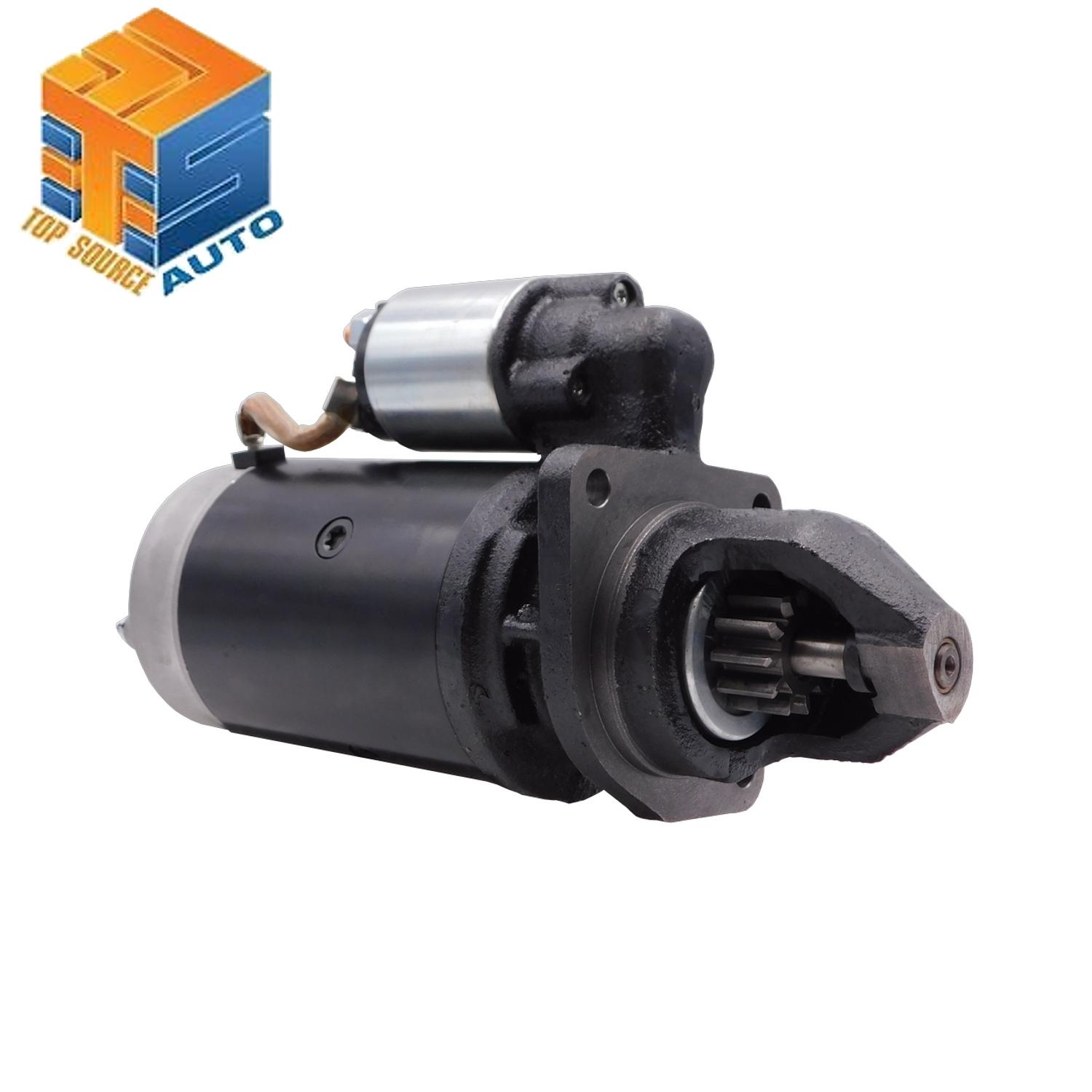

Top Source Auto New Starter Fits Zetor 5211 5213 5243 5245 5320 5321 01367032 LRS00147 D45070088

Click Thumbnails to Enlarge

Specifications
OE Manufacturer:
Product Type: Starter
Weight: 30.1400
Condition: NEW
Unit Source:
Design / Type:
Design / Type: DD
Design / Type:
Starter Series:
Location - General:
Location - Specific:
Design Type:
Voltage: 12
Amperage:
kW: 3.0
Rotation: CW
Regulator/Fan:
Tooth Count: 11
Spline Count:
Polarity:
Shaft Type:
Duty Cycle:
Horsepower:
RPM:
V-Set:
Circuit Type:
Plug Code:
Plug Orientation:
Pulley Class:
Case OD (mm):
Overall Length (mm):
Gear OD (mm):
Pulley Belt Width (mm):
Pulley OD (mm):
Shaft Overall Length (mm):
Shaft OD (mm):
Clutch Type:
Operating Mode:
Pads Included:
Connection Type:
Piston Material:
Piston Outside Diameter (in):
Bleeder Port Measurment:
Inlet Port Measurement:
Ignition Type:
Housing Material:
Torque (ft. lbs):
Pulley OD (in):
Crankshaft OD (in):
Terminal Type:
Sensor Included:
Idle ACM Included:
Cage Wheel Included:
Wiring Harness Included:
Number of Pistons:
Caliper Pistion OD (mm):
Motor Overall Length (in):
Motor OD (in):
Wheel OD (in):
Bearing Inside Diameter (mm):
Bearing Outside Diameter (mm):
Bearing Width (mm):
Rotor Inside Diameter (mm):
Rotor Outside Diameter (mm):
Rotor Overall Length (mm):
Rotor Shaft Outside Diameter (mm):
Rotor Shaft Overall Length (mm):
Mounting Hardware Included:
Installation Hardware Included:
Mounting Type:
Mounting Type:
Mounting Type:
Cap Design:
Plunger Type:
Includes:
Includes:
Number of Mounting Holes:
Number of Terminals:
Number of Wires:
ETB Inside Diameter (in):
Unit Finish:
Unit Color:
Number of Pieces:
Country of Origin: IN
Country of Use:
Notes:
Other Part #: SMA0001 SBO0209 MSN203 MSN190 MS91 MS184 LRS01513
INTERCHANGE PART NUMBERS
Agco Sisu Power: 836662073, D45070088, 45070088
Fiat: 142000090700
Valmet: 836662073, 836640940
Valtra: 836640949, 835331592, 836640940, VPF7197
Zetor Tractor: 69-185-771
Bosch: 0001367032, 0001367067, 0001359124
Letrika (Iskra): 11.131.249
Letrika Old: 11.130.692, 11.130.710, 11.130.897
Lucas: 26284, 26342
Magneton: 9-142-722, 447-115-144-722, CSN304208, 443-115-145-020, 443-115-144-722, 9-144-722
Marelli: MSN190
Lester: 18480
Arrowhead: SMA0004, SMA0001, SBO0209, SMA0010
BBB HD: 18480
J & N Automotive: 410-24303
Mahle: MS184, MS91
Letrika (Iskra) Sales: IS0179, IS0897, IS0692
Magneti Marelli: MSN190, MSN203
Tisco: SMA0001
Wilson Heavy Duty: 91-36-9500, 91-23-6500, 91-23-6525
Dixie Electric: 260-67129
AD Kuhner: 10693L, 10693P, 10703L, 10703P
Cargo: 110545, 114254
Hella: 8EA730174-001
Lucas Electrical Europe: LRS01088, LRS00147, LRS00926, LRS01338, LRS01513
WAI Old: 2-3067-BO
Wood Auto Supplies: STR31000
Zorko: 18480
Andre Niermann: 01367032, 01367067
PIC Old: 199-200
APPLICATIONS / FITMENT

MakeModelYearEngineRemarks
CaseCS1101997-2003AllSisu 420.85, 4cyl.Turbo, 4.4 Bosch DD, 11T
CaseCS1101997-2003AllSisu 420.85, 4cyl.Turbo, 4.4 Iskra DD, 10T
CaseCS1301997-2003AllSisu 620.92, 6cyl.Turbo, 6.6 Bosch DD, 11T
CaseCS1301997-2003AllSisu 620.92, 6cyl.Turbo, 6.6 Iskra DD, 10T
CaseCS681998-2004AllSisu 320.80, 3cyl.Turbo, 3.3 Bosch DD, 11T
CaseCS681998-2004AllSisu 320.80, 3cyl.Turbo, 3.3 Iskra DD, 10T
CaseCS751998-2004AllSisu 320.81, 3cyl.Turbo, 3.3 Bosch DD, 11T
CaseCS751998-2004AllSisu 320.81, 3cyl.Turbo, 3.3 Iskra DD, 10T
CaseCS781998-2003AllSisu 420.81, 4cyl.Turbo, 4.4 Bosch DD, 11T
CaseCS781998-2003AllSisu 420.81, 4cyl.Turbo, 4.4 Iskra DD, 10T
John Deere200000-00AllZetor Engines w/Magnetron Starter
John Deere210000-00AllZetor Engines w/Magnetron Starter
John Deere220000-00AllZetor Engines w/Magnetron Starter
John Deere230000-00AllZetor Engines w/Magnetron Starter
John Deere240000-00AllZetor Engines w/Magnetron Starter
Massey FergusonMF-30651986-1986AllPerkins AT4.236 Bosch DD, 11T
Massey FergusonMF-30651986-1986AllPerkins AT4.236 Iskra DD, 10T
Massey FergusonMF-3831986-1986AllPerkins-A4.236 Bosch DD, 11T
Massey FergusonMF-3831986-1986AllPerkins-A4.236 Iskra DD, 10T
Valtra Valmet5041981-1994All310B, 2.7 Bosch DD, 11T
Valtra Valmet5041981-1994All310B, 2.7 Iskra DD, 10T
Valtra Valmet6041981-1994All311C, 3.3 Bosch DD, 11T
Valtra Valmet6041981-1994All311C, 3.3 Iskra DD, 10T
Valtra Valmet6041981-1994All311CS, 3.3 Bosch DD, 11T
Valtra Valmet6041981-1994All311CS, 3.3 Iskra DD, 10T
Valtra Valmet8051982-1994All4 TD44DS8(411DS8), 4.4 Bosch DD, 11T
Valtra Valmet8051982-1994All4 TD44DS8(411DS8), 4.4 Iskra DD, 10T
Valtra Valmet8051982-1994AllTD44DS8(411DS8), 4.4 Bosch DD, 11T
Valtra Valmet8051982-1994AllTD44DS8(411DS8), 4.4 Iskra DD, 10T
Valtra Valmet80501996-1996All620 DS, 6.6 Bosch DD, 11T
Valtra Valmet80501996-1996All620 DS, 6.6 Iskra DD, 10T
Valtra Valmet81001990-1990AllBosch DD, 11T
Valtra Valmet81001990-1990AllIskra DD, 10T
Valtra Valmet82001990-1990AllBosch DD, 11T
Valtra Valmet82001990-1990AllIskra DD, 10T
Valtra Valmet84001990-1990AllBosch DD, 11T
Valtra Valmet84001990-1990AllIskra DD, 10T
Valtra Valmet84501996-1996All620 DWRE, 6.6 Bosch DD, 11T
Valtra Valmet84501996-1996All620 DWRE, 6.6 Iskra DD, 10T
Valtra Valmet87501998-1998AllMEGA 634 DA, DS Bosch DD, 11T
Valtra Valmet87501998-1998AllMEGA 634 DA, DS Iskra DD, 10T
Valtra Valmet89501998-1998All620DSBIE, 7.4 Bosch DD, 11T
Valtra Valmet89501998-1998All620DSBIE, 7.4 Iskra DD, 10T
Valtra Valmet89501998-1998All634DSBIE, 7.4 Bosch DD, 11T
Valtra Valmet89501998-1998All634DSBIE, 7.4 Iskra DD, 10T
Valtra ValmetS2602002-2006All645 DSBAE Sisu Diesel Iskra DD, 10T
Valtra ValmetX1201999-2004All420 DWRIE Sisu Diesel Iskra DD, 10T
Zetor332000-00AllMagnetron System
Zetor332100-00AllMagnetron System
Zetor334000-00AllMagnetron System
Zetor334100-00AllMagnetron System
Zetor432000-00AllMagnetron System
Zetor432100-00AllMagnetron System
Zetor434000-00AllMagnetron System
Zetor434100-00AllMagnetron System
Zetor47121974-1977AllZ4701,45kW, 2.5 Bosch DD, 11T
Zetor47121974-1977AllZ4701,45kW, 2.5 Iskra DD, 10T
Zetor521100-00AllMagnetron System
Zetor521300-00AllMagnetron System
Zetor524300-00AllMagnetron System
Zetor524500-00AllMagnetron System
Zetor532000-00AllMagnetron System
Zetor532100-00AllMagnetron System
Zetor534000-00AllMagnetron System
Zetor534100-00AllMagnetron System
Zetor621100-00AllMagnetron System
Zetor624500-00AllMagnetron System
Zetor632000-00AllMagnetron System
Zetor632100-00AllMagnetron System
Zetor634000-00AllMagnetron System
Zetor634100-00AllMagnetron System
Zetor721100-00AllMagnetron System
Zetor724500-00AllMagnetron System
Zetor732000-00AllMagnetron System
Zetor732100-00AllMagnetron System
Zetor734000-00AllMagnetron System
Zetor734100-00AllMagnetron System
Zetor771100-00AllMagnetron System
Zetor774500-00AllMagnetron System
