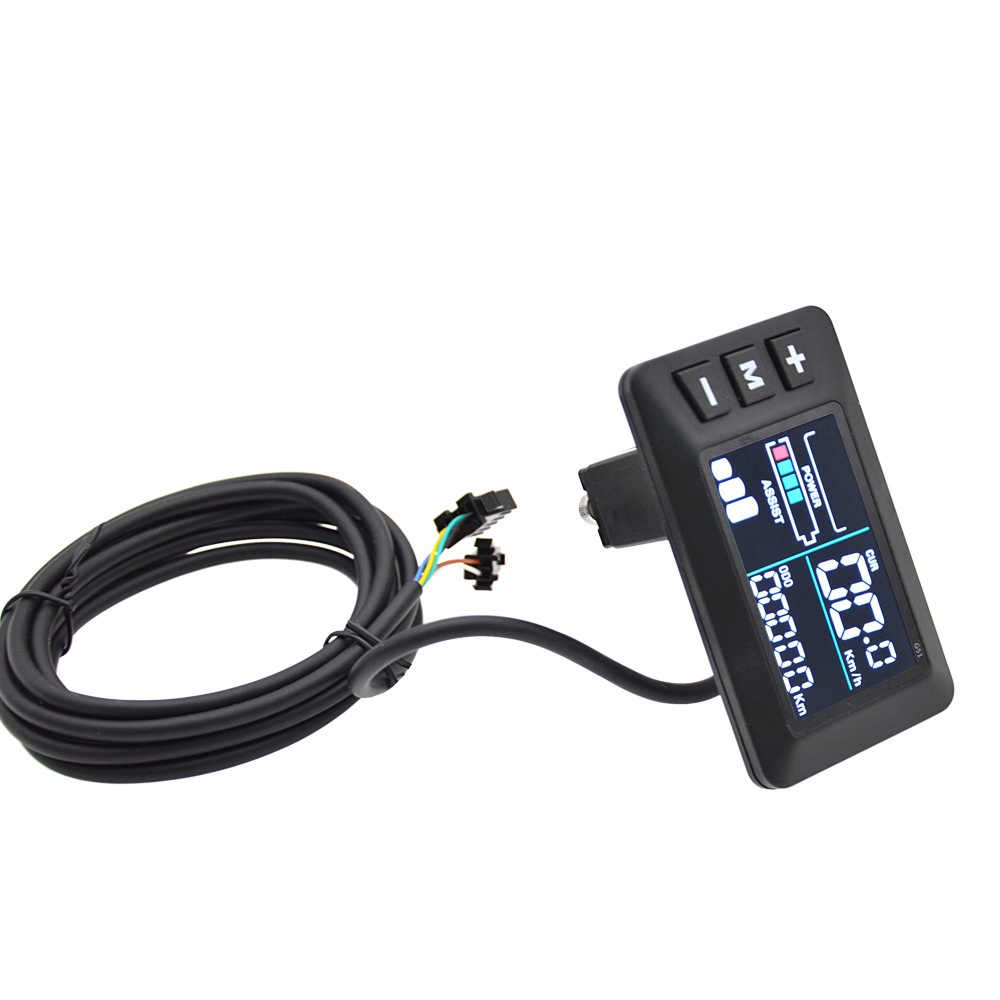

G51 Colour Smart Display

Feature:

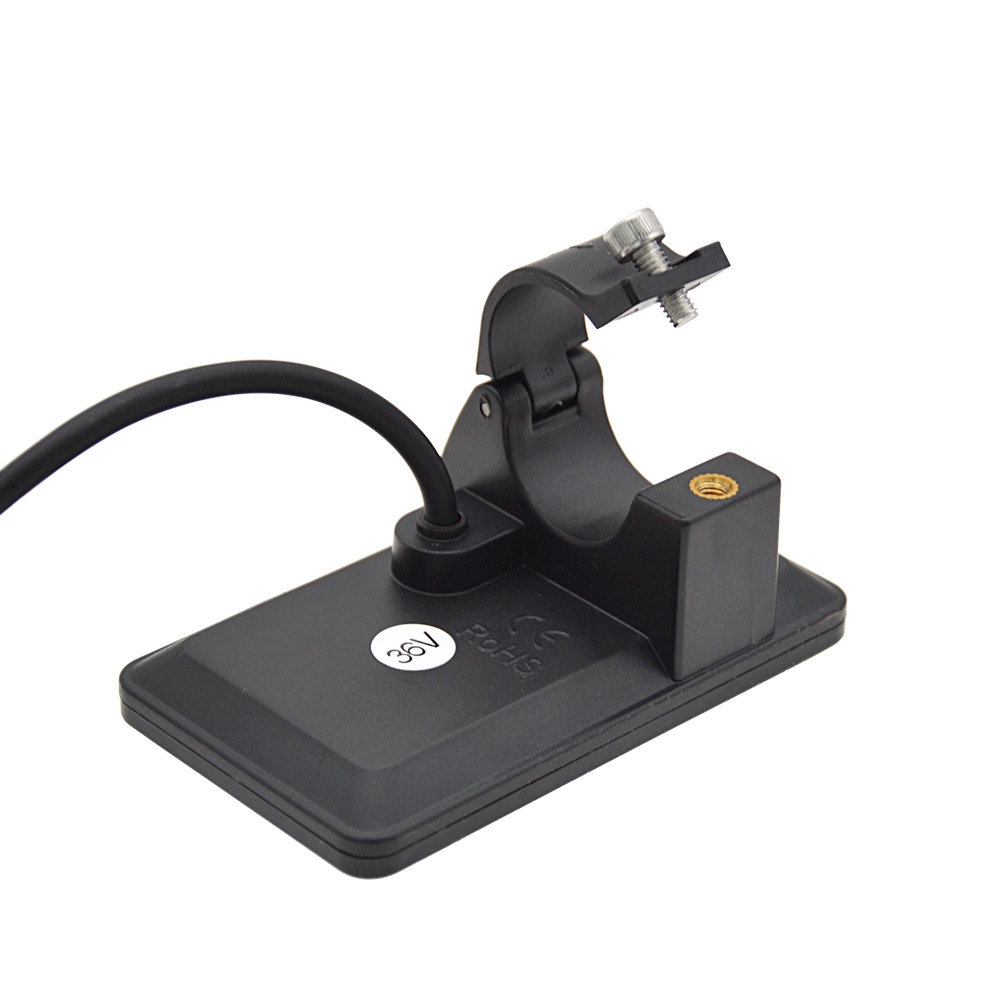

1. Wide Range of Uses: Easy to install and use, comes with LCD screen display bracket, suitable for 22.2mm/0.9in handlebars.

2. Durable Material: LCD display is made of high quality ABS material and is lightweight, waterproof and durable, and long service life.

3. Simple Operation: Easy to install and disassemble, without any difficult requirements even though you use it for the first time.

4. Large Screen: LCD display makes it easier for you to view the data on the panel, and the status is displayed on the large screen more intuitively.

5. See Clearly: The backlight allows you to see the screen clearly even in the dark environment, and the key operation is fast and convenient.

Note:

Not Universal Model .Please checked and confirmed yourself controller support same communation protocol UART NO.2 ,if not same ,The LCD screen will be show Error Core E10 （Communications Receiving Failure）Used Our Store Controller.

Parameter：

Type: LCD display

Condition: 100% Brand New

Model : G51

Voltage:24V 36V 48V 60V adjust By P03 set on screen

Color:Black

Material: Plastic+Acrylic

Operating Temperature :-20 - 45℃

Handlebar size for holding:Φ22.2mm

Plug Type:SM 5pin Connector (LCD cable )+ SM 2pin connector (Light cable)

Cable length:180cm

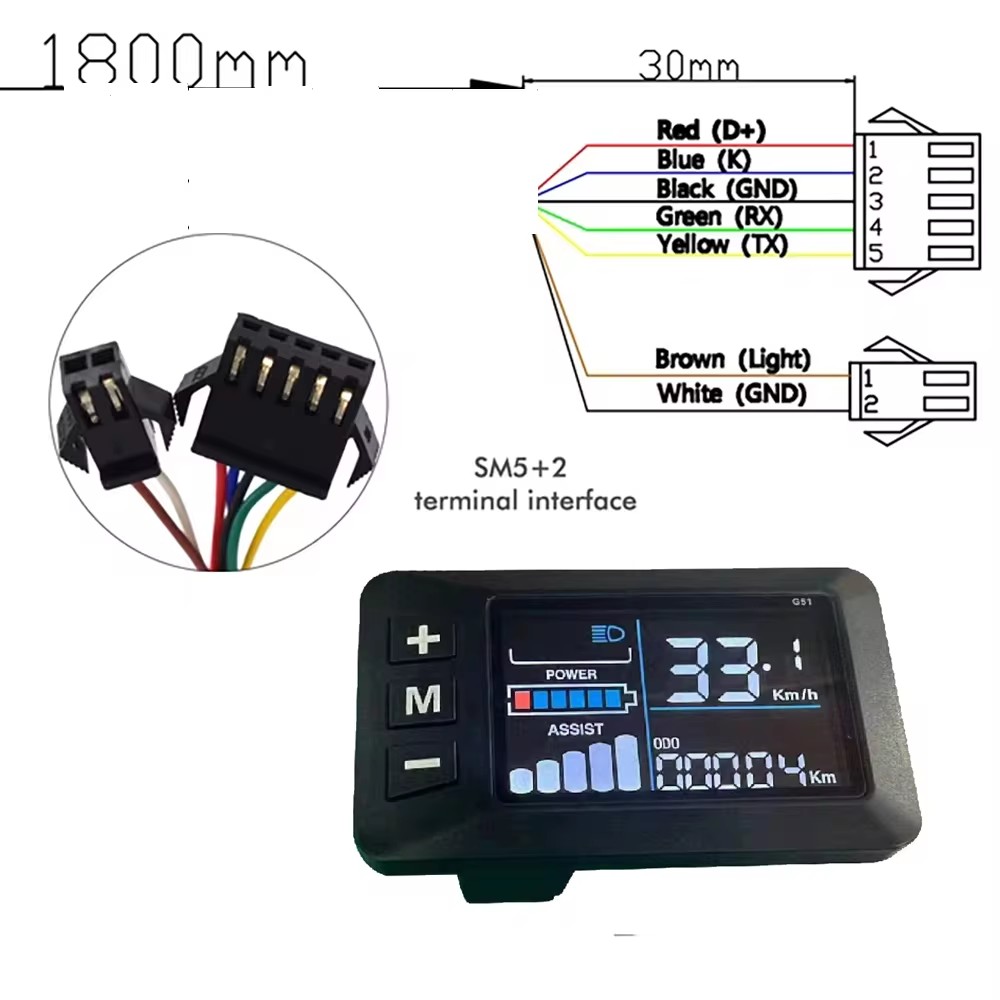

Communication Protocol:UART NO.2(Note:The product is based on the No. 2 communication protocol and needs to be used with the controller of the No. 2 communication protocol, otherwise it is not compatible. )

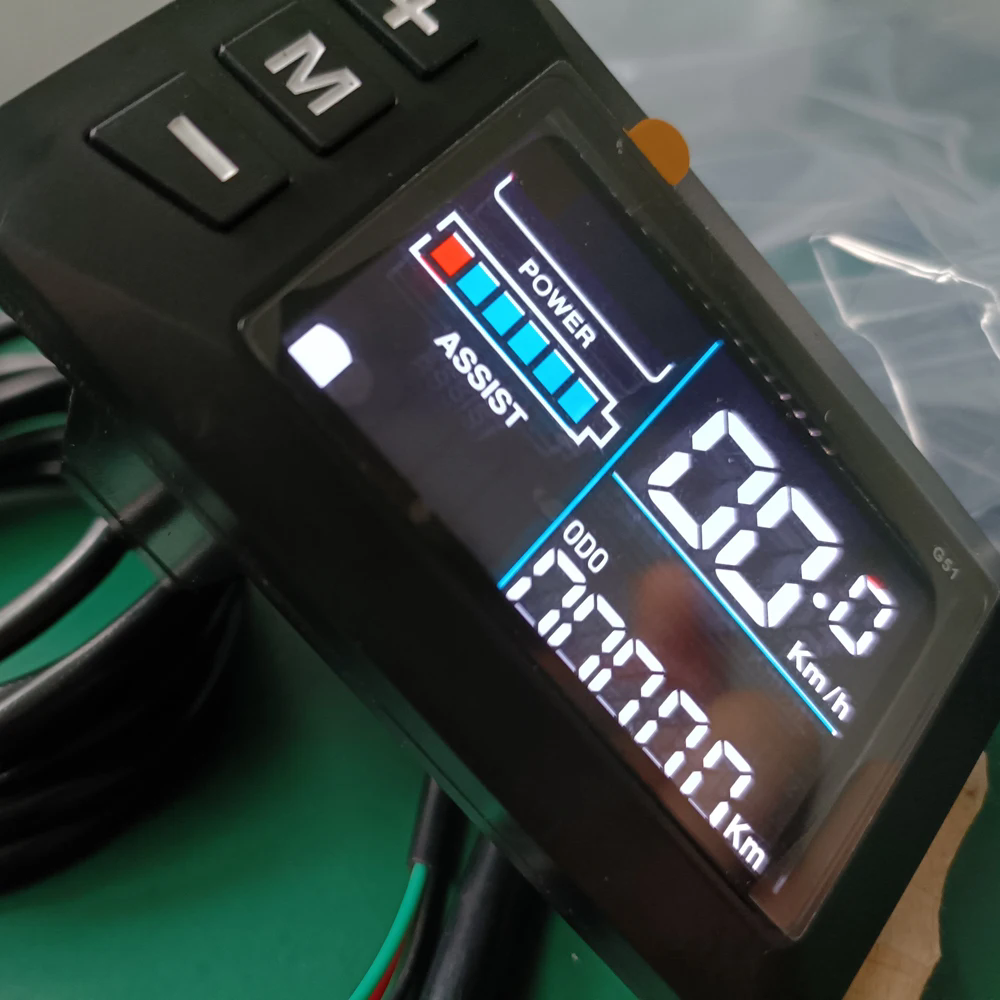

Display Funcation :Speed Display, Battery Level Display, Error Indication, Total Mileage, Single Mileage

Note: Due to product upgrade, the product you purchased may be slightly different from the descriptions in this user manual, and this won’t affect normal usage.

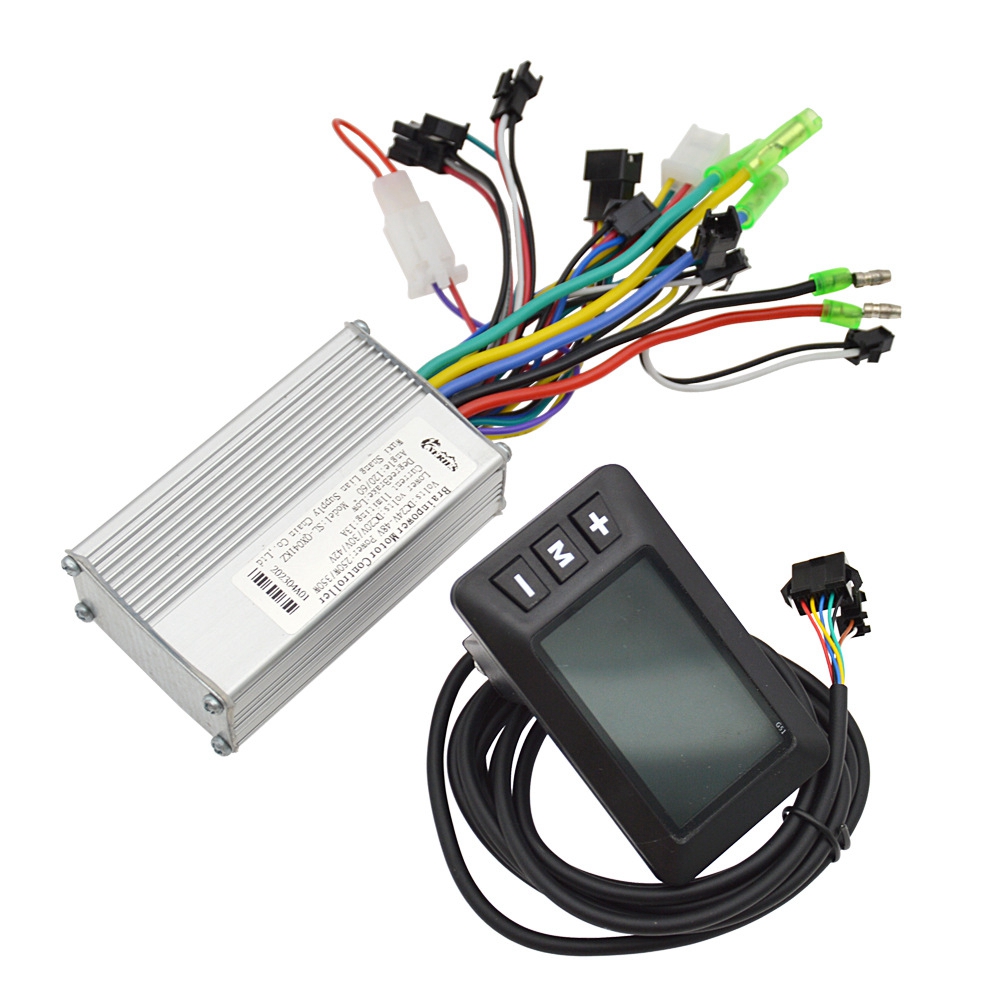

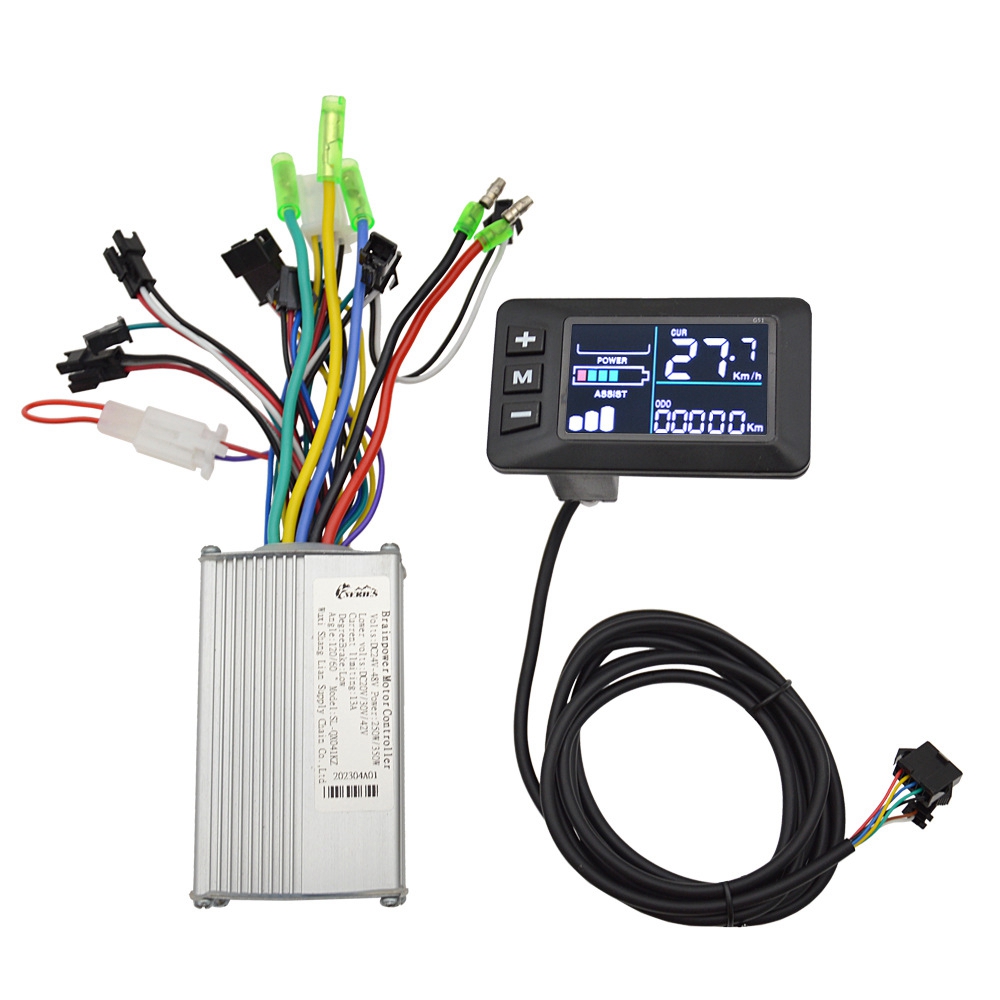

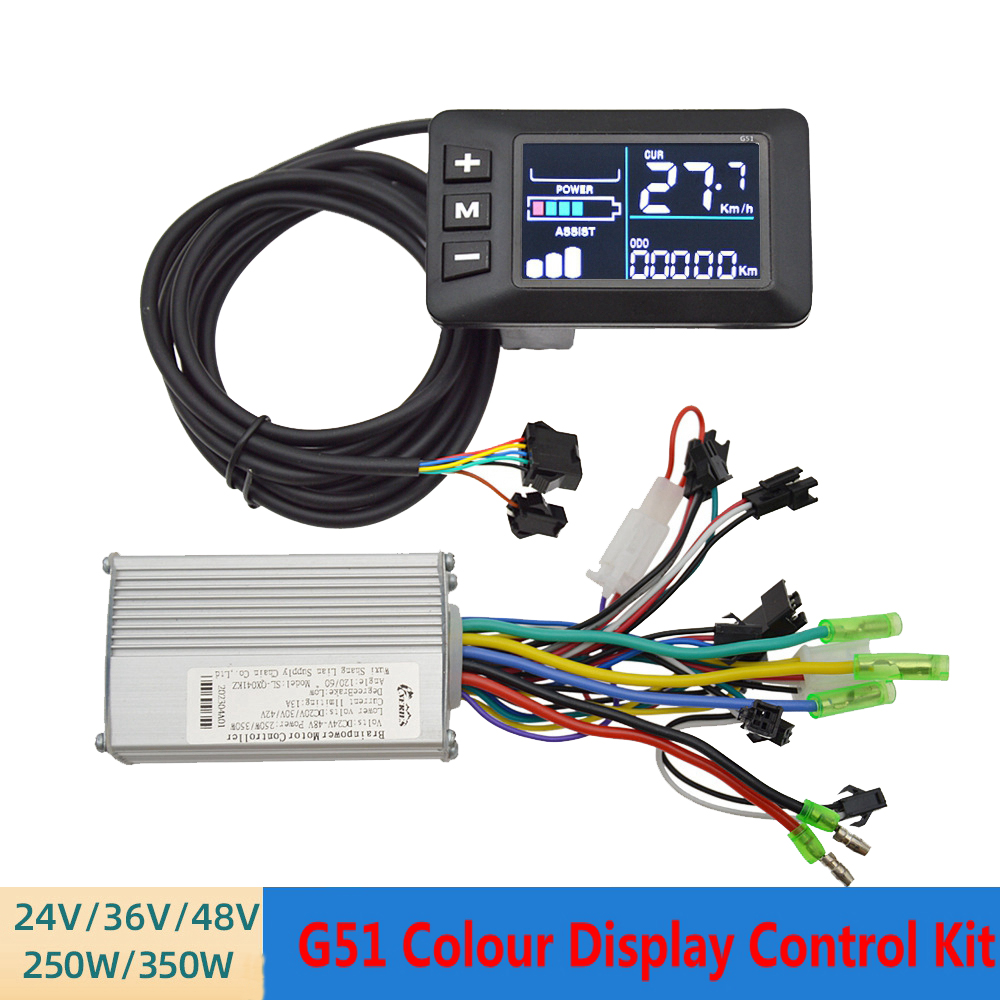

24V-48V 250W/350W Motor Brushless Controller

Feature:

1.The brushless controller provides steady speed and sensitive control of braking and direction changes.

2.Aluminum alloy controller shell can protect the inner circuit due to good heat dissipation feature to avoid thermal overloading.

3.Display panel shows the battery power,0-9 PAS gear level,distance,time,max speed,current speed,average speed,etc.

4.With a mount on the back of display panel for easy installation,suitable for most handlebars. Fits for electric bicycles and electric scooters.

Parameter：

Name: Electric Bicycle Controller Instrument Set

Model: SL-QX065QZ

Instrument style: A/B(Two options )

Voltage: 24-48V

Power: 250W/350W

Current: 13A

Suitable motor phrase angle: 120°/60°

Communication Protocol:UART NO.2(Note:The product is based on the No. 2 communication protocol and needs to be used with the controller of the No. 2 communication protocol, otherwise it is not compatible. )

Material: Controller(aluminium alloy,capacitance,circuit board,wiring harness)

                Instrument(ABS,LCD,electronic chip)

Specification: 8.7*5*3CM(Controller) 8*4.8*4.8CM(Instrument)

Weight: 364G(Including packaging)

Outer packing: Bubble bag+Carton

Please note before purchasing:

1, After the initial installation, please set the display to the highest gear and connect the two green wires on the controller for self-learning.

2. This product only supports single Hall sensors or a duty cycle of 60% or higher dual Hall sensors.

3. If you want to use an display to control the headlights, please connect the headlights to the two core cables of the display

4. Our controller is low level, so if your brake has a high level with Hall, it may not be supported.

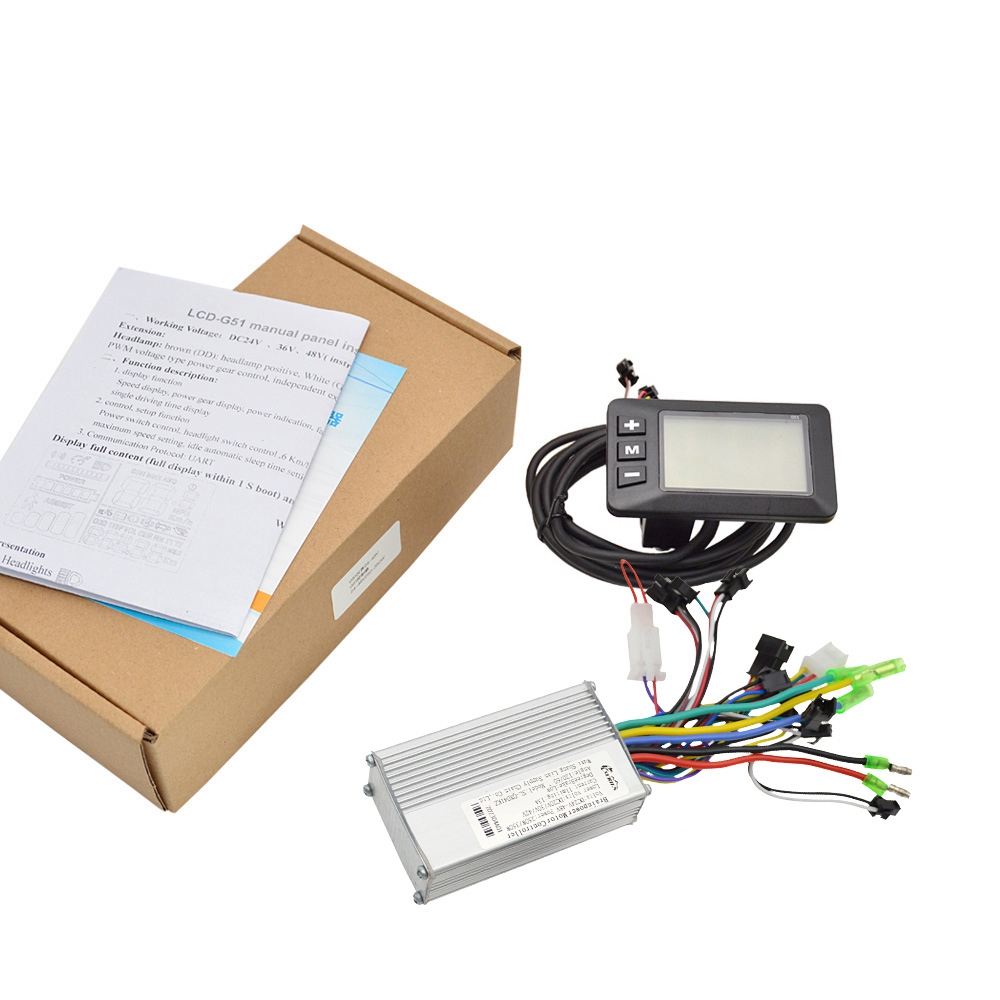

Package Includes:

1*Display

1*Controller (need customers to choose to buy)
