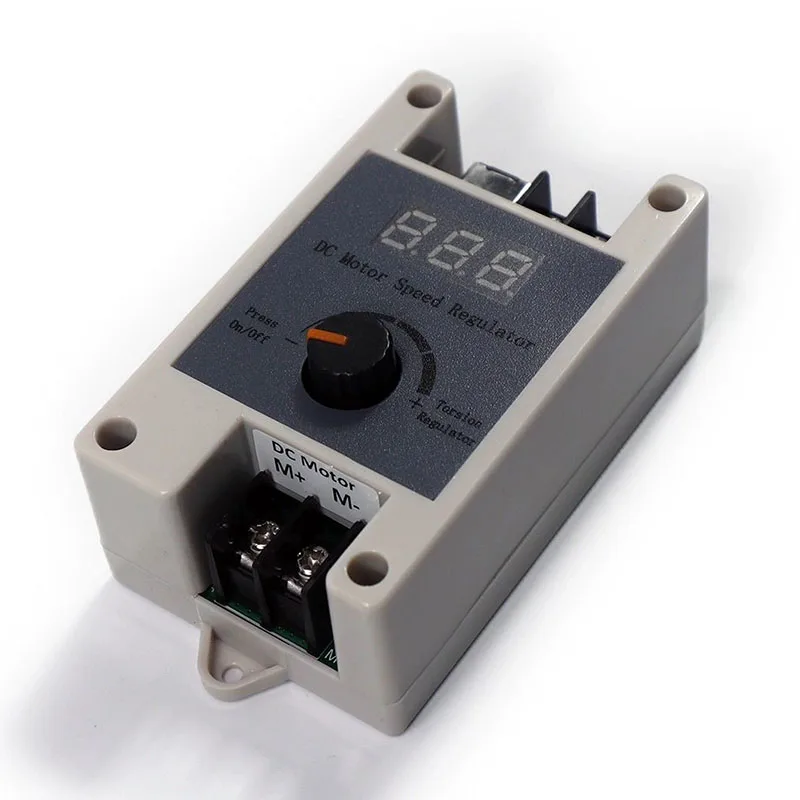

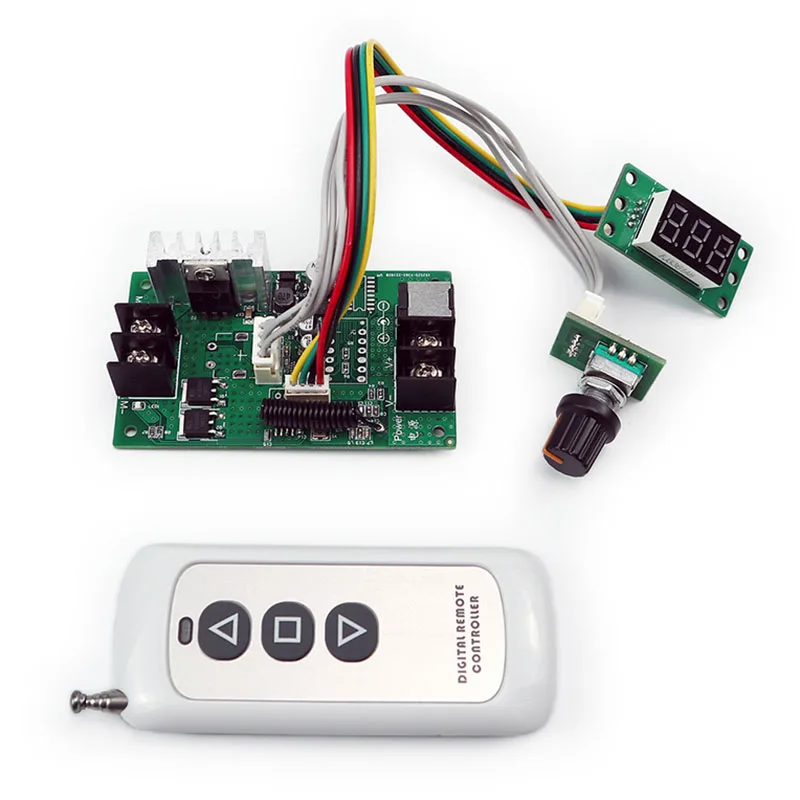

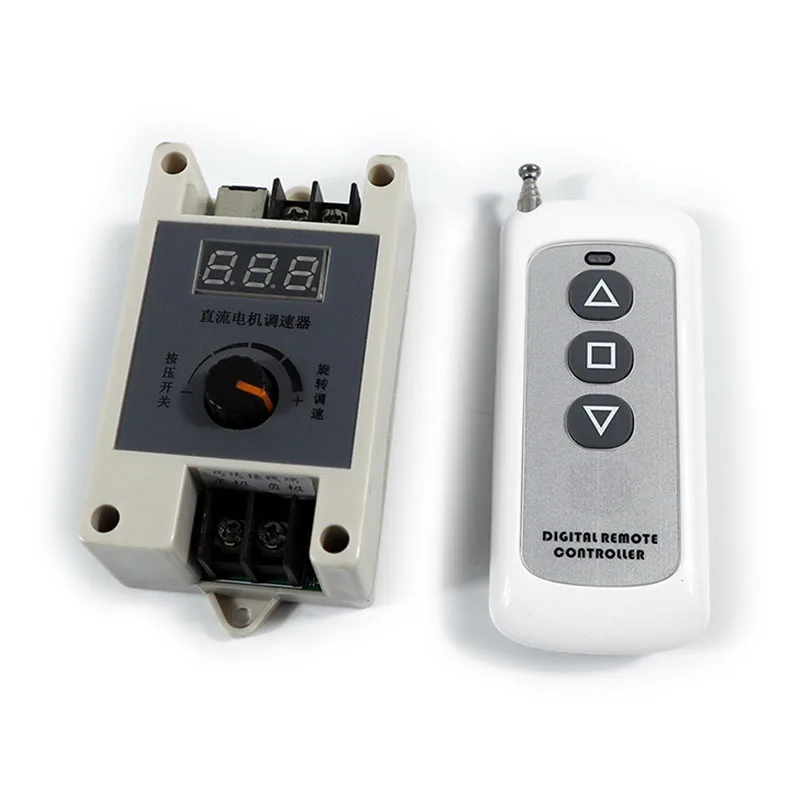

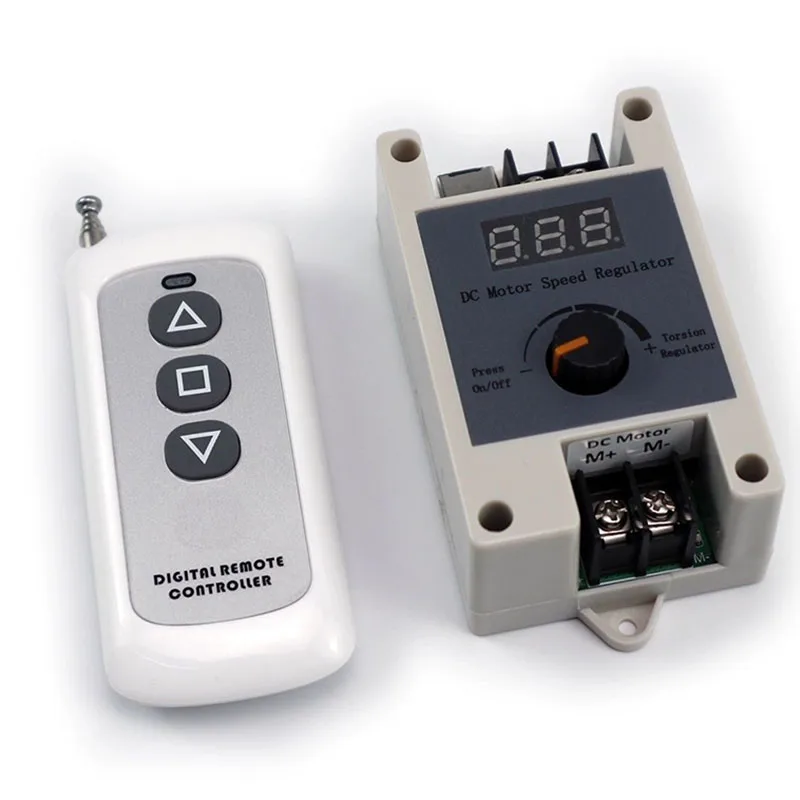

433M Wireless Remote Control DC Motor Speed Regulator 12V24V PWM Stepless Speed

Voltage range: DC 6V-28V

Working current: 12V=5A (not suitable for motors with starting current greater than 10A)

                 24V=5A

Duty cycle (PWM): 0%-100% LED digital tube intuitive display

PWM frequency: 20Khz

Remote control distance: up to 100 meters in open environment. It is necessary to pull out the remote control antenna and adjust the receiving motherboard antenna.

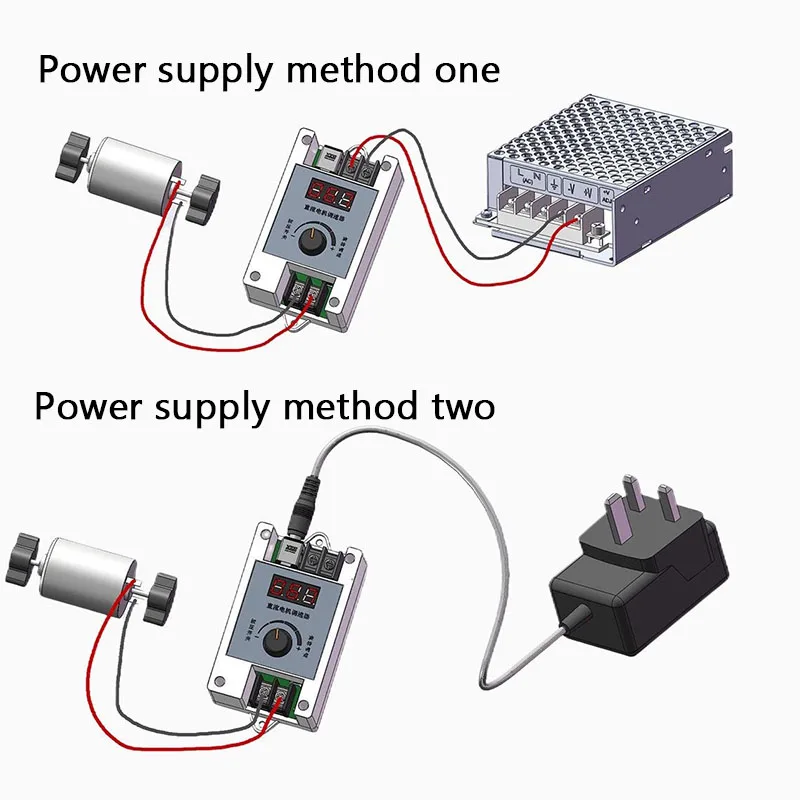

Power supply wiring method: V+ is connected to the positive pole of the DC input, V- is connected to the negative pole of the DC input or DC 5521 socket input inner positive and outer negative

Motor wiring method: M+ is connected to the positive pole of the motor, M- is connected to the negative pole of the motor.

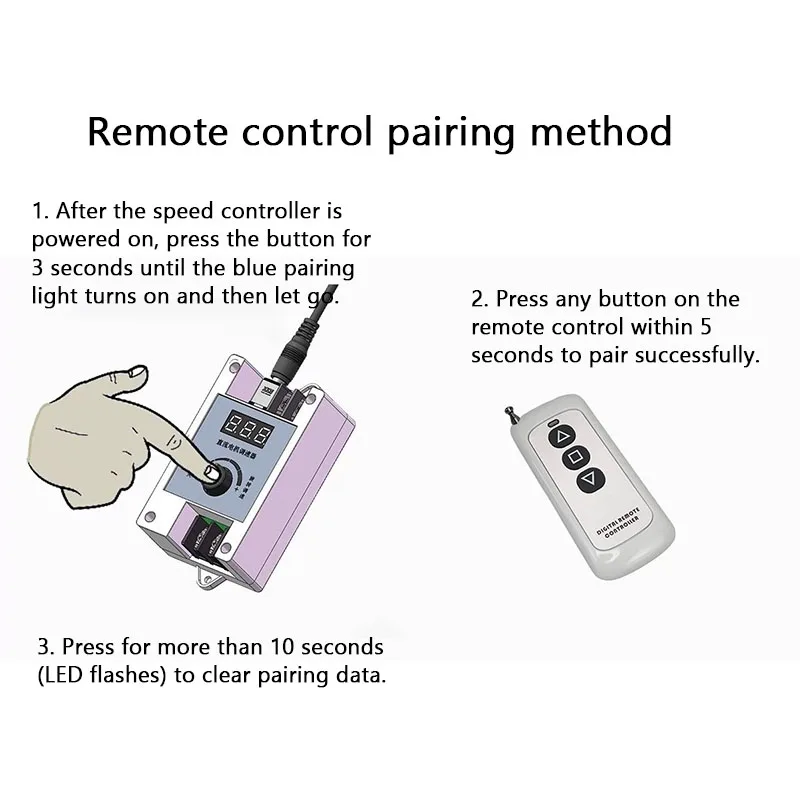

Remote control pairing method:

1. Press the adjustment knob for 2 seconds and then let go. At this time, the blue pairing indicator light stays on, then click Press any button on the remote control to pair successfully. If it fails, please try again.

2. Press and hold for about 10 seconds. After letting go, the pairing LED will flash quickly to clear all previous pairings.

Features

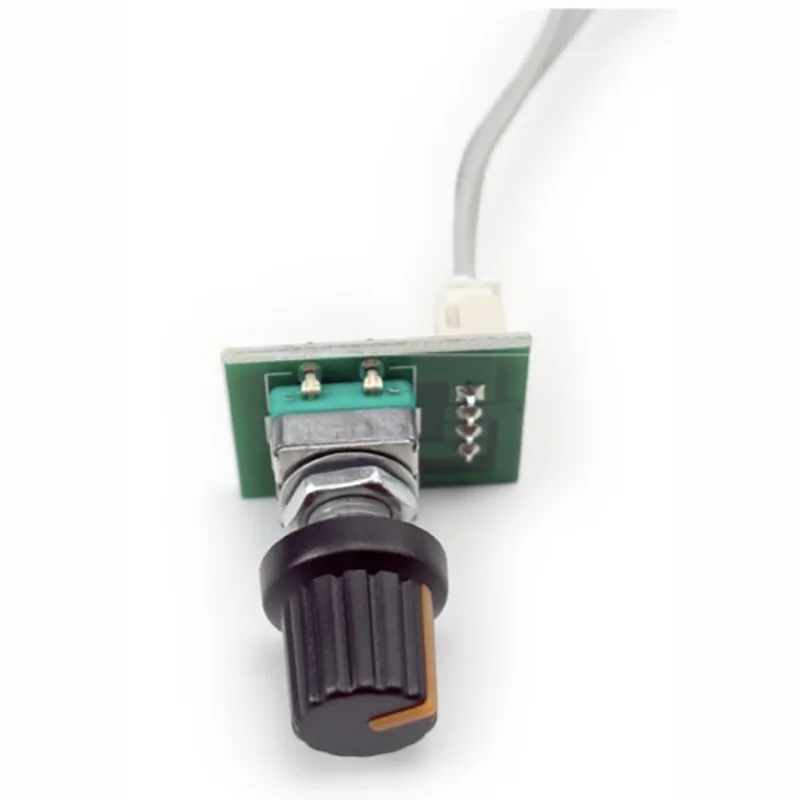

1. The online speed adjustment is a 360-degree precision encoder switch, and the control effect is better than that of ordinary resistors. Advantages such as precise speed adjustment

2. This speed regulator has a slow start function, which effectively eliminates the impact of instantaneous back electromotive force on the circuit and power supply. damage caused by the source, greatly reducing the instantaneous sparks generated by the carbon brush of the brushed motor, effectively prolonging the Motor life.

3. The speed regulator has its own memory function and will store the last speed adjustment value.
