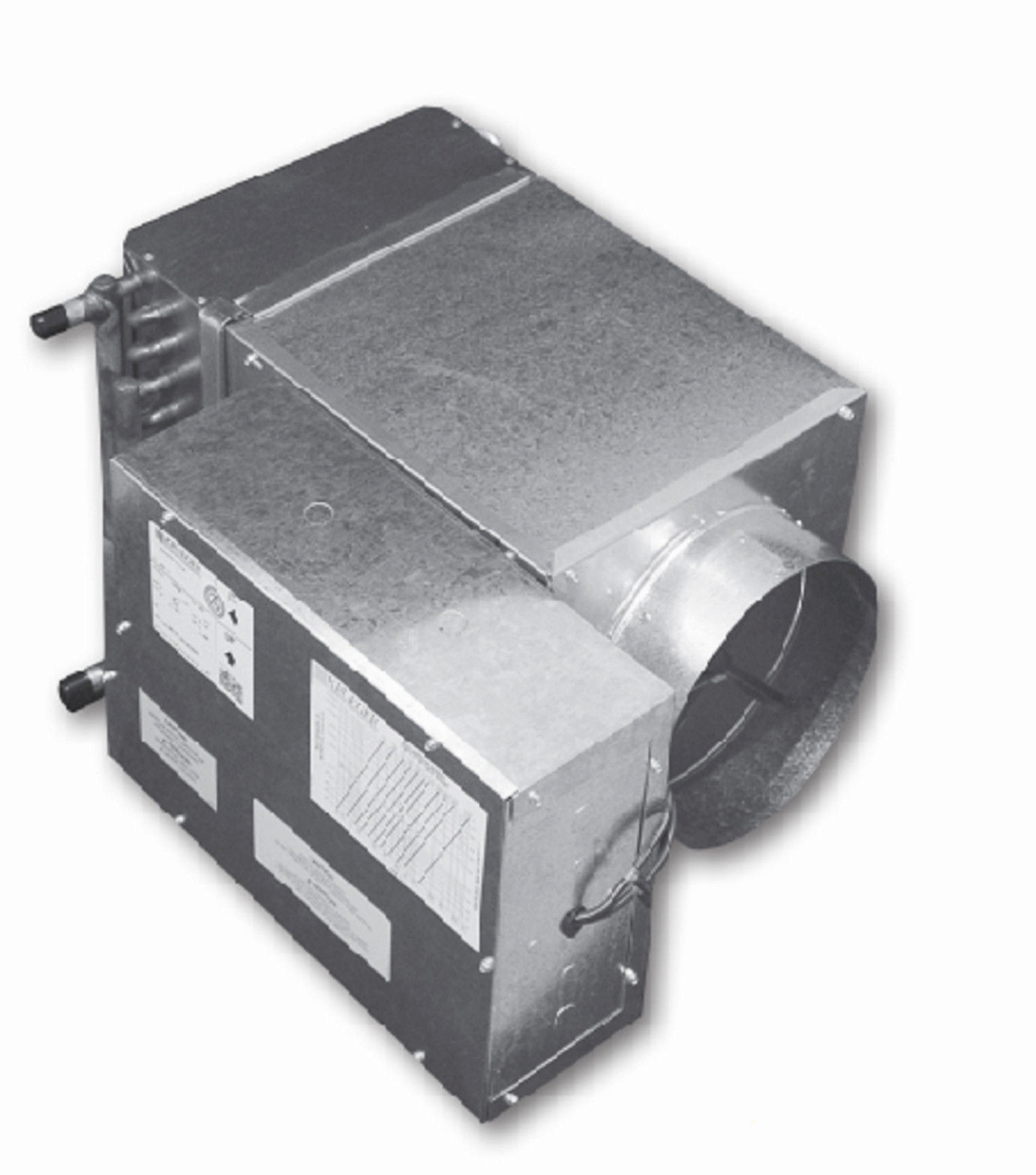

Krueger LMHS Single Duct Terminal Unit Size 12-12 w/ Hot Water Heat Max CFM 800
SKU LMHS800 SP / NG
BRAND NEW!!!
This sale transaction is for a Krueger LMHS Single Duct Terminal Unit Size 12-12 w/ Hot Water Heat
FEATURES & SPECS:
BRAND NEW!!!
This sale transaction is for a Krueger LMHS Single Duct Terminal Unit Size 12-12 w/ Hot Water Heat
FEATURES & SPECS:
Size 12-12
COIL: WW22-2 Row LH
Control Code: D001
Factory NO: 218461
Model No: LMHS
Line: 005
AUX CFM: 800
VP: .087
MIN CFM: 400
VP .037
MAX CFM: 800
VP: .150
• 22 Gage Galvanized steel casing construction with a 20 gage casing option that provides strength and product durability.
• AHRI listings for certified performance in accordance with AHRI Standard 880 testing standard. • Suitable for low, medium, or high pressure applications; able to operate throughout a wide range of HVAC systems.
• Available 6”x9” access opening for easy accessibility during routine inspections and maintenance.
• Several casing liner options provide quiet and clean operation.
• Airflow capacities from 40 to 7000 CFM providing airflow control for most commercial applications.
• Round inlet sizes from 4” through 16” diameter which are slightly undersized to fit standard spiral and flex duct; size 20 inlet is rectangular, 13 1/2”x7 7/8”; size 22 inlet is rectangular, 15 7/8”x23 7/8”.
• Rectangular discharge with slip and drive connections providing quick and easy connection to hot water heat coils and down stream duct work.
• Digital, analog, or pneumatic controls with pressure independent or dependent control packages allows tailoring to many building systems.
• K4 Lineacross four quadrant, multi-point center averaging sensor or optional linear, multiple-point, averaging velocity sensor, offers low resistance to airflow while providing amplified velocity pressure signal to the controller.
• Gasketed round volume control damper operates over a full 90° range and provides a low leakage shutoff position.
• Compact unit casing sizes accommodates installation in reduced ceiling plenum space. • A wide range of auxiliary heat options, including electric and hot water heat.
• LineaHeat solid state electronic proportional controlled heaters are available with or without leaving air temperature control.
• AC solid state relays offer silent operation for stage electric heat
