KS Ultra-light Solo/Dual Air Suspension Mountain Bike Rear Shocks Cycle Parts Back MTB Electric Bicycle Air Absorber
Specification:

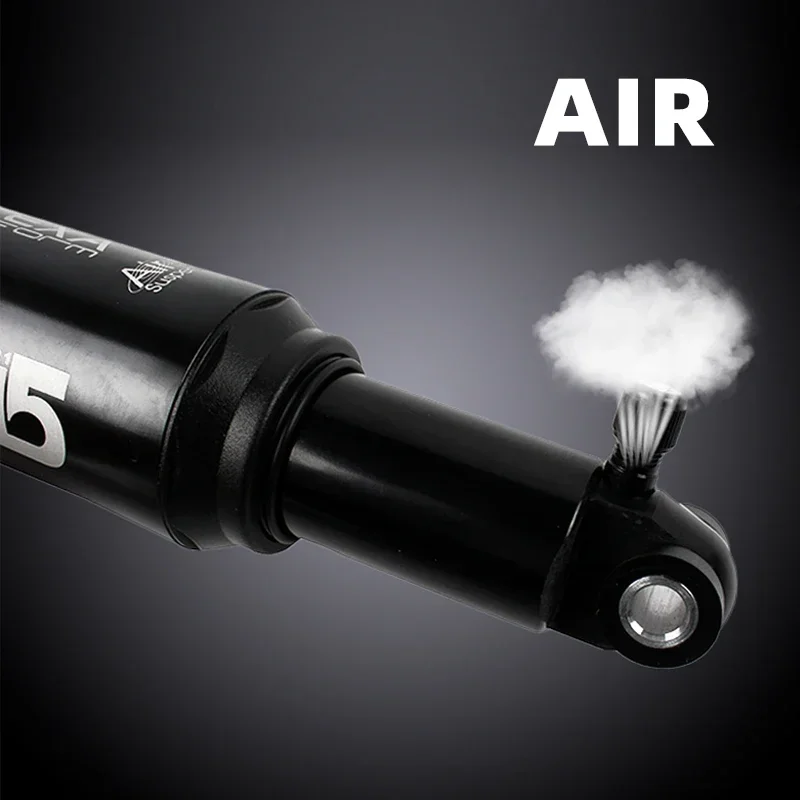

▪ Using air as the spring medium, the A5-RE/RR1 offers excellent tunability without sacrificing weight.
▪ RR1 Preload and top out can be infinitely tuned by adjusting the pressure in the main and negative air chambers.
▪ RE: the solo air shock A5-RE can only adjust preload.
▪ Main body: CNC Alloy
▪ Spring type: Air
▪ Damper type: Friction
▪ Spring rates: Infinitely adjustable air spring

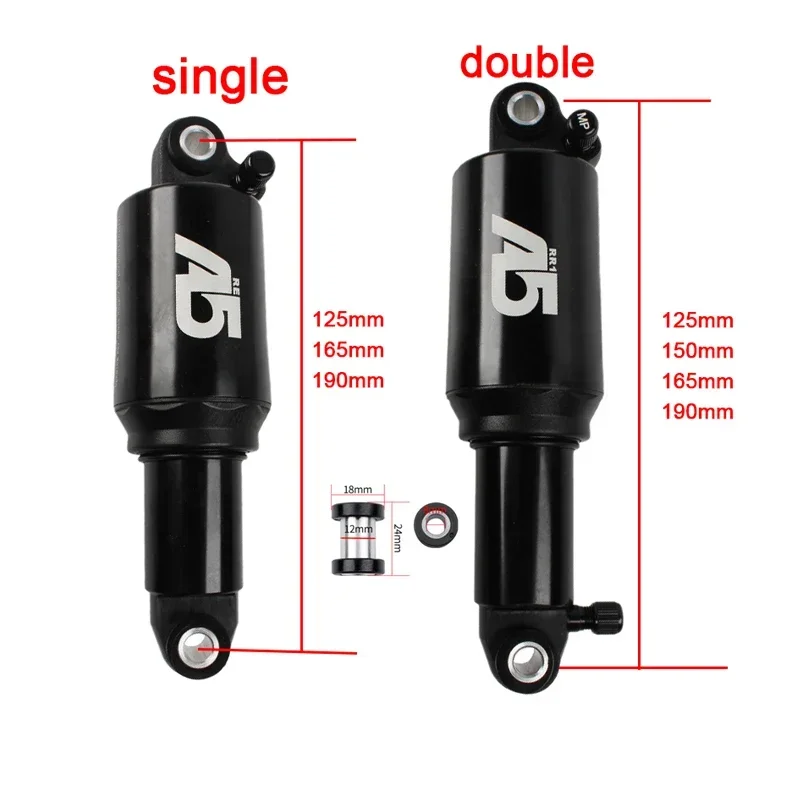

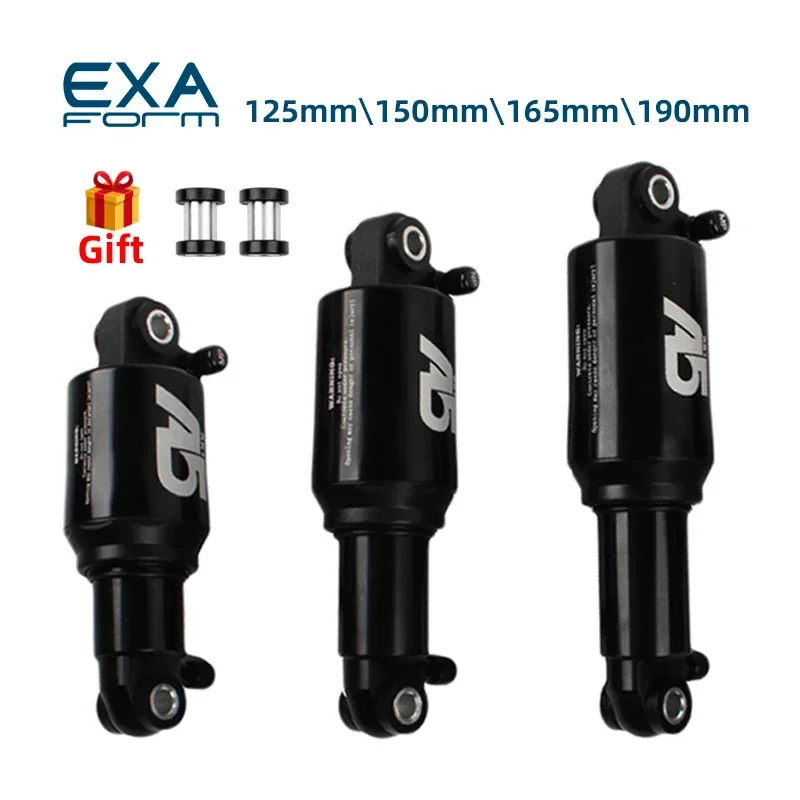

Eye to eye: 125mm/150mm/165mm/190mm
Travel length: 125mm- 20mm, 150mm- 30mm, 165mm- 40mm, 190mm-50mm

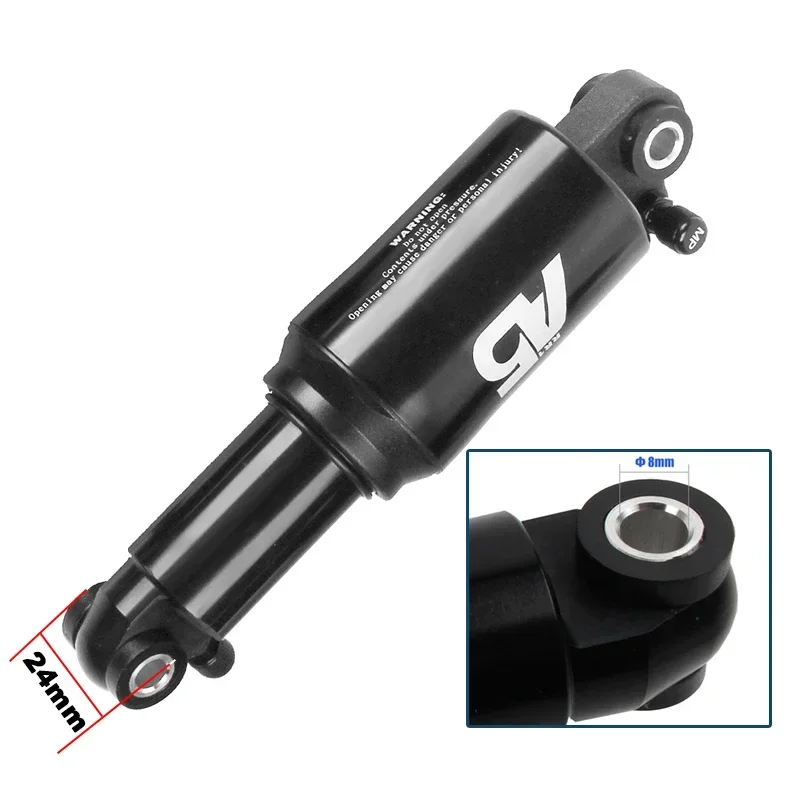

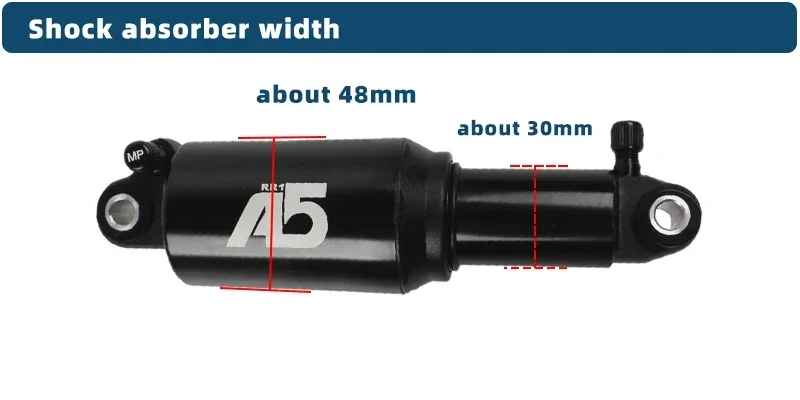

Width: 24mm
Eyehole diameter: 8mm

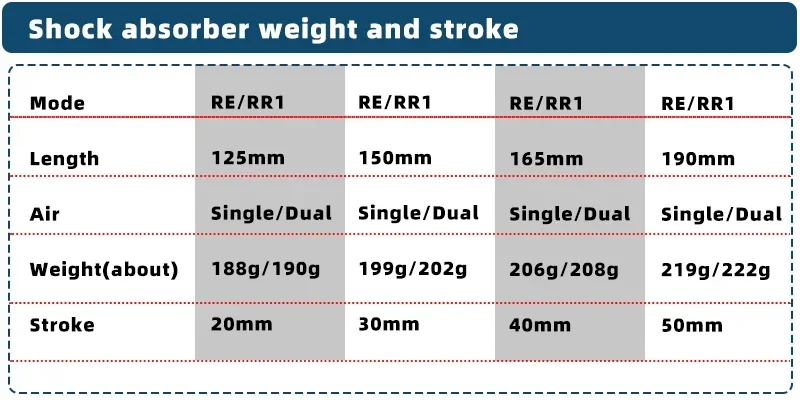

Shock Absorber weight and Stroke

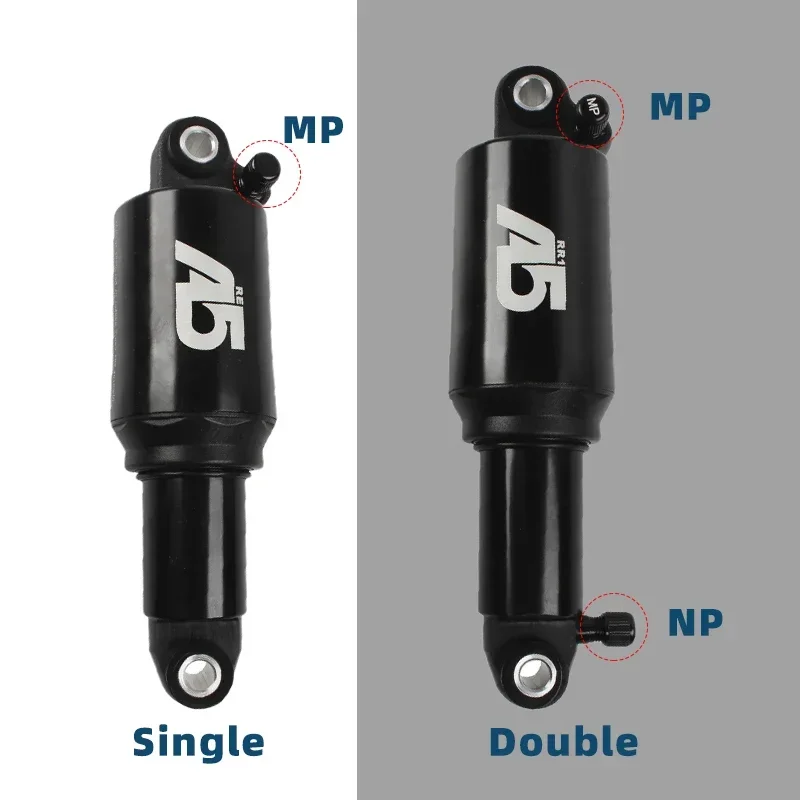

The A5 shock absorber uses air as the spring medium to reduce weight and provide better shock-absorbing performance. The shock-absorbing pounds can be adjusted through the main air chamber (MP); the auxiliary air chamber (NP) can adjust the hardness and stroke of the shock.
The air pressure of single-chamber shock absorber does not exceed 180psi;
The air pressure of the double air chamber shock absorber does not exceed 200 psi;
MP pressure value is recommended 65-150psi
NP air pressure must not exceed MP air pressure

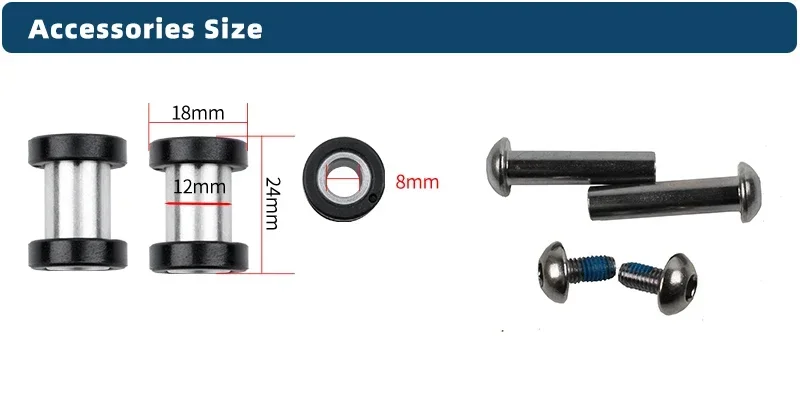

Shock absorber accessories parameters
Each bicycle shock absorber comes with 24mm bushing + fixing screws

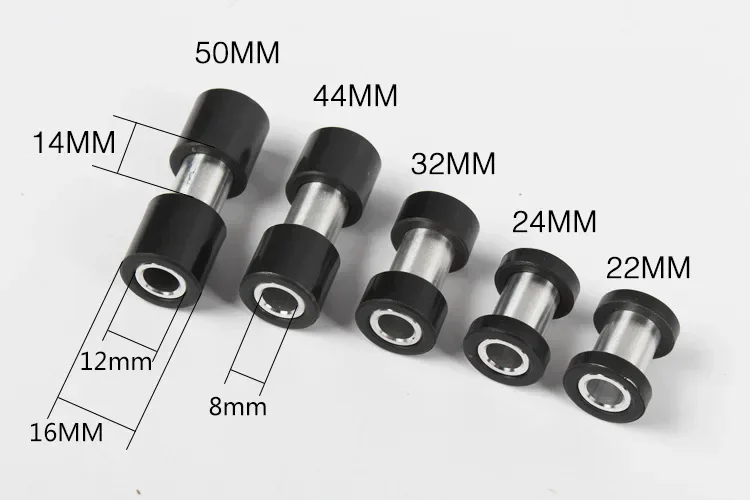

Each shock absorber is equipped with two 24mm bushings by default. If you need bushings of other lengths, please let us know. There are bushings of the following lengths, thank you.

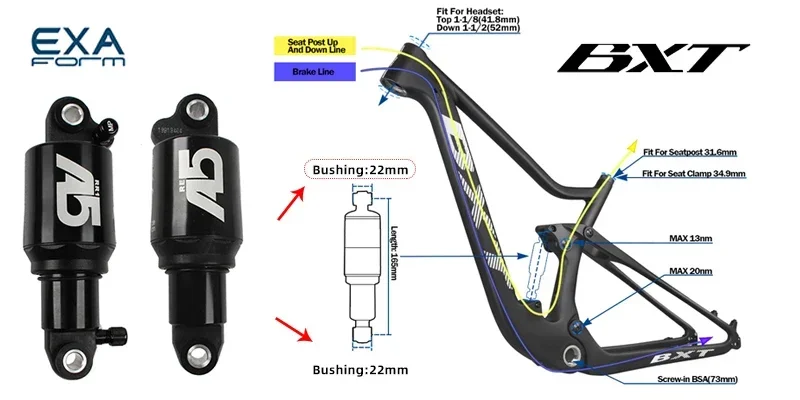

The length of the shock absorber is selected. Generally, the frame trader will indicate the installation length and width of the shock absorber of the frame, such as the BXT brand carbon fiber frame.

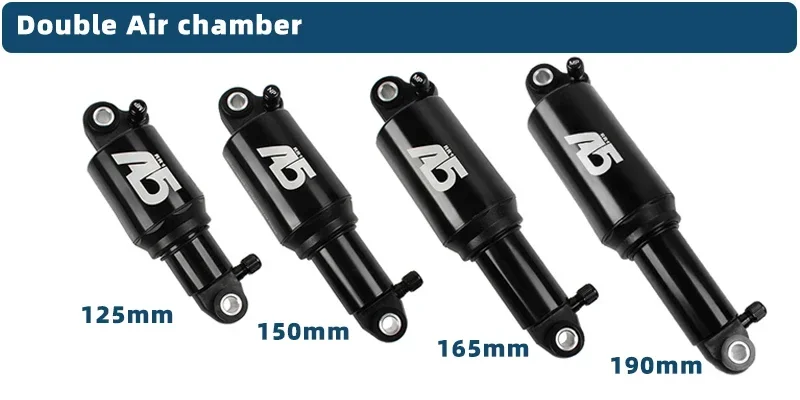

Double Air chamber MTB shock absorber

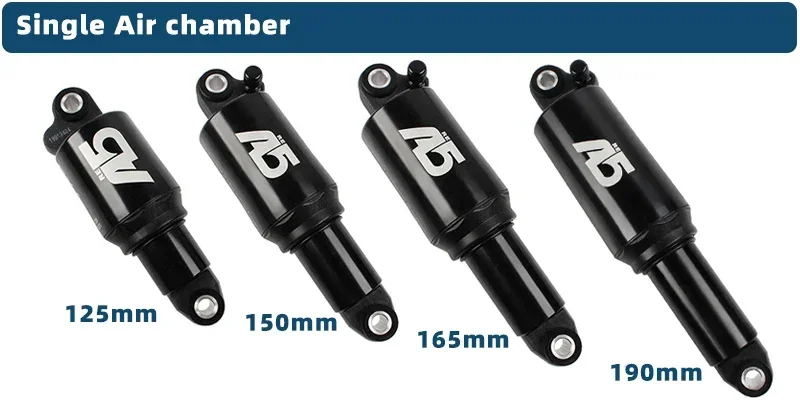

Single Air chamber Bicycle shock absorber
