Specification：
AC Frequency Rating：60 Hz
Reversible/Non-Reversible：Reversible CW/CCW
Nominal Rated Input Voltage：208-230V
Rated Load (HP)：5
Special Motor Construction：Spindle Motor
Current Type：AC
Shaft Diameter：５/8 in
Enclosure Type： TEFC (Totally Enclosed Fan Cooled)
AC Phase：Single Phase
Insulation Class：F (Max 311°F)
Mounting Type：Base-Mounted
Pole :２
Amps：22.0-21.0A
AC Motor Type：Induction/Asynchronous
Base RPM：3450RPM
IP Rating：IP55
Shaft Length：1.88in
Protector：Non
Housing Material：Rolled steel shell
Model：General Electric Motor
IEC Frame Size：56C
Synchronous Speed:3600 RPM
Feature:
Amps
Be sure to replace the motor with a full load current value of less than 10% of what you purchased
Totally Enclosed Fan Cooling (TEFC)
Prevent the free exchange of air between the inside and outside of the frame, but do not make the frame completely airtight. The fan is mounted on the shaft and air is pushed onto the frame during operation to assist in the cooling process
RPM
Matching rpm is very important, the wrong speed can damage the pump, rpm do not need to be exactly matched, the difference can be close
Frame size
The size of the frame corresponds to the size of the motor. Improper size of motor will lead to motor failure
Phase and voltage
A 230V motor single-phase power supply refers to a 1 phase 230V AC motor.It cannot withstand a voltage lower than 208V. They will run too hot and the motor will fail
TEFC
Style shell is versatile. Can be used in air compressor, mechanical equipment, fan, water pump, reducer, machine tool and general equipment
Reference
Spindle motor is also called high-speed motor, which refers to the AC motor with more than 10000 rpm. It is mainly used in wood, aluminum, stone, hardware, glass, PVC and other industries. It has the advantages of fast speed, small volume, light weight, low material consumption, low noise and low vibration
AC motor is used to realize the conversion of mechanical energy and AC energy. AC motor has no commutator, so it is simple in structure, convenient in manufacture and relatively firm, it is easy to be made into a motor with high speed, high voltage, large current and capacity
Asynchronous motor is also known as induction motor that is an AC motor which generates electromagnetic torque by the interaction of air gap rotating magnetic field and rotor winding induced current, so as to realize the conversion of electromechanical energy into mechanical energy
Package Including：

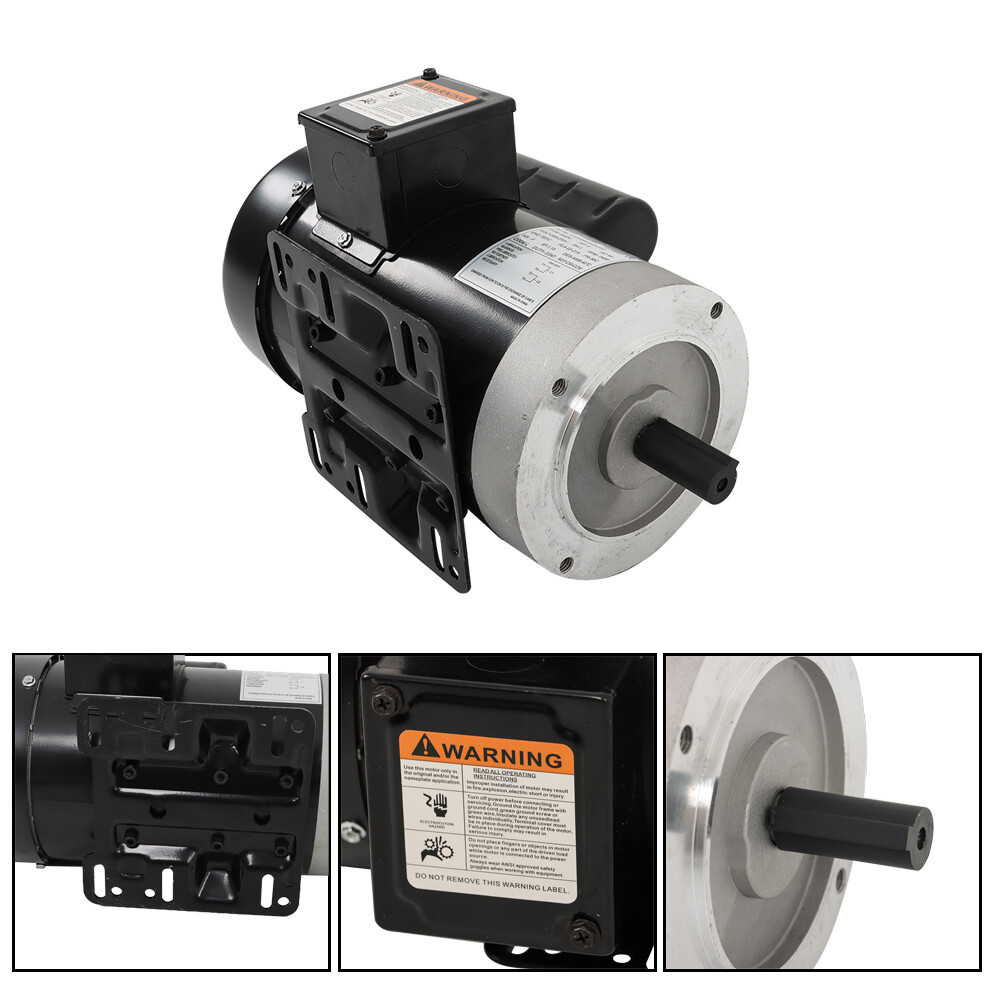

1 x 5HP General Electric Motor
1 x Manual
| Item Specifics | |
|---|---|
| Brand | ALL-CARB |
| MPN | Does Not Apply |
| Type | Electric Motor |
| Rated Load (HP) | 5 |
| Nominal Rated Input Voltage | 208 V, 230 V |
| AC Phase | Single Phase |
| Special Motor Construction | Spindle Motor |
| Current Type | AC |
| Shaft Diameter | 5/8 in |
| Shaft Length | 1.88 in |
| Pole | 2 |
| AC Motor Type | Induction/Asynchronous |
| Synchronous Speed | 3600 Rpm |
| IEC Frame Size | 56C |
| AC Frequency Rating | 60 Hz |
| Reversible/Non-Reversible | Reversible |
| Housing Material | Rolled steel shell |
| Protector | Yes |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Model | General Electric Motor |
| Mounting Type | Base-mounted |
| IP Rating | IP55 |
| Insulation Class | F (Max 311°F) |
| Base RPM | 3450 RPM |
| Electric Current | 22.0 A, 21.0 A |
| Warranty | 1 Year |
