LVNOON new version 4A 8A 10A 15A Smart Active Balancer 3S 4S 5S 6S 8S 14S 16S 20S 24S for Lifepo4 / Li-ion/ LTO Battery

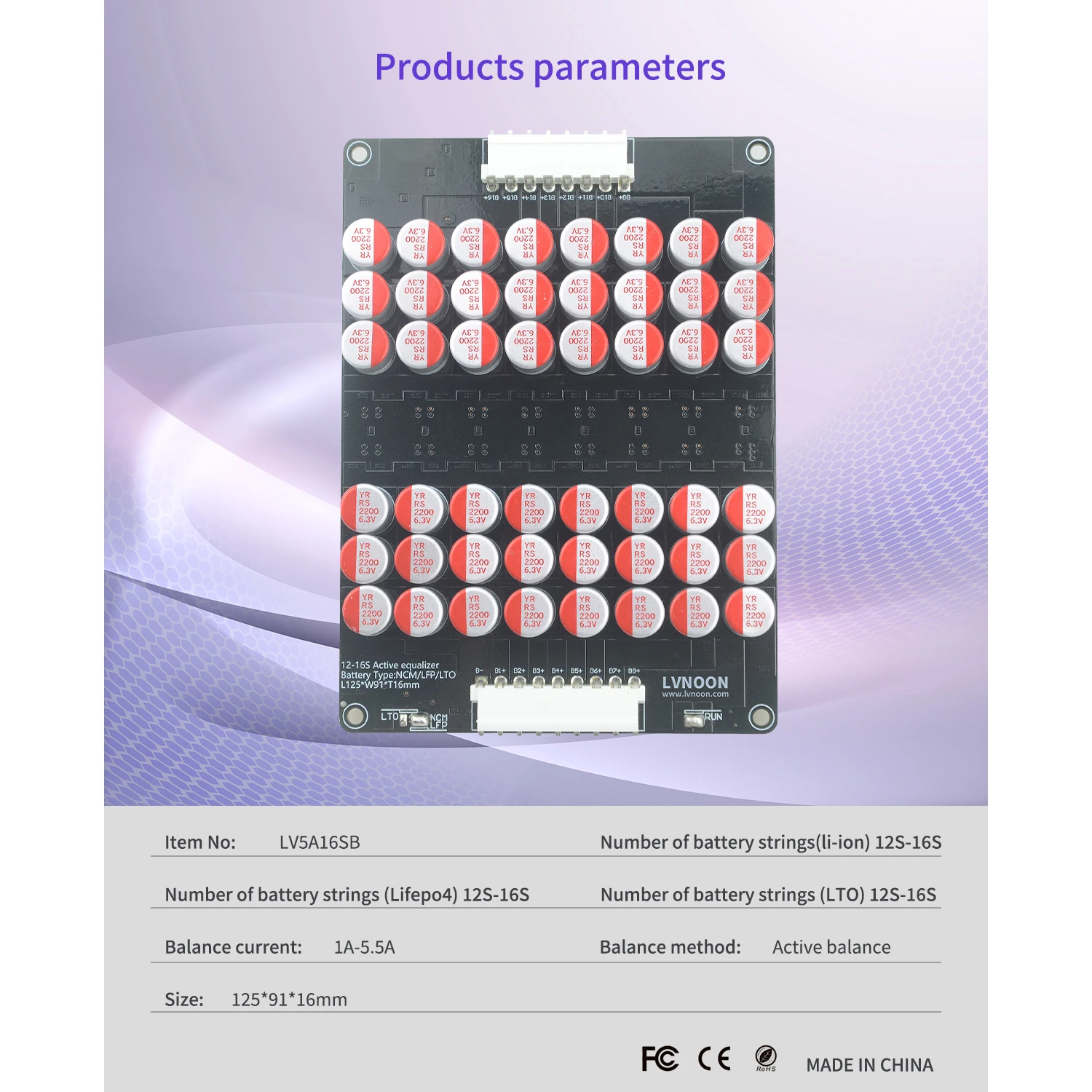

Products parameters:

Item No. LV5A16SB

Number of battery strings(li-ion) 12S-16S

Number of battery strings (Lifepo4) 12S-16S

Number of battery strings (LTO) 12S-16S

Balance current: 1A-5.5A

Balance method: Active balance

Size: 125*91*16mm

Precision：5mV

Suitable for NCM/LFP/LTO battery

For Li-ion and Lifepo4 Voltage is 2.7 V-4.2V

For LTO Voltage is 1.8 V-4.2V

No need external power supply, rely on internal battery to achieve the balance. Super low power consumption.

The under voltage hibernation voltage: 1.5-4.2V

The static working current: 15mA

Working environment temperature: -20 ℃degrees to +60 ℃degrees

Widely used for 2 wheels, 3 wheels and 4 wheels electrical vehicles.

F​eatures:

Intelligent Balancing Function: smart balance technology maintains battery health, reducing downtime and extending lifespan.

Customizable Equalization Settings: App-enabled customization allows for personalized equalization voltage and sleep voltage adjustments.

Cascading Capability: equalizers support cascading, enabling users to expand their battery management system.

Working Voltage: 2.7V-4.2V, suitable for NCM Ternary polymer lithium battery (Li-ion), lithium iron phosphate battery (LiFePO4) and LTO battery.

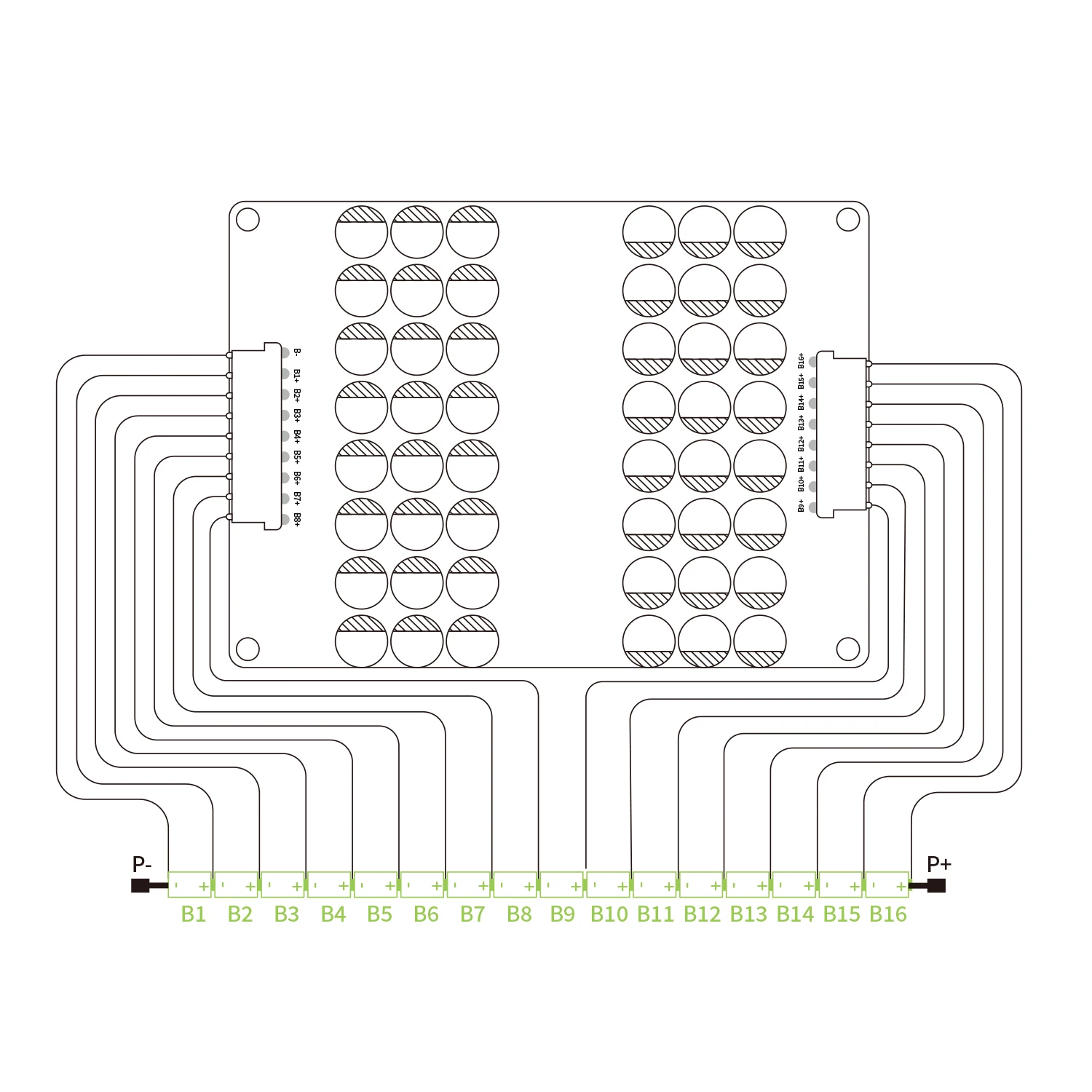

Note: Before connecting the balance cable to the balance board, check whether the connections of each section of the battery pack are correct connected, and insulating the bottom of the board and the battery string connection terminals. Otherwise, it will short-circuit and burn the board.

Package list:

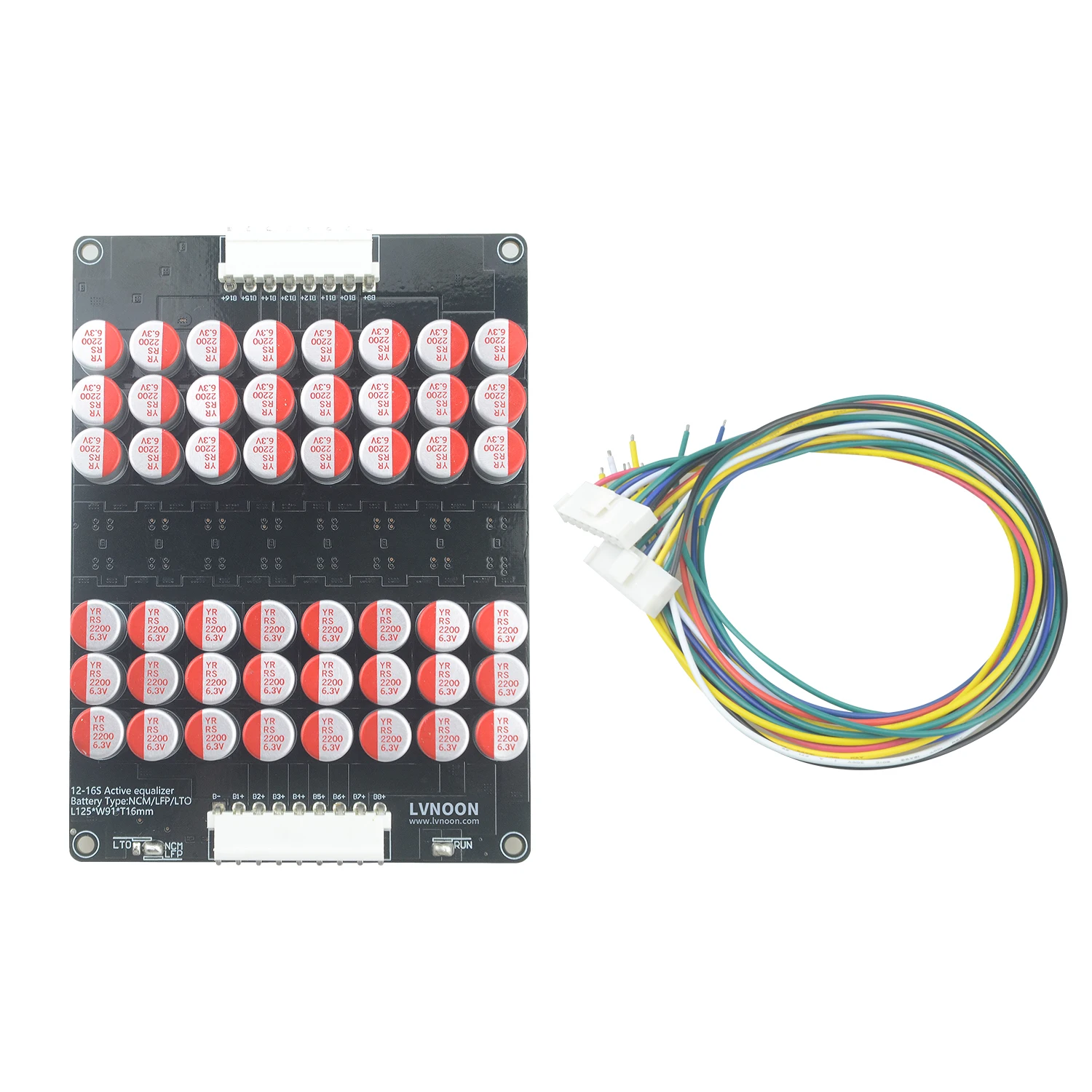

1*12S-16S Active Equalizer

1*8pin 18awg Cable

1*9pin 18awg Cable
