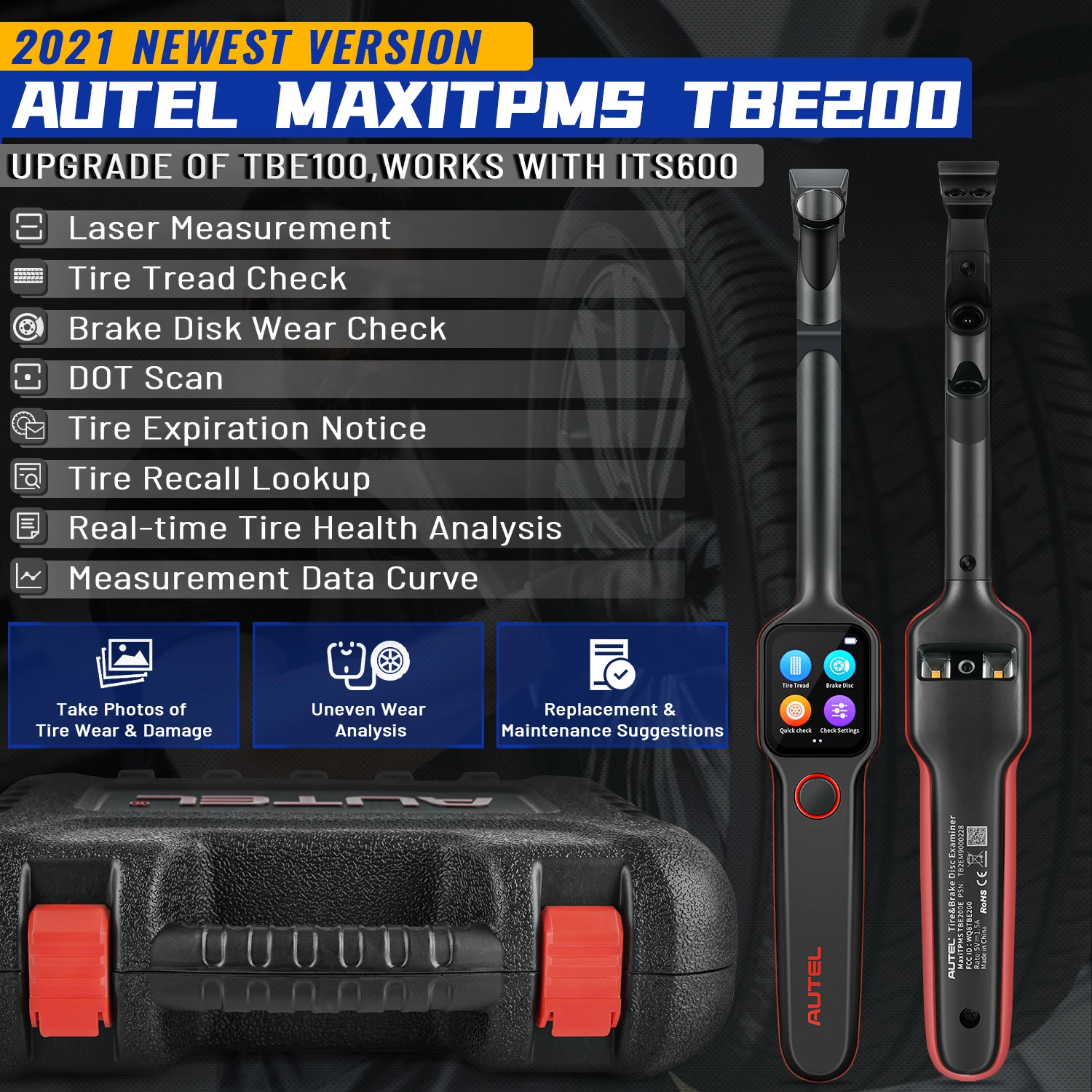

MaxiTPMS TBE200

The MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements.
Measure brake disc wear without having to remove tires. It features a 1.65" AMOLED super retina touchscreen, displaying measurement data curves in real-time.
TBE200 provides uneven wear analysis and detailed replacement & maintenance suggestions for quick tire service.
The TBE200 dual cameras enable users to document tire wear and damage and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.


Laser Measurement

• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
• Laser measurement with 0.1mm accuracy
• Full tread measurement
• Quick Check both tread depth & brake disc


Real-Time Tire Health Analysis

• Real-time measurement data on touchscreen
• Measurement data curve display
• Uneven wear analysis
• Test detail for single tire tread / brake disc
• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
• Scan DOT, tire expiration notice, tire recall lookup
• Take photos of tire wear & damage


Comprehensive Test Report

TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)


Features


Specification


Processor

4x ARM Cortex-A35 (1.5 GHz)

Processor

Quad-core processor (1.5 GHz)

Memory

1GB RAM LPDDR3 & 4GB ROM

Display

1.65-inch AMOLED capacitive touchscreen with 348×442 resolution

Connectivity

• Wi-Fi
• USB 2.0 & Type C

Camera

CMOS WXGA, 1 megapixel & 8 megapixel, 30fps

Audio Output

Output: Beep

Power and Battery

• 3.7 V/3000 mAh 18650 lithium-ion battery
• Charges via 5 V AC/DC power supply

Tested Battery Life

Around 8 hours of continuous use

Battery Charging Input

5 V/1.5 A

Power Consumption

300 mA (AMOLED on with default brightness) @3.7 V

Operating Temperature

-10 to 45°C(14 to 113°F)

Storage Temperature

-20 to 60°C (-4 to 140°F)

Dimensions (W x H x D)

283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”)


Comparison Chart

Contrast with TBE100

Packing List

1 x TBE200
1 x Calibration Table
1 x Power Adapter
1 x Type C USB Cable
1 x Quick Reference Guide
1 x Packing List
1 x Carrying Case
1 x Screen Wiper
