Digital Aerial Terrestrial TV Antenna alignment Signal Strength Meter UK STOCK
Item Description
Features:
Featured as Sensitivity and Accurate, help you to find the position for DVB-T antenna installation.
Designed with a for easier and quicker tuning.
With and attenuation control function, easy user-friendly operation.
Feedback numbers shows the strength of the signal intuitively.
Mini size and light weight, really portable and convenient to carry.
Operation:

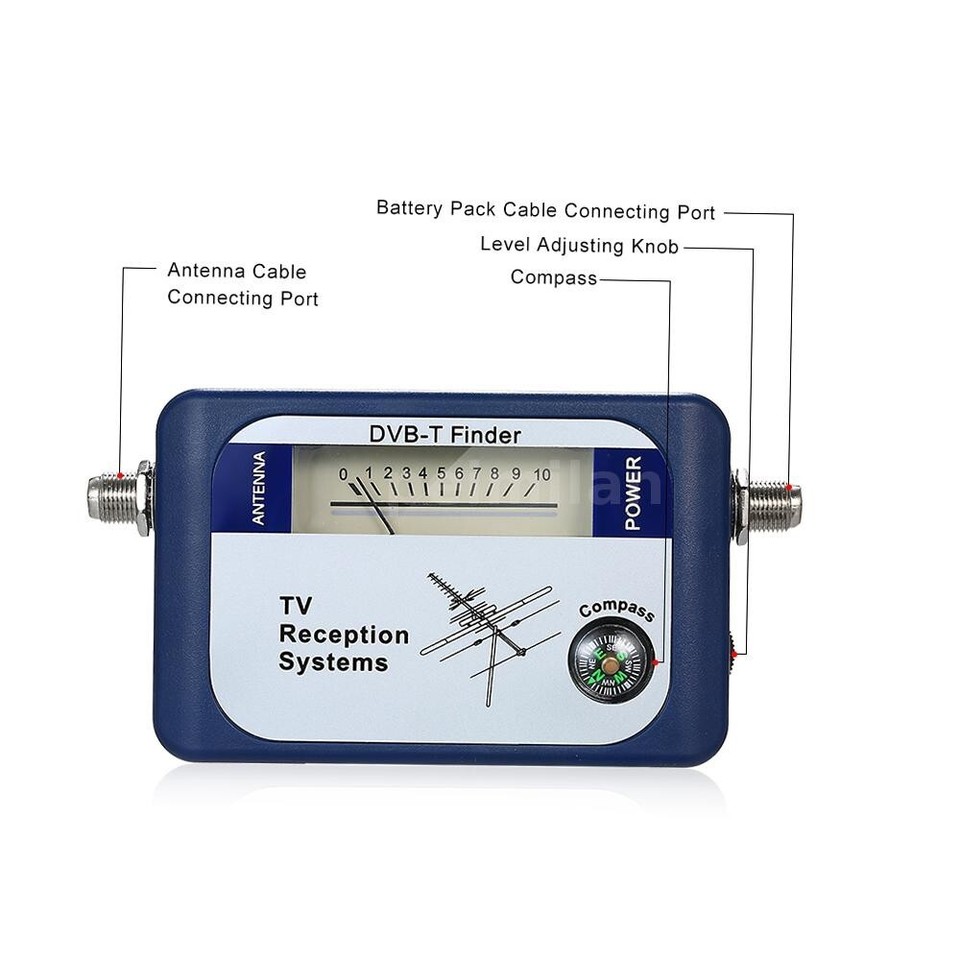

1.Connect the antenna cable to the left F Female and the cable to the right F Female. Remove any external amplifier* that may be connected to the antenna.
2.Adjust the antenna to the position by watching the meter's reading. Higher up the scale gives a better signal. If the finder's reading becomes full scale, adjust the level control knob to reduce the reading to around 5 (Turning the knob clockwise will decrease the reading), continue to move the antenna until you have the highest possible meter reading.
3.Remove the finder and replace any amplifier that was disconnected.
Important Note:
-If your antenna has an internal amplifer, (eg: 01MM-SQ01), it should be powered by an external via a inserter. Make sure the inserter is positioned between the finder and the antenna.
Specifications:
Color: blue
Material:
Frequency : 170-860MHz
Input level : 65-95dBuv
Impedance: 75Ω
Insertion Loss: ≤5.0dB
Featured as Sensitivity and Accurate, help you to find the position for DVB-T antenna installation.
Designed with a for easier and quicker tuning.
With and attenuation control function, easy user-friendly operation.
Feedback numbers shows the strength of the signal intuitively.
Mini size and light weight, really portable and convenient to carry.
Operation:
1.Connect the antenna cable to the left F Female and the cable to the right F Female. Remove any external amplifier* that may be connected to the antenna.
2.Adjust the antenna to the position by watching the meter's reading. Higher up the scale gives a better signal. If the finder's reading becomes full scale, adjust the level control knob to reduce the reading to around 5 (Turning the knob clockwise will decrease the reading), continue to move the antenna until you have the highest possible meter reading.
3.Remove the finder and replace any amplifier that was disconnected.
Important Note:
-If your antenna has an internal amplifer, (eg: 01MM-SQ01), it should be powered by an external via a inserter. Make sure the inserter is positioned between the finder and the antenna.
Specifications:
Color: blue
Material:
Frequency : 170-860MHz
Input level : 65-95dBuv
Impedance: 75Ω
Insertion Loss: ≤5.0dB
Item Size: Approx. 127 * 63 * 35 mm / 5 * 2.48 * 1.38in
Item Weight: Approx. 90g / 3.2oz
Package Size: Approx. 18.6 * 14.1 * 4.3cm / 7.32 * 5.55 * 1.69in
Package Weight: Approx. 197g / 6.97oz
Package List: E9010
1 * Finder
1 * English User Manual
1 * Holder
1 * Cable
Item Weight: Approx. 90g / 3.2oz
Package Size: Approx. 18.6 * 14.1 * 4.3cm / 7.32 * 5.55 * 1.69in
Package Weight: Approx. 197g / 6.97oz
Package List: E9010
1 * Finder
1 * English User Manual
1 * Holder
1 * Cable
6 x AA Batteries Required for Power Pack (Not Supplied)
