NVX VAD11005 1100W RMS V-Series Full-Range Class-D 5-Channel Amplifier

Product Details: Marine Certified V Series Class D 2 ohm Stable 5-Channel Amplifier RMS Power Rating: 4 ohm: 80 watts x 4 channel + 350 watts x 1 channel 2 ohm: 125 watts x 4 channel + 600 watts x 1 channel Bridged: 250 watts x 2 channel @ 4 ohm Total RMS power output: 1100 watts Conformal Coated Marine Grade Circuit Board LED Indicators: Power and Protect lights Platinum-plated Power and Speaker terminals Includes a Wired Bass Level Remote Control Balanced differential inputs eliminate noise picked up by signal cables Speaker-Level (High-Level) Inputs 2 or 5 channel selectable input mode RCA Pre-Amp Outputs Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation 4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection Input sensitivity: 0.2 - 16 volts Frequency Response: 20 - 20000 Hz Total Harmonic Distortion (THD): .03% Signal to Noise Ratio: >85 dB x1 and x10 Crossover Multiplier Variable high-pass filter: 40 - 400 Hz or 400 - 4000, 12 dB/octave Variable low-pass filter: 50 - 250 Hz, 24 dB/octave Variable Bass Boost (0 to +12 dB bass boost at 45 Hz) Fuse Rating: 120A 4 AWG gauge amplifier wiring kit is recommended for installation Dimensions: 13.01" L x 6.81" W x 2.05" H 1-year Warranty from the Original Purchase Date MFR #: VAD11005v2 VADv2 owner’s manual

NVX VAD11005 1100W RMS V-Series Full-Range Class-D 5-Channel Amplifier

Product Details:

  • Marine Certified V Series Class D 2 ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 80 watts x 4 channel + 350 watts x 1 channel
    • 2 ohm: 125 watts x 4 channel + 600 watts x 1 channel
    • Bridged: 250 watts x 2 channel @ 4 ohm
  • Total RMS power output: 1100 watts
  • Conformal Coated Marine Grade Circuit Board
  • LED Indicators: Power and Protect lights
  • Platinum-plated Power and Speaker terminals

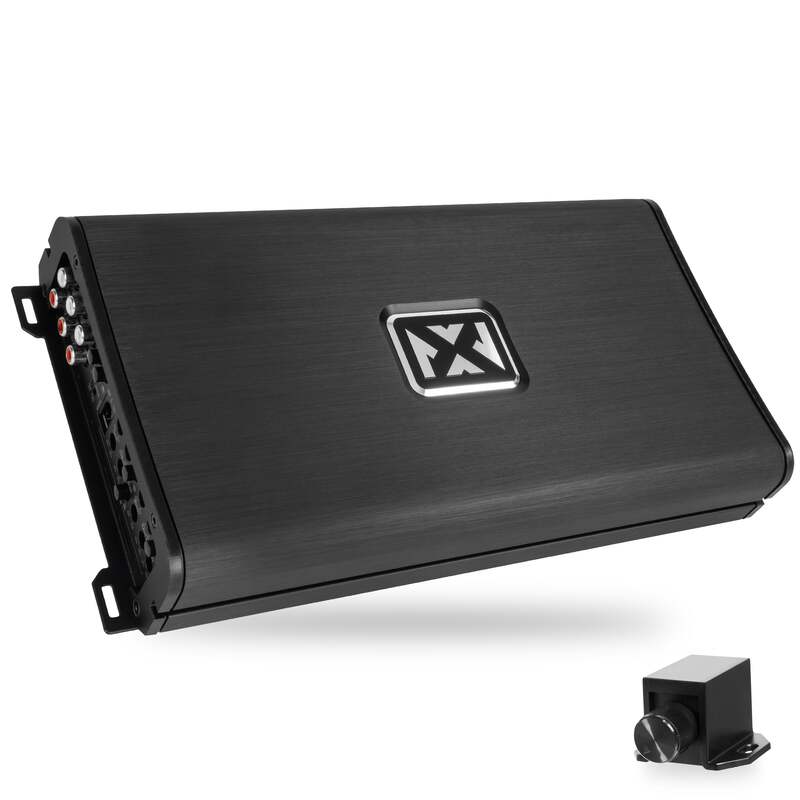

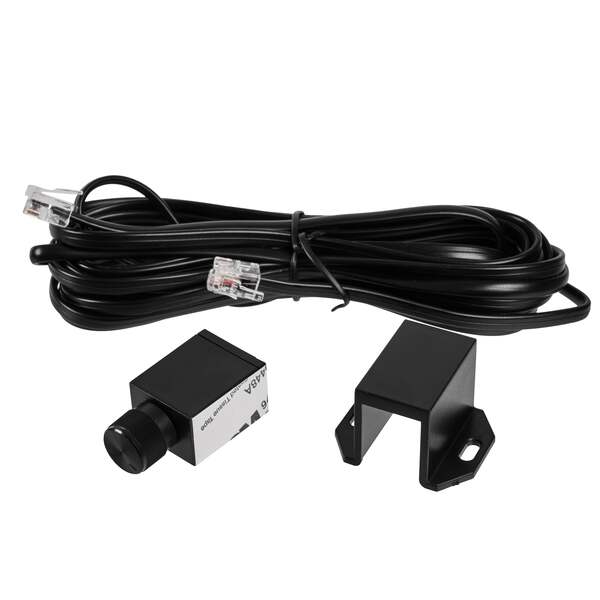

  • Includes a Wired Bass Level Remote Control
  • Balanced differential inputs eliminate noise picked up by signal cables
  • Speaker-Level (High-Level) Inputs
  • 2 or 5 channel selectable input mode
  • RCA Pre-Amp Outputs
  • Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
  • 4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
  • Input sensitivity: 0.2 - 16 volts
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): .03%
  • Signal to Noise Ratio: >85 dB
  • x1 and x10 Crossover Multiplier
  • Variable high-pass filter: 40 - 400 Hz or 400 - 4000, 12 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Fuse Rating: 120A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 13.01" L x 6.81" W x 2.05" H
  • 1-year Warranty from the Original Purchase Date
  • MFR #: VAD11005v2

 VADv2 owner’s manual

×
×
×
×
×
×
×
×
×
