Product Information

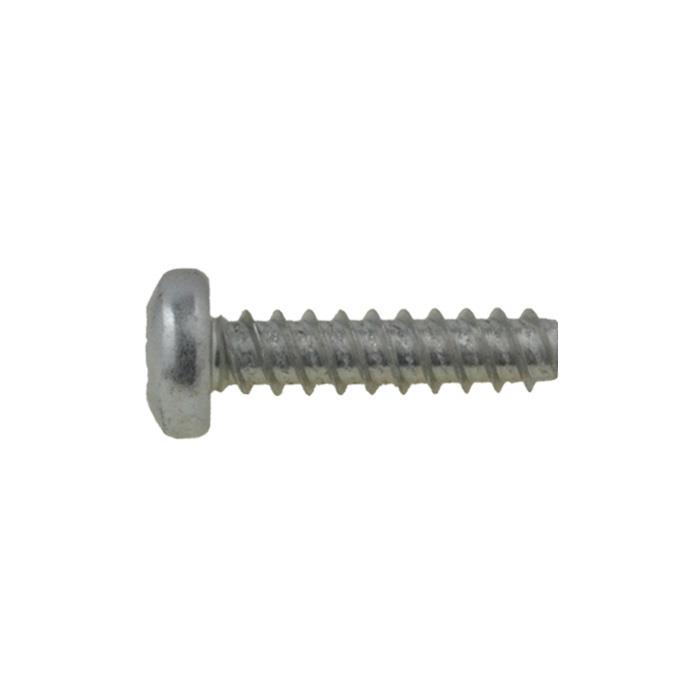

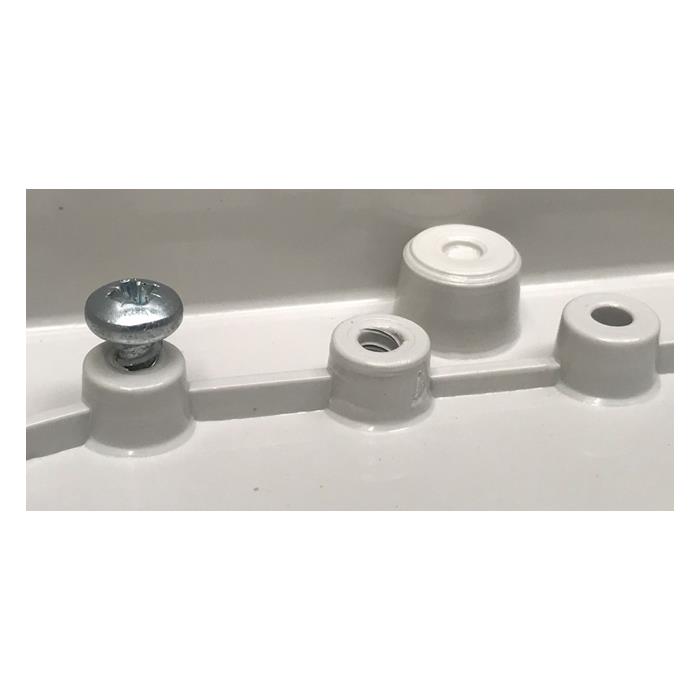

- Pan Pozi Drive Hi-Plas Thread forming Screws feature a specialised thread forming trilobular thread, which is designed to tap its own thread into a plastic housing with pre-drilled pilot holes. They combine a unique TRILOBULAR® cross-sectional form with deep, wide, spaced threads.

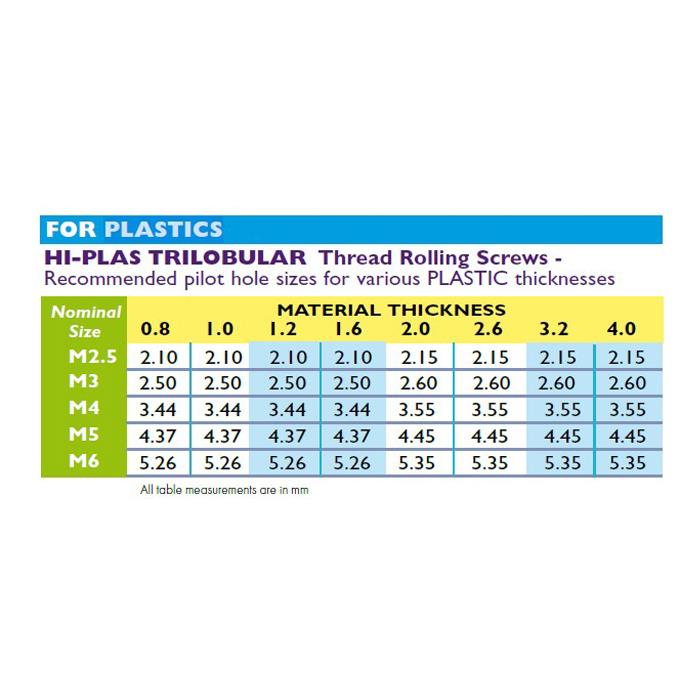

- Recommended Pilot Holes: Refer to images and scroll thue to see a table with recommended pilot hole sizes for various PLASTIC thicknesses
- Features / Benefits:
- 45 degree lead angle ideal for plastic
- Long thread pitch spacing
- Will not crack or chip plastic if correct pilot hole drilled
- Powder driver off limited through fricton
- Can be re-used repeatedly
- Material / Coating: Zinc Plated with a Wax coating. Zinc is the most common fastener of plating due to its the low cost and shinny bright silver finish. A thin layer of Zinc is applied by either electroplating or mechanically. It is intended to be used internally. The light wax coating is to reduce friction during installation
- Fastener length: is generally measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener. Thus, fasteners with heads that sit above the surface are measured from under the head to the end of the fastener, while fasteners that sit flush with the surface are measured from the top of the head to the end of the fastener
- Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
- Dimensions: Our stock is sourced from the same supplier but variances can occur between batches such as visible stamped markings, appearance or actual finish
- Photos: are of the product but may not be the actual diameter, head size or length you require, always refer to the size in the description and additional specifications data provided prior to ordering
- Driver Bits: A large range of suitable driver bits are in the "Driving" section of our website
- Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Fasteners Galore is not responsible for any loss, claim or damages arising therefrom. In developing this information, Fasteners Galore has made a determined effort to present it accurately
- Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
- Buy with confidence: ⇒ 10+ years experience selling online, > 19,000 stock lines, > 80 million pieces ex stock in Brisbane QLD
- Prices: Include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
Technical Specification
| Type | Thread Rolling Self Tapping Screw |
| Head Style | Pan Head |
| Screw Size | M4 (4mm) |
| System of Measurement | Metric |
| Closest Size in Imperial | 0.157" |
| Length From Under Head L | 10mm |
| Thread Length | Fully Threaded |
| Thread Direction | Right Hand |
| Product Diameter D | 3.98 - 4.10mm |
| Head Diameter A | 7.64 - 8.00mm |
| Head Height H | 2.95 - 3.25mm |
| Drive Style | Pozi |
| Drive Size T | PZ2 |

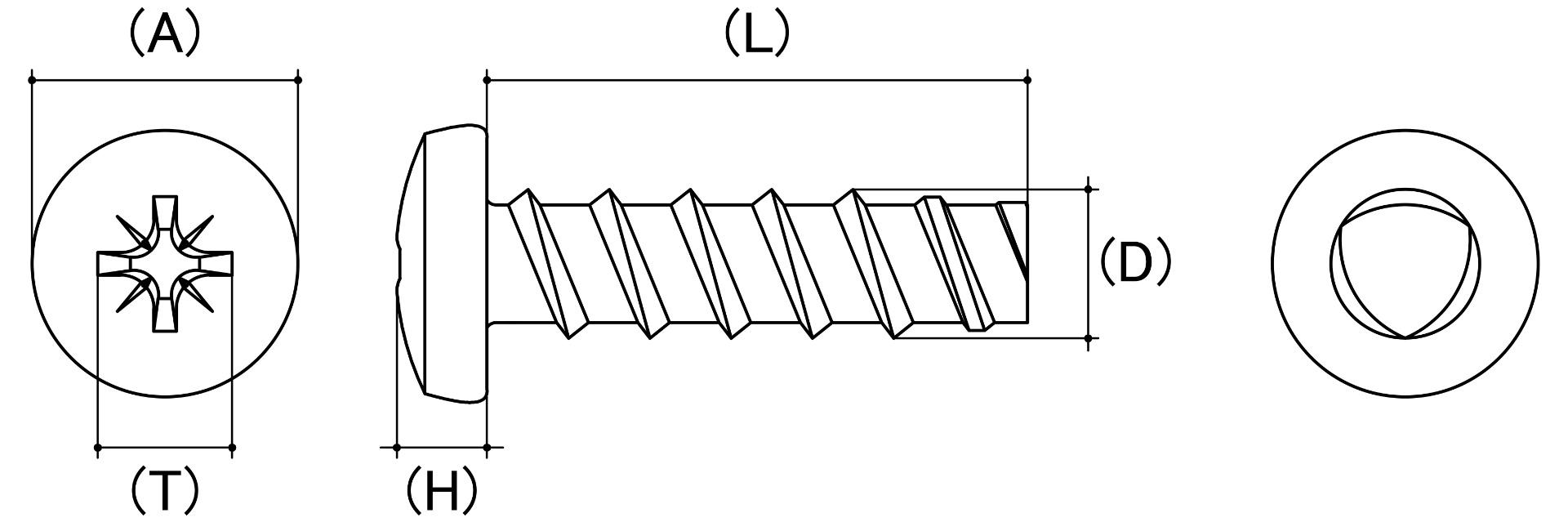

| Pilot Hole Sizes | Refer to the CAD Drawing |
| Diameter At Point | C = 2.90 - 3.10mm | D = 2.76 - 2.96mm |
| Screw Point | Type B |
| Material | Hardened Steel |
| Corrosion Protection Level | Moderate |
| Finish | Waxed & Zinc Plated |
| Standard | DIN 7500 |
| Brand | Hitech Fasteners |
| MPN | MSPZPZP410 |
| UPC | 9337175014404 |
| Delivery | Free Shipping |
| Number in Pack | 10 |
