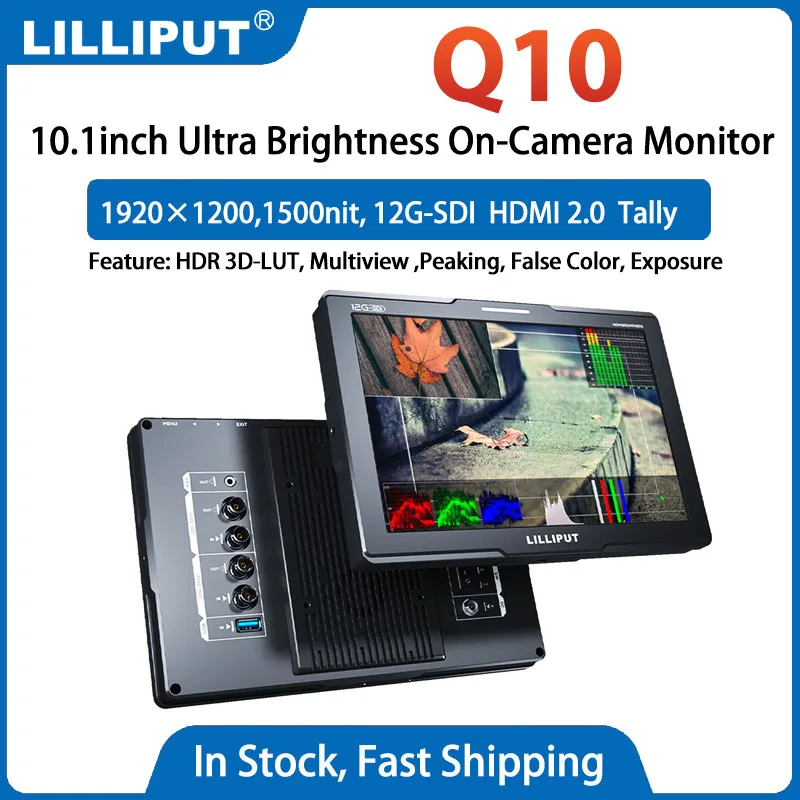

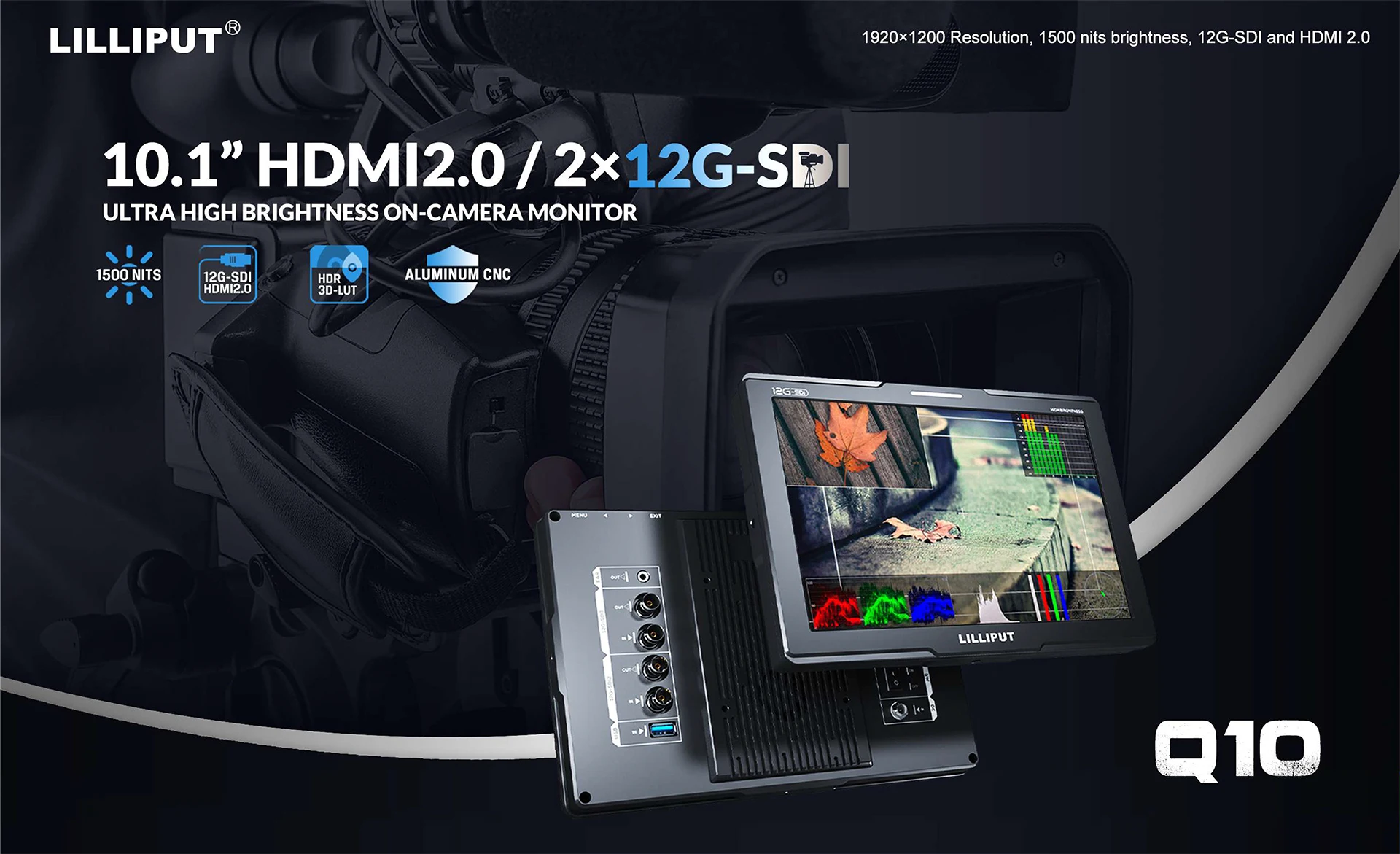

10.1inch 1500nits HDMI2.0 / 12G-SDI Ultra Brightness On-Camera Monitor

Short Description:

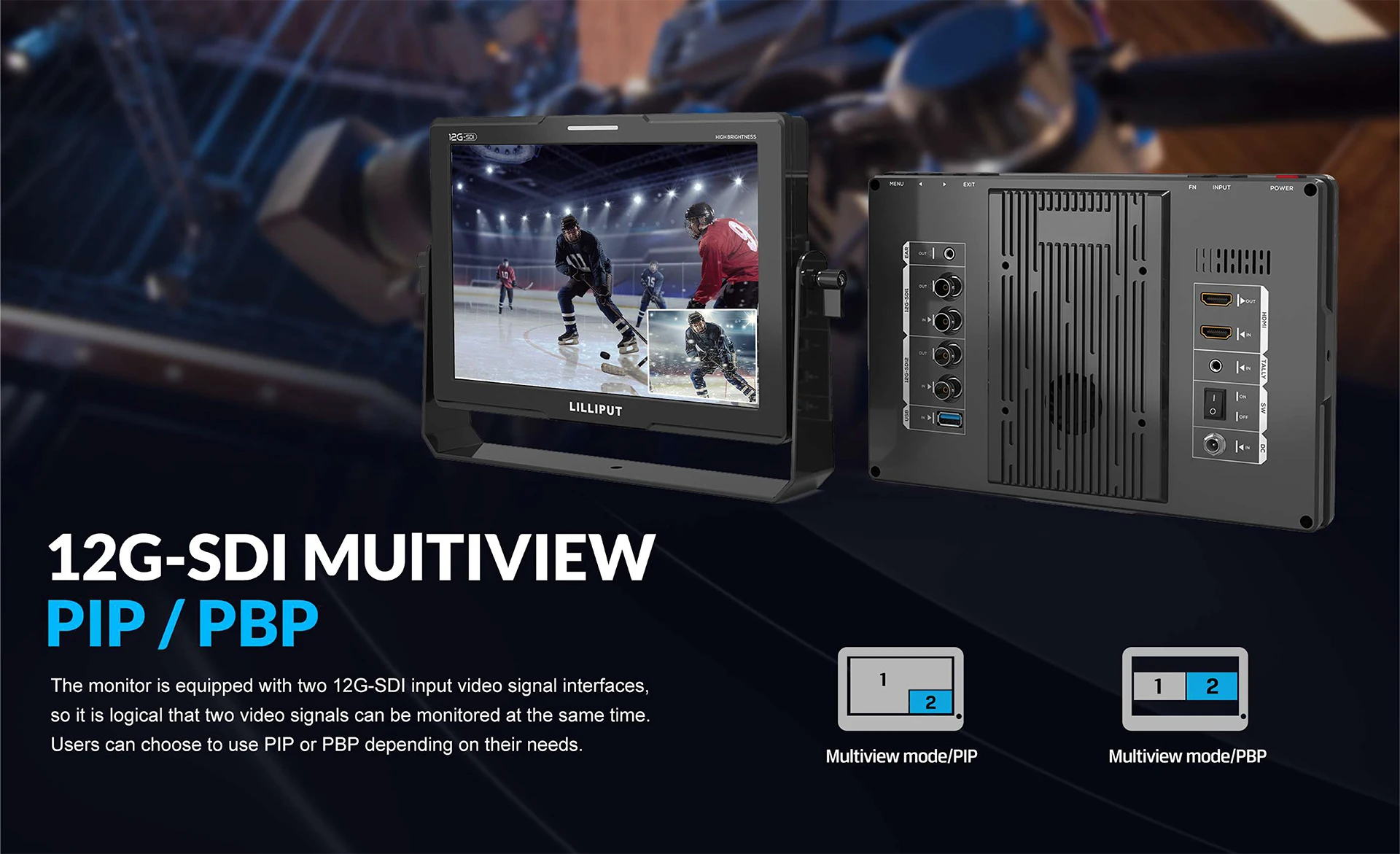

Q10 is a professional camera-top monitor came with an amazing 1500 nits Ultra Bright LCD screen, specifically for photography and film maker, especially for outdoor video and film shooting.This 10.1 inch LCD monitor has 1920×1200 Full HD native resolution and 1200:1 high contast providing superior picture quality, and support 4K HDMI 2.0 and 12G-SDI signal inputs and loop outputs. It is possible to receive 2× 12G-SDI signals and diaplay at the same time through the picture-in-picture function, the size and position of which can be adjusted.And HDMI signals up to 4K 60Hz which is compatible with the latest DSLR cameras on the market with an HDMI 2.0 interface.

Model::Q10

Display::10.1inch, 1920×1200， 1500nit

Input::12G-SDI x 2 ； HDMI 2.0 x 1 ; Tally

Output::12G-SDI x 2 ； HDMI 2.0 x 1 ;

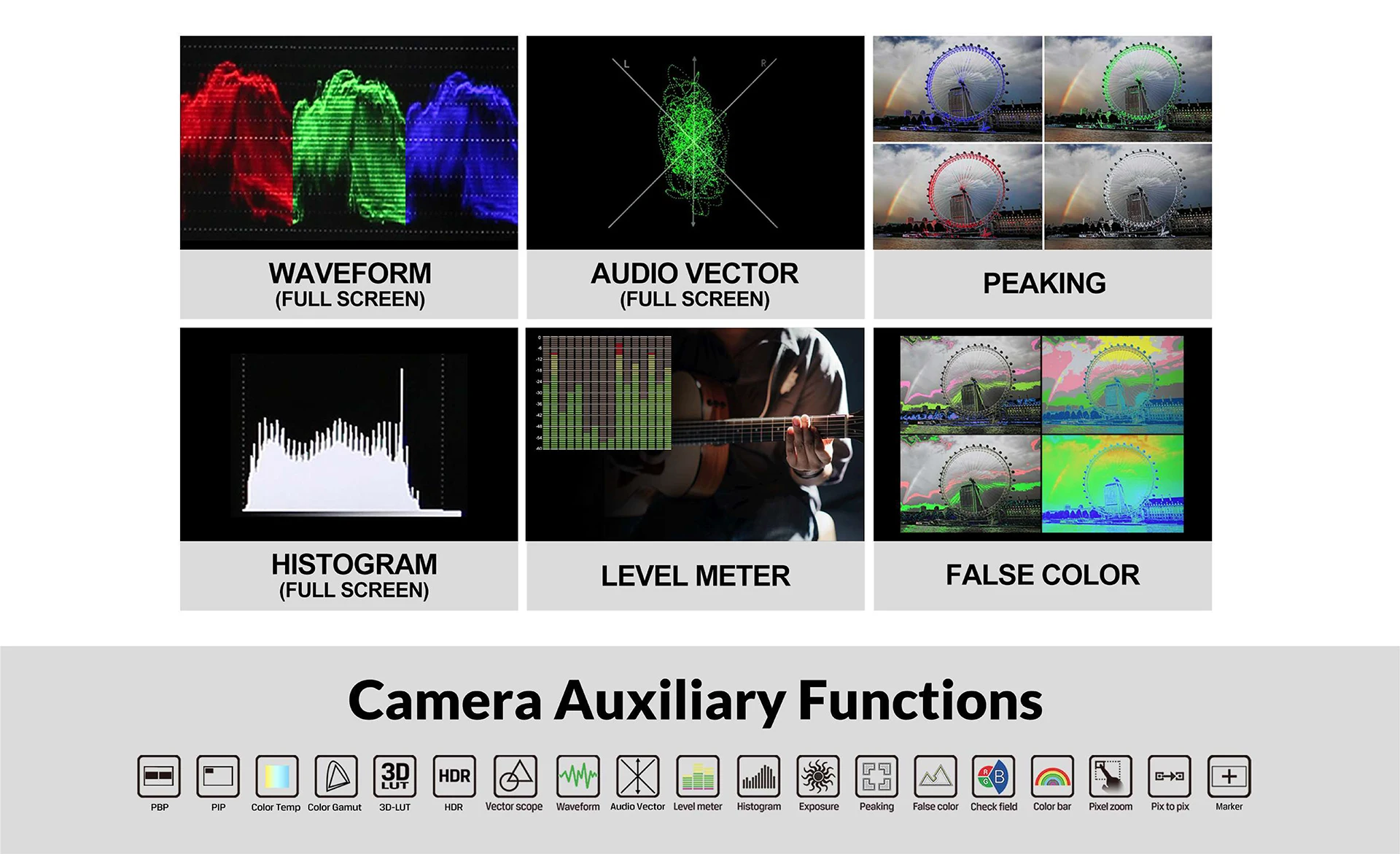

Feature::1500nits , HDR 3D-LUT, Multiview ,Delicate Milled,Camera Auxiliary Function

DISPLAY	Panel	10.1”
	Physical Resolution	1920×1200
	Aspect Ratio	16:10

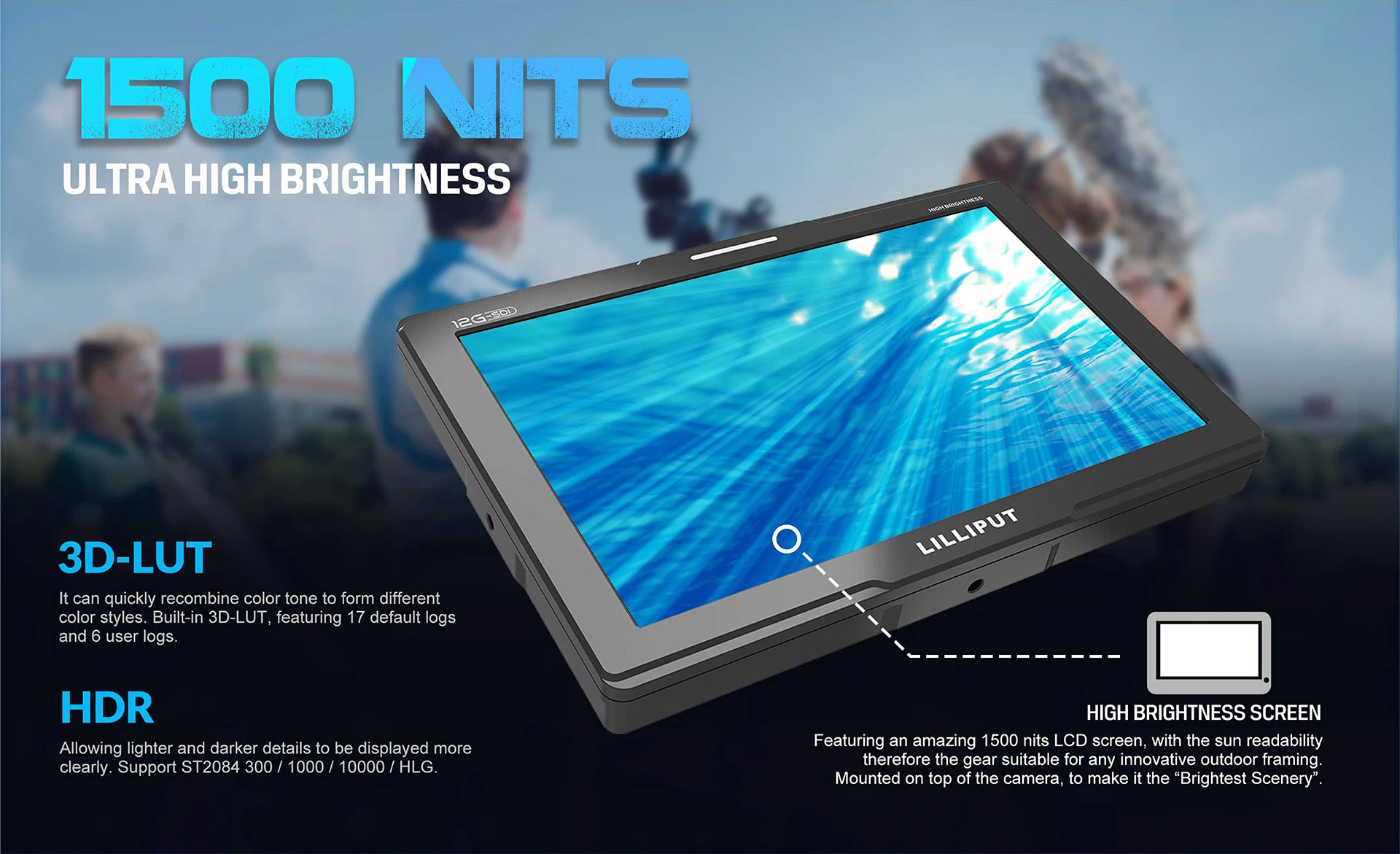

	Brightness	1500 nit
	Contrast	1000:1
	Viewing Angle	170°/ 170°(H/V)
	HDR	ST2084 300/1000/10000/HLG
	Supported Log formats	SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
	Look up table (LUT) support	3D LUT (.cube format)
SIGNAL INPUT	SDI	2×12G-SDI
	HDMI	1×HDMI 2.0
	Tally	1
SIGNAL LOOP OUTPUT	SDI	2×12G-SDI
SIGNAL LOOP OUTPUT	HDMI	1×HDMI 2.0
SUPPORT FORMATS	SDI	2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24,
	SDI	1080i 60/50, 720p 60/50…
	HDMI	2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50,
	HDMI	720p 60/50…
AUDIO IN/OUT	SDI	16ch 48kHz 24-bit
	HDMI	8ch 24-bit
	Ear Jack	3.5mm
	Built-in Speakers	1
POWER	Input Voltage	DC 7-24V
POWER	Power Consumption	≤37W (12V)
ENVIRONMENT	Operating Temperature	0°C~50°C
ENVIRONMENT	Storage Temperature	-20°C~60°C

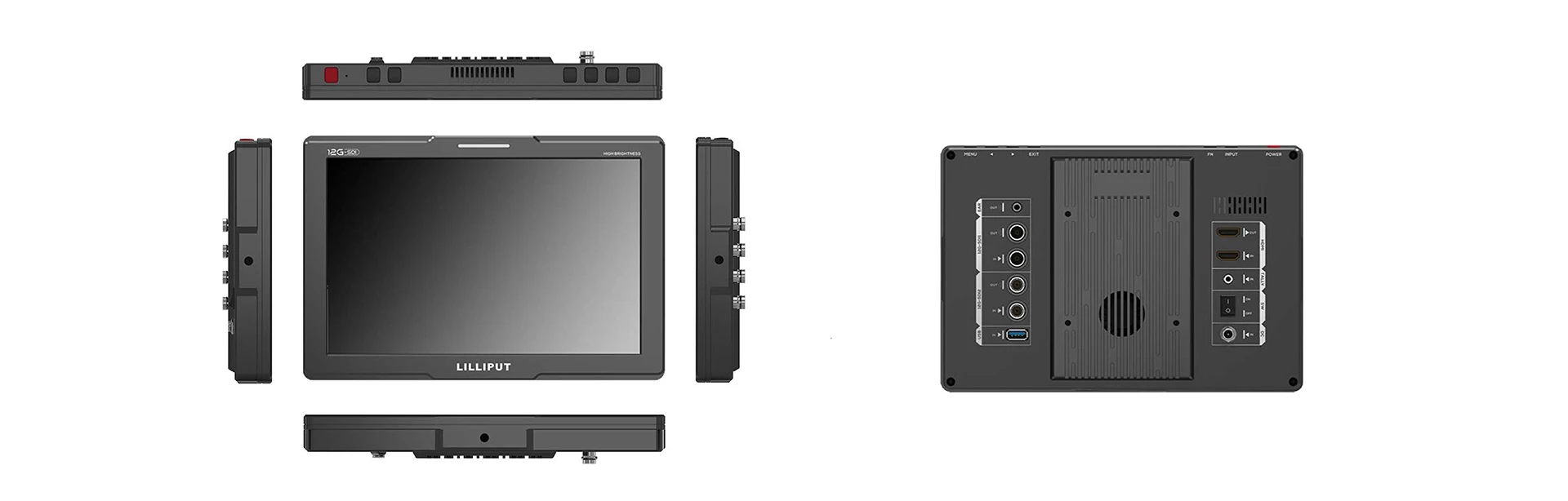

OTHER	Dimension(LWD)	251mm × 170mm × 30.5mm
OTHER	Weight	1.1kg
