Ultra compact and low profile single output enclosed switching power supply unit from the Mean Well LRS series.


  • Output voltage 12V
  • Output current 12.5A
  • Rated power 150W
  • High efficiency, long life and high reliability
  • Universal AC input
  • LED indicator for power on
  • High operating temperature up to 70°C
  • Cooling by free air convection
  • 300V AC input surge
  • Operating altitude up to 5000m
  • 3 year warranty
  • Manufacturer's part LRS-150-12

Responsive image

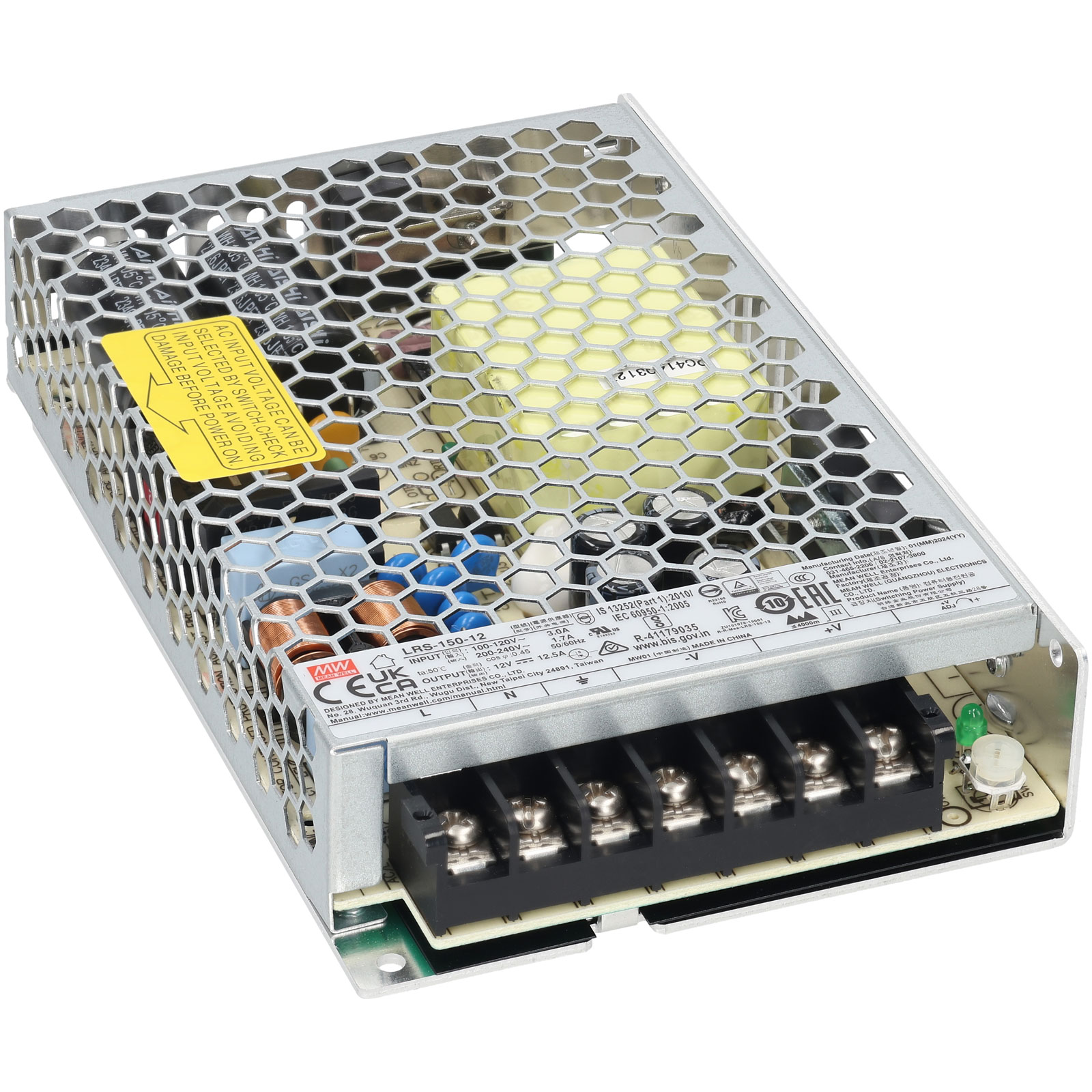

Mean Well LRS-150-12 12V / 150W Enclosed PSU

Product Details

Ultra compact and low profile single output enclosed switching power supply unit from the Mean Well LRS series.


  • Output voltage 12V
  • Output current 12.5A
  • Rated power 150W
  • High efficiency, long life and high reliability
  • Universal AC input
  • LED indicator for power on
  • High operating temperature up to 70°C
  • Cooling by free air convection
  • 300V AC input surge
  • Operating altitude up to 5000m
  • 3 year warranty
  • Manufacturer's part LRS-150-12
NameValue
Number of Outputs1
Output Voltage12V
Output Current0A
Power Rating150W
Input Voltage85 to 264V
Input ConnectionScrew terminals
Output ConnectorsScrew terminals
Temperature Range-30 to +70°C
Dimensions159 x 97 x 30mm
