Product Information
- What is a Nutsert | Riv Nut | Rivet Nut: Finding a fastener that works with thin or brittle materials or where you cant get access from behind can be difficult. This is where nutserts, which are also known as a rivet nut, blind nuts, blind rivet nuts, rivnuts or threaded inserts, come in. A variation on the standard rivet, the rivet nut has a tubular round, splined or smooth body, square, or hexagonal body that is internally threaded and counterbored. As a blind fastener, the nutsert is installed in instances where only one side of the workpiece is accessible, making it incredibly versatile and popular

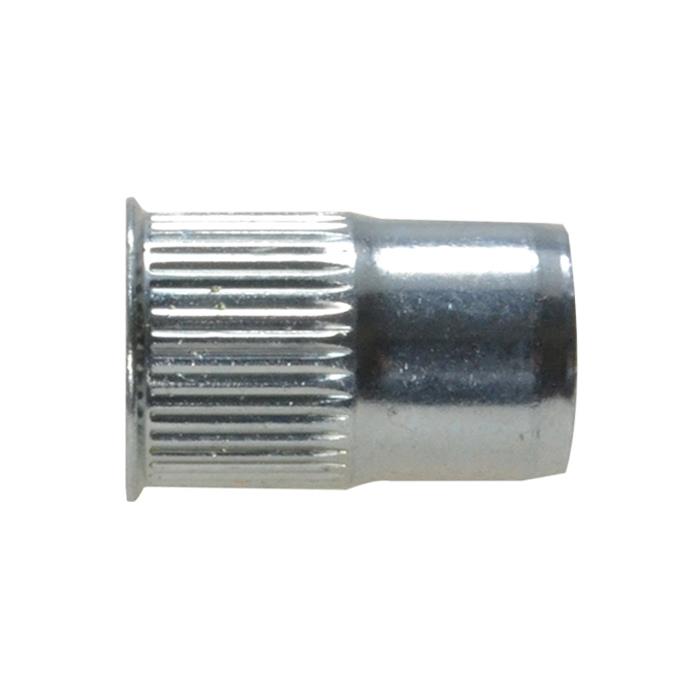

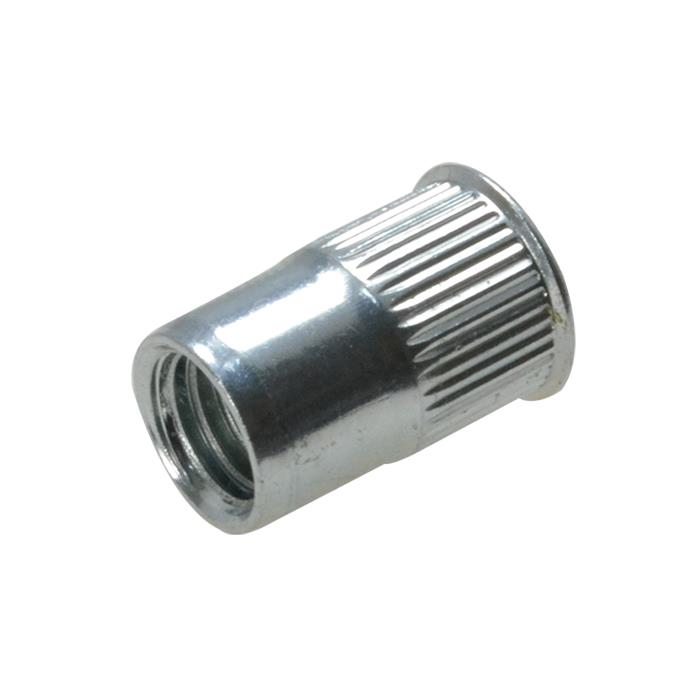

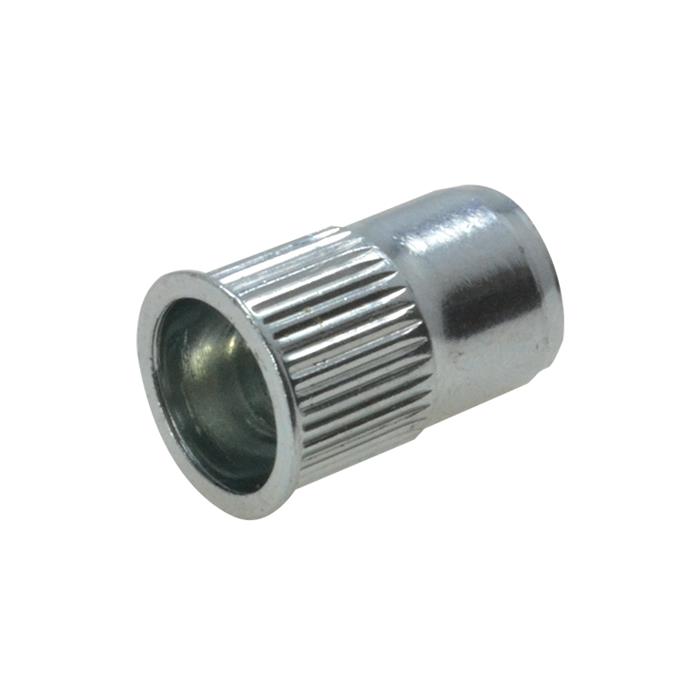

- Type: Countersunk Nutserts (Rivet Nut) have a low profile thin flange head which sits flush on the surface of material where it is being used. Splines on the outside of the body are to help reduce rotation during installation.
- Installing: To install, drill the required hole size, install nutsert using a suitable tool. It is important the hole size is correct and is the right length for the thickness you are gripping. Once installed it will provide maximum resistance
- Material / Coating: Zinc Plated is the most common fastener plating due to its the low cost and shinny bright silver finish. A thin layer of Zinc is applied by either electroplating or mechanically. It is intended to be used internally. Whilst some people use it externally it isn’t recommended if corrosion is a concern. If you need a fastener that will withstand the outdoor elements or matching another material choose from our range of Aluminium or Stainless steel Nutserts
- Thread Pitch (Metric): is the distance between the peaks of two threads along a screw, bolt, nut or fastener expressed in millimetres (mm). Used when referring to Metric parts. For example, a thread pitch of 1.50mm means that the distance between one thread and the next is 1.50mm
- Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
- Dimensions: To ensure consistency, all of our nutserts are sourced from the same supplier. Therefore, we get very few differences in head dimensions, grip range, body length and actual material finish
- Photos: are of the product but may not be the actual diameter, head width, head thickness or body length you may require
- Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
- Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Fasteners Galore is not responsible for any loss, claim or damages arising therefrom. In developing this information, Fasteners Galore has made a determined effort to present it accurately
- Buy with confidence: ⇒ 10+ years experience selling online, > 19,000 stock lines, > 80 million pieces ex stock in Brisbane QLD
- Prices: include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
Technical Specification
| Product | Countersunk Head Nutsert |
| Thread Size | M6 (6mm) |
| Head Style | Countersunk Head |
| Body Type | Round Open |
| Outside Body | Splined | Knurled |
| Size x Pitch | M6 x 1.00p Coarse |
| Thread Pitch | 1.00mm |
| Thread Type | Metric - Coarse |
| Thread Direction | Right Hand |
| System of Measurement | Metric |
| Closest Size in Imperial | 1/4" |
| Recommended Hole Size | 9.00mm |

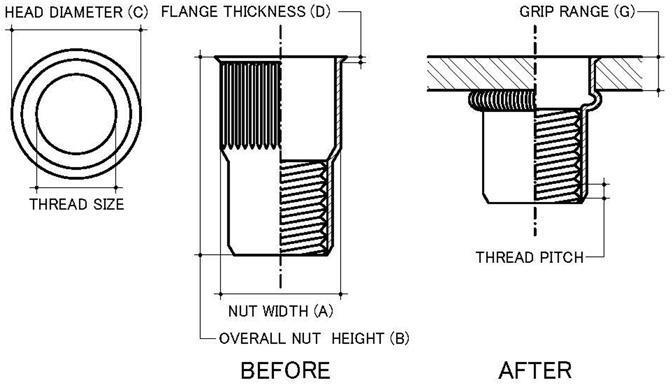

| Nut Width A | 8.95mm |
| Overall Nut Height B | 15.00mm |
| Head Diameter C | 10.00mm |
| Flange Thickness D | 0.50mm |
| Grip Range G | 0.50 - 3.00mm |
| Pull Out Kn | 13.7 |
| Push Out Kn | 2.5 |
| Torque To Turn Nm | 12.3 |
| Material | Low Carbon Steel |
| Class Grade | Low Tensile Class 4.6 |
| Finish | Zinc Silver Plated |
| Corrosion Protection Level | Moderate |
| Standard | BS 970 040A04 |
| Brand | Bolt and Nut Australia |
| MPN | 43C6SP |
| Delivery | Free Shipping |
| Number In Pack | 1000 |
