2000W DC12V/24V/48V Wind Turbine Generator Windmill 5 Blades Charge Controller Power Inverter Kit Note: The mounting bracket is not included!
Features: 1.Using high-power tracking intelligent microprocessor control, effective regulation of current and voltage.
2.Start the wind speed is low, high wind energy utilization; small size, good looks, low operating vibration.
3.The installation of user-friendly design, convenient equipment installation, maintenance and repair.
4.The shell is made of aluminum alloy die-casting, with double bearing carrier, anti-typhoon capacity is stronger, safe and reliable operation.
5.The wind wheel blades are made of nylon fiber, coupled with the optimization of the aerodynamic shape design and structural design, high wind energy utilization factor, an increase of annual power generation.
6.The generator using patented magnetic bearing alternator, coupled with a special stator design, effectively reduce the resistance torque of the generator, while the wind wheel and the generator has a more good matching characteristics, the unit running reliability.

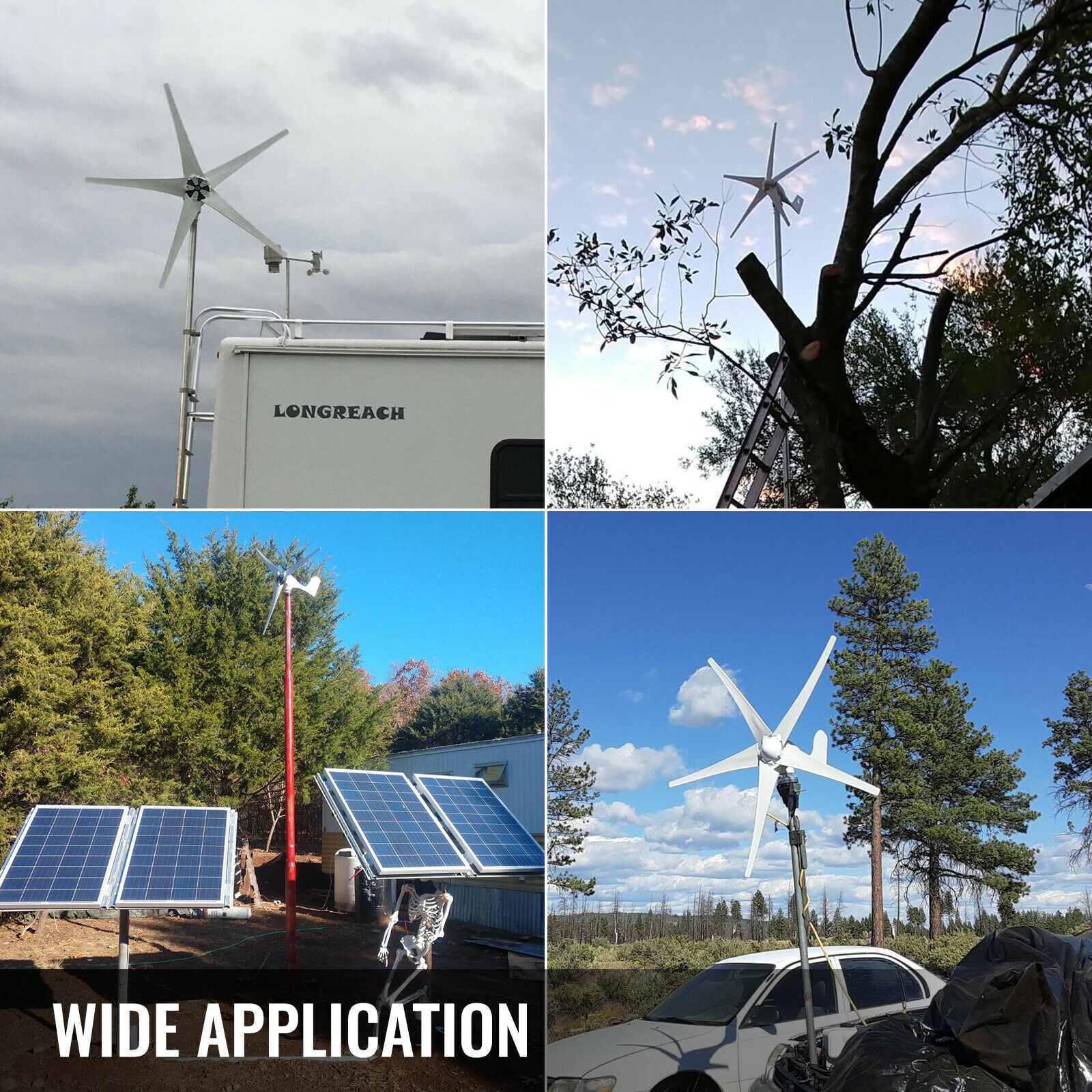

7.It is ideally suited for the leisure sector and is known for charging batteries for boats, gazebos, cabins or mobile homes, as well as for green windmills, home, corporate and industrial energy supplements!

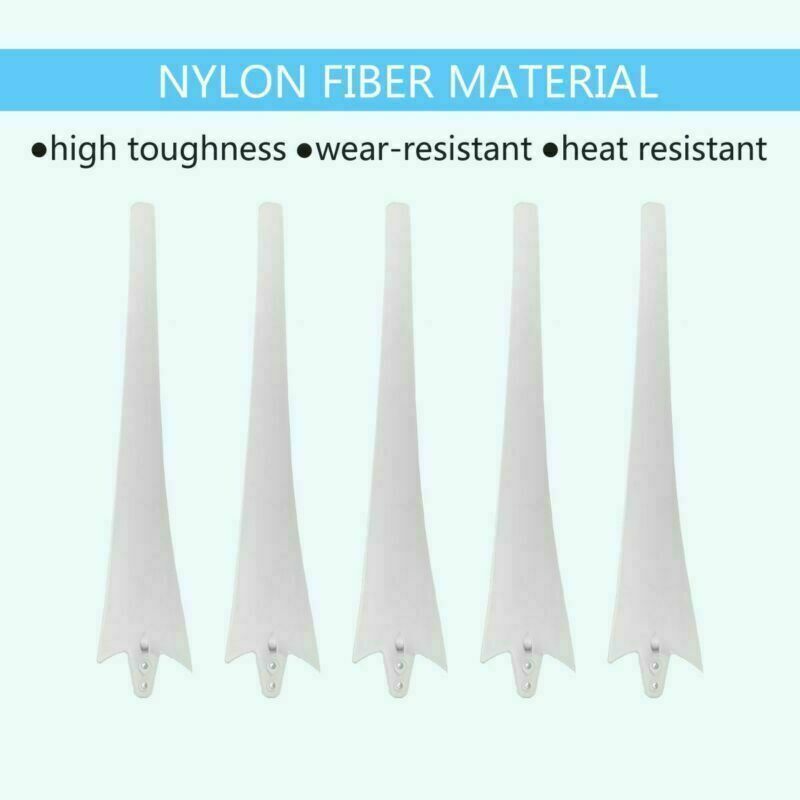

Specifications for Wind Turbine: Leaf material: nylon fiber

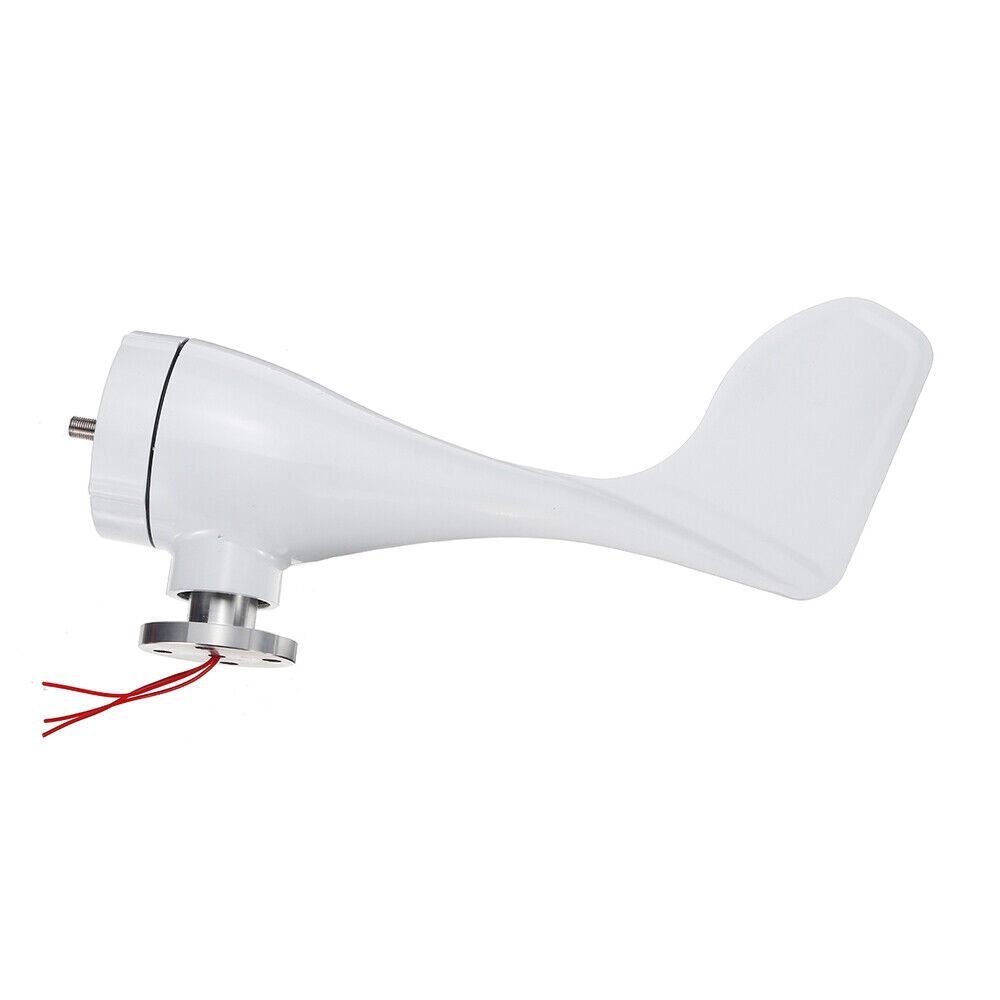

Generator case: Casting aluminum alloy
Colour: white
Wind wheel diameter:5PCS:1.25m
Weight:9kg
Power:2000W
Rated voltage: 12/24V/48V
Starting wind speed:2.0m/s
Rated wind speed: 13m/s
Safe wind speed: 55m/s
Number of leaves: 5PCS
Control system: Electromagnet/wind wheel yaw
Wind direction adjustment: automatic adjustment of the wind
Wind power and type: three-phase AC permanent magnet synchronous generator
Operating temperature: -40℃~+80℃ Specifications for Power Inverter: Max continuous power: 2000W
NO Load Power Rate: <0.5A,<0.3A
Input DC voltage Range: DC10-15V,20V-30V
Output Voltage Range: AC110V/220V ±5%
Output Frequency Range: 50+/- 3Hz
Max Outer Temperature: < 75℃
Max Power Efficiency: >85%
High Voltage Cut Off Level: 15 +/- 1V,30V+/-1V
Low Voltage Alarm Level: 11V+/-0.1,21V+/-0.1V
Low Voltage Cut Off Level: 10.5 +/- 0.3V,20V+/-0.3V
Input Voltage: AC 12V , AC 24V , AC 48V
USB: 2
THD: ≤5%
Size: 200*116*56 mm
Weight: 1.25kg
Package Includes:
1x Wind power generator kit
1x Charger controller 1 x Installation accessory 1 x Manual
