Timing Belt Kit Water Pump Located in the engine compartment behind the drive belts
The timing belt keeps the crankshaft in sync with the camshaft(s), essentially ensuring the proper timing and operation of the engine and its valves. When replacing a timing belt, also replace tensioner, and pulleys. Failure of pulleys and tensioners, after replacing only the belt, can cause valve or piston damage and lead to more expensive repairs. Additionally, timing belt driven water pumps should also be replaced at the same time as the timing belt. Operated by the drive belt, the water pump's core function is to allow coolant to flow into the engine continually. Together, these three components: timing belt, tensioners and pulleys, and the water pump are essential to the overall health of your engine. Ignoring the replacement of a timing belt as a part of scheduled maintenance could result in major engine failure down the road. Be sure to use our aftermarket replacement timing belt kit when the timing belt is serviced for the best performance.
Applications:
2001-2005 FOR HONDA CIVIC GX 1.7L 1668CC L4 CNG SOHC
Spec Note:(16 Valve) Eng. Code "D17A7" - VTEC
2001-2005 FOR HONDA CIVIC DX LX VP 1.7L 1668CC L4 SOHC
Spec Note:(16 Valve) Eng. Code "D17A1" - VTEC
2001-2005 FOR HONDA CIVIC EX 1.7L 1668CC L4 SOHC
Spec Note:(16 Valve) Eng. Code "D17A2" - VTEC
2001-2005 FOR HONDA CIVIC HX 1.7L 1668CC L4 SOHC
Spec Note:(16 Valve) Eng. Code "D17A6" - VTEC
2002-2004 FOR HONDA CIVIC GX 1.7L 1700CC L4 CNG SOHC
Spec Note:(16 Valve) Eng. Code "D17A7" - VTEC
2002-2004 FOR HONDA CIVIC DX LX VP 1.7L 1700CC L4 SOHC
Spec Note:(16 Valve) Eng. Code "D17A1" - VTEC
2002-2004 FOR HONDA CIVIC EX 1.7L 1700CC L4 SOHC
Spec Note:(16 Valve) Eng. Code "D17A2" - VTEC
2002-2004 FOR HONDA CIVIC HX 1.7L 1700CC L4 SOHC
Spec Note:(16 Valve) Eng. Code "D17A6" - VTEC

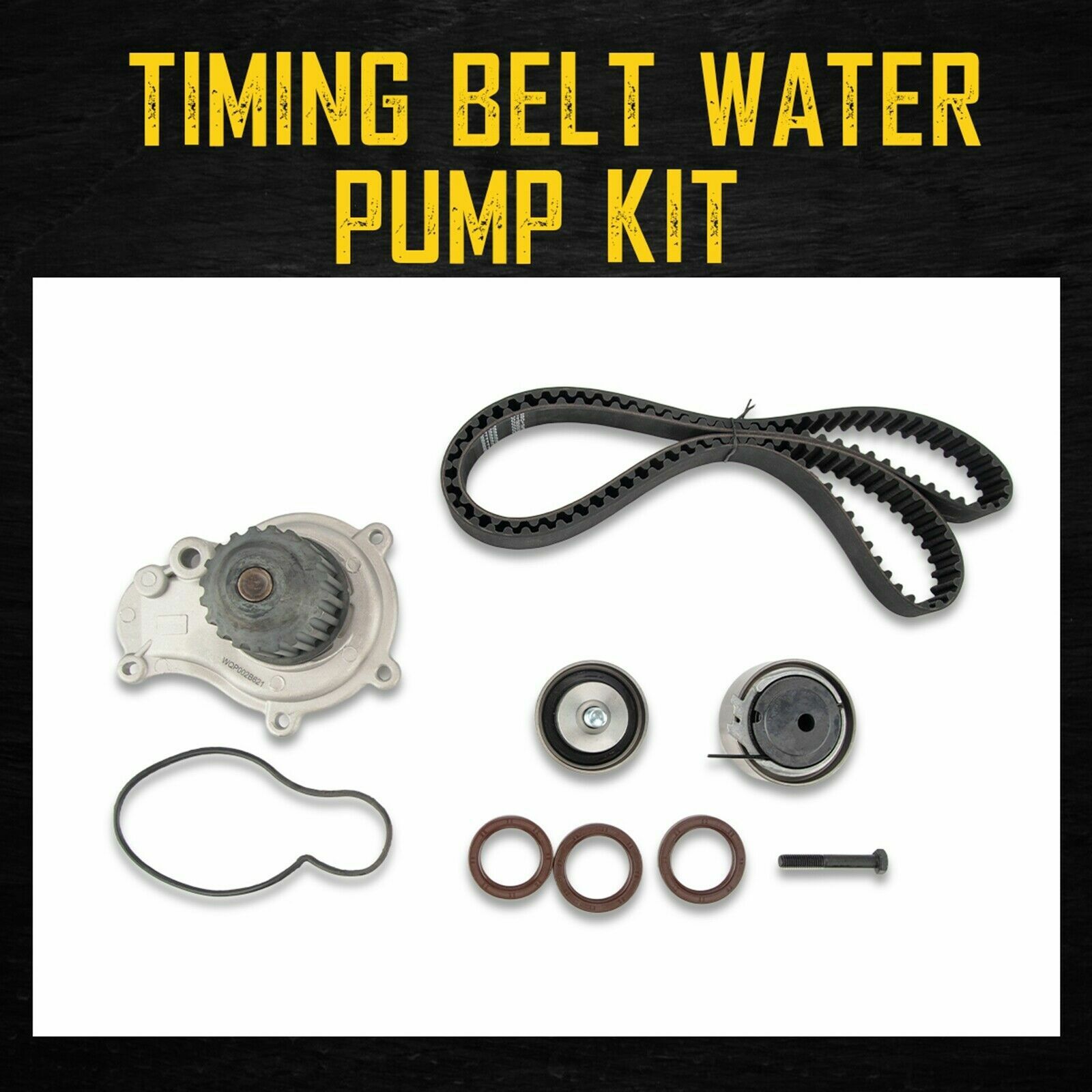

Package Contents:
+1 Timing Belt (104 teeth)
+1 Tensioner Bearing
+1 Tensioner Spring
+1 Crankshaft Seal
+1 Camshaft Seal
+1 Water Pump with gasket
+1 Valve Cover
+4 Spark Plug Tube Seals
+5 Grommets
Additional Information:
+ This timing belt kit is just what you need to keep your car in good running order. The timing belts that you will receive in this kit are high quality belts that the dealers and rebuilding shops use everyday. So do not settle for lesser quality parts when it comes to engine repair.
+ These belts are designed for the professional installer. It does not come with any installation instructions. If you do not have a service manual, please consult a professional mechanic prior to installing this kit.
+ Please refer to the listing pictures for an accurate description of the parts included in the kit.
Timing Belt - Installation
The following is an installation guideline designed to combat problems resulting from improper installation of timing belt drives.
1) Loosen Motor
Check to make sure that the motor is OFF, a lock-out/ tag-out procedure should be in place to prevent accidentally motor start-ups. Loosen motor mounting bolts. Move motor until existing timing belt is slack and can be removed without prying.
NEVER PRY OFF A TIMING BELT, PRYING THE TIMING BELT WILL DAMAGE THE TIMING BELT PULLEYS TEETH AND/OR FLANGE THAT YOU ARE LEVERAGING AGAINST.
2) Remove Old Timing Belt
Remove old timing belt and check the timing belt for unusual wear. Excessive wear may indicate problems with the drive design or preventive maintenance program.
3) Select Correct Replacement Timing Belt
Selection of the correct timing belt replacement is critical. A timing belts tooth shape (timing belt tooth profile) are not uniformly standardized among the various timing belt manufacturers. However, as there are many instances where there is drop in compatibility between the various manufacturers there are just as many instances where they are not compatibility. If you are unsure of what timing belt you have or how to identify the timing belt needed for your application. Please refer to our guide titled Timing Belt Identification and Timing Belt Replacement.
Caution must be taken if any of the timing belt pulleys have been replaced with a timing belt pulley containing a different number of teeth. Besides the ratio being changed the center to center distance requirements will have changed for the timing belt also. Make sure that you are using the right length timing belt.
NEVER FORCE ON A TIMING BELT THAT WILL JUST FIT, PRYING THE TIMING BELT ON WILL CRACK THE TENSILE CORD MEMBERS INSIDE THE TIMING BELT LEADING TO PREMATURE BELT FAILURE.
4) Clean the Timing Belt Pulleys
Timing belt pulleys may be cleaned by wiping with a rag slightly dampened with a light, non-volatile solvent. Soaking or brushing the solvent on the timing belt is not advisable. Obviously, sanding or scraping the timing belt or timing belt pulley with a sharp object to remove grease or debris is not recommended. Timing belts must be dry before using on a drive.
5) Inspect the Timing Belt Pulleys
Inspect the timing belt pulleys for unusual or excessive wear.
6) Proper Alignment
The two main types of drive misalignment are ANGULAR and PARALLEL as illustrated in the below pictures.

Timing belt drive alignment is one of the most common causes of drive performance problems. Misaligned drives can show symptoms such as:
Note:
✅ eBay compatible list can not show up all car model, and sometimes it may have mistake, and may not 100% accurate or out of date.
✅ Please check the manul of your vechicle and choose the correct Good.
✅ If you are not sure the which socket your vehicle need.
✅ Please send us your car make, model, year and other information,we will help to check which you need.
✅ If you have any questions, please do contact us.Thank you!
| Item Specifics | |
|---|---|
| Brand | KAC |
| Warranty | LIFETIME |
| Manufacturer Part Number | AA756571 |
| UPC | 997750756571 |
| Type | Timing Belt Kit |
| Kit or Single Part | Kit |
| Other Part Number | TBK312, H46, TS26312, ITM312, 14516-PLC-000 |
| Interchange Part Number | WP4034, VC4034, TA05270701P, 036-159, 1352420 |
| Fitment Type | Direct Replacement |
| OE Spec or Performance/Custom | OE Spec |
| Cross Reference Numbers | 14400-PMM-A02, 14520-PLC-335, 19200-PLM-A01 |
| Superseded Part Number | WPHO034, VCHO034, TB312K1, 95312K1, TCK312, AW9419 |
| Kit Parts Included | Timing Belt Kit, Water Pump with Gasket, Valve Cover Gasket Set |
| Placement on Vehicle | Front |
| Note | Fits D17A6, D17A2, D17A1, D17A7 Engine |
| Material | Rubber/Steel/Plastic |
| Manufacturer Warranty | Lifetime |
| MPN | AA756571 |
| Manufacturer | KAC |
