Reddiplex uPVC Window Door Wedge Gasket Seal Double Glazing Rubber Draught Seal

Product Description

Reddiplex Wedge Gasket - Premium uPVC Window & Door Rubber Seal

Professional-grade weather sealing solution for draught-free, leak-proof windows and doors

Reddiplex Wedge Gaskets are high-performance sealing solutions designed to eliminate draughts and water ingress around your window and door frames. These premium compression seals secure glass within uPVC, aluminium, and commercial glazing systems while providing weatherproof integrity, improving energy efficiency and comfort throughout your home.

Available in multiple materials (EPDM, PVC, and TPR) and various profile sizes to match your exact requirements, these gaskets are engineered for easy installation with no adhesive required. Simply push the gasket into the gap between the glass and frame to create a secure, weathertight seal that will maintain its performance for years to come.

Key Benefits:

  • Energy Efficiency – Eliminates draughts and air leakage, helping reduce heating bills and improving home comfort
  • Weather Protection – Creates a watertight seal to prevent rain and moisture ingress around windows and doors
  • Easy Installation – No adhesive required; Simply push the gasket into the gap between the glass and frame, where it locates into the profile groove for a secure, weathertight seal
  • Custom Lengths – Available in lengths from 1 metre upwards, supplied in continuous lengths where possible
  • Long-lasting Performance – High-quality materials resist degradation, shrinkage and maintain flexibility for years
  • Cost-effective Solution – Significantly cheaper than replacing entire window or door units
  • Material Options – Available in EPDM, PVC or TPR to suit different applications and performance requirements
  • British Standard Compliant – EPDM and TPR varieties meet BS7412 and BS4255 requirements

Product Specifications:

  • Brand: Reddiplex
  • Application: uPVC, Aluminium, and Commercial Glazing Systems
  • Installation Position: Between glass unit and frame
  • Function: Compression seal for glass retention and weatherproofing
  • Installation Type: Push-fit (no adhesive required)
  • Material Options: EPDM, PVC, or TPR (see profiles below)
  • Length: Sold per metre (select required length at checkout)

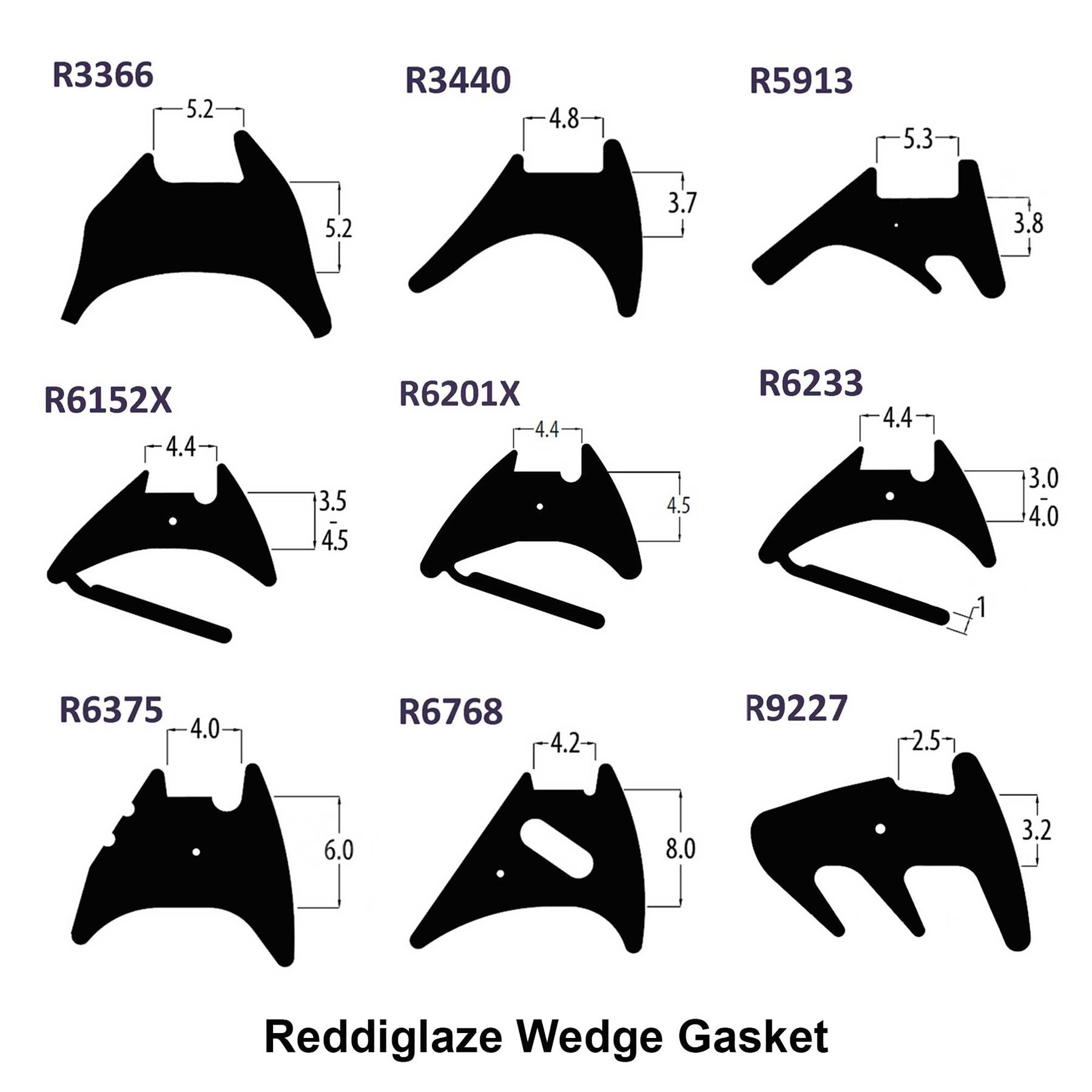

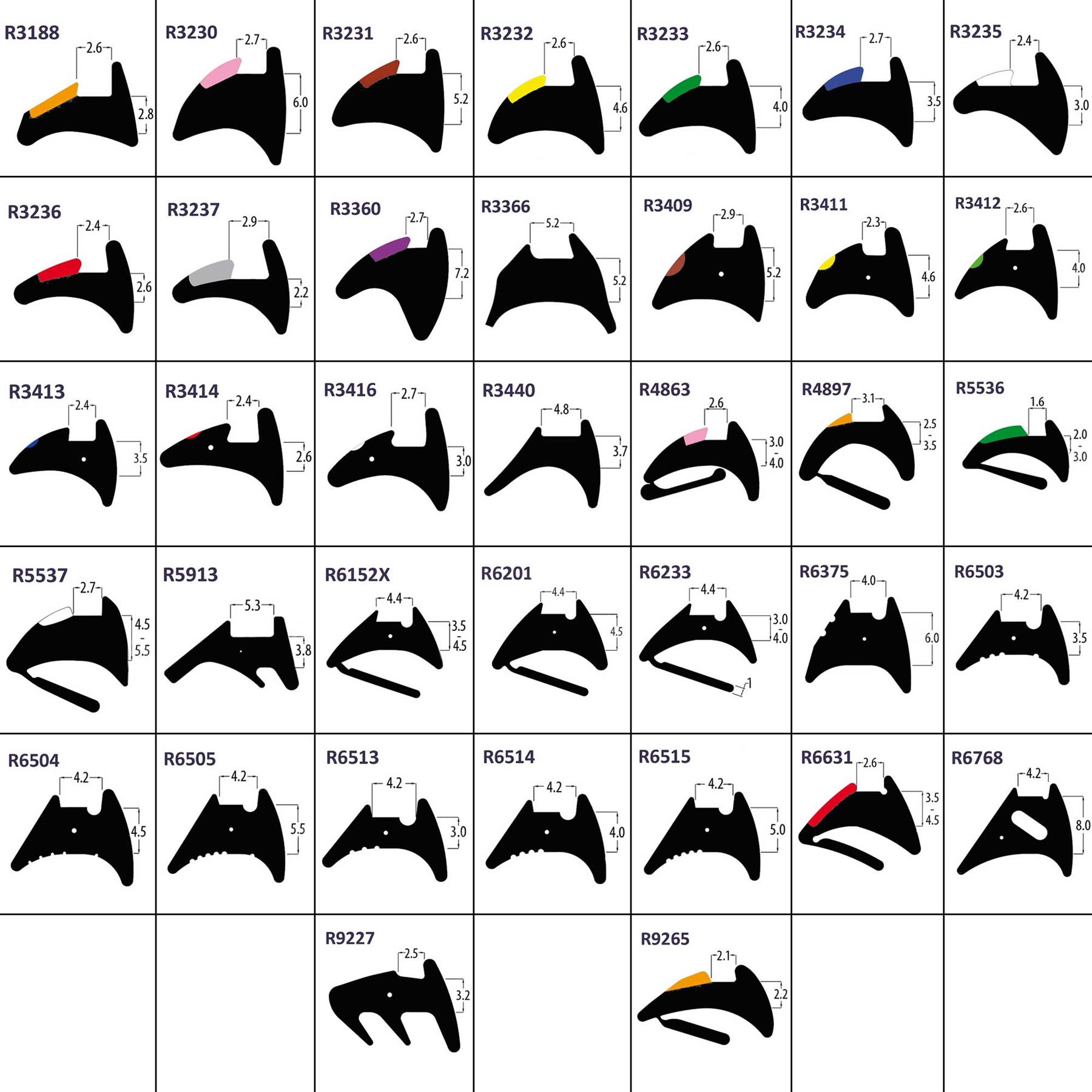

  • EPDM Profiles: R6152, R6201 & R6233

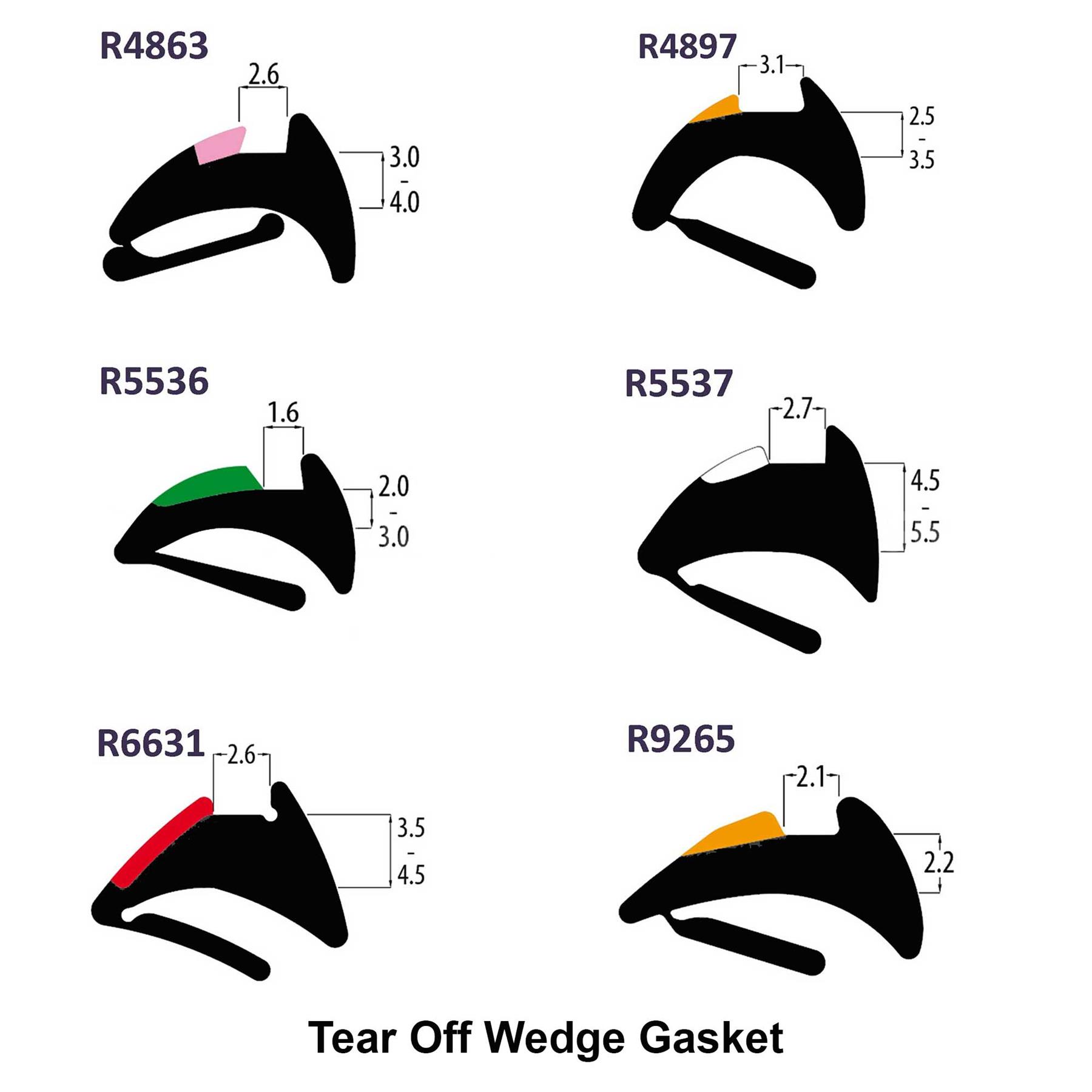

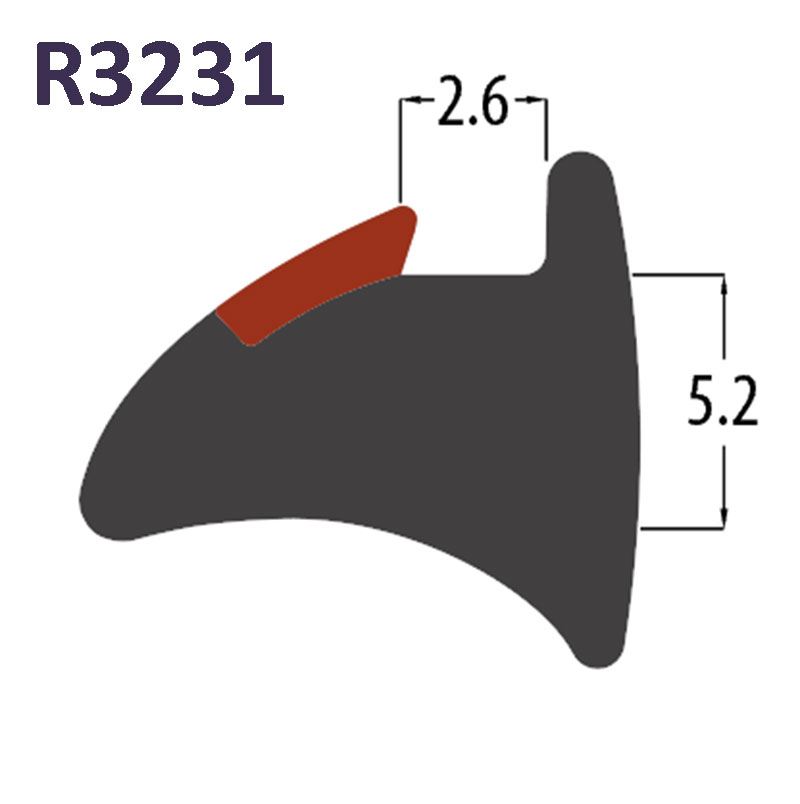

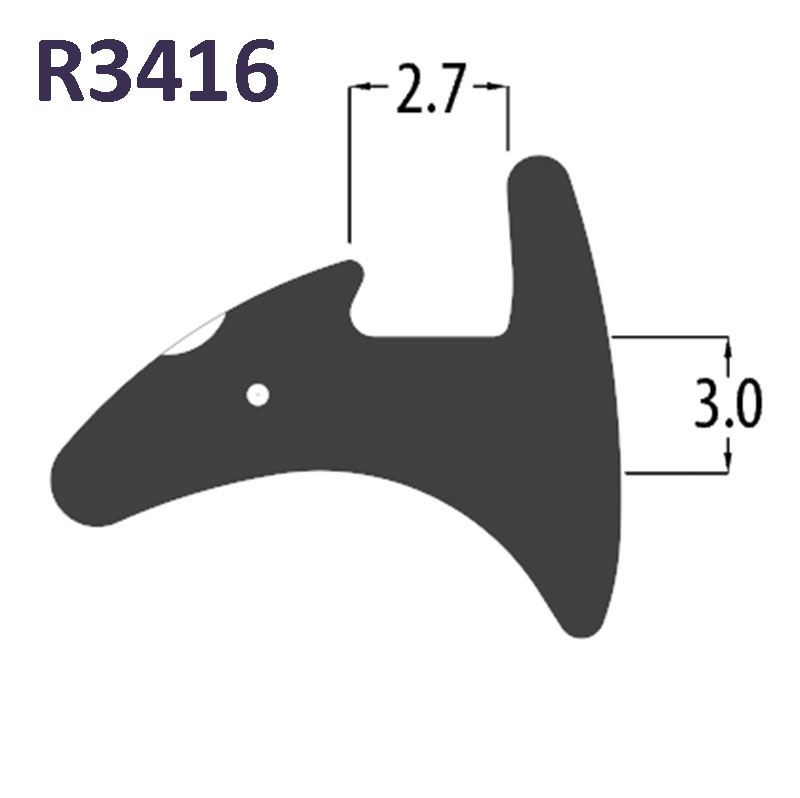

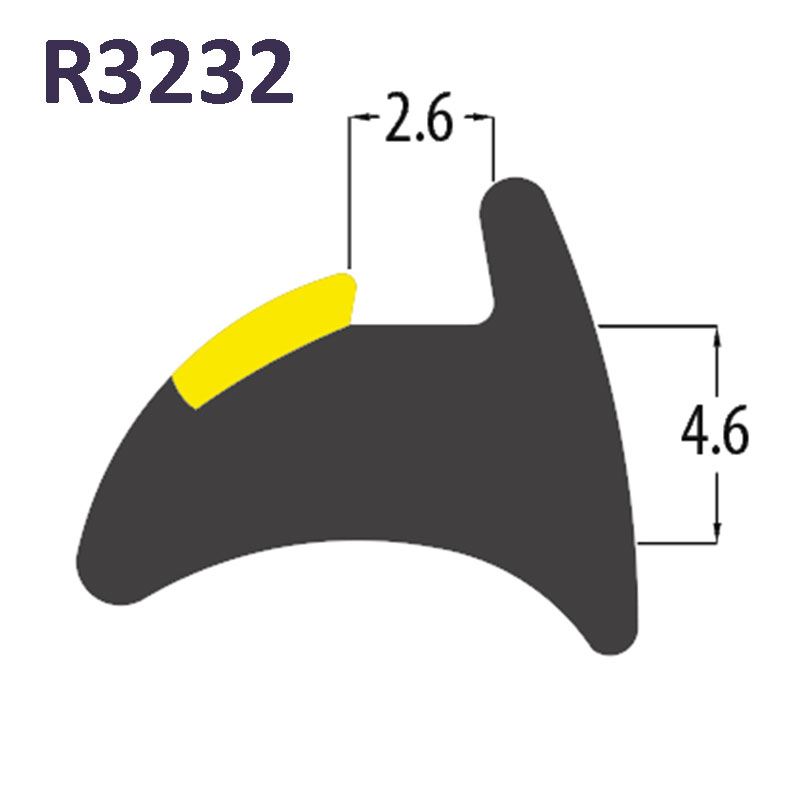

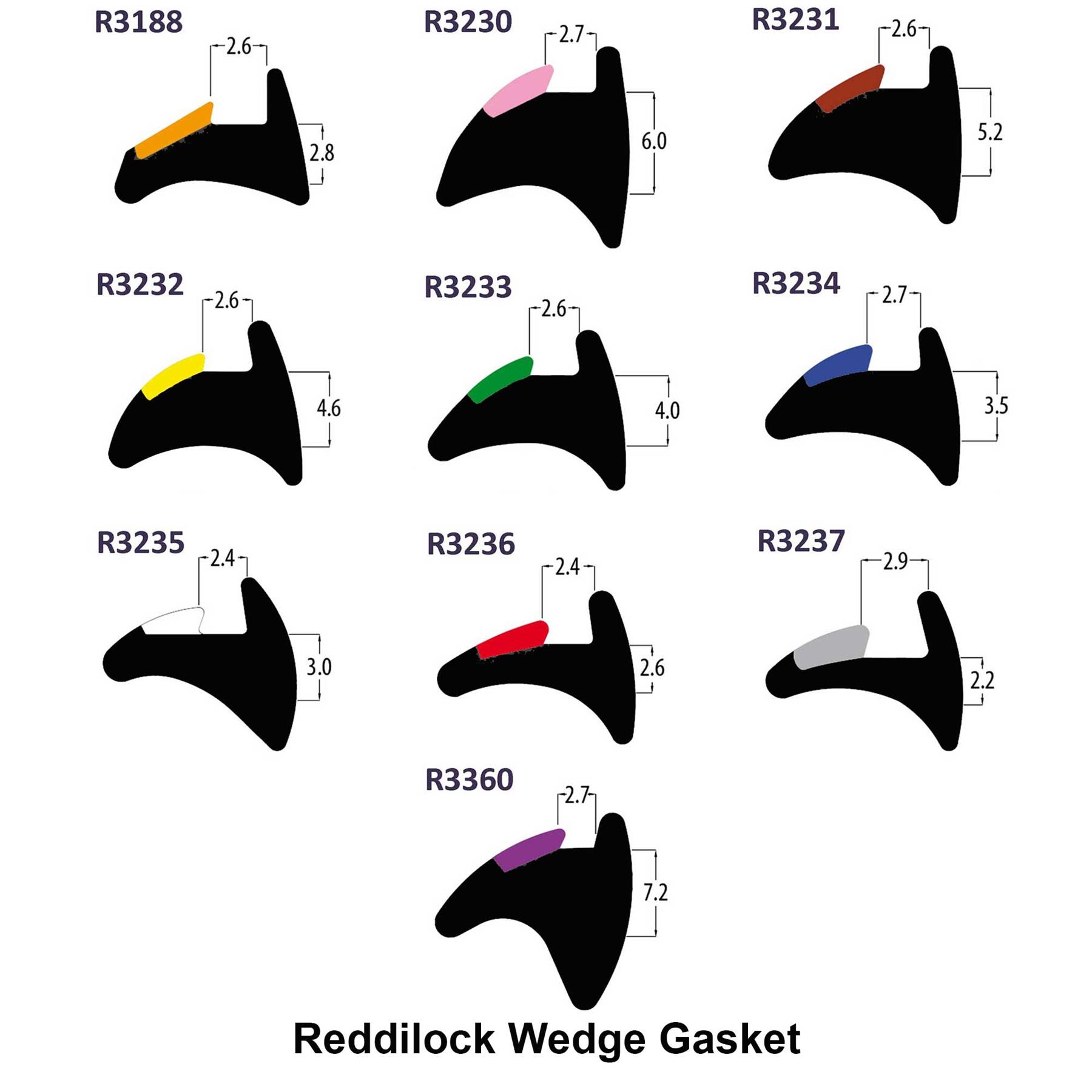

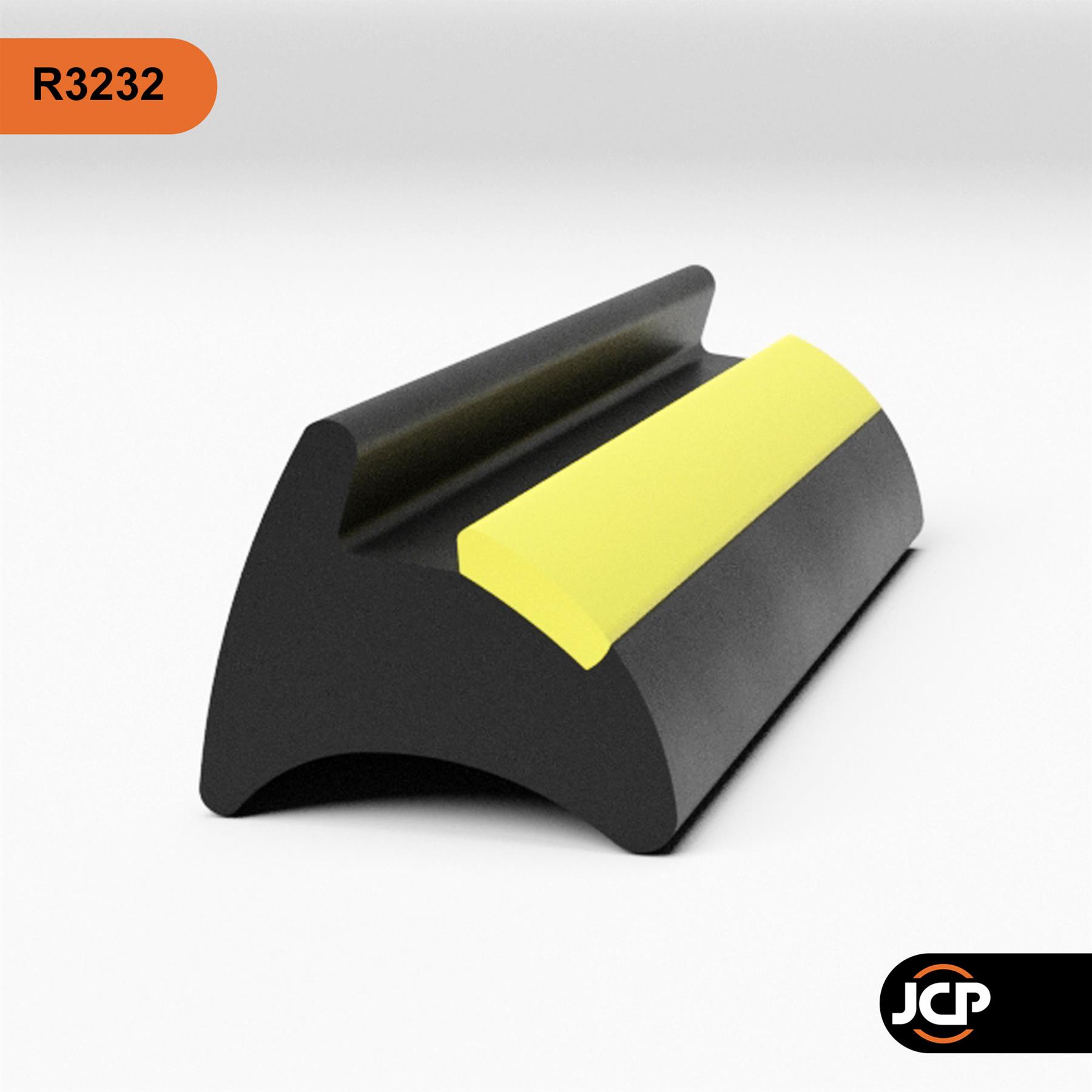

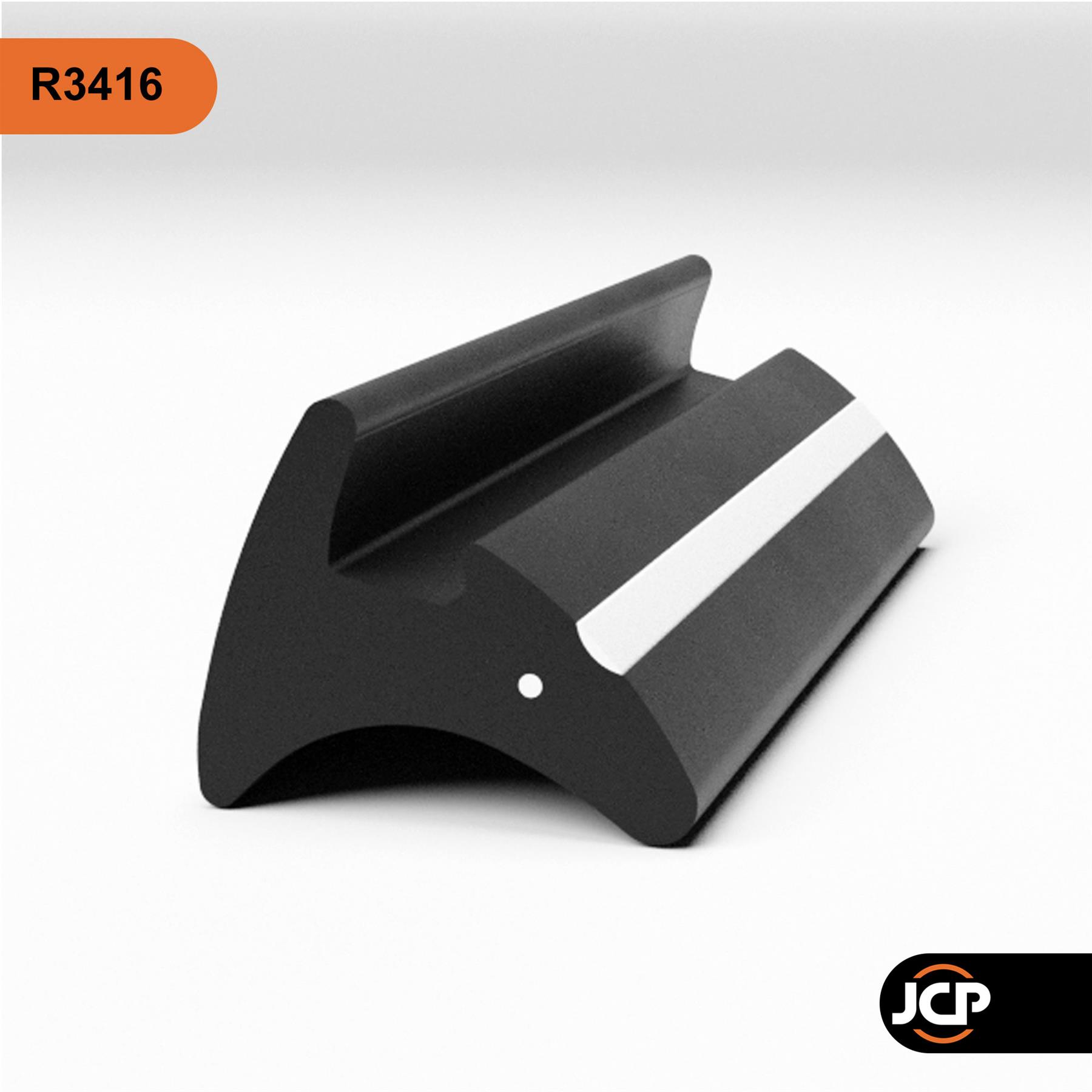

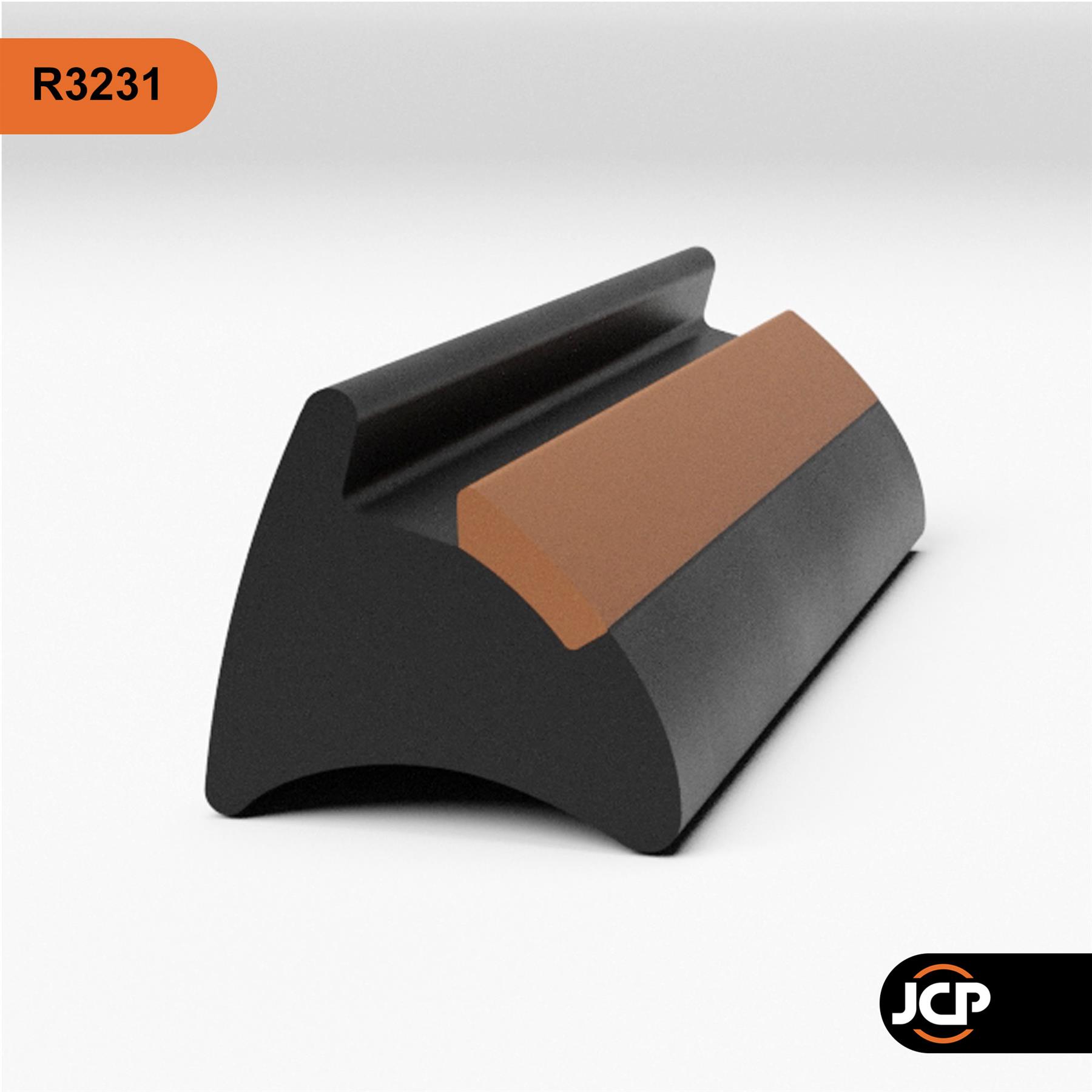

  • PVC Profiles: R3188, R3230, R3231, R3232, R3233, R3234, R3235, R3236, R3237, R3360, R3409, R3411, R3412, R3413, R3414, R3416, R4863, R4897, R5536, R5537, R6631, R9227 & R9265

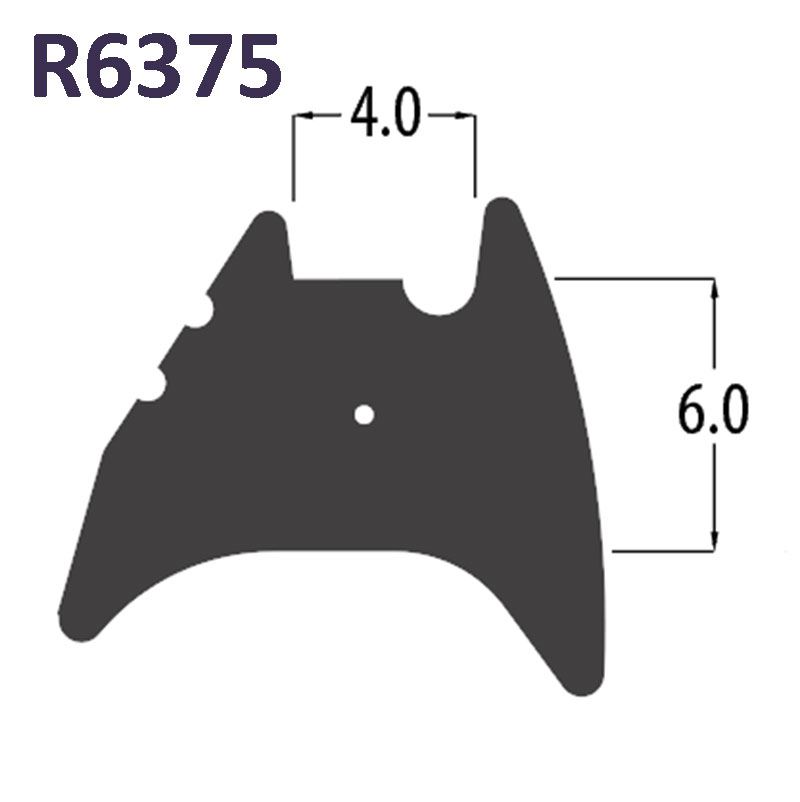

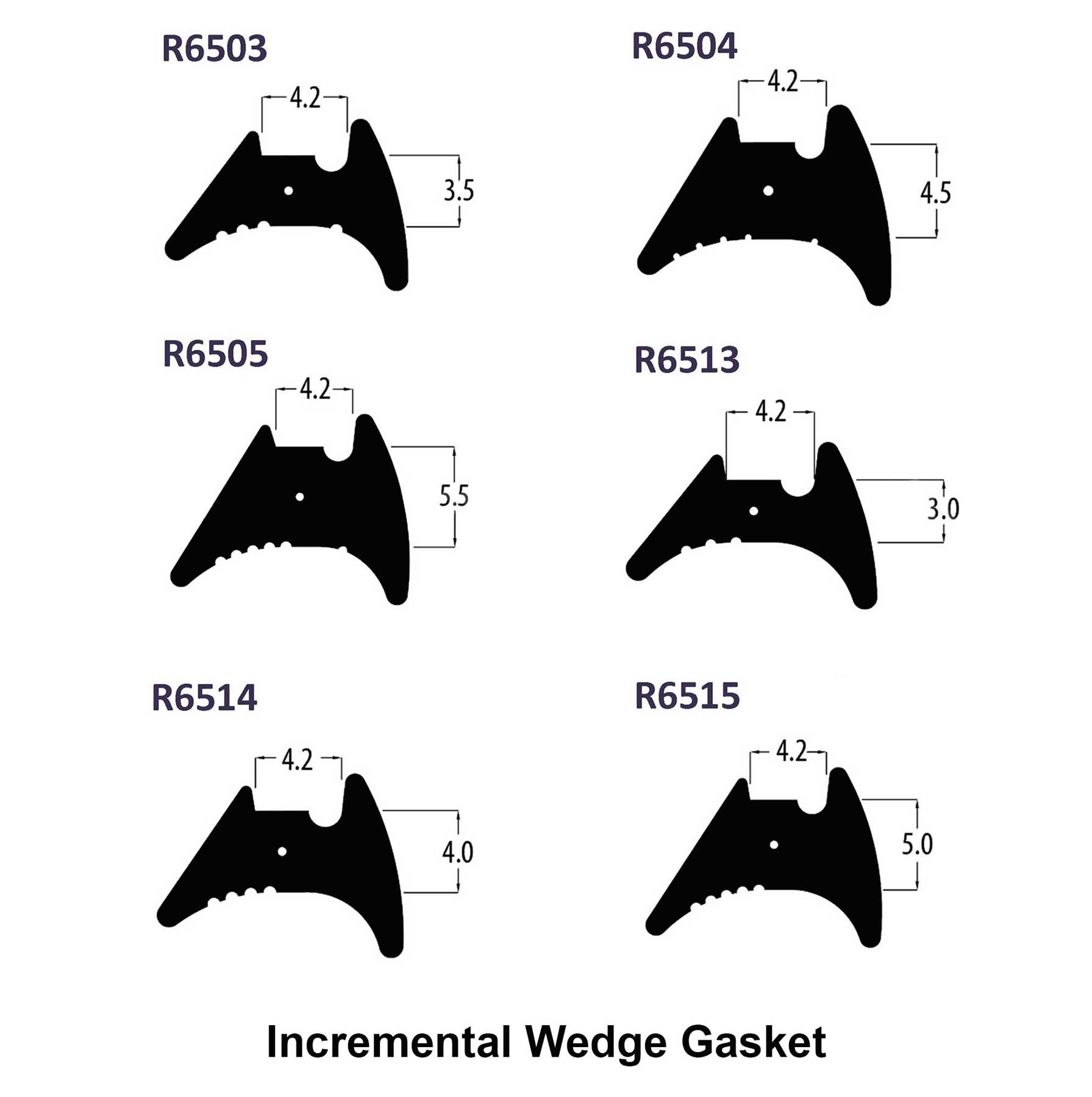

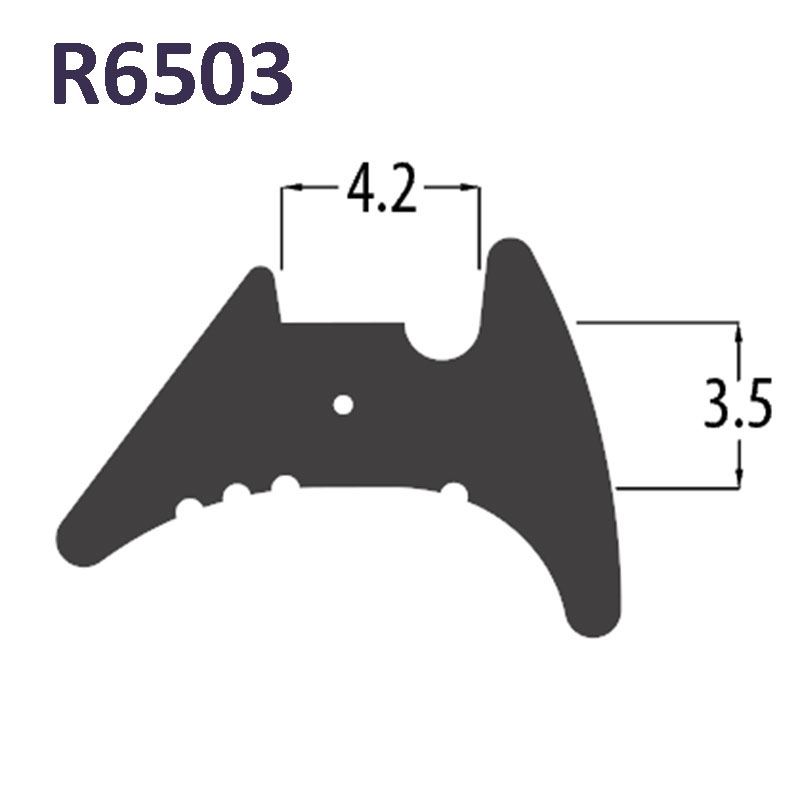

  • TPR Profiles: R3366, R3440, R5913, R6375, R6503, R6504, R6505, R6513, R6514, R6515 & R6768

Please note: All measurements and specifications are approximate. We recommend ordering a sample pack if you're unsure which profile matches your existing gasket.

Material Benefits:

EPDM (Ethylene Propylene Diene Monomer):

  • Superior Memory & Recovery – Maintains its original shape even after years of compression, making it ideal for windows and doors that see frequent use
  • Exceptional Weather Resistance – Outstanding resilience against UV radiation, ozone, and extreme temperatures (-40°C to 120°C)
  • Long-Term Performance – Remains flexible and effective for 15+ years in typical applications
  • High Tensile Strength – Resists tearing and physical damage during installation and daily use
  • British Standards Compliance – Fully meets BS7412 and BS4255 requirements for window sealing applications

PVC (Polyvinyl Chloride):

  • Static Applications – Ideal for fixed window frames and other non-moving applications
  • Flexible Profiles – Available in non-stretch flexible options (Reddicord)
  • Colour Coded – Easy identification and matching to existing window systems
  • Various Sizes Available – No migration ensures long-term positioning stability

TPR (Thermoplastic Rubber):

  • Excellent Deflection Recovery – Quickly returns to original shape after compression, ideal for doors and windows that may not be perfectly aligned
  • Oil & Chemical Resistance – Performs well in environments where exposure to cleaning chemicals or mild solvents is common
  • Abrasion Resistant – Holds up well against friction and wear in high-traffic applications
  • Co-Extrusion Options – Available in dual-hardness options for optimal sealing in complex frame designs
  • Cost-Effective Performance – Delivers excellent value with good all-round performance at a competitive price point

Package Contents:

  • 1 × Selected length of Reddiplex Wedge Gasket (Sold per metre)

What is a Wedge Gasket?

A wedge gasket (also known as a glazing wedge or wedge seal) is a specific type of compression seal designed to:

  • Hold glass securely in the frame or sash
  • Provide weatherproofing by sealing gaps between the glass and frame
  • Help absorb movement caused by thermal expansion or structural shifts
  • Reduce rattling and vibration in the window unit

Installation Position:

The wedge gasket is installed between the glass unit and the frame:

  1. After the glass unit has been positioned in the window frame (or door frame)
  2. A "setting block" or bead is often used to position and support the glass at the bottom
  3. Once the glass is aligned, the wedge gasket is pushed into the gap between the edge of the frame and the glass, typically from the inside. The gasket's shape allows it to locate into the profile groove for a secure fit.
  4. It compresses against the glass, holding it firmly in place and forming a tight weatherproof seal

Frequently Asked Questions:

How do I know which gasket profile I need?
If you're unsure which profile matches your windows or doors, we recommend ordering one of our Gasket Sample Packs available in our shop. This will allow you to compare profiles and select the exact match for your needs.

How difficult is it to fit these gaskets?
Fitting is straightforward for anyone with basic DIY skills. The gaskets are designed to locate into the profile groove as you push them into the gap between the glass and frame, creating a secure fit without requiring adhesives or special tools. We recommend measuring the perimeter carefully and adding approximately 6cm extra before cutting to ensure you don't cut the gasket too short.

What's the difference between EPDM, PVC and TPR materials?
EPDM is our most popular material, offering exceptional durability, UV stability and performance in dynamic applications, with a lifespan of 15+ years. PVC is ideal for static applications and comes colour-coded for easy identification. TPR offers excellent deflection recovery and is resistant to oils and abrasion, making it suitable for both static and dynamic applications.

Will replacing the gaskets stop my windows from leaking?
In many cases, yes. Deteriorated gaskets are a common cause of draughts and water ingress. Replacing them with new, flexible gaskets often resolves these issues without requiring expensive window replacements. However, if your window frames are damaged or warped, additional repairs may be needed.

Why Choose Reddiplex Wedge Gaskets?

With decades of experience in manufacturing high-quality sealing solutions, Reddiplex gaskets are trusted by professional installers and DIY enthusiasts alike. These premium gaskets offer the perfect balance of quality, performance and value, helping you maintain your home without the expense of full window or door replacement. Restore comfort, improve energy efficiency and protect your home from the elements with these simple yet effective sealing solutions.
