*New Model*

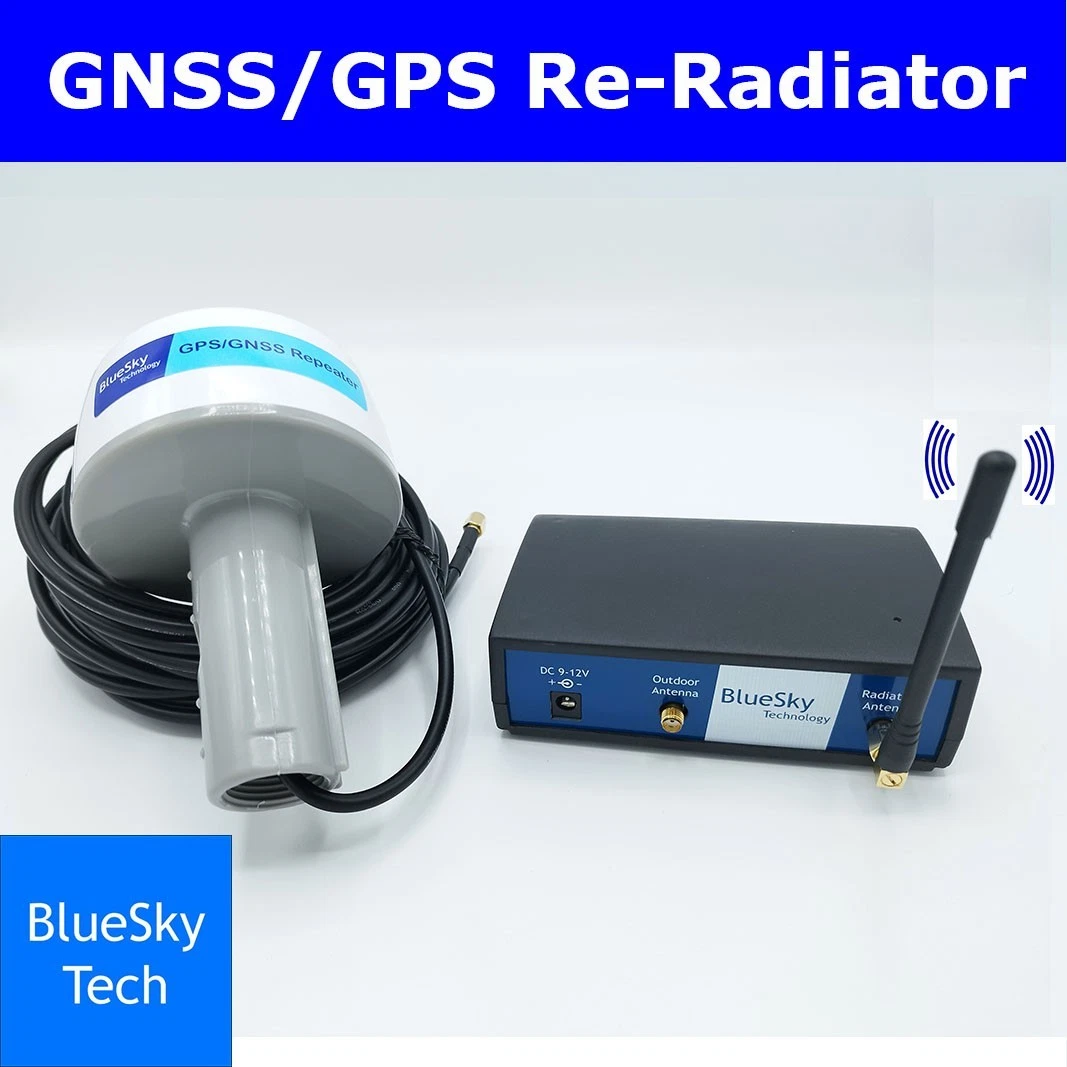

BlueSky BA-60 GNSS/GPS Re-Radiator, Repeater
(10m+10m = Total 20m Cable)


  Features
         1. Plug-n-Play, easy to  install and use
2. Applicable to all kinds of GNSS/GPS receivers (PND, PDA, GNSS/GPS Phone, etc.)
3. Re-Radiation GNSS/GPS signal to multi-GNSS/GPS receivers in 3 meter around
4. For GPS (US), GLONASS (Russia), Galileo (EU), BeiDou (China), QZSS (Japan)
5. Design for use in house, testing room or R&D laboratory

 Description
                 BA-60 is a re-radiating equipment. It can receive the outdoor GNSS/GPS satellite signal and conduct to indoor place for radiating again. When a GNSS/GPS Satellite is revolving around the earth it will transmit continuously satellite signal to the earth but the strength of satellite signal will weaken to only around -125dBm when it arrived to the earth ground. Such weak signal can’t penetrate into buildings. Sometime It can be detected only in around windows area.
        BA-60 is built for the purpose to transmit the GNSS/GPS satellite signal from outdoor to indoor, and re-radiating the receptions to operate GNSS/GPS Receivers inside building or specially in house, testing room or lab. Therefore user can work the GNSS/GPS equipments indoor same as using it outdoor.
        BA-60 contents an External High Gain Active GNSS/GPS Antenna with high frequency low noise amplifier to receive the GNSS/GPS satellite signal outdoor, Second High Gain high frequency low noise amplifier to increase the strength of GNSS/GPS satellite signal indoor, a power regulation circuit, a signal re-radiation antenna for re-radiation signal indoor.















  Quick Installation
         1. Place the external active antenna outside the building and make sure to antenna face on sky.
2. Connect external active antenna and indoor re-radiation antenna to BA-60.
3. Plug 12VDC jack from AC-DC Adapter to BA-60.
4. Place re-radiation antenna to close your GNSS/GPS receiver.

   Specification
         Power Required: 9 - 12VDC, 1A (max.)
Overall Gain: ~54dB
Re-Radiation Range: 3 meter around
Frequency: GPS, GLONASS, Galileo, BeiDou, QZSS band
LED Indication: Blue (For Power Input)
Operation Temperature: -30C ~ +70C
Operation Humidity: 5% ~ 95%
Internal Radiation Antenna : 9 cm Dipole antenna
External Antenna : High Gain Active antenna with SMA Plug and 20 meter cable
External Active Antenna Impedance : 50 ohm
SMA Connector : providing 5V, 50mA (max.) power for the external active antenna
Dimension : 130 x 85 x 40mm (Main Body)
Weight : 120g

   Package Contents


1 x BA-60 GNSS/GPS Re-Radiator, Repeater
1 x External GNSS/GPS Active Antenna, 10m Cable
1 x Extension Cable +10m
1 x 12VDC Adapter
1 x User manual
