UNIVERSAL GAS STRUTS SPRINGS
200 / 250 / 300 / 350 / 400 / 450 / 500 / 550 / 600 mm
100 N - 200 N - 300 N - 400 N - 500 N - 600 N

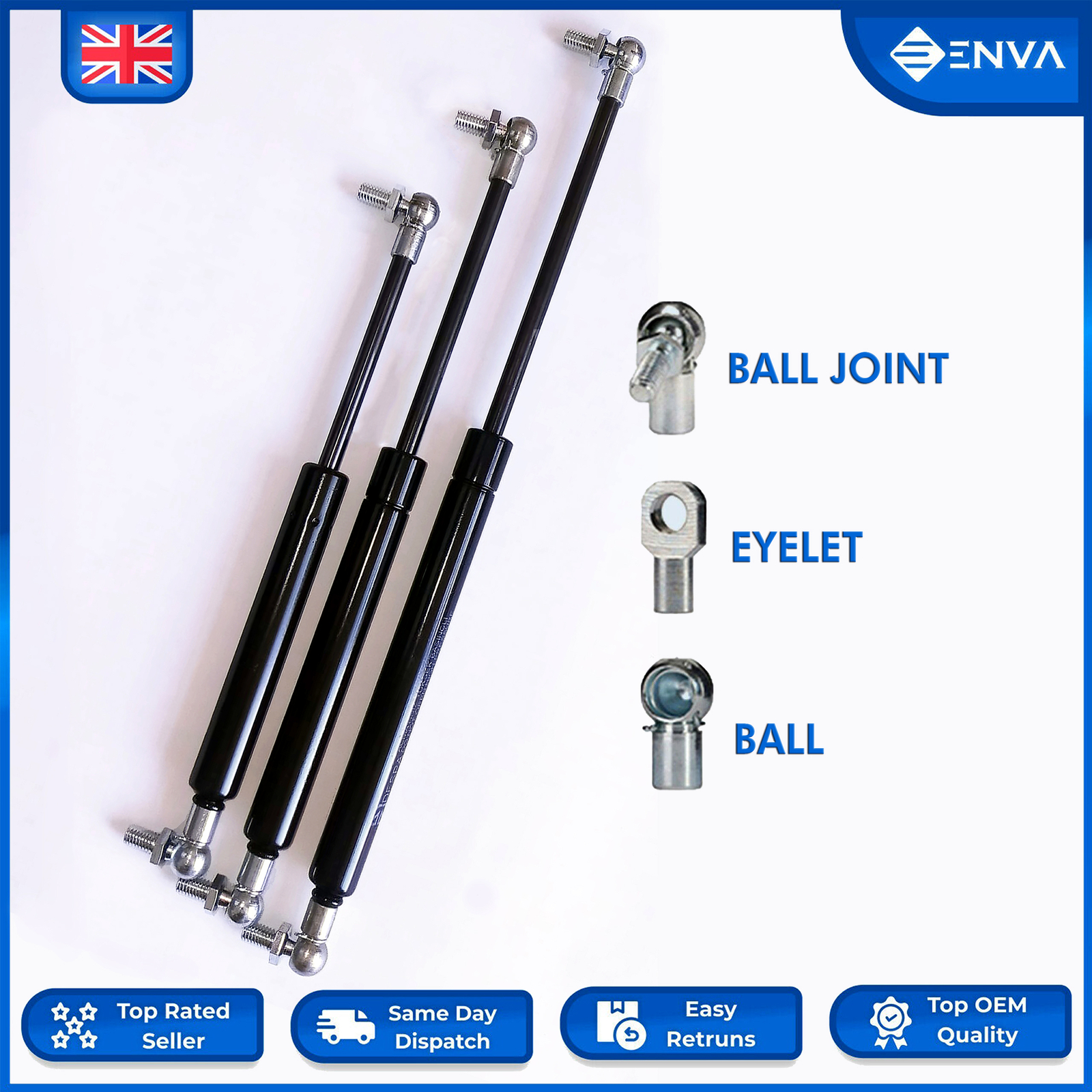

MULTI PURPOSE WITH
- BALL JOINT,
- EYELET,
- BALL
FIXING TYPE

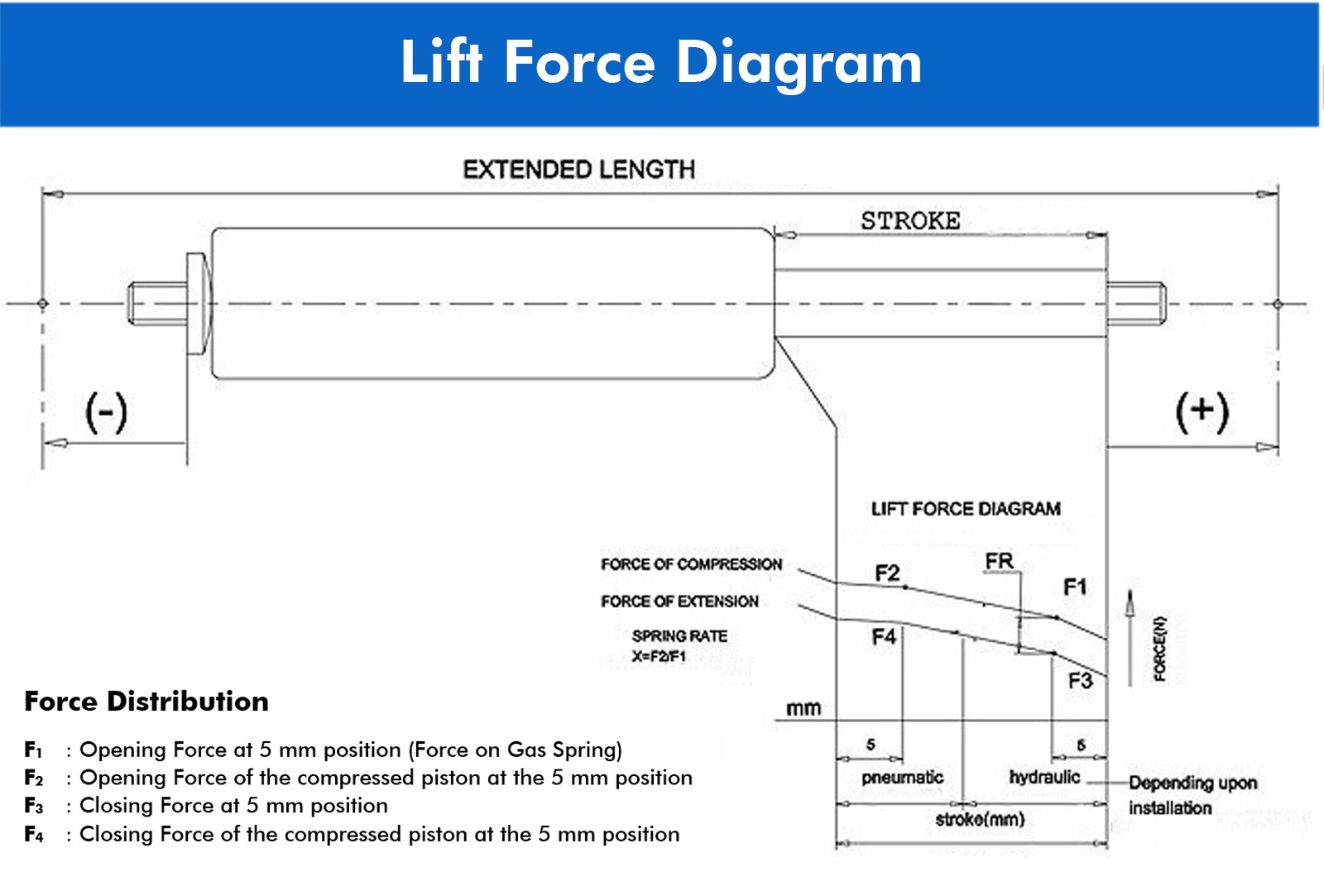

10 N ≈ lifts 1 kg
100 N ≈ lifts 10 kg
1000 N ≈ lifts 100 kg
Approximates only. Please use these as reference.

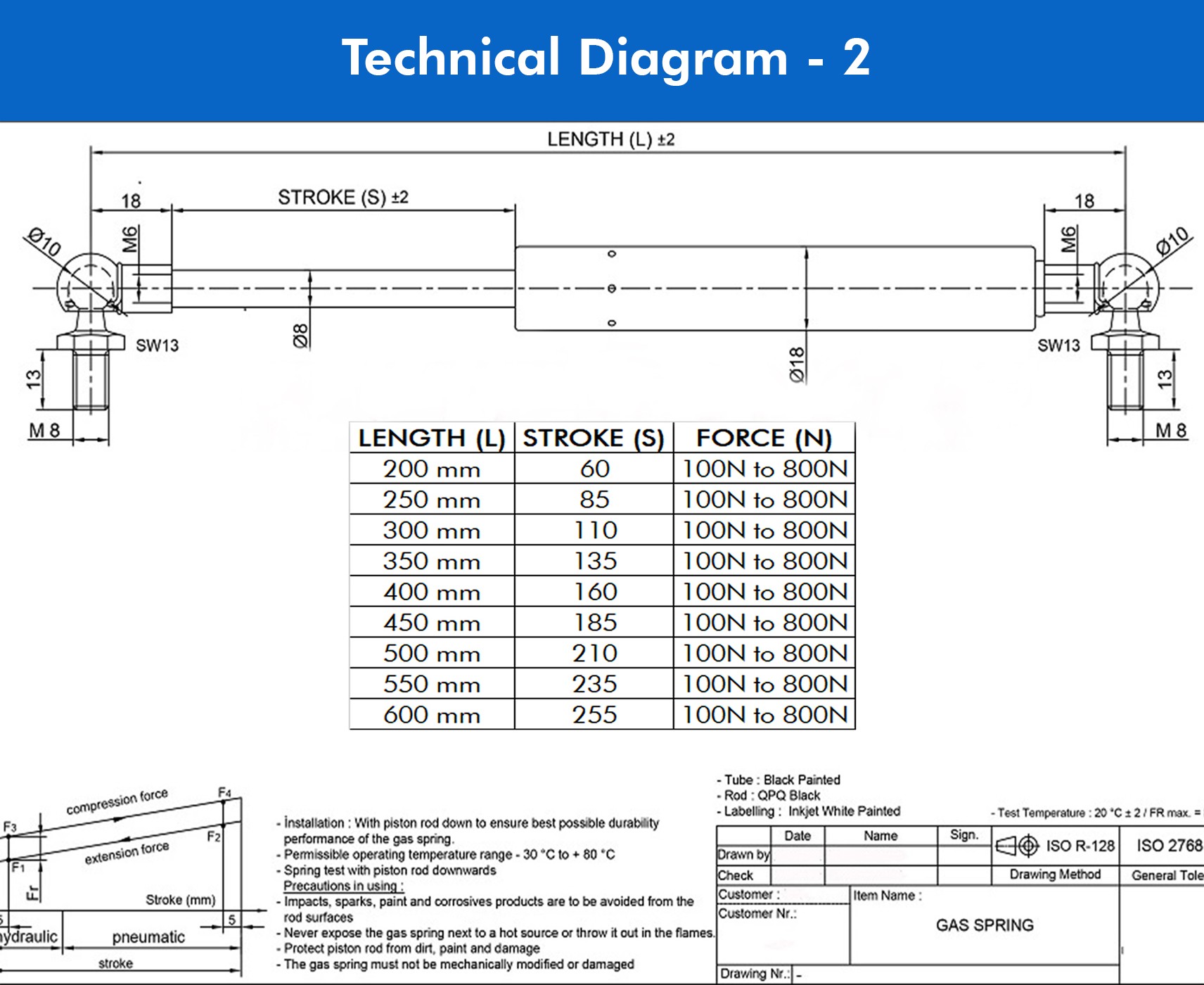

LENGTH (L) | STROKE (S) | FORCE (N) |
200 mm | 60 | 100N to 800N |
250 mm | 85 | 100N to 800N |
300 mm | 110 | 100N to 800N |
350 mm | 135 | 100N to 800N |
400 mm | 160 | 100N to 800N |
450 mm | 185 | 100N to 800N |
500 mm | 210 | 100N to 800N |
550 mm | 235 | 100N to 800N |
600 mm | 255 | 100N to 800N |
USAGE ADVICE
- Our gas springs are designed for a max. temperature range from -30 °C to +80 °C . Continuous working on extreme temperatures decreases gas springs life expectancy.
- The piston rod should be protected from particles, dust, paint, corrosive substances. Any damage on the piston rod will damage the seal inside the cylinder.
- Gas spring CONTENTS HIGH PRESSURE ! DO NOT OPEN OR HEAT UP! For re-cycling purposes, it shall be opened under controlled conditions with full security protections.
- Gas Spring, both Cylinder and piston rod shall not be hit, deformed, damaged or exposed to wet, dusty, corrosive environment.
- Gas springs are maintenance-free. Do not grease or oil the piston rod.
- Install without twisting, Pivot only at the connections provided, Avoid lateral forces. Avoid tilting or side forces during operation
- We recommend mounting the standard gas springs and dampers piston rod pointing downwards and traction gas springs the piston rod pointing upwards positions to get the best outcome.
- Gas springs are not safety parts. If there is any possibility of damage in case of non-functioning of gas spring, a safety/locking system should be applied.
- Filling pressure to gas springs should be under our approval.
- Using the gas spring at the speed of more then 15 cycle in a minute will decrease gas springs life expectancy.
