XYZR Axis Manual Trimming Platform Linear Stage Table High Precision 90mmx90mm
Items Description
无标题 2

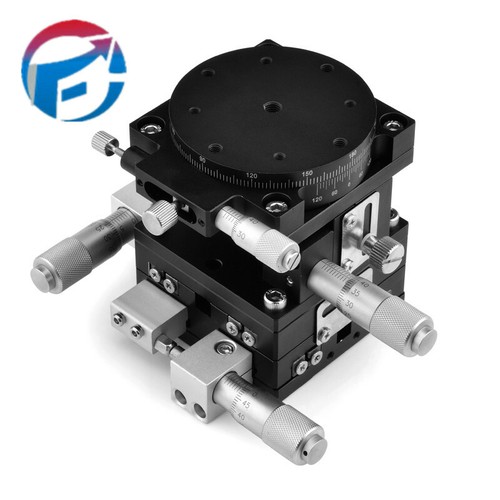

XYZR Axis Manual Trimming Platform Linear Stage Table High Precision 90mmx90mm

Package Included :

1 x XYZR 4Axis Sliding Platform

Specifications :

Model LTP40-LM LT60-LM LT90-LM
Table size 40*40mm (1.57inch) 60*60mm (2.36inch) 90*90mm (3.54inch)
R Axis Diameter=40mm Diameter=60mm Diameter=90mm
Moving direction X,Y,Z, R Axis X,Y, Z,R Axis X,Y, Z, R Axis
Minimum reading(ZYZ) 0.01mm 0.01mm 0.01mm
Travel XY:±6.5mm XY:±6.5mm    XY:±12.5mm
Z: ±10mm Z: ±10mm   Z: ±10mm
R Axis:360° (±5° fine tuning) R Axis:360° (±5° fine tuning) R Axis:360° (±5° fine tuning)
Load  8.8N(1kgf)  29.4N(3kgf)  29.4N(3kgf)
Material Aluminum Aluminum Aluminum
Accuracy 0.02mm 0.03mmmm 0.03mm
Parallelism 0.02mm 0.03mm 0.03mm
Weight 0.54kg 0.91kg 1.95kg

Descriptions :

1. Using cross roller guide can achieve high precision, smooth movement
2. Main material for aluminum, light weight, suitable to be built in other devices

Features:
1. It uses cross roller guide can achieve high precision, smooth movement.
2. The main material for aluminum. Micrometer head driving .
3. For precision movement, precise positioning, stable performance, easy installation and removal.



Applications:
1. DVD, MD, CD-related disc reading lens and writable optical head production and testing equipment. Mainly arcuate positioning platform.
2. LCD projector prism positioning and loading.
3. The optical fiber positioning, optical communication system products and testing equipment.
4. LCD production and testing equipment.
5. The semiconductor related production. equipment and testing equipment Evaluation.



If you need other model, please contact us to get the buy it now link .
