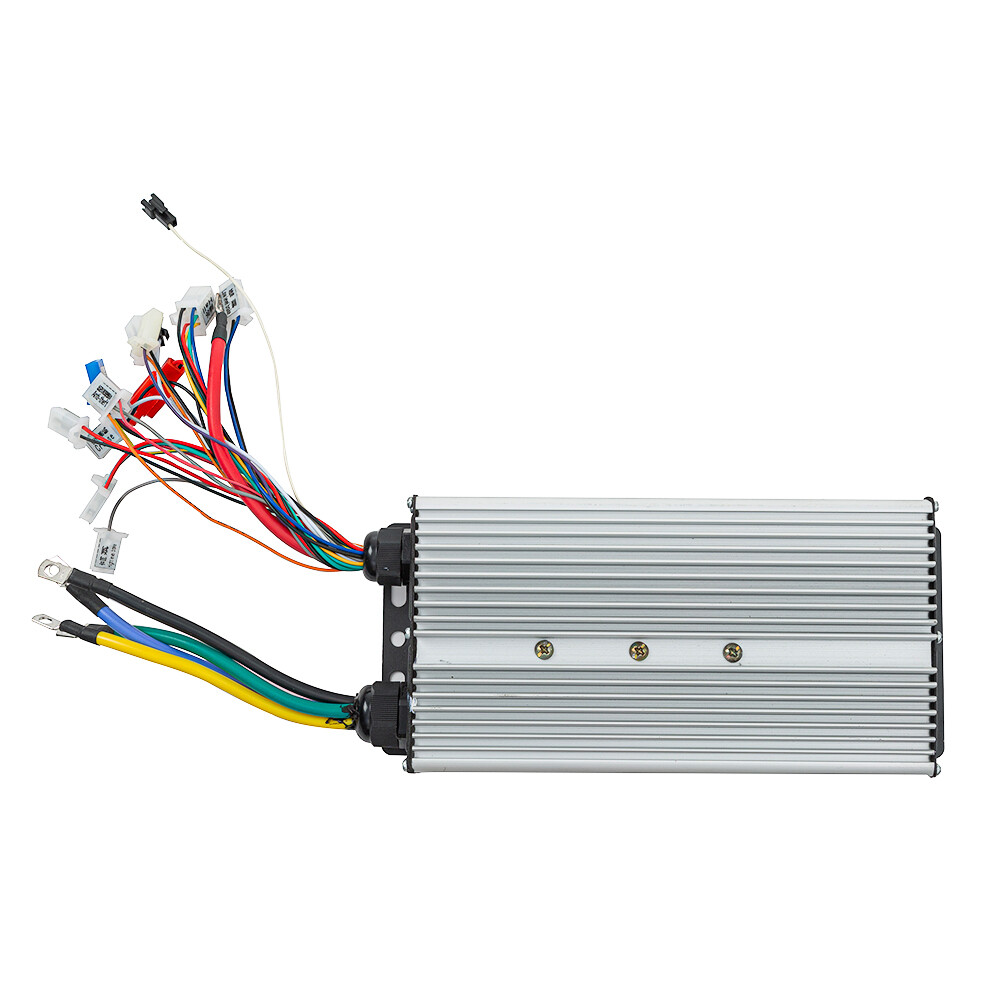

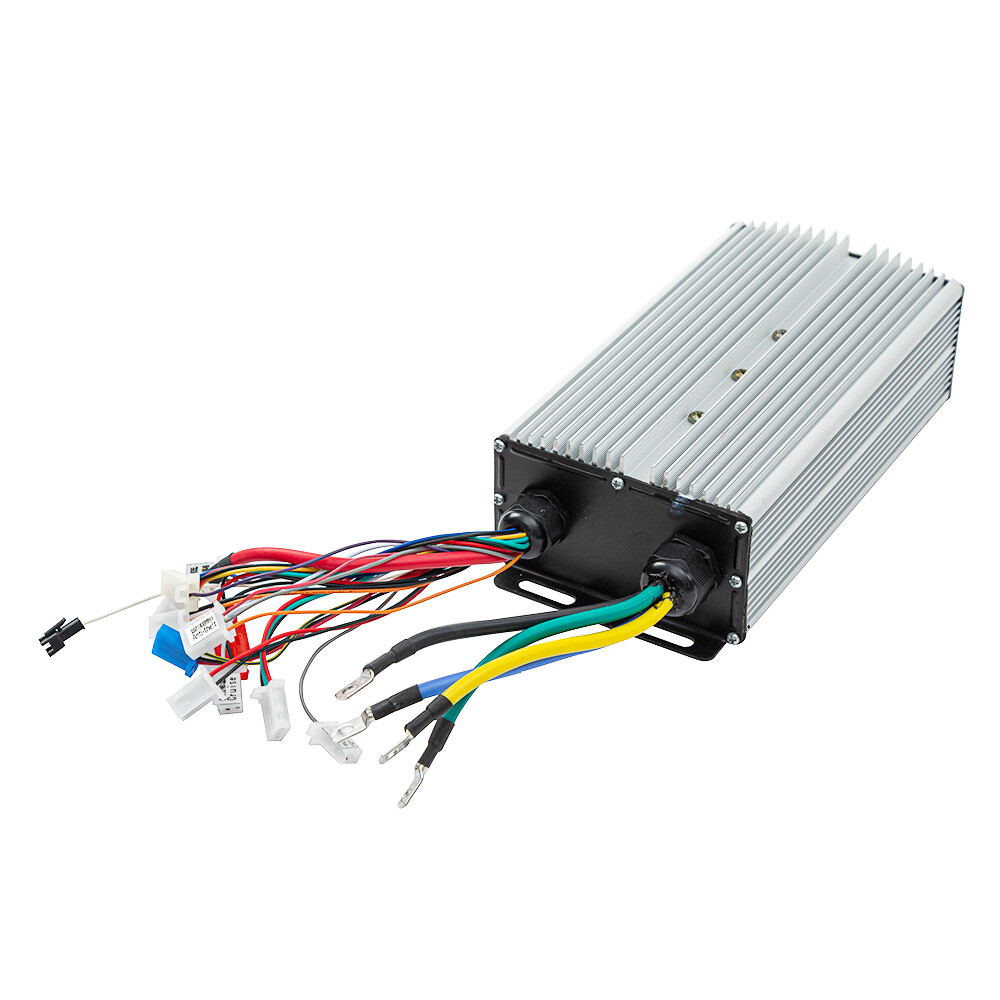

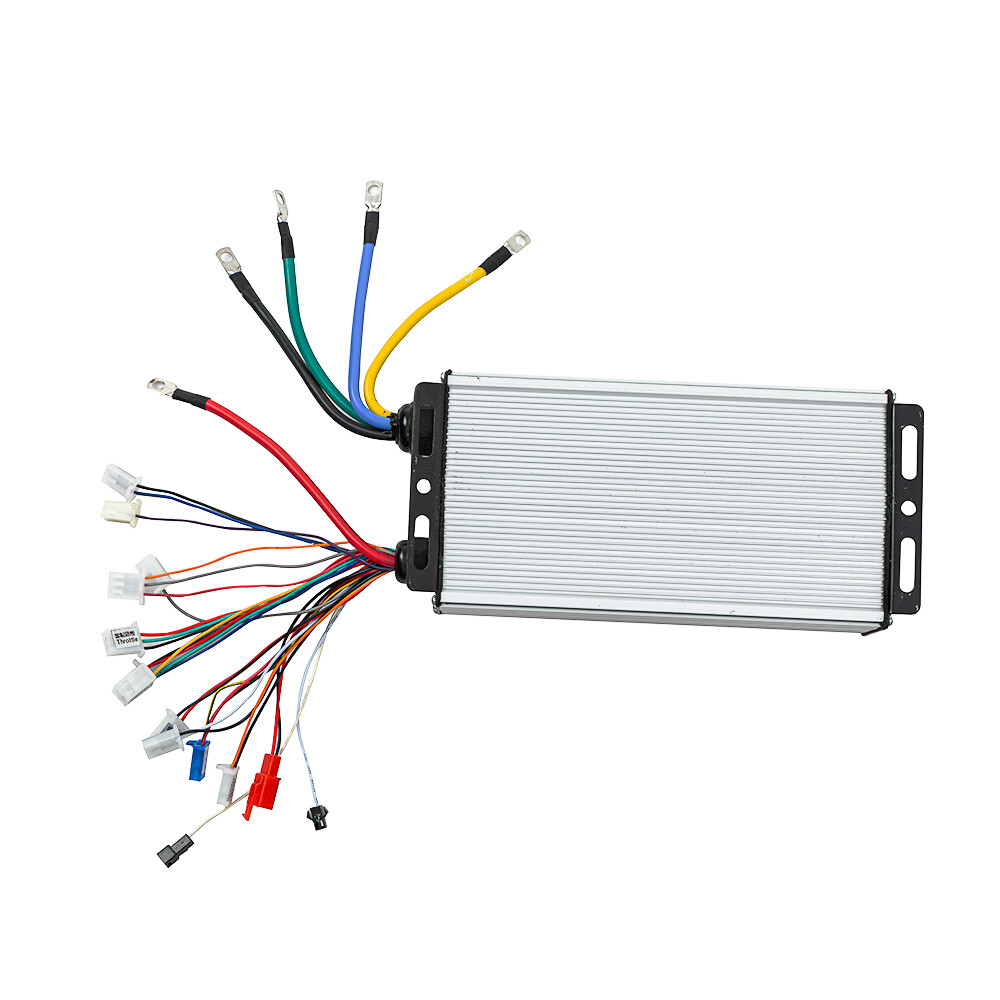

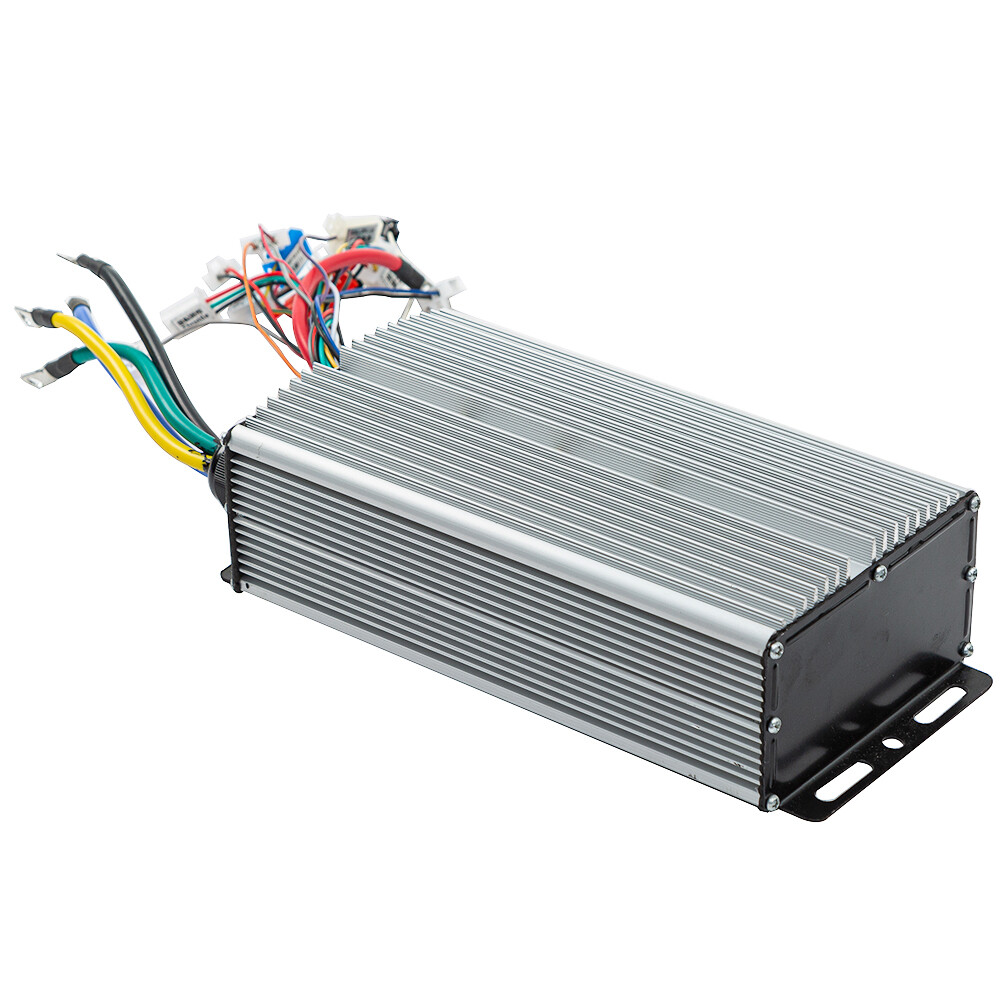

Electric Bike 48V/60V/72V 80A 24mos Brushless Motor Controller

Product Description

Specification：

Name: Intelligent dual-mode brushless controller

Voltage: 48V-72V

Current limit: 80A

Undervoltage: automatic identification

MOS tube: 24mos

Phase: automatic identification (60 ° / 120 ° all can fit)

Brakes: low brake / high brake

Size: 225 * 118 * 68 mm

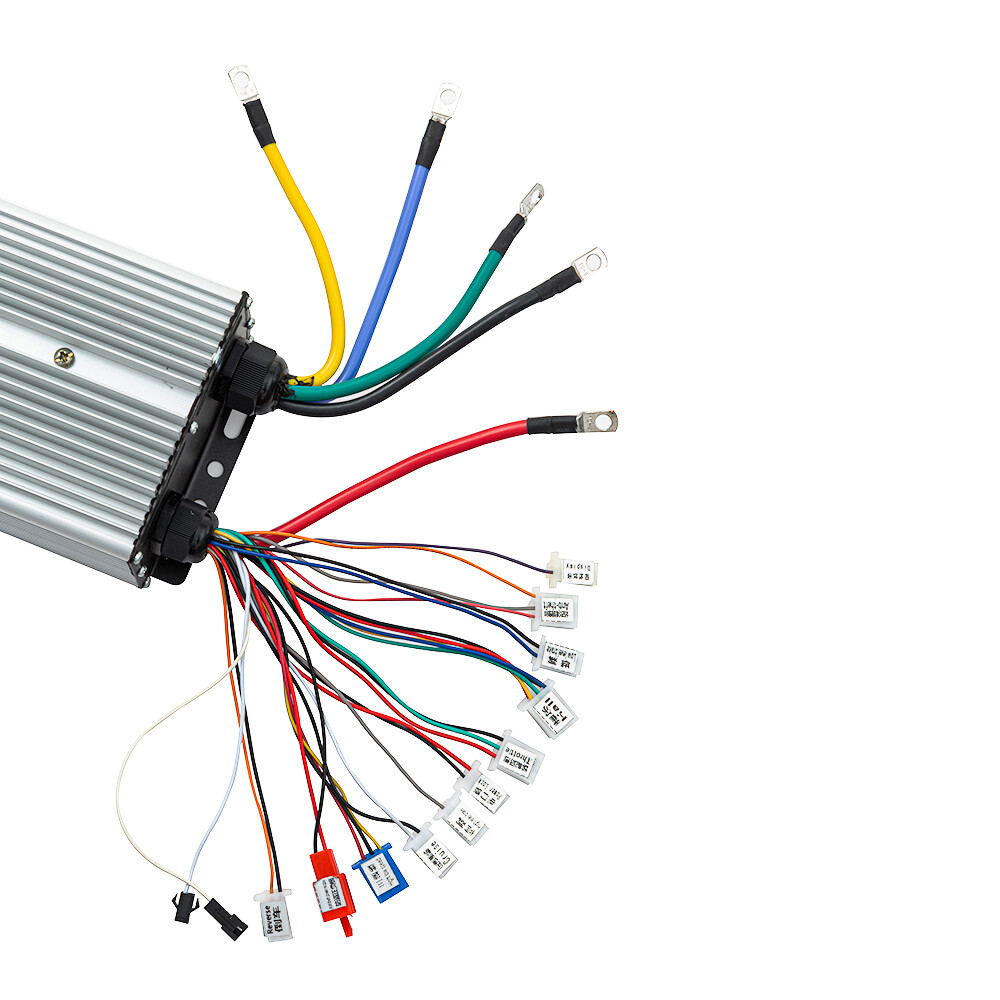

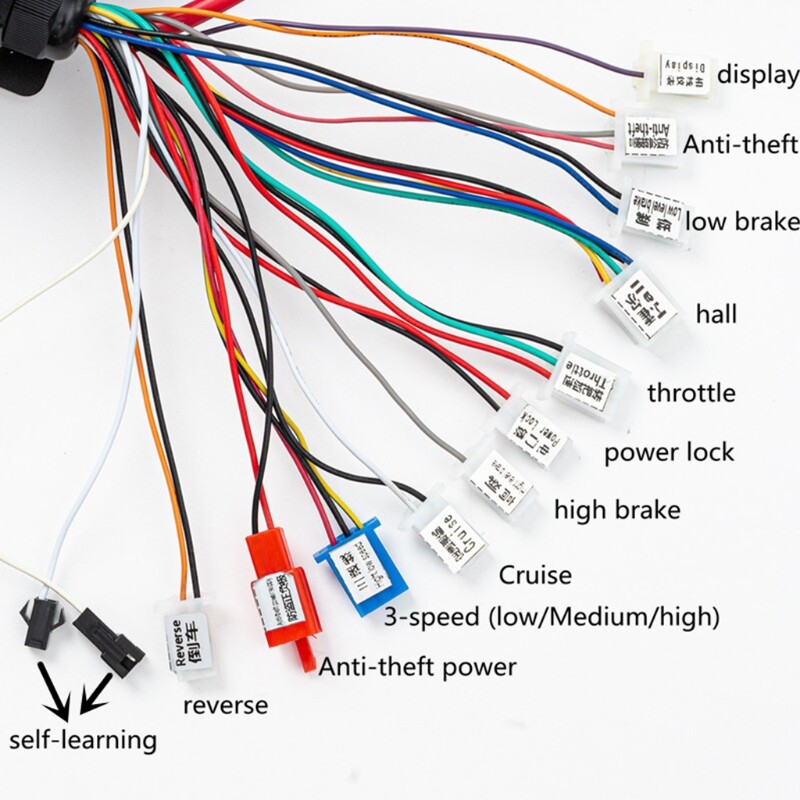

Function introduction (from the right to the left of the picture)

motor 、battery 、electric lock 、hall 、display 、throttle、throttle 3-speed (low/medium/high）、high brake、reverse、alarm signal、alarm power、low brake、self-learning、connect the motor line (color to color）、connect the battery line(red:+ , black:-)

connect the controller throttle line, electric lock（if throttle not have

electric lock, connect controller electric lock to battery+ ）、

connect the hall line(if motor without hall line, don’t need connect)

docking the two self-learning lines, the wheel will forward or reverse.(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again、if wheel forward ,Separate the self-learning line.)



other functions can be connected as needed.



Package includes：

1* E-Bike brushless controller
