Product Description
Product Overview:
The video (No Reverse Data) optical converter adopt the advanced international digtal video and optical
fiber transmission technology, and implement the transmission of real-time &synchronization , no-distortion
and high quality to multi-channel video singnal on the single-core optical fiber . Video digital optical converter
adopt full digital video no-compression transmission technology and high quality video effect , which can meet
the user's requirement . The plug-and-play makes the installation more convenient and easier , the LED design
helps the user to know the working status easily,and it is unnecessary to implement the spot adjustment , its
optical module and core circuit adopt the imported components that have high stability , conform to the international
standards, which is applied to the different working environment.
Features:
8bit digital code and non-compression type video transmission
Support any high-resolution video signal
Automatic compatible PAL,NTSC and SECAM video system
Power supply and other parameter state indication, which can motitor the operation condition of the system
Support no-damage regenerative trunk of video
Constant input optical power, and large dynamic range , and it is unnessary in implement the adjustment of spot electrics or optics when using
Speical ASIC design
Industry-grade of operating temperature from -20°C to 75°C , which is applied to the different working environment
Hot-swap function
Specifications:
| Optical Characteristics |
|
| Fiber connector |
FC/PC |
| Transmission distance |
550M-80KM(20KM for singlemode fiber) |
| Wavelength |
1310/1550nm |
| Video Characteristics |
|
| Port |
8 |
| Video Interface |
BNC |
| Video Input/Output Impedance |
75Ω(unbalanced) |
| Video Input/Output Voltage |
1V pp(typical value) 1.5V pp(max value) |
| Bindwidth of Video |
5Hz to 7.5MHz |
| Automatic Compatible Video System |
PAL SECAM NTSC |
| Differential gain |
(10%-90%APL) DG<1%(typical value) |
| Differential phase |
(10%-90%APL) DG<0.7%(typical value) |
| Weighted Signal-to-Noise Ratio |
>=70dB |
| Data Characteristics |
|
| Interface Port |
Standard Terminal Lead |
| Interface Signal Type |
RS-232/RS-422-485/manchester |
| Code Rate |
0-400Kbps |
| BER |
< 10-9 |
| Other Normal Characteristics |
|
| Operating Temperateure |
-20~+75 °C |
| Humidity |
0~95% (no condensing) |
| Operating Voltage |
DC 5V/2A |
| MTBF |
>=10,0000Hours |
Package Include:

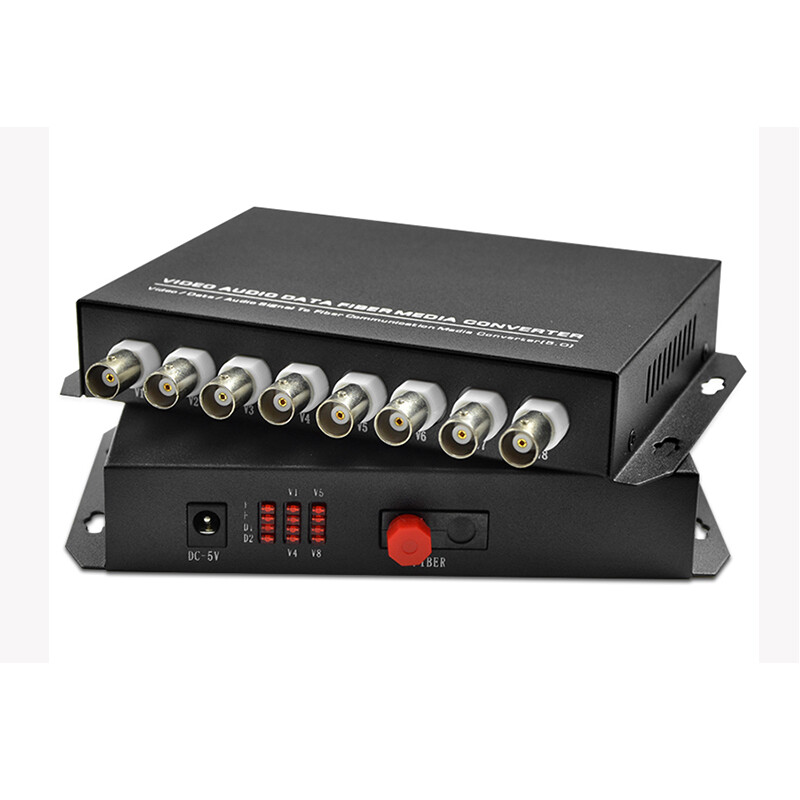

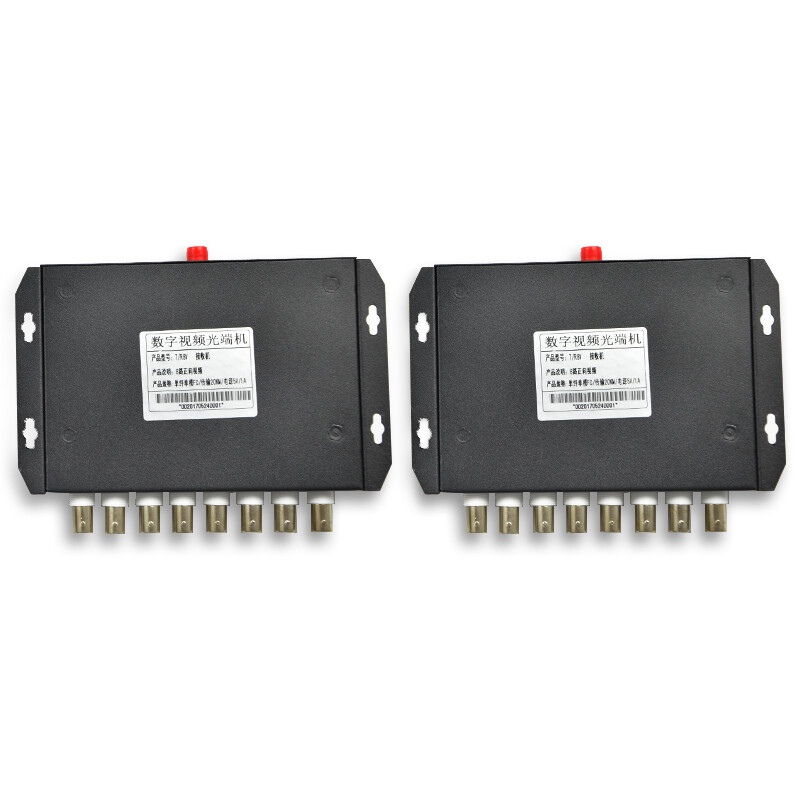

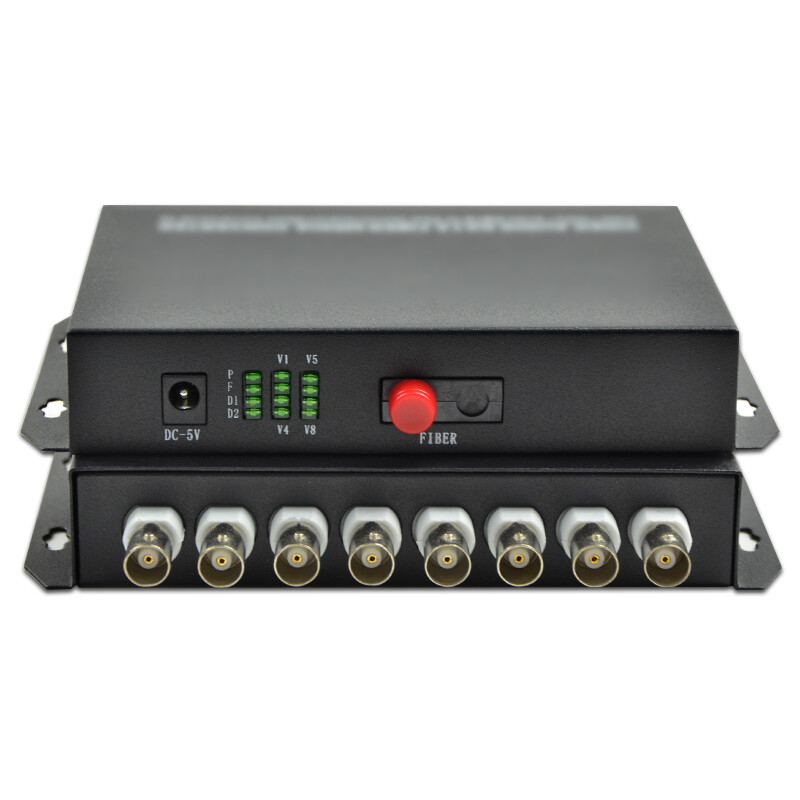

1pair 8 Channel Video Audio Data Fiber Optic Media Converter Transmitter & Receiver
1pair power plug
