Professional Acrylic Bending Machine Heater Kit

Product Description

The Professional Acrylic Bending Machine Heater Kit is a precision heating solution designed for fabricating acrylic, PVC, and plastic sheets. Engineered with a specialized aluminum extrusion body and an integrated water cooling circulation system, this unit ensures uniform heat distribution and rapid cooling to produce clean, stress-free bends without bubbling or scorching.

This kit serves as the core component for manual bending operations, offering a cost-effective and space-efficient alternative to fully automated electric bending machines. It is widely utilized in sign manufacturing, display construction, interior decoration, and custom fabrication projects. The system supports continuous operation provided the water cooling circuit is active and maintained at an appropriate temperature.

Technical Specifications

Parameter	Specification
Available Heating Widths	12 inches (300 mm)
	24 inches (600 mm)
	48 inches (1200 mm)
	71 inches (1800 mm)

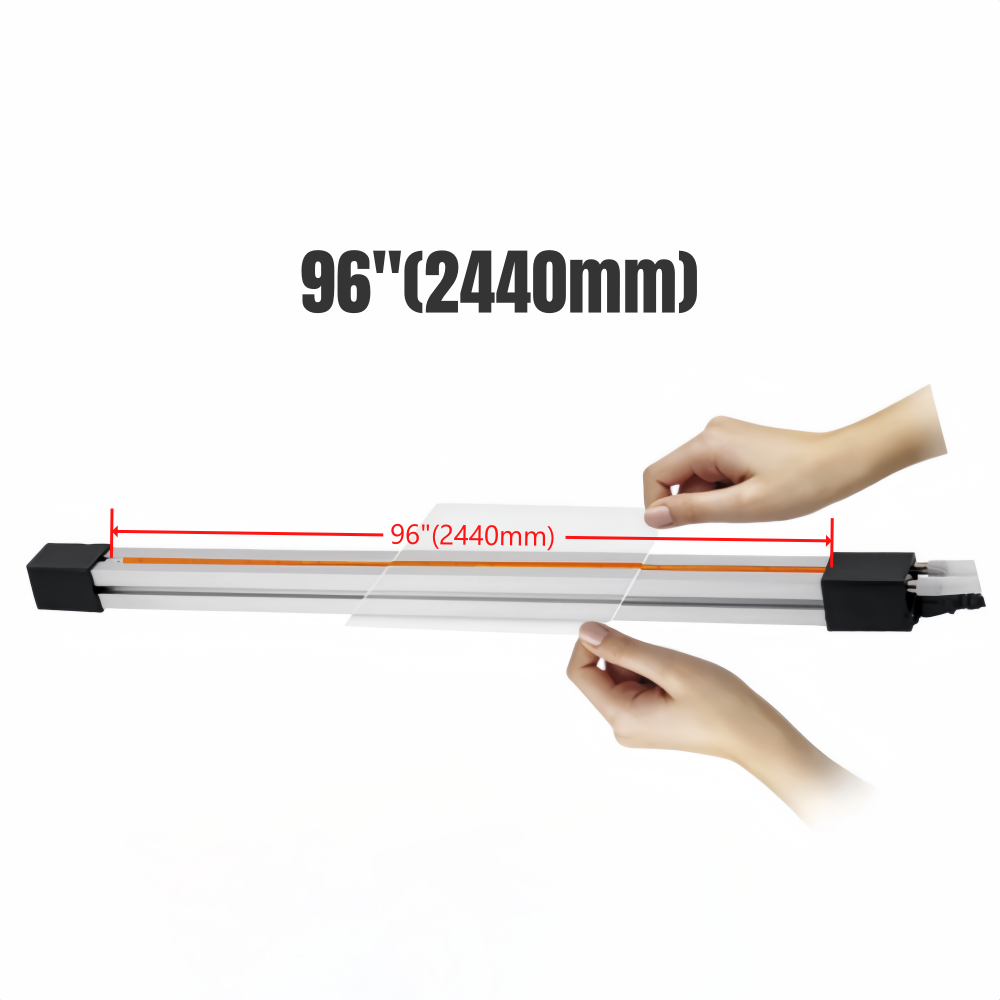

	96 inches (2440 mm)
Voltage Options	110V (50/60Hz) or 220V (50/60Hz)
Heating Slot Width	8 mm
Compatible Material Thickness	1 mm to 6 mm (0.04" – 0.24")
Maximum Operating Temperature	Up to 500°C (Center point)
Recommended Bending Temperature	Approximately 240°C for acrylic
Body Construction	Special Aluminum Extrusion
Cooling System	Integrated circulating water pump with dual-side connections
Power Cord & Water Joint	Co-located on one end for streamlined setup

Note: Power wattage varies depending on the selected heating width. Please refer to specific product variation details for exact wattage.

Applications

This heater is suitable for processing acrylic (plexiglass), PVC, and various thermoplastic sheets. Common applications include:

-LED channel letter and luminous sign fabrication

-Display cabinets and retail shelving units

-Aquarium construction and wrapping

-Light boxes and curtain wall elements

-Custom decorative panels and furniture components

For materials exceeding 6mm in thickness, it is recommended to utilize two heaters simultaneously (top and bottom) or to pre-cut a groove along the bending line to ensure optimal results.

Package Contents

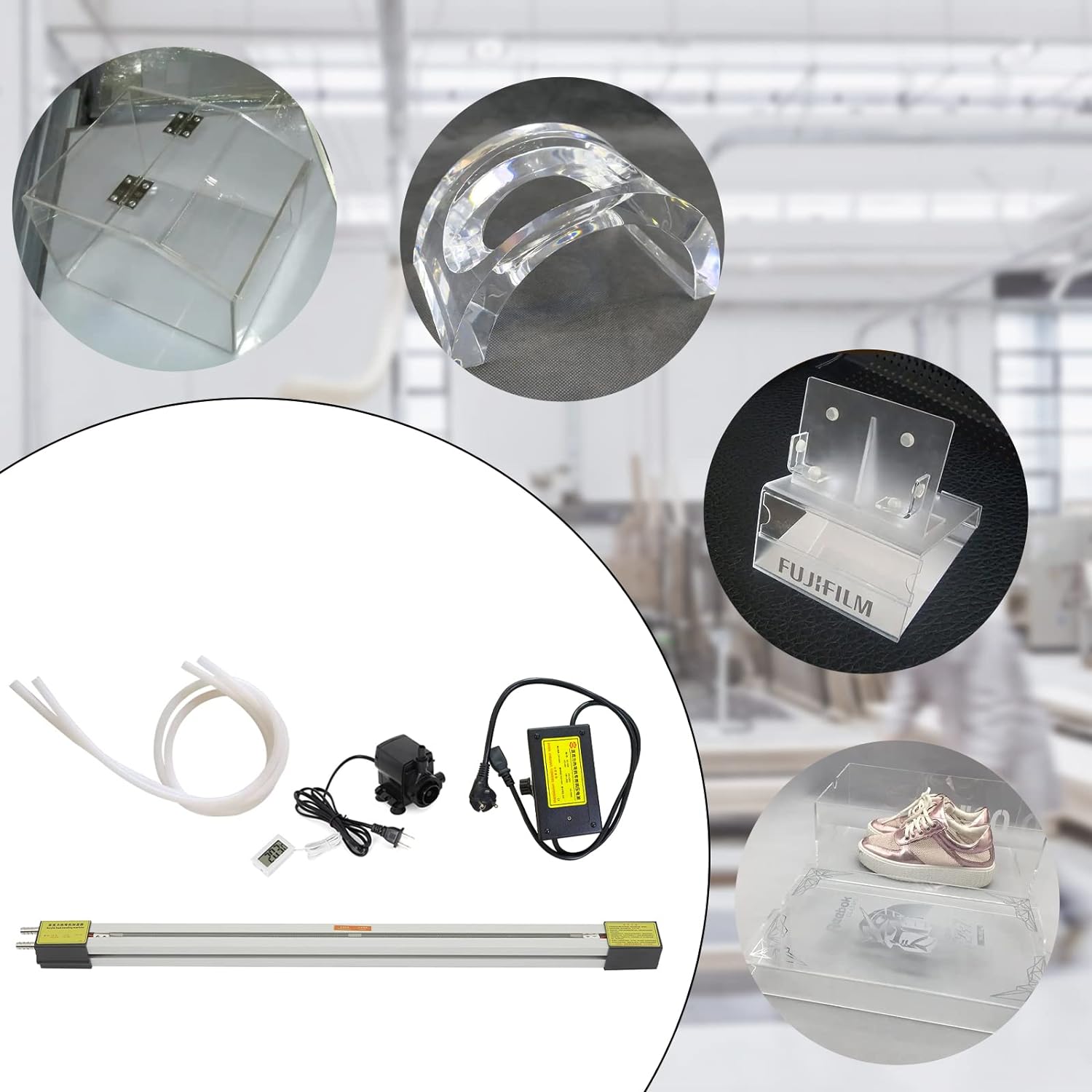

Each unit is shipped as a complete kit containing:

1 unit Bending Machine Heater Body (Selected Size)

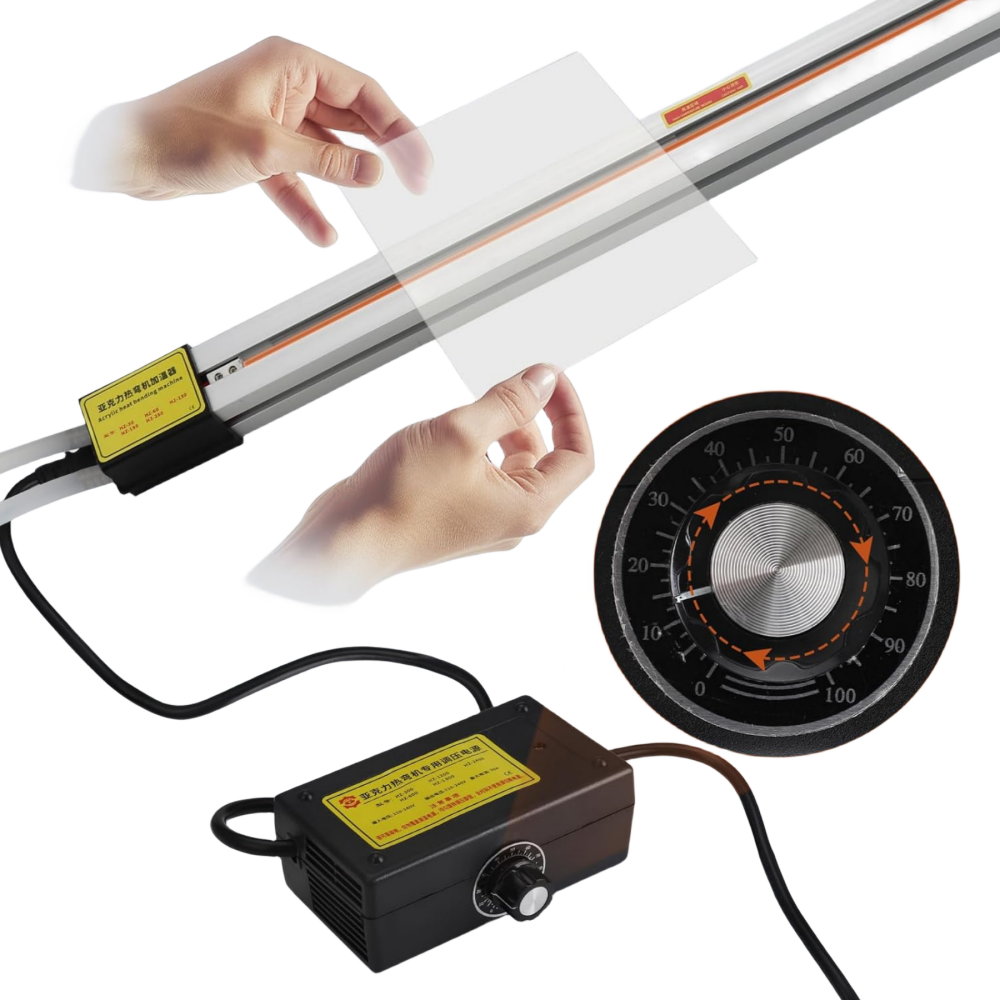

1 unit High-Power Thermostat / Temperature Controller

1 unit Circulating Water Pump

2 units Silicone Water Hoses

1 unit Acrylic Knife (Complimentary)

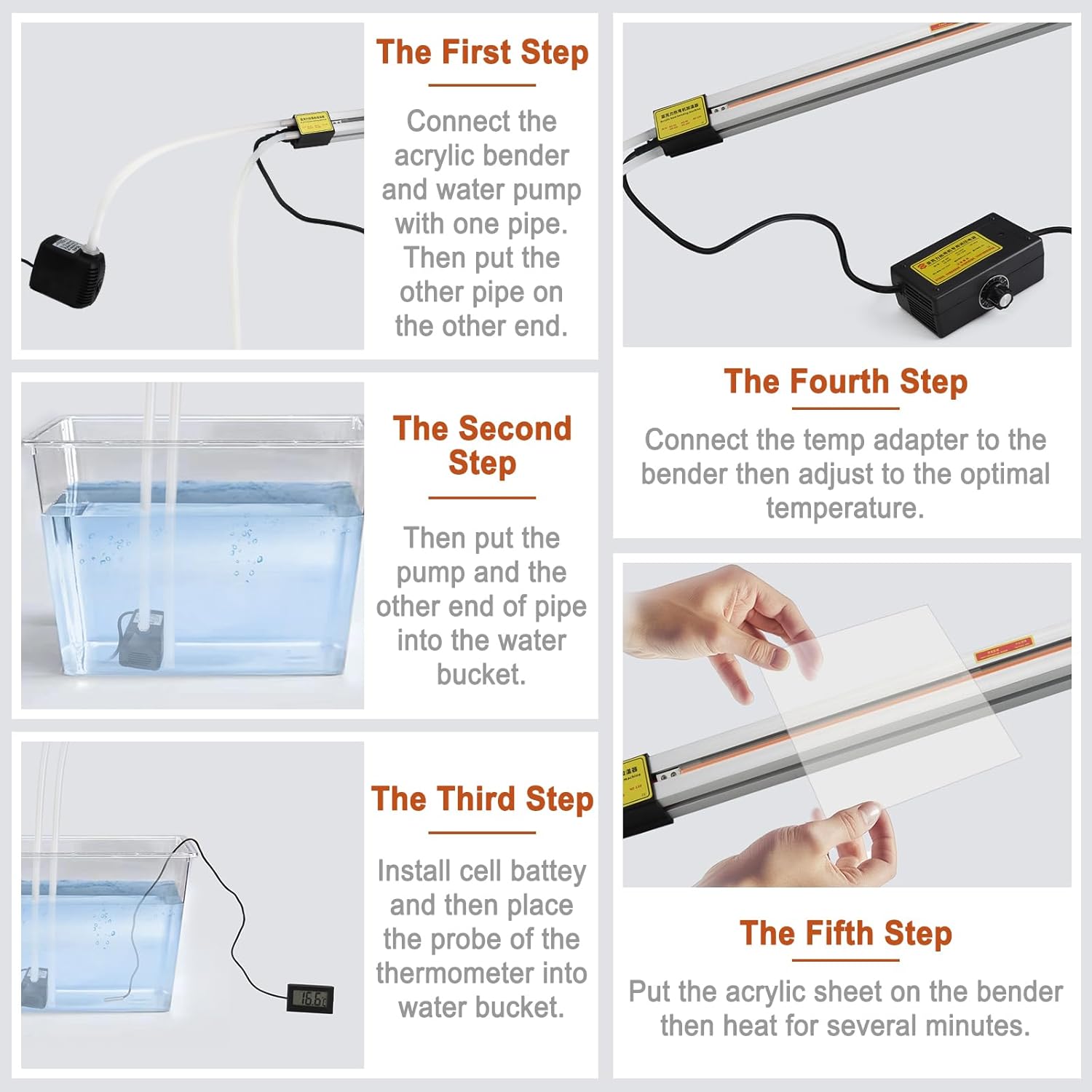

Operational Guidelines

-Temperature Control: The center of the heating tube reaches the maximum temperature. Users should adjust the thermostat to maintain the material-specific bending temperature, typically around 240°C for standard acrylic.

-Cooling Requirement: The circulating water system must be operational during use to prevent overheating and to set the bend angle immediately after forming.

-Continuous Use: The unit is designed for extended operation cycles. Ensure water temperature remains low to maintain performance and safety.



Disclaimer: This product is a heater component kit intended for manual bending processes. Users must select the correct voltage and size configuration corresponding to their local power supply and project requirements.
