Launch X431 CRP909 All System OBD2 Scanner EPB SAS Battery Oil 26 Reset Auto Diagnostic Tool Professional OBD 2 Car Scanner

LAUNCH X431 CRP909 Car Diagnostic Tablet is an newest evolutionary Android smart solution for 12V passenger car, light duty, pickup truck diagnosis & maintenance.Covering more than 57 car brands.it's design for car repair garage,car beauty service parlors, auto mechanic and DIY car owners auto scanner. This CRP909OBD2 Scanner support All systems Diagnoses, All OBD-II functions,26 Reset All OBD-II function

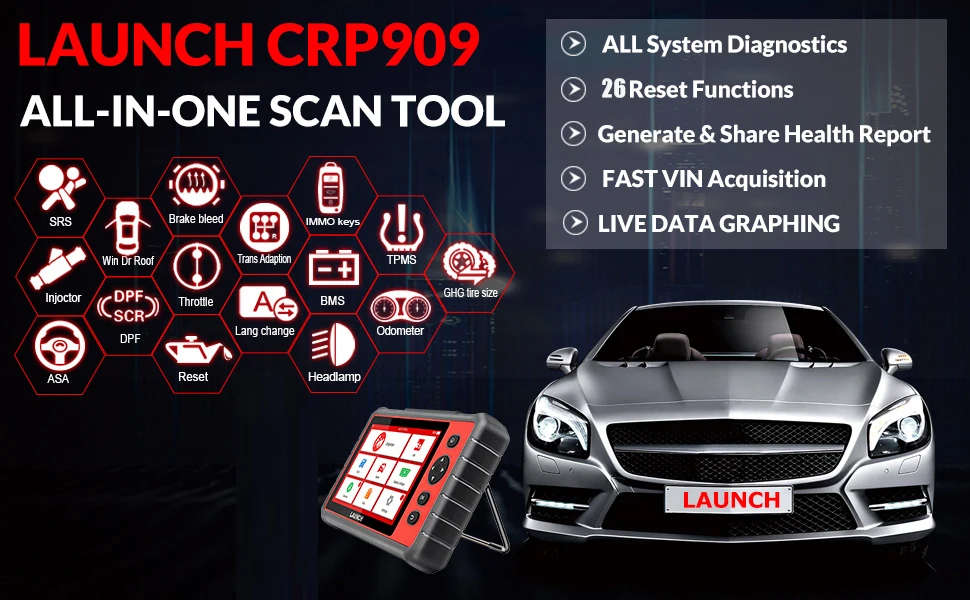

Top Reason to choose LAUNCH CRP909

1.Full Systems Diagnoses for Comprehensive Monitoring;

2.26 Reset Functions for Immediate Maintenance;

3.Full OBD2 Functions for Success Smog Check;

4.2GB RAM & 16GB ROM Memory Spaces;

5.Fast Android 7.1 Operating System;

6.7.0-inch Large Touch Screen Display;

7.6000mAh Rechargeable Battery;

8.Automatic Health Diagnostic Report;

9.Data Stream Record and Playback;

10.Diagnostic Feedback;

11.Keypad & Touchscreen Operation;

12.One-Click Update:1 Year Free Update;

13.Multilingual Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian

14.More than 54 Compatible Vehicle Brands

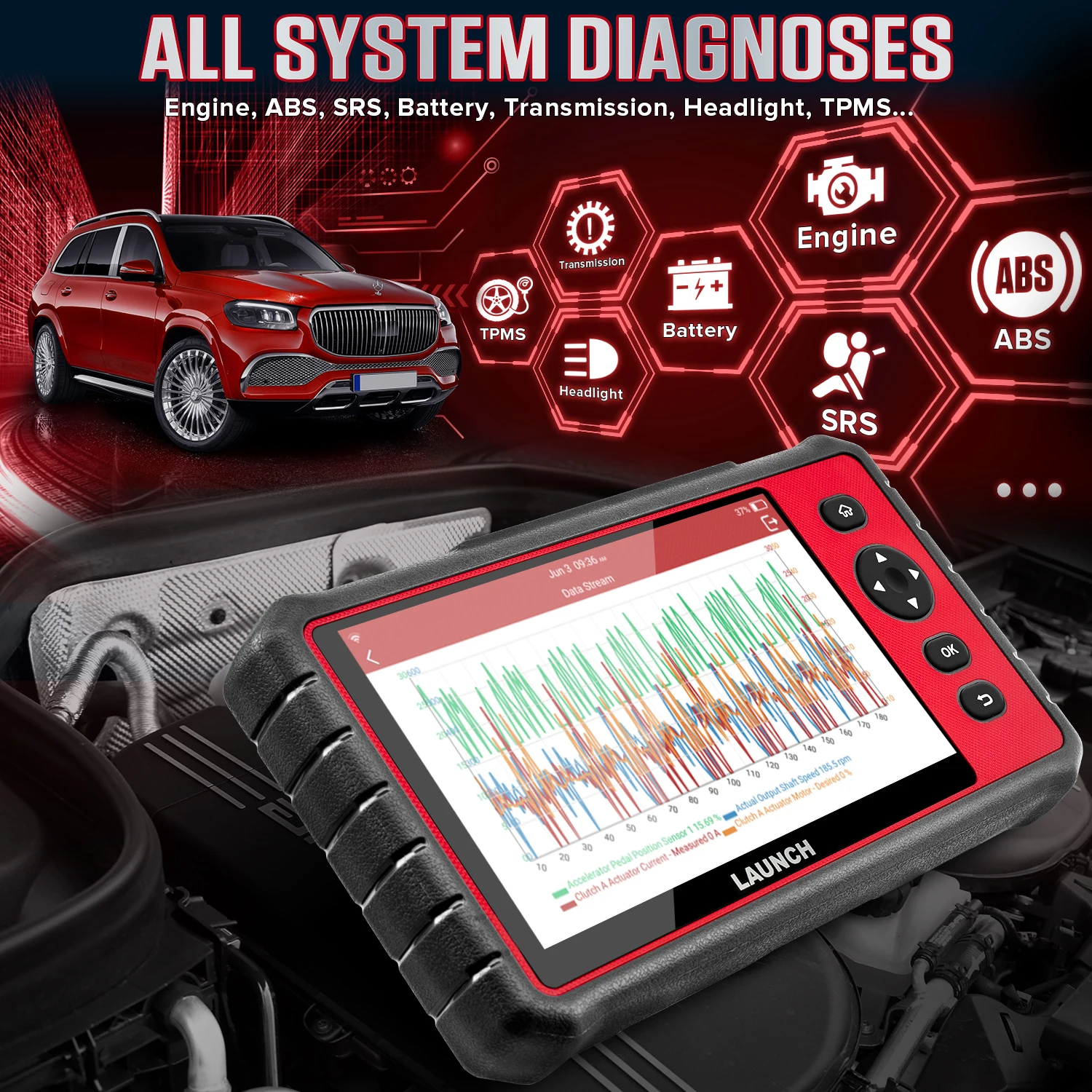

Support Full Systems Diagnoses

This option allows you to detect whether the car full system parameters are normal or not. It mainly including Drive System, Chassis System, Body System, Electrical system.

1.PCM(Drive System):

Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more...

2.Chassis System:

Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more...

3.BCM(Body System):

SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more...

4.Electrical System:

Including Centralized control system for engine and power transmission, Chassis integrated control and safety system,Intelligent body electronic system,Communication and information / entertainment system.

Read and erase codes for all available systems, turn off MIL light (Indicator light), display live data in text, graph & analog for easy

2022 NEWEST UPGRADE-----26 Dealership Level Relearn Functions.

1.Oil Lamp Reset Service:perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Reset:Help replace and reset the brake pad.

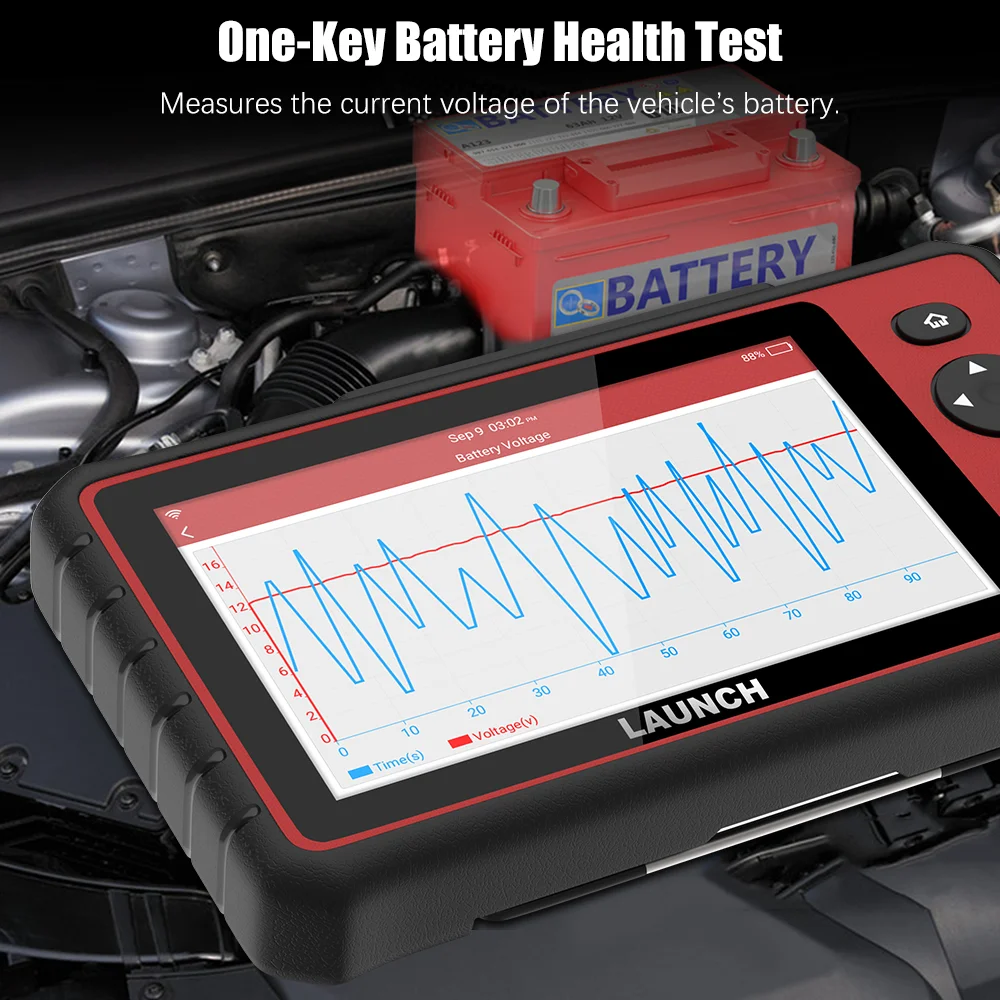

3.BAT battery service(BMS):Clear the fault information of low battery and make it match again

4.DPF service

5. SAS Steering Angel Sensor Reset:Reset the steering angle to zero to keep the car running straight.

6.IMMO Key Programming(Anti-theft Matching): Disable any lost keys and add new keys. **ONLY for cars with easy IMMO system.

7. ABS Bleeding: Help exhaust the air.

8. Fuel Injector Coding: Write the new injector code into the car system for correct cylinder injection quantity.

9. TPMS service: Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

10. Throttle Adaptation: Initialize the throttle actuators to the default state.

11. AFS Headlamp Reset: Initialize the adaptive headlamp system.

12. Sunroof Initialization: The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

13. Suspension Reset:Adjust the vehicle body height sensor for level calibration.

14. Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality.

15. Gear Learning: Monitors certain camshaft position sensors signals.

16.Tire Reset:Set the size parameters of the modified or replaced tire.

17.A/F Reset:Set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter): Reset urea after the diesel exhaust treatment fluid is replaced or filled up.

19.Coolant Bleeding:Activate the electronic water pump

20.Language Change:Change vehicle system language.

21.Nox Sensor Reset:Reset catalytic converter learned value stored in ECU.

22.Stop/Start Reset:Set up the automatic start-stop function in ECU

23.Seat Calibration:Calibrate the memory in replaced or repaired seats.

24.Transport Mode:Deactivate the transport mode.

25.Windows Calibration:Perform door window matching to recover ECU initial memory.

26.AC System Relearn/Initialization

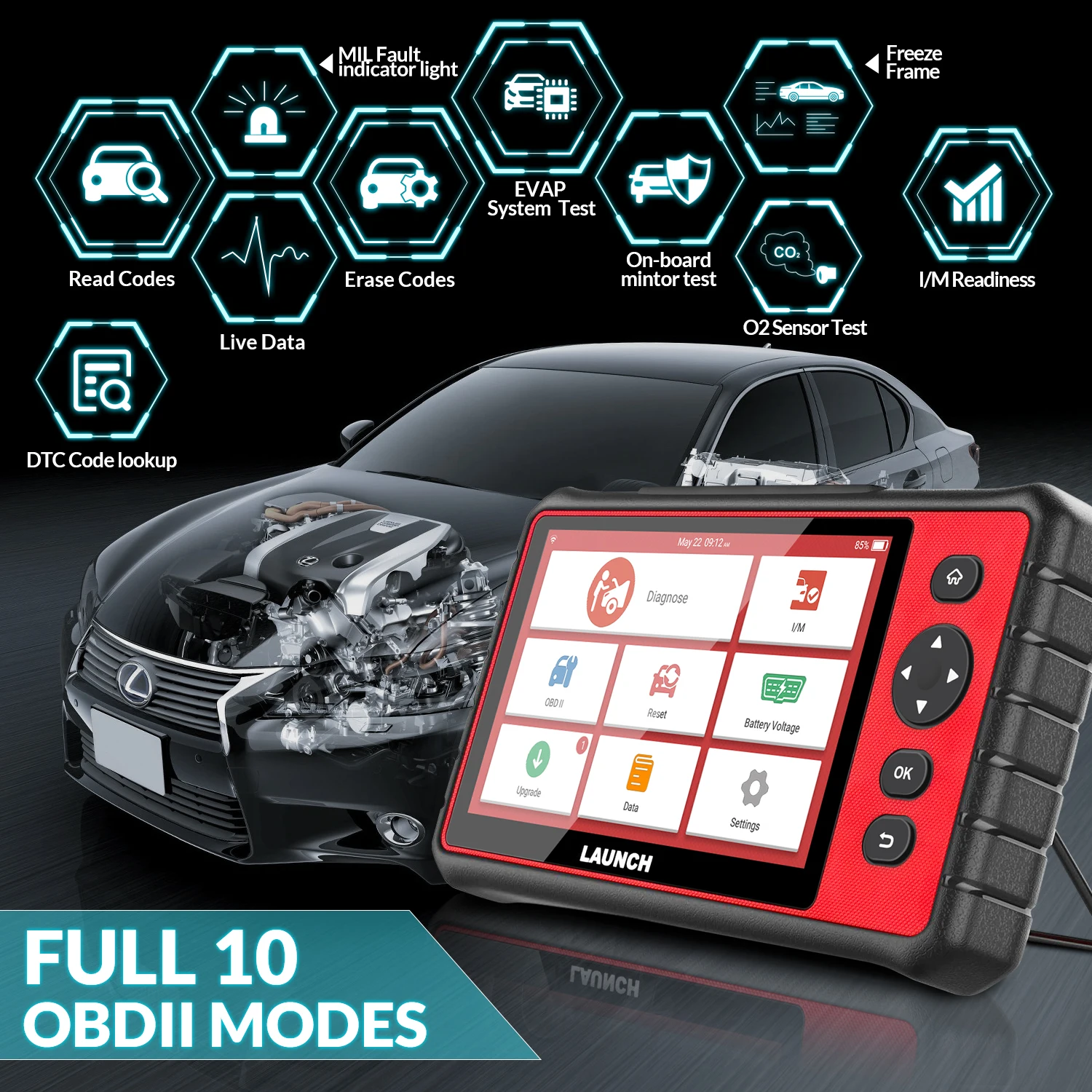

Full 10 Modes OBDII/EOBD/JOBD Functions

This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:

1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

2. Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

3. Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

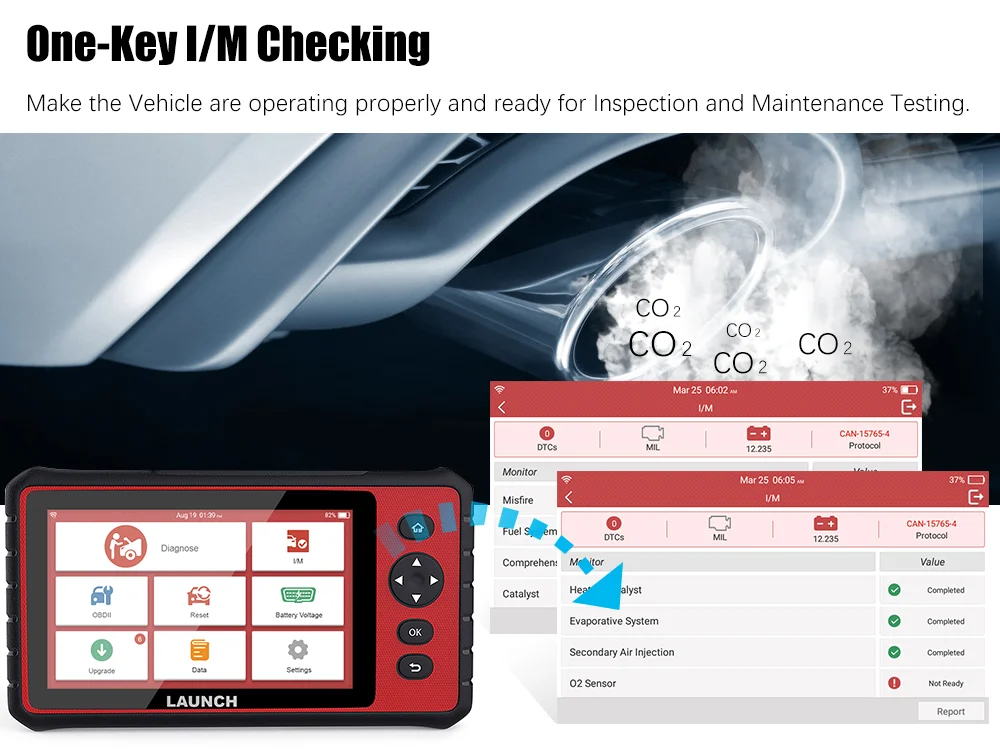

4. I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5. Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

9. Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

Practical Functions for Better User Experience

AutoVIN:

No need to get the VIN from the plate that's near the windshield and manually input the code. LAUNCH CRP909X can automatically read the vehicle information after a successful data link connection.

Feedback:

The feedback gathered from you is an important reference for optimizing product performance. We’re forward to providing you with high-quality products and the best service.

Data Record and Replay:

This diagnostic tool enables you to record valuable diagnostic information. You can not only review it for deep analysis but also quickly continue the last diagnosis.

Keypad & Touchscreen Operation:

Both the keypad and the touchscreen are supported. You can select the operating mode as you want to speed the vehicle diagnosis up.

Deep Dive into Auto Diagnostics

Live Data Stream Graphing,Live Data Stream Record ,Live Data Stream Playback,Live Data Stream Sharing

54 Compatible Vehicle Brands

Europe:

Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, Lancia, Landrover, Mini, Opel, Peugeot, Porsche, Renault, Euro Ford, Fiat, Abarth, Alfa Romeo, Audi, BMW, Bugatti, Citroen, Dacia, VW, Jaguar, Mercedes,

Asia:

Subaru, Suzuki, Toyota, Lexus, Mazda, Mitsubishi, Nissan, Nissangtr, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Acura, Kia, Renault Samsung, Tlisuzu.

America:

Lincoln, Dodge, GM, GMSA, Ford, Jeep, Buick, Cadillac, Chrysler, Chevrolet

Specifications of Launch CRP909

Display: LCD 7-Inch

RAM: 2G, ROM 16G

Battery: 6000 mAh

Operating Voltage: 9~18V

Storage Temperature:-20℃~70℃（-4℉~158℉）

Working Temperature:0℃~50℃（32℉~122℉）

Dimension: 246*139.5*34 mm（9.64*4.86*1.45 inch）

Package Size: 296*230*76 mm (11.65*9.05*2.99 inch)

Length: 1200mm (47.24 inch)

Net Weight: <600g (21.16 oz)

Package List:

1 * CRP909 Android Tablet
1 * OBD-II Diagnostic Cable
1 * DC Power Charging Cable
1 * User Manual
1 * Padded Carry Case
