Product Type: Voltage Regulator |
Replaces: IH258*2 |
  • Circuit Type: A-Circuit |
  • Volts: 12 |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today

Voltage Regulator 1990-2000 GL1500A GL1500SE GL1500I Gold Wing LR140-708C 707B

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• Hitachi: LR140-708 / LR140708
• Hitachi: LR140-708C / LR140708C
• Hitachi: LR140-708CN / LR140708CN
• Hitachi: LR140-707 / LR140707
• Hitachi: LR140-707A / LR140707A
• Hitachi: LR140-707B / LR140707B
• Honda: 31100-MT2-005 / 31100MT2005
• Honda: 31100-MT2-015 / 31100MT2015

SPECIFICATIONS:
• Voltage: 12V
• Circuit Type: A-Circuit
• Set Point: 14.4 Volts

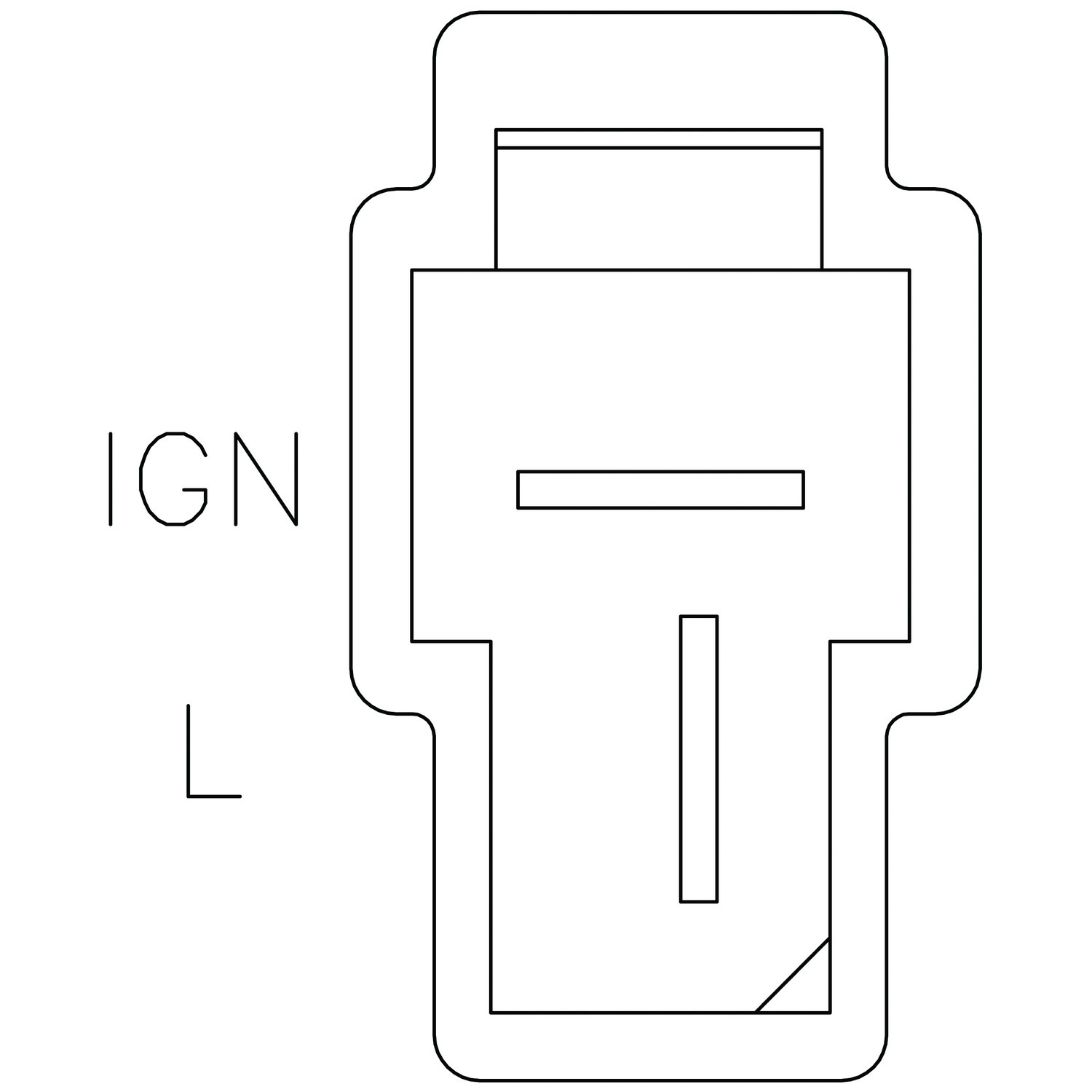

• Terminals: T-Plug, IG-L
• Design: Solid State
• Weight: 1 lb
• Condition: New

APPLICATION:
• Honda GL1500 Gold Wing 1520cc (1988-1990)
• Honda GL1500A Gold Wing Aspencade 1520cc (1991-2000)
• Honda GL1500I Gold Wing Interstate 1520cc (1991-1996)
• Honda GL1500SE Gold Wing 1520cc (1990-2000)
• Fits all Hitachi LR140-707 and LR140-708 series alternators on GL1500 models

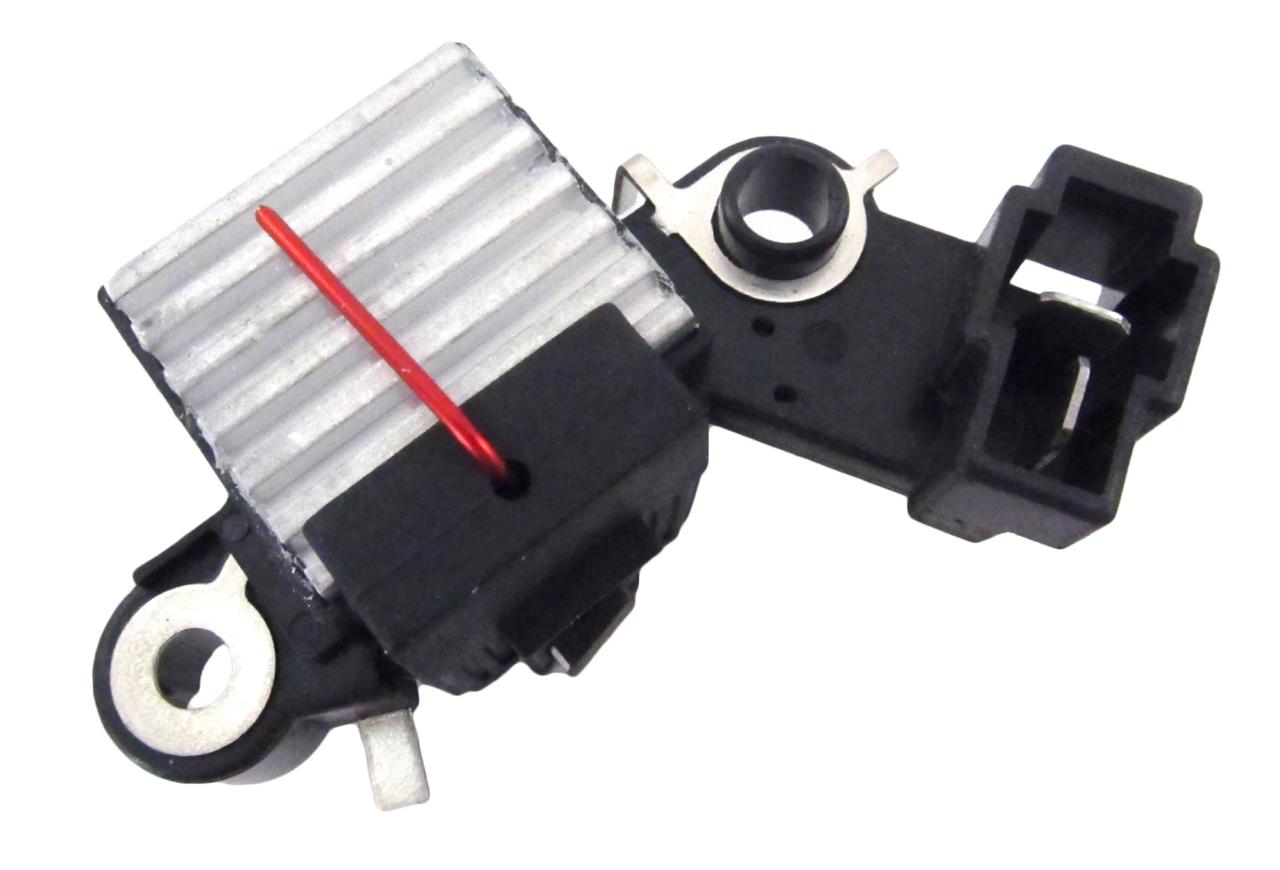

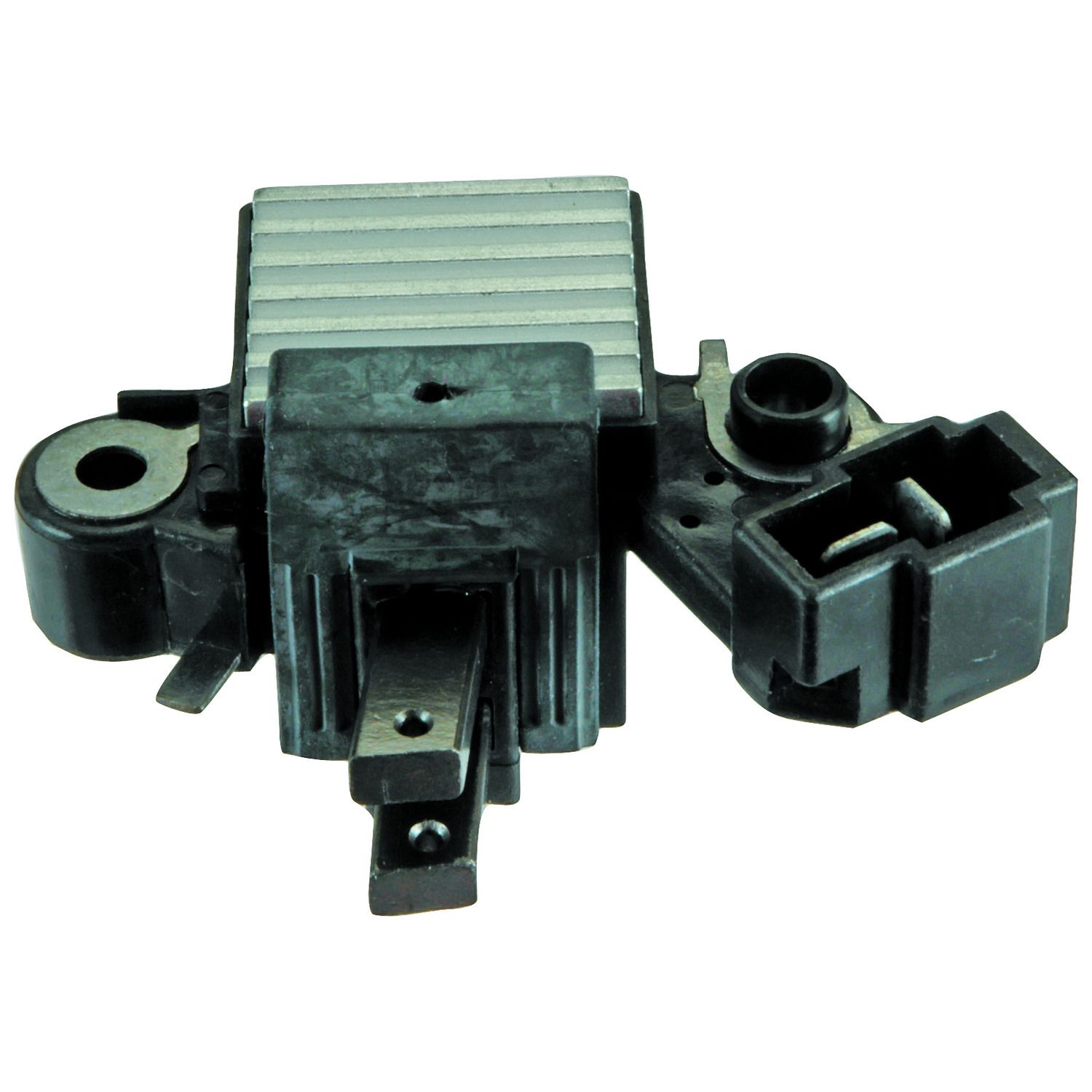

12V Solid State Voltage Regulator - Honda GL1500 Gold Wing
Direct replacement solid state voltage regulator for Hitachi-type alternators on 1988-2000 Honda GL1500 Gold Wing motorcycles. This A-circuit regulator maintains a precise 14.4 volt set point and features T-plug and IG-L terminal connections for direct plug-in installation. Compatible with all Hitachi LR140-707 and LR140-708 series alternators including LR140-708, LR140-708C, LR140-708CN, LR140-707, LR140-707A, and LR140-707B. Replaces Honda alternator numbers 31100-MT2-005 and 31100-MT2-015. Full coverage for GL1500, GL1500A Aspencade, GL1500I Interstate, and GL1500SE 1520cc models from 1988 through 2000.

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



HONDA GL1500 GOLD WING MOTORCYCLES:
• GL1500 Gold Wing 1520cc (1988-1990)
• GL1500A Gold Wing Aspencade 1520cc (1991-2000)
• GL1500I Gold Wing Interstate 1520cc (1991-1996)
• GL1500SE Gold Wing 1520cc (1990-2000)

FITS HITACHI ALTERNATORS:
• LR140-708 (1990-2000 GL1500/GL1500A/GL1500I/GL1500SE)
• LR140-708C (1990-2000 GL1500/GL1500A/GL1500I/GL1500SE)
• LR140-708CN (1990-2000 GL1500/GL1500A/GL1500I/GL1500SE)
• LR140-707 (1988-1990 GL1500 Gold Wing)
• LR140-707A (1988-1989 GL1500 Gold Wing)
• LR140-707B (1988-1989 GL1500 Gold Wing)

FITS HONDA ALTERNATORS:
• 31100-MT2-005 (1990-2000 GL1500 Gold Wing models)
• 31100-MT2-015 (1990-2000 GL1500 Gold Wing models)

NOTE: Verify OEM part number from your original alternator before ordering.
