iCP07 iBoard Tiny is a mini size 8 Pin Microchip PIC IO Board with lowest cost, easy interfacing, high performance, user friendly and come with free Hi-Tech C source code.
  • Mini size, easy interfacing, high performance and user friendly device
  • Used for programming the 8-Pin Flash PIC MCU
  • Excellent flexibility that allows user to expand the board with plug and play modules

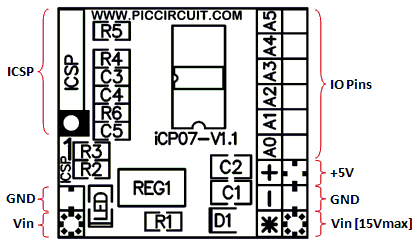

Layout:

Peripheral Features:
  • NCP1117 - provide +5V voltage supply to PIC Microcontroller
  • Maximum Input Voltage: 15Vdc
  • Internal oscillator (8 MHz to 125 kHz, depends on the selected MCU)
  • Green LED - power on indicator
  • VS1 and +5V - different input power supply (external supply or +5V supply)
  • ICSP Connector - on-board PIC programming
  • 6x IO Port
Dimension:
  • Dimension: 2.5cm X 2.3cm X 1.1cm
  • Standard 5x1 2.54mm Pin Socket for ICSP connection
  • Standard 9x1 2.54mm Pin Socket for IO Port connection
Items in package:
  • 1pc x iCP07 iBoard Tiny (Microchip 8pin IO Development Board)
  • 1pc x Microchip MCU (based on selected MCU option)

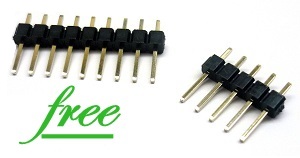

  • Free 1x5 and 1x9 Pin Header
Video:
Download:
  • iCP07v1.1 iBoard Tiny Schematic: Download
  • More iCP07 iBoard Tiny information: Link
  • Free Hi-Tech C Tutorial & Source Code:  Link

Support Devices:
  • 8 Pin: PIC12F508, PIC12F509, PIC12F510, PIC12F519, PIC12F609, PIC12F615, PIC12F629, PIC12F635, PIC12F675, PIC12F679, PIC12F683 and similar models
