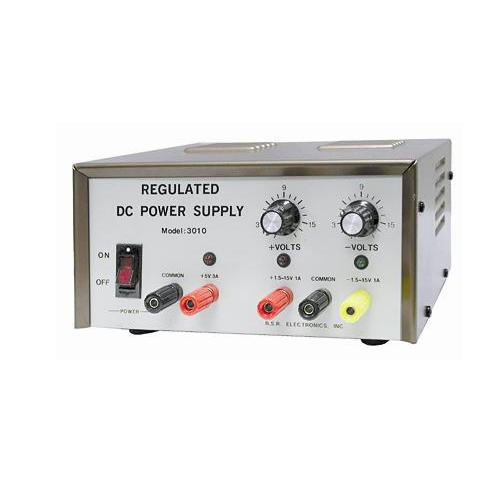

DC Power Supply Triple Output (One Fixed, Two Variable), Assembled Version

The 3010 DC Power Supply features 3 regulated DC supply outputs. One output is fixed and 2 are continuously variable. All 3 supplies are fully current limited and shortcircuit protected.

• Fixed Output: 5V DC at 3 amps maximum line regulation of 0.2% load regulation of 1% with a maximum ripple of 10mV p-p.
• Variable Output: +/- 1.5V DC to +/- 15V DC at 1 amp maximum, line regulation of 0.5%, load regulation of 1% with maximum ripple of 10mV p-p.
• 3 supplies are fully current limited and shortcircuit protected

Specifications:

• Fixed Output:
  • 5V DC at 3 amps maximum
  • Line regulation of 0.2%
  • Load regulation of 1% with a maximum ripple of 10mV p-p.
• Variable Output:
  • ±1.5V DC to ±15V DC at 1 amp maximum
  • Line regulation of 0.5%
  • Load regulation of 1% with maximum ripple of 10mV p-p.

• Measures 8" x 7.75" x 4.25"
• Weighs 6.95 pounds
