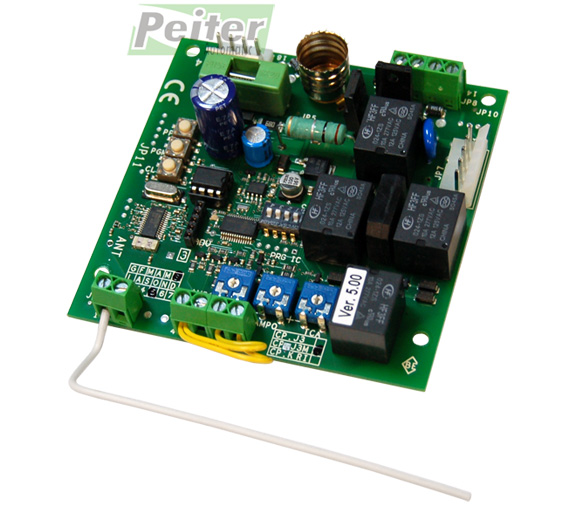

Beninca CP.J3M control board for
JIM3 (JM.3) garage door motor
Technical features: - Contol unit supply: 24 Vdc
- Power supply: 230 Vac 50/60 Hz
- Output supply: 1 motor 24Vdc
- Power maximum motor: 120 W
- Output supply accessories: 24Vdc 1 A max.
- Protection level: IP54
- Operating temperature: -20°C +70°C
- Radio receiver: the control unit is fitted with a built-in radio module for receiving remote controls both with 3 encoding systems (ARC*, Rolling Code, Fixed Code) and a frequency of 433,92 MHz.
*What is ARC? The Advanced Rolling Code, thanks to the length of its transmitted code (128bit vs the current version of 64bit) guarantees the maximum safety.
Main functions: - Parameter and operation logic regulations through trimmers and dip-switches
- Integrated 433,92 MHz 64-code radio receiver with 3 encoding systems (Advanced Rolling Code*, Rolling Code, Fixed Code)
- Fixed terminal boards
- Automatic and semi-automatic logic
- Step by step, stop and photocell inputs
- Integrated courtesy light
- Electronic torque adjustment
- Electronic setting of the limit switch positions in open and closed phases
- Anti-crushing safety with amperometric system and encoder management
- Electronic regulation on 4 levels of residual tension of the belt at the end of the maneuver
- Fixed slow-downs
- Advantouch system to configure parameters and manage radio transmitters
