Standard Focusable Microscope C mount adaptor 0.35x 0.5x 0.63x 1x 1.2x 1.5x 2.25x microscope camera C mount adapter for Olympus Microscope



NOTE: The price includes only one adapter, please select the appropriate magnification of adapter when you order



Feature
NOTE:  There is no lens in 1X C mount adapter,  other Adapters have lens inside.

  • Convert the Olympus trinocular microscope phototube/head/port (have standard 35 mm outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);

  • With different built-in reduction lens (2.25X,1.5X,1.2X, 0.8X,0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 1.8", 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);

  • Can be installed in UIS trinocular tube such as : BX series, BX2 series,CX series, CX2 series, MX series;

  • Build of material: anodized aluminum;

  • Telecentric optics with low light deficiency;

  • Parfocal with different microscope objective lenses;

  • Diffraction limited MTF;

  • Aperture totally coupled with UIS microscope objective’s exit pupil;


Specification

NOTE: The price includes only one adapter, please select the appropriate magnification of adapter when you order


Model


Magnification

Sensor Size

Mount Type

U-TV1.2XT2

1.2X

4/3”,1”

T-Mount

M42x0.75

U-TV1X-2/U-CAMD3

1.0X

1”, 2/3”

C-Mount




U-TV0.63XC

0.63X

2/3”,1/1.8”,1/2”

C-Mount

U-TV0.5XC-3

0.50X

1/1.8”,1/2”,1/2.5”

C-Mount

U-TV0.35XC-2

0.35X

1/3”,1/4”，1/5”

C-Mount

AL150XT2

1.5X        1.8", 4/3", 1"     T2 Mount (M42x0.75)

AL225XM52


2.25X   2.7", 1.8", 4/3", 1"     M52x0.75 Mount


Supported Microscope

Specially designed for Olympus CX，BX，MX，STM，SZX，IX，GX(GX41) series microscope


NOTE:


1. The 1.5X  1.2X Adapter is T2 mount(M42x0.75) not C mount


2. The 2.25X adapter is M52 mount(M52x0.75) not C mount

3. 0.8X C Mount adapter is stop production

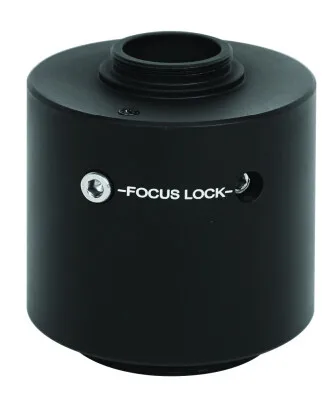

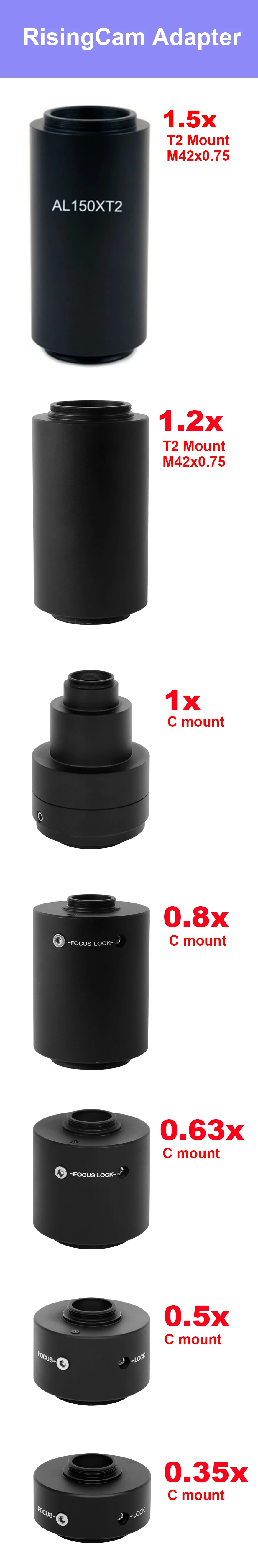

Adapter Pictures

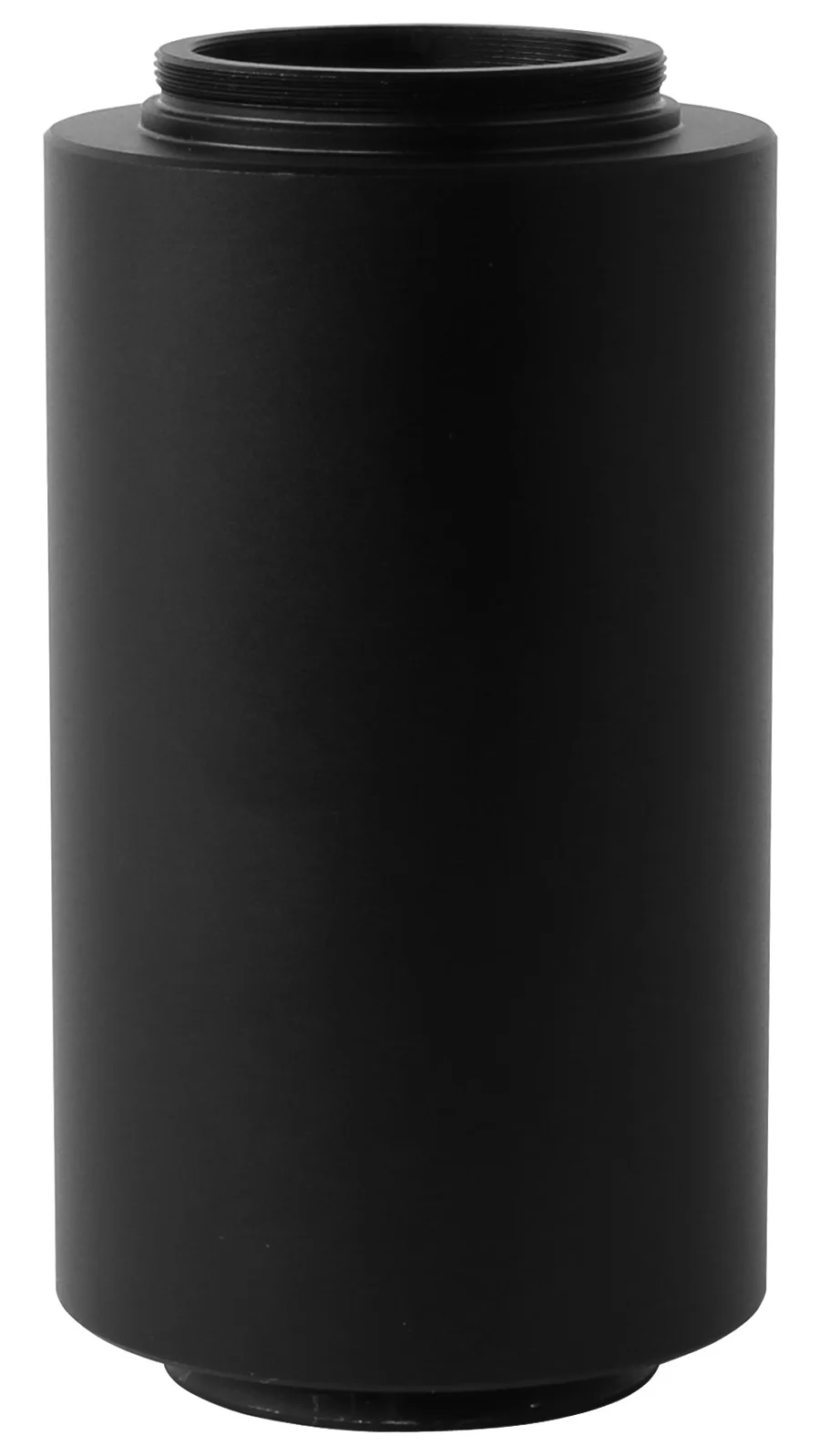

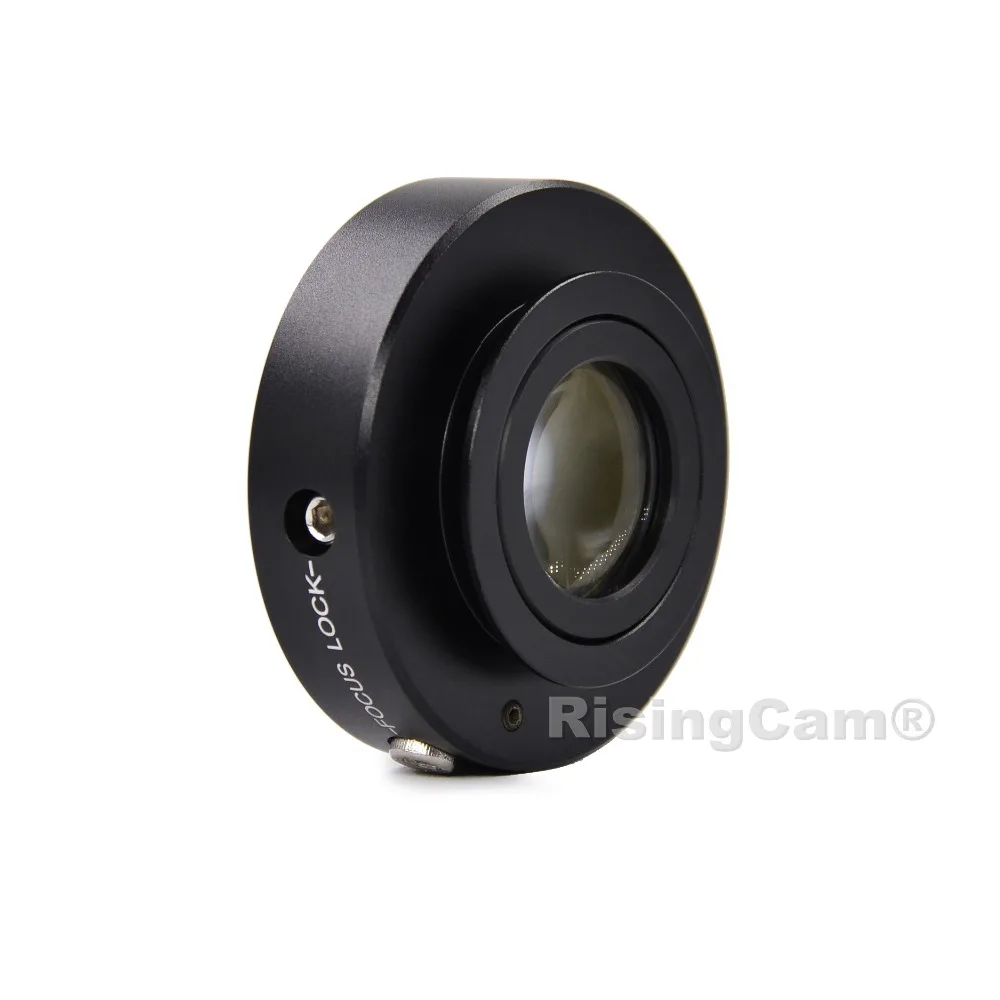

2.25X   M52x0.75 mount

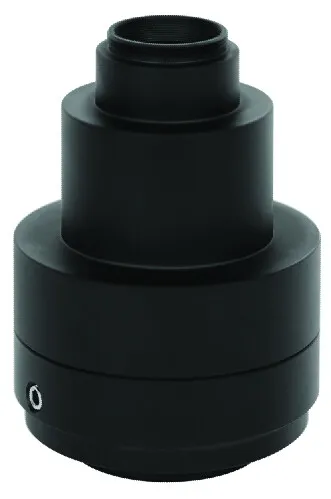

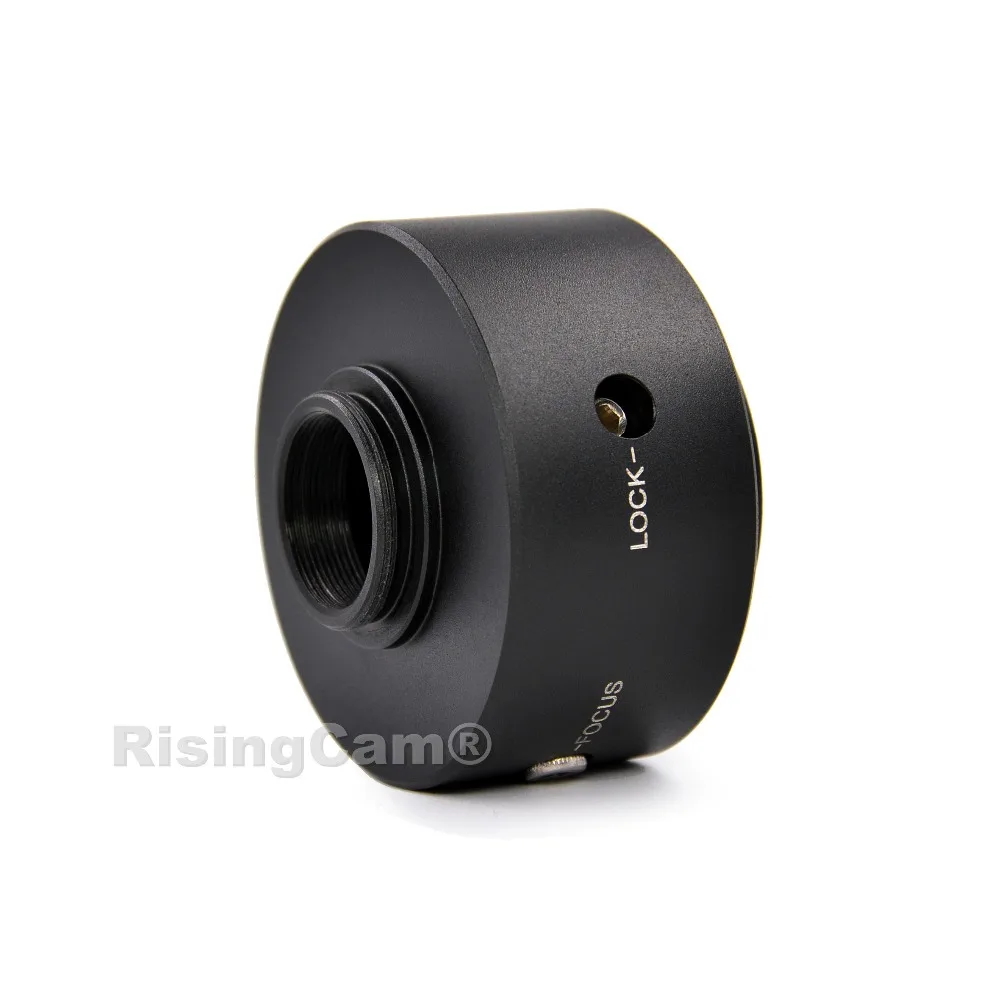

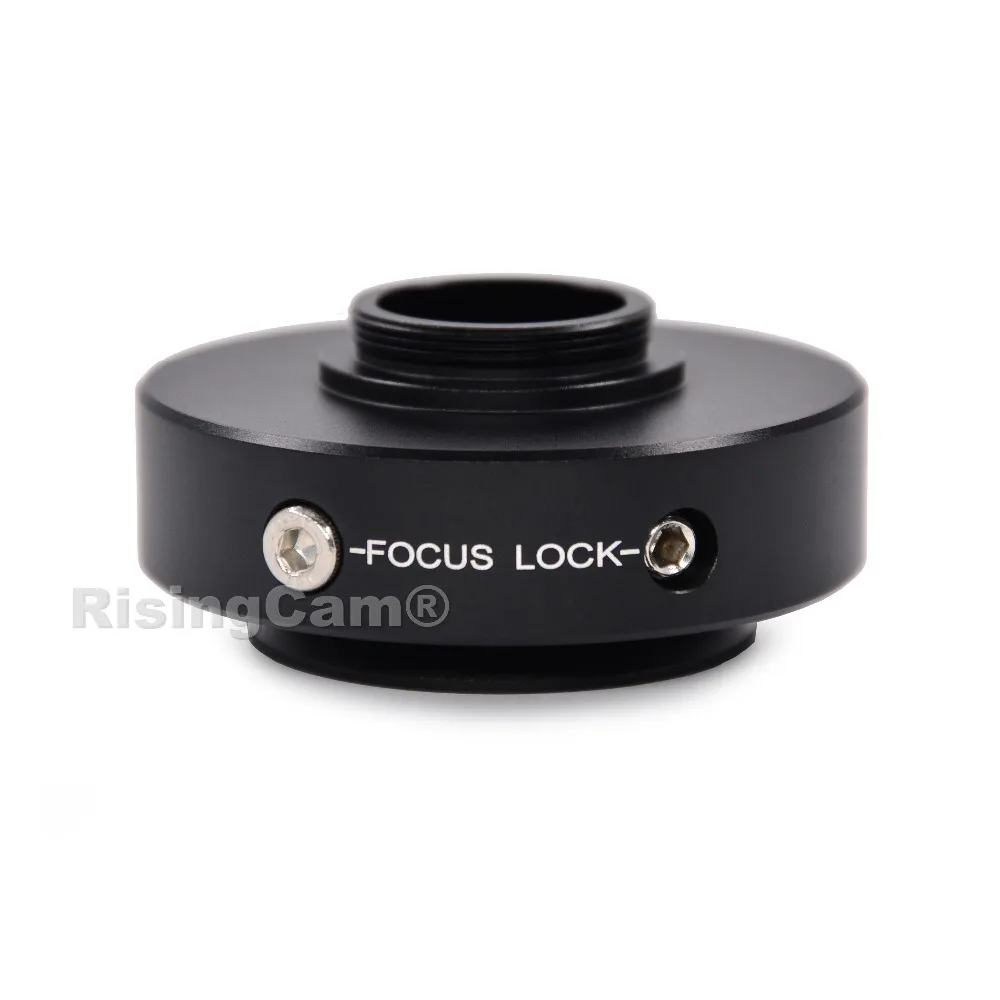

More Picture

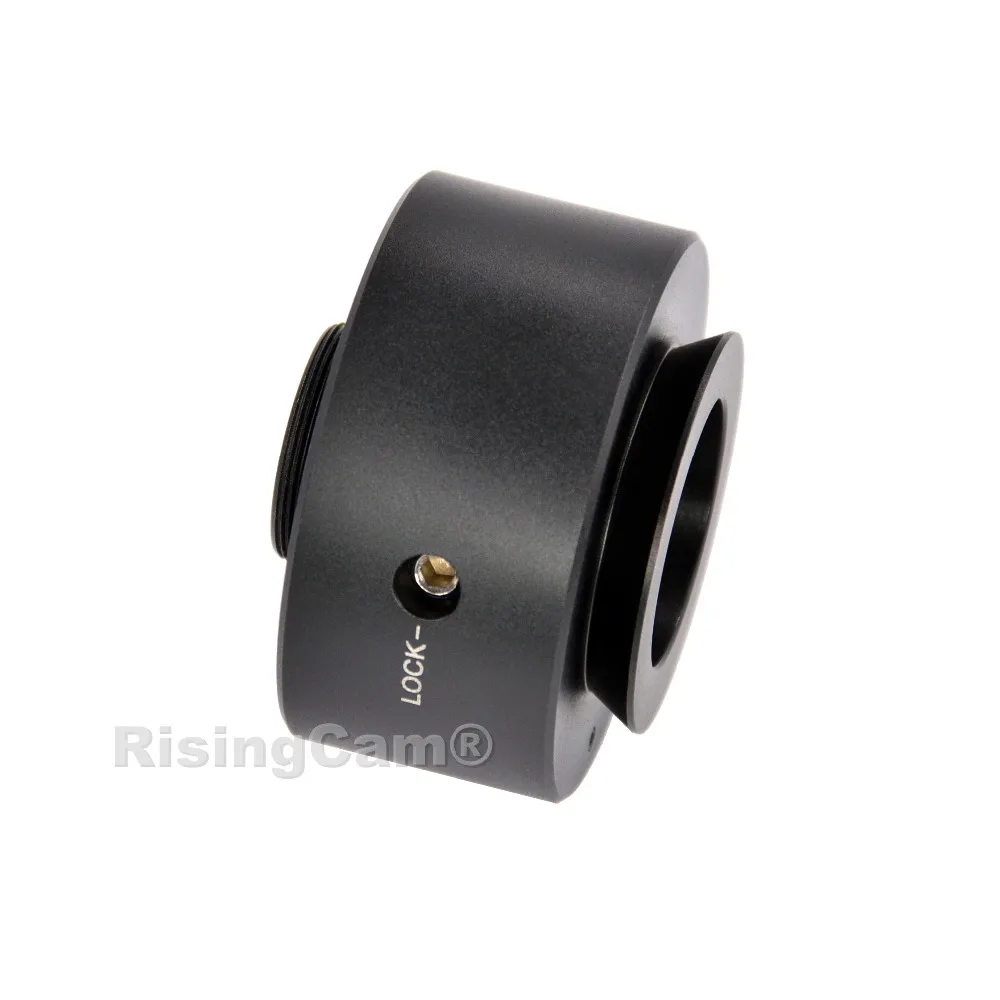

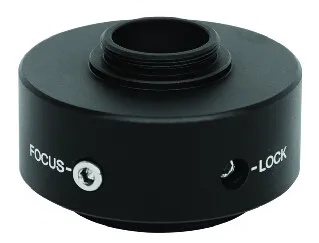

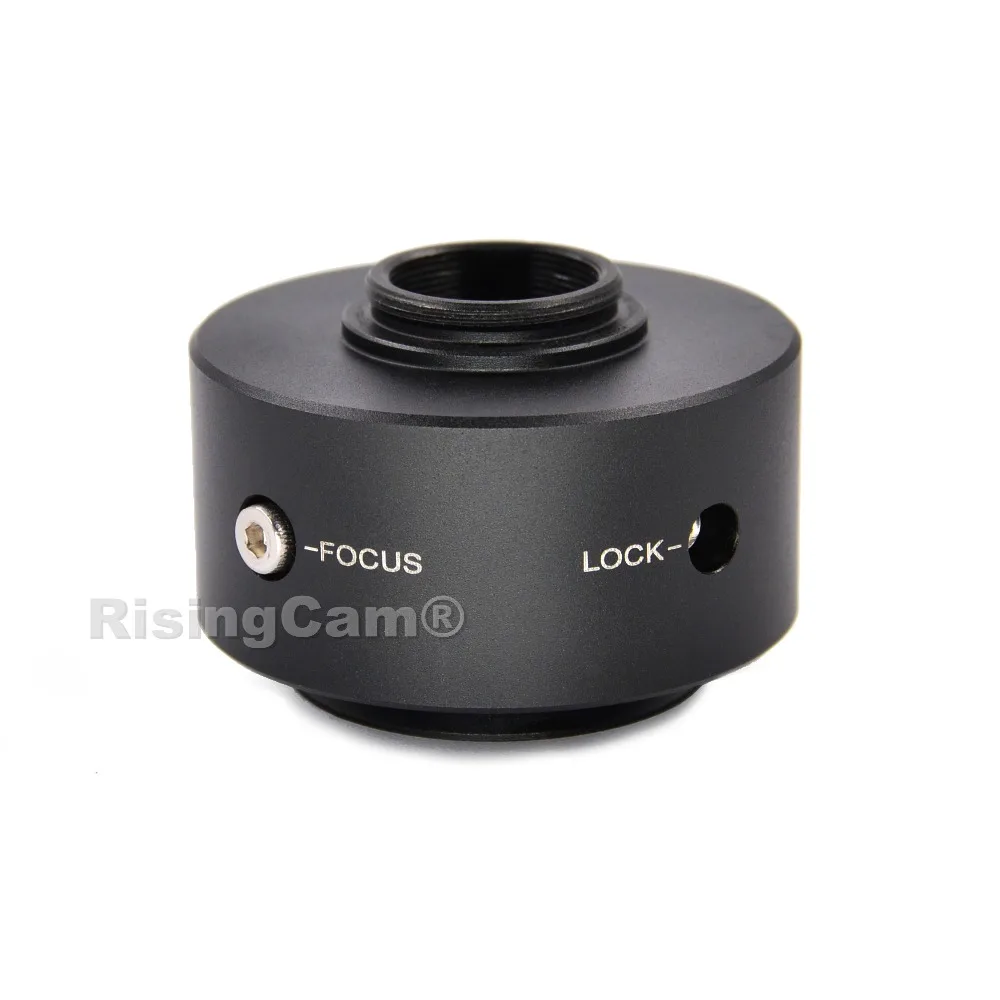

0.35X C mount adapter

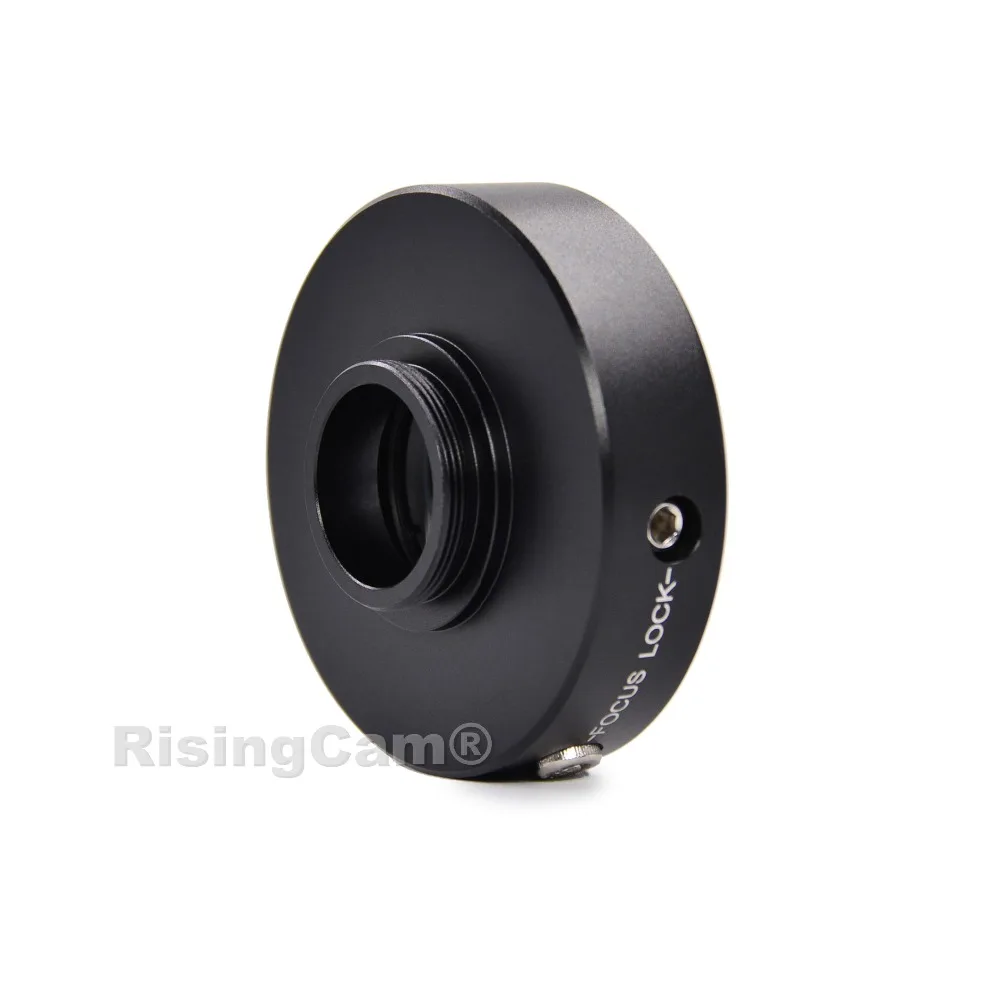

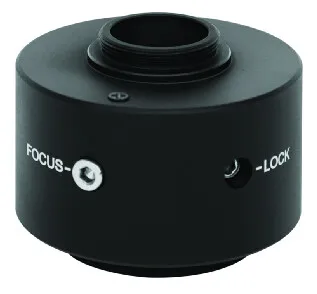

0.5X C mount adapter

Adapter Working picture

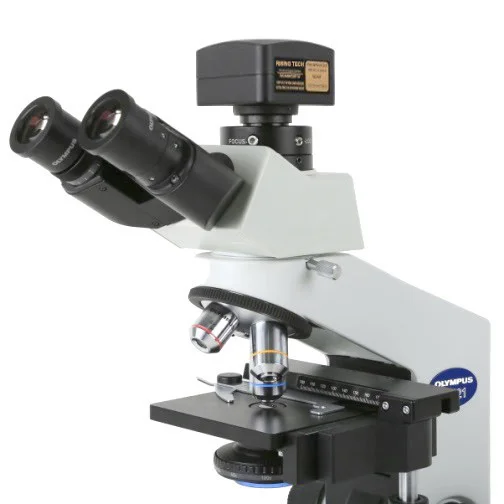

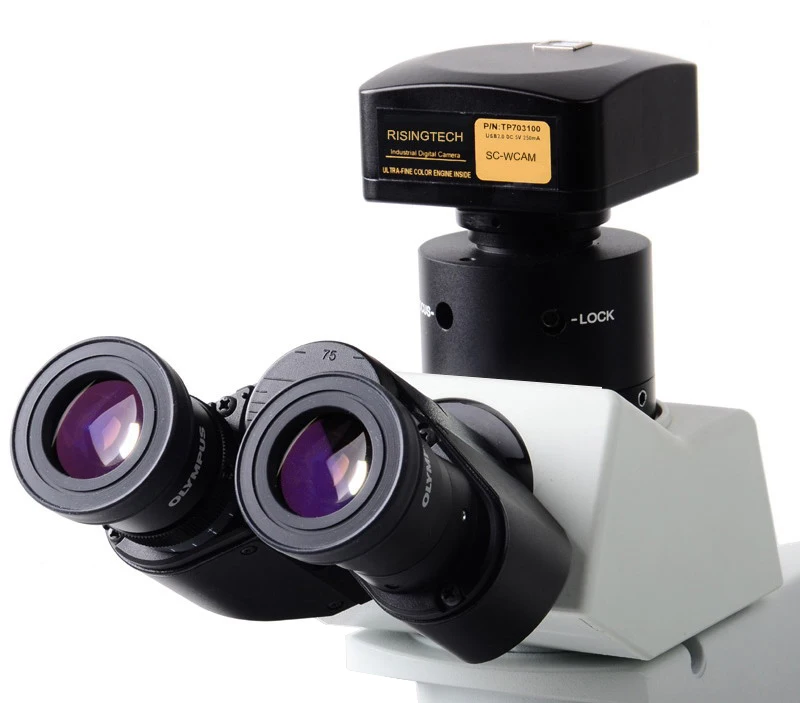

RisingCam Camera connect to Olympus CX21 Microscope via 0.5X C mount adatper

RisingCam Camera connect to Olympus CX21 Microscope via 0.5X C mount adatper


Interface size

The dimension of Connect to Microscope trinocular port

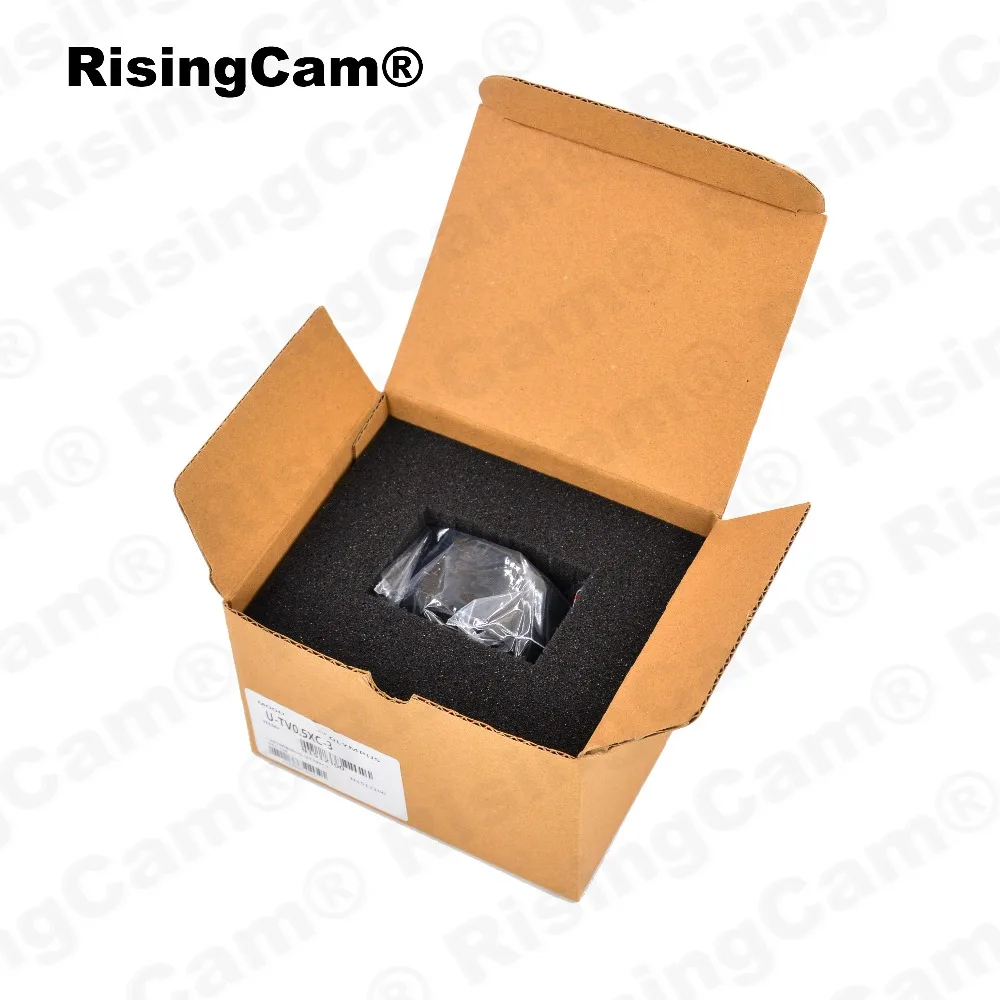

Adapter Packing








Warranty period: 1 year
