Standard C mount adapter for Zeiss trinocular microscope
NOTE: The price includes only one adapter, please select the appropriate magnification of adapter when you pleace order
Feature
NOTE: There is no lens in 1X C mount adapter, other Adapters have lens inside.
Convert the Zeiss trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch)
outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);
With different built-in reduction lens (1.2X, 0.8X, 0.65X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head
(suitable for 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);
Can be installed in Zeiss UIS trinocular tube such as:
Zeiss PrimoStar series
Zeiss Stemi series
Zeiss Primo vert series
Build of material: anodized aluminum;
Telecentric optics with low light deficiency;
Parfocal with different microscope objective lenses;
Diffraction limited MTF;
Aperture totally coupled with UIS microscope objective’s exit pupil;
Specification
Model
Magnification
Sensor Size
Mount Type
P95-T2 1.2x
1.2X
1”, 4/3”
T2-Mount
M42x0.75
P95-C 1” 1.0x
1X
1”, 2/3”
C-Mount
P95-C 1” 0.8x
0.8X
1”,2/3”
C-Mount
P95-C 2/3” 0.65x
0.65X
2/3”,1/1.8”,1/2”
C-Mount
P95-C 1/2” 0.50x
0.5X
1/1.8”,1/2”,1/2.5”
C-Mount
P95-C 1/3” 0.35x
0.35X
1/3”,1/4”，1/5”
C-Mount
Support Microscope
Specially designed for
Zeiss PrimoStar series
Zeiss Primo vert series
Zeiss Stemi series
NOTE: P95-T2 1.2x adapter is T2 Mount(M42x0.75), it is not C mount.
NOTE:
The price includes only one adapter,
please select the appropriate magnification of adapter when you place order
More detailed picture
Adapter Working picture
Adapter connect RisingCam's camera to Zeiss Primo Stard trinocular microscope
NOTE: The price includes only one adapter, please select the appropriate magnification of adapter when you pleace order
NOTE: There is no lens in 1X C mount adapter, other Adapters have lens inside.
Convert the Zeiss trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch)
outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);
With different built-in reduction lens (1.2X, 0.8X, 0.65X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head
(suitable for 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);
Can be installed in Zeiss UIS trinocular tube such as:
Zeiss PrimoStar series
Zeiss Stemi series
Zeiss Primo vert series
Build of material: anodized aluminum;
Telecentric optics with low light deficiency;
Parfocal with different microscope objective lenses;
Diffraction limited MTF;
Aperture totally coupled with UIS microscope objective’s exit pupil;
|
Model |
Photo |
Magnification |
Sensor Size |
Mount Type |
|
P95-T2 1.2x |
|
1.2X |
1”, 4/3” |
T2-Mount M42x0.75 |
|
P95-C 1” 1.0x |
|
1X |
1”, 2/3” |
C-Mount |
|
P95-C 1” 0.8x |
|
0.8X |
1”,2/3” |
C-Mount |
|
P95-C 2/3” 0.65x |
|
0.65X |
2/3”,1/1.8”,1/2” |
C-Mount |
|
P95-C 1/2” 0.50x |
|
0.5X |
1/1.8”,1/2”,1/2.5” |
C-Mount |
|
P95-C 1/3” 0.35x |
|
0.35X |
1/3”,1/4”，1/5” |
C-Mount |
|
Support Microscope |
Specially designed for Zeiss PrimoStar series Zeiss Primo vert series Zeiss Stemi series |
|||
NOTE: P95-T2 1.2x adapter is T2 Mount(M42x0.75), it is not C mount.
|
NOTE: The price includes only one adapter, please select the appropriate magnification of adapter when you place order |
Adapter connect RisingCam's camera to Zeiss Primo Stard trinocular microscope

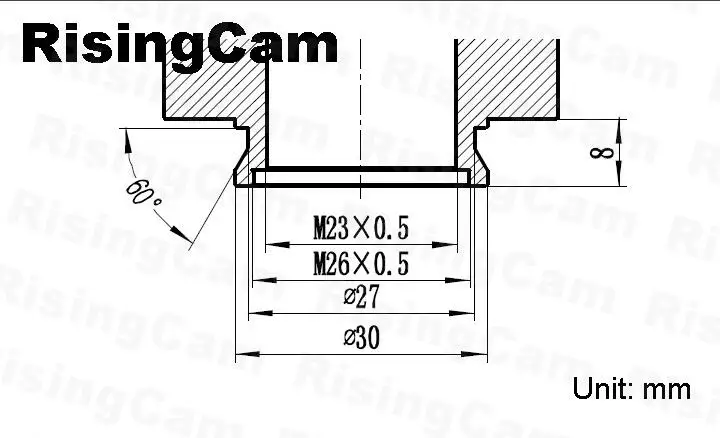

Interface size
The dimension of interface to Microscope trinocular port
The dimension of interface to Microscope trinocular port
Packing
Hard box and protective foam to protect adapter during transport
Hard box and protective foam to protect adapter during transport
|
Warranty period: 1 year
RisingCam always do our best provide excellent Service before/after sales for all buyers. RisingCam will provide our technical support if buyers have any questions of camera operation.
If camera has any quality problem within warranty period and must be returned to workshop repair it, RisingCam will repair camera or replacement new camera for buyer, RisingCam will stand freight.
If camera has quality problem out warranty period, RisingCam will repair camera for buyers too, buyer need stand freight.
If the camera is man-made damaged, no matter within or out warranty period, buyers should stand repair charges and freight.
|
