Camera Intruduce



ECMOS Camera adopt SONY Exmor CMOS sensor as the image-picking deviceand USB2.0 is used as the data transfer interface.
ECMOS 5.3mp Camera hardware resolution 5.3MP and come with the integrated CNC aluminum alloy compact housing.

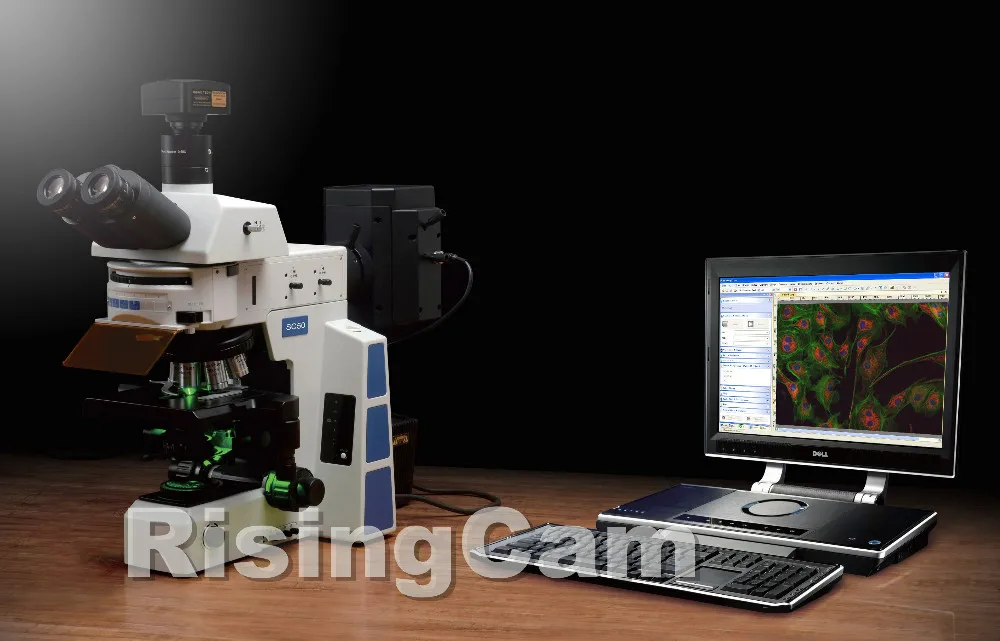

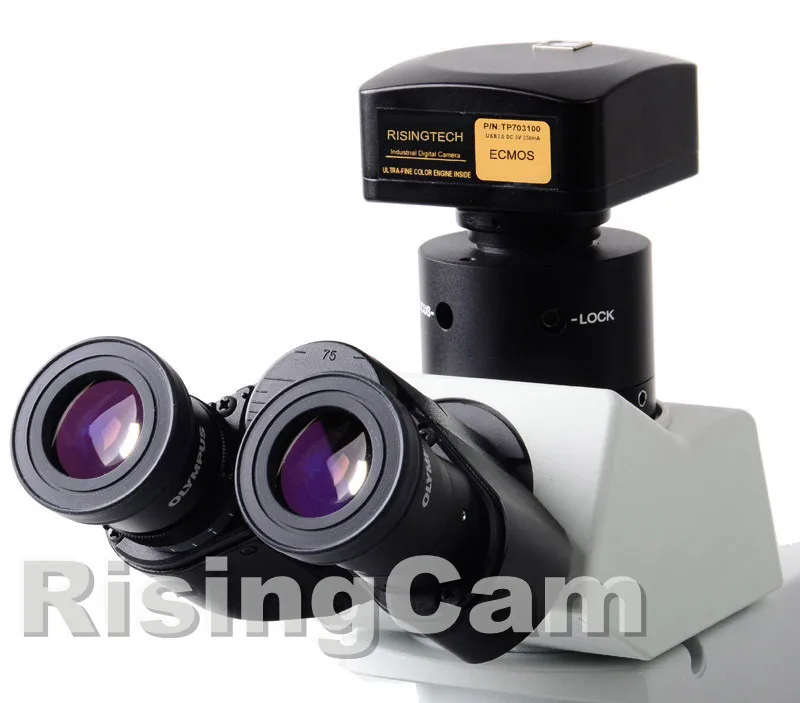

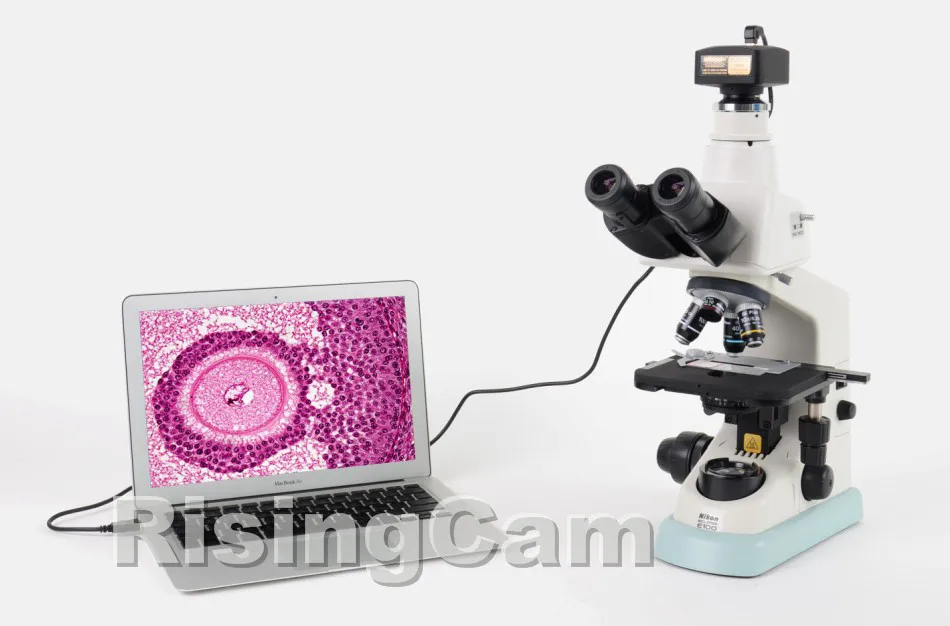

ECMOS can be widely used in brightfield light environment and microscope image capture and analysis with higher frame rate.



Camera Feature

SONY Exmor CMOS sensor imx224/imx290/imx123/imx335/imx178/imx326/imx274
Real-time 8/12/14/16bit depth switch (depending on sensor);
high sensitivity
Ultra low noise and low power dissipation by using column-parallel A/D conversion;
With hardware resolution 1.2/2.0/3.1/5.0/5.3/6.6/8.3MP;
Rolling Shutter;
Standard C-Mount camera;
CNC aluminum alloy housing;
USB2.0 interface ensuring high speed data transmission;
With advanced video & image processing application RisingView











Camera Specification





Camera Model	Sensor & Size(mm)	Pixel(μm)	G Sensitivity	FPS/Resolution	Binning	Exposure
			Dark Signal
ECMOS 8.3mp	8.3M/IMX274(C)	1.62x1.62	236mv with 1/30s	4@3840x2160	1x1	0.244ms~15s
	1/2.5”(6.22x3.50)		0.1mv with 1/30s	16@1920x1080	2x2
ECMOS 6.6mp	6.6M/IMX326(C)	1.62x1.62	236mv with 1/30s	5@3072x2160	1x1	0.244ms~15s
				6@2592x1944	1x1
	1/2.9”(4.98x3.50)		0.1mv with 1/30s	6@3072x1728	1x1
				7@2160x2160	1x1
ECMOS 5.3mp	5.3M/IMX178(C)	2.4x2.4	425mv with 1/30s	5.5@3072 x1728	1x1	0.105ms~15s
	1/1.9“ (7.37x4.15)		0.15mv with 1/30s	35@1280x720	2x2
ECMOS 5.0mp	5.0M/IMX335(C)	2.0x2.0	505mv with 1/30s	6.4@2592 x1944	1x1	0.1ms~15s
	1/2.8“ (5.18x3.89)		0.13mv with 1/30s	26.7@1296x972	2x2
ECMOS 3.1mp	3.1M/IMX123(C)	2.5x2.5	600mv with 1/30s	10.5@2048x1536	1x1	0.105ms~15s
	1/2.8“ (5.12x3.84)		0.15mv with 1/30s	15@1920x1080
ECMOS 2.0mp	2.0M/IMX290(C)	2.9 x2.9	1300mv with 1/30s	17@1920x1080	1x1	0.105ms~15s
	1/2.8“(5.56x3.13)		0.15mv with 1/30s
ECMOS 1.2mp	1.2M/IMX224(C)	3.75 x3.75	2040mv with 1/30s	27@1280x960	1x1	0.105ms~15s
	1/3“(4.80x3.60)		0.15mv with 1/30s	54@640x480	2x2

camera frame rate not only decide by camera but also relate to user's computer configuration





OTHER HARDWARE CONFIGURATION
Spectral Range	380-650nm (with IR-filter)
White balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine
Recording System	Still Picture and Movie
Cooling System*	Natural
OPERATING ENVIRONMENT
Operating Temperature	-10C-- 50C
Storage Temperature	-20C--60C
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
SOFTWARE ENVIRONMENT
Operating System	Support Microsoft  Windows  XP / Vista / 7 /8 (32 & 64 bit) OS X (Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB port: USB2.0 High-speed Port
	Display: 17" or Larger
	CD-ROM







Camera Detailed Pictures

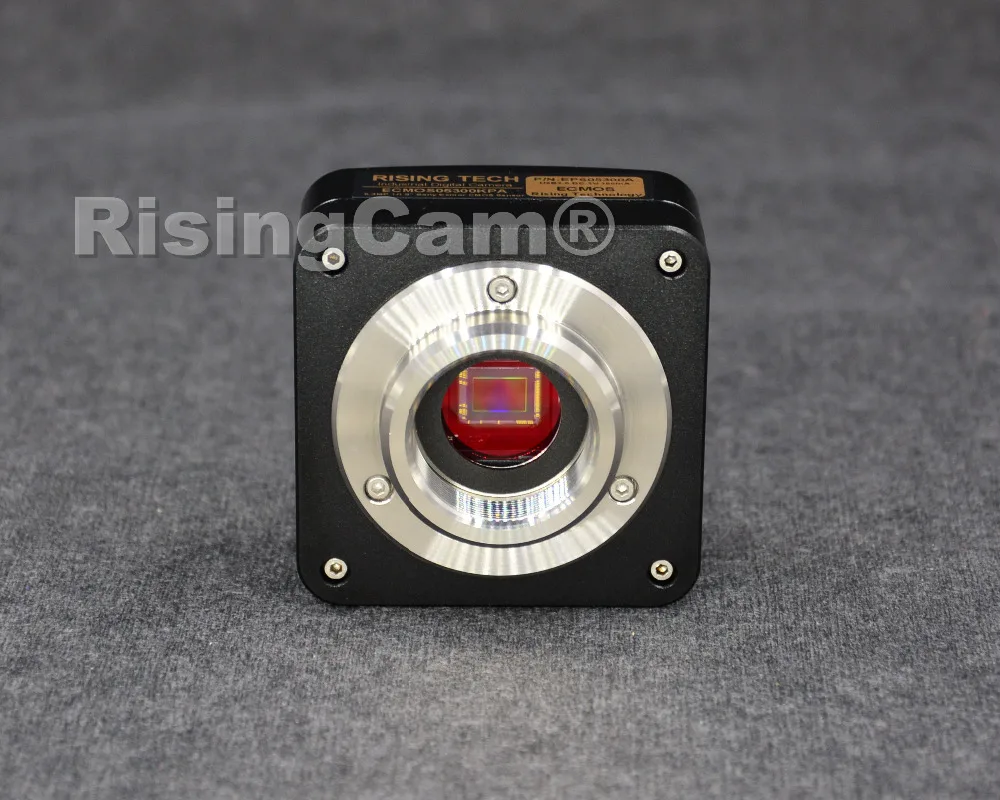

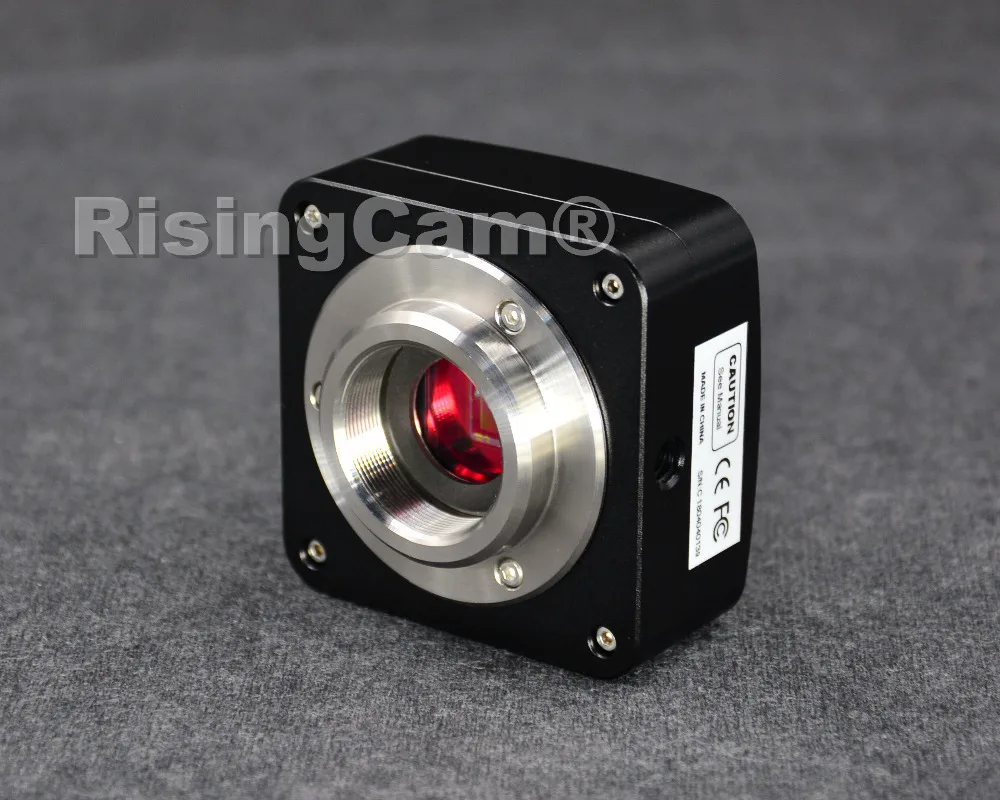

ECMOS camera install SONY Exmor sensor

different resolution camera installed different sensor

Sensor Model no:





SONY Exmor COMS sensor

1) Low noise and High Sensitivity

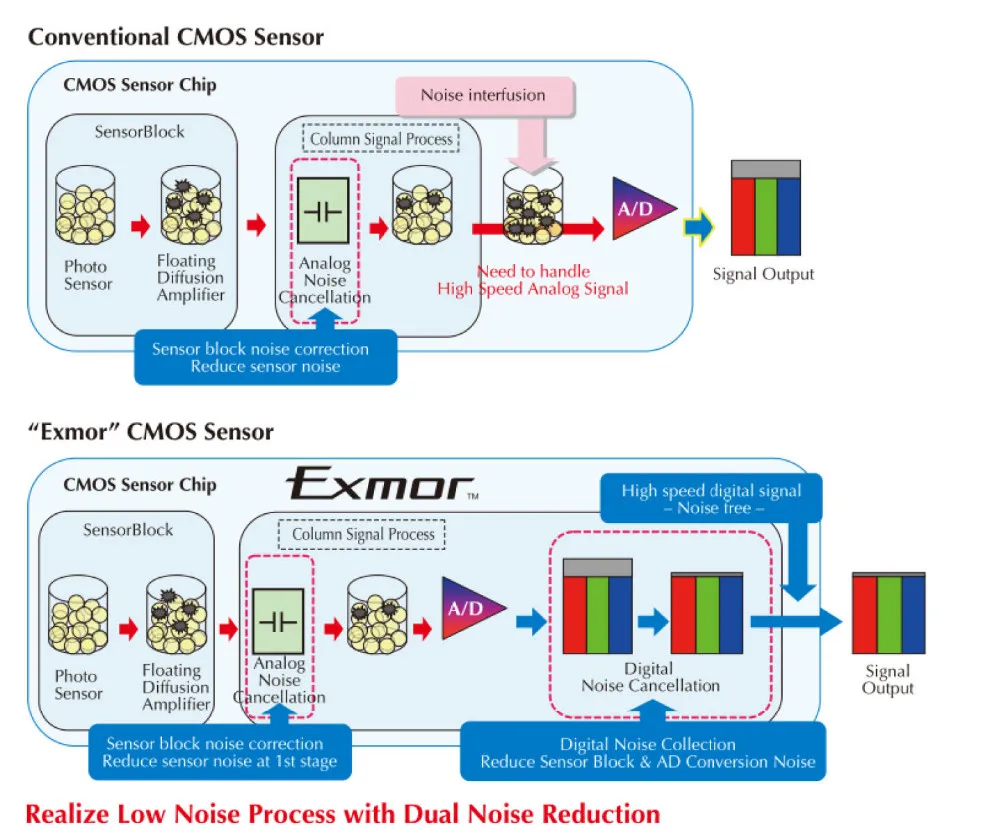

1.  As you can see from the above diagram, the “Exmor” sensor has 2 noise reduction process
including analogue noise reduction and digital noise reduction while the traditional one has
only analogue noise reduction.

2.  Even the smallest amount of signal noise can have a negative impact on a photo. Noise is
introduced into an image if defects are present in the silicon from which the pixel is made.
By minimizing the occurrence of defects and contamination, and by shielding areas that are
vulnerable to defects, Sony has decreased the amount of noise that may be possible in other
sensors.

3.  Sony enhanced sensitivity of the CMOS sensor by modifying the transistor array and layout,
and by making the photodiode as large as possible and creating a system that increases the
accuracy of light that is guided to the photodiode.

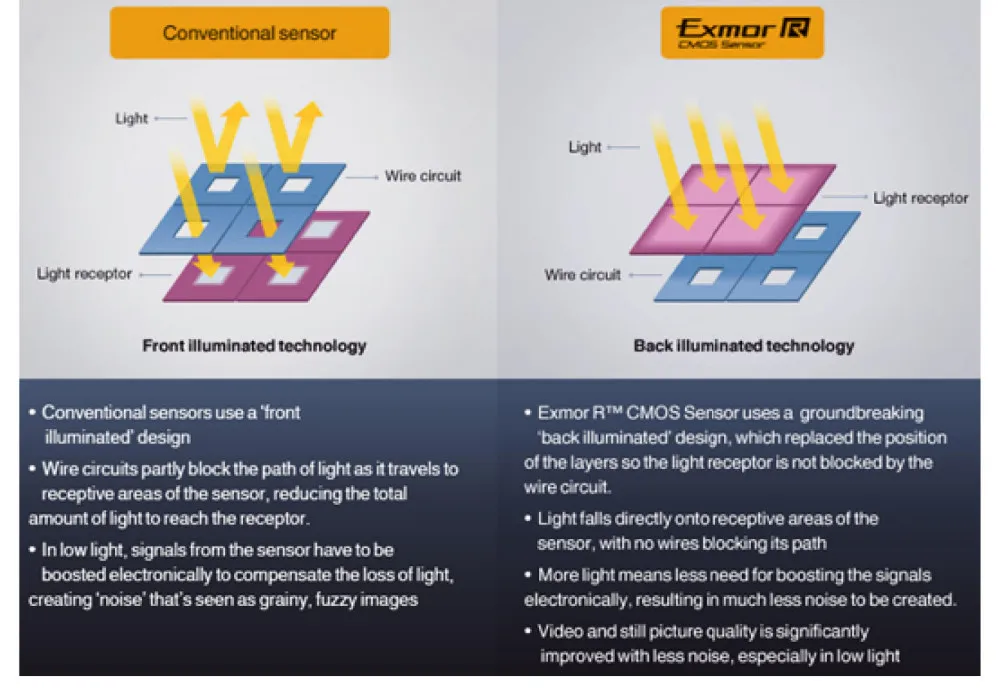

2) Back-illuminated, High Sensitivity and no CRA Related Defects ("Exmor R")

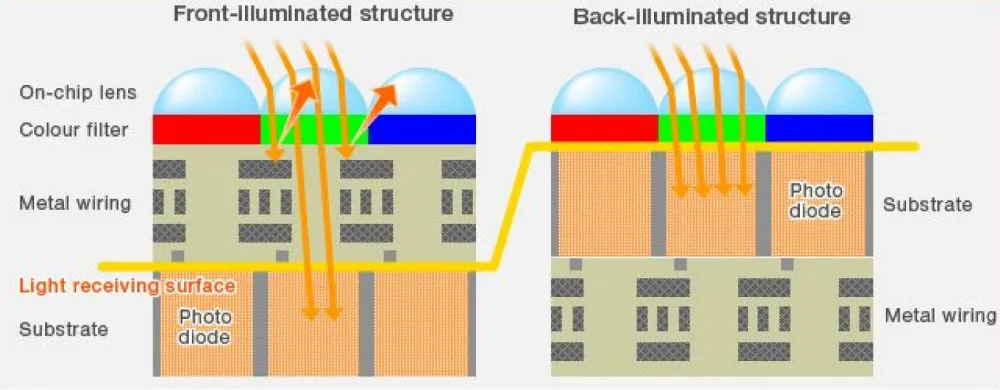

Sony further improved the capabilities of the CMOS sensor by developing a back-illuminated
structure, with the aim of creating a camera capable of taking exceptional photographs even by
candlelight. "Exmor R" is approximately twice as sensitive as a conventional front-illuminated
CMOS sensor and also features low noise. In a back-illuminated CMOS sensor, light is directed
onto the silicon substrate from behind, allowing light to be used with a level of efficiency not
possible with conventional front-illuminated pixel structures. Photographers can now create
smooth, high-quality images in low light settings, including night scenes.

The CRA related problem (background not uniform) does not exist anymore.

3) Fast Frame Speed
The key to increased speed can be found in parallel signal processing. CMOS sensors have
analog-digital (A/D) conversion circuits that convert analog pixel signals into digital signals. Speed
is increased by arranging thousands of these circuits in a horizontal array and allowing them to
operate simultaneously. The A/D conversion circuits used in Sony's CMOS sensors have important
characteristics, including the reduced size of the analog circuits in which noise is created, and
automatic noise cancellation. This circuit design enables noise reduction to be combined with
enhanced speed.
The latest Sony sensors can support fast frame speed and USB3.0 could help it to achieve their
best performance. This is the reason why RisingTech develop new cameras based on USB3.0.
Besides, USB3.0 help the camera to transfer video on 12/14bit.

4) Global Shutter (Some Sensors)
The conventional CMOS use the rolling shutter while CCD use global shutter. Now some Sony
“Exmor” and “Exmor R” sensors use global shutter which make the CMOS sensor more like a CCD,
such as IMX174, IMX302.

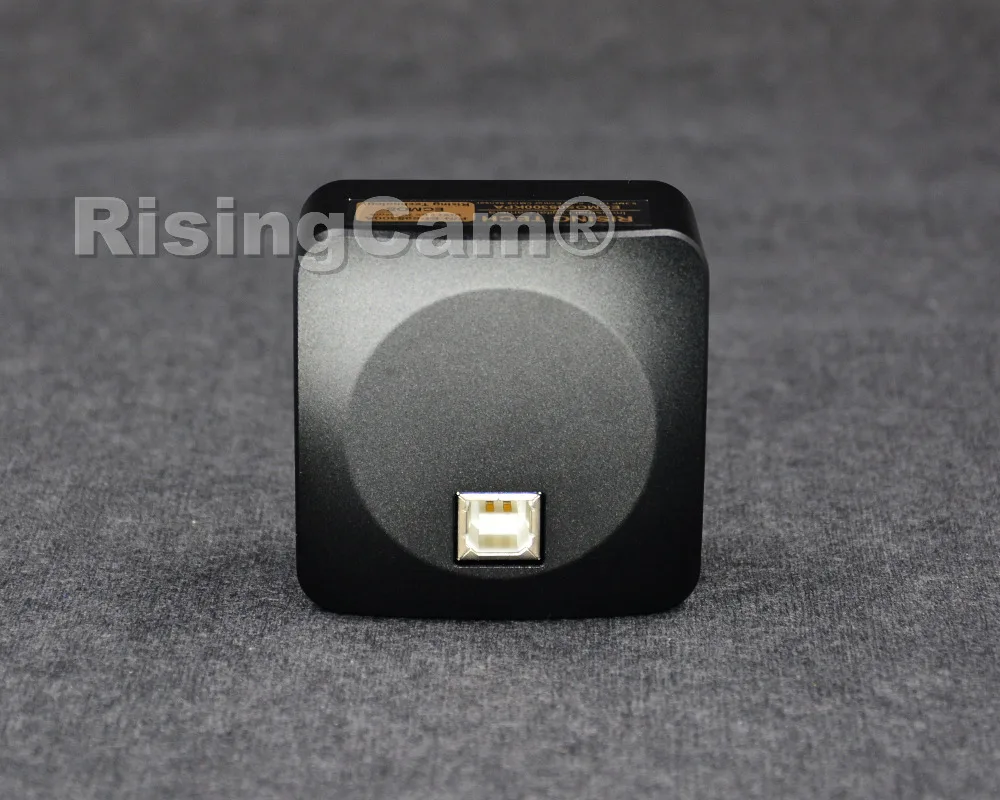

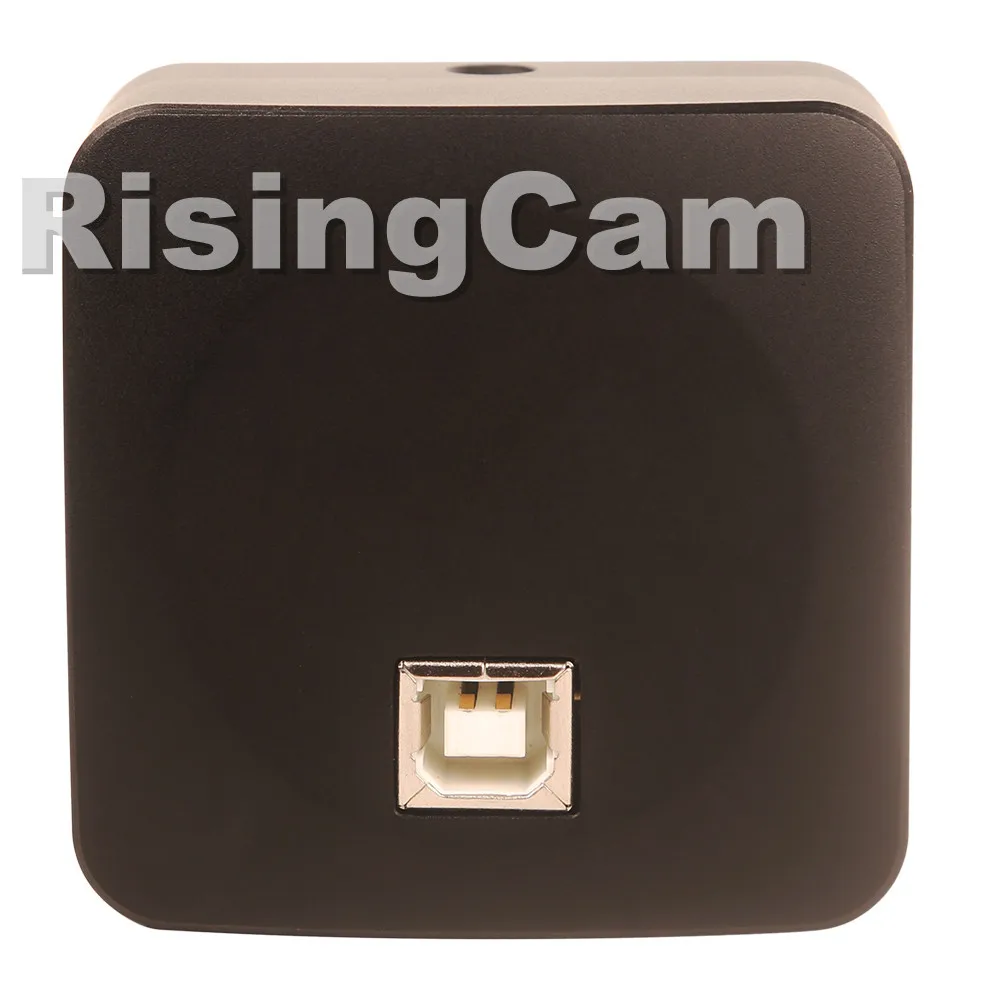

ECMOS Camera's USB2.0 output interface





ECMOS Camera for Fluorecent Application

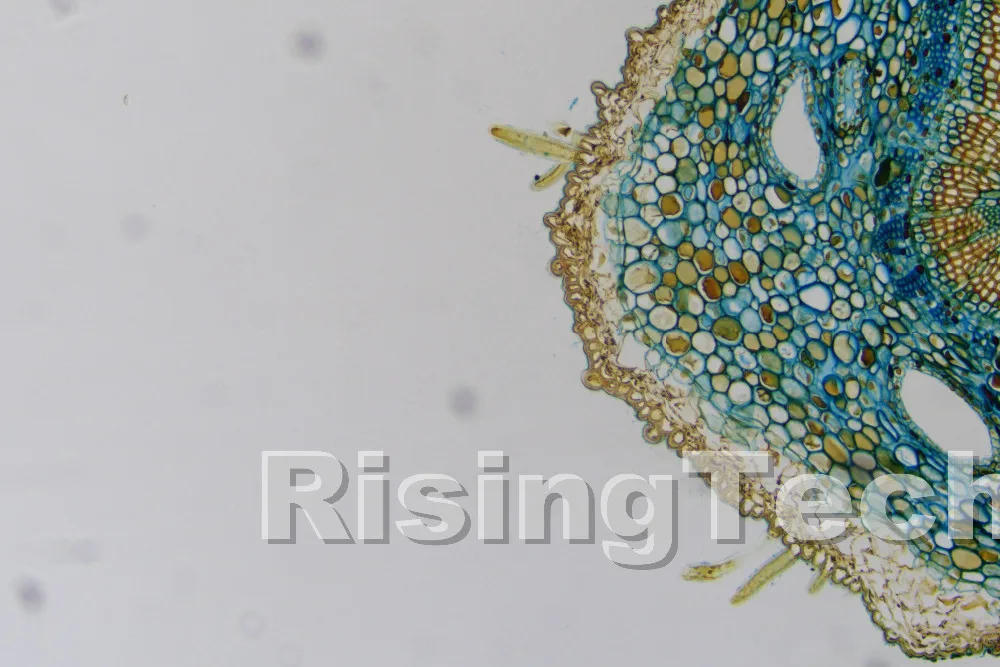

BrightField Image

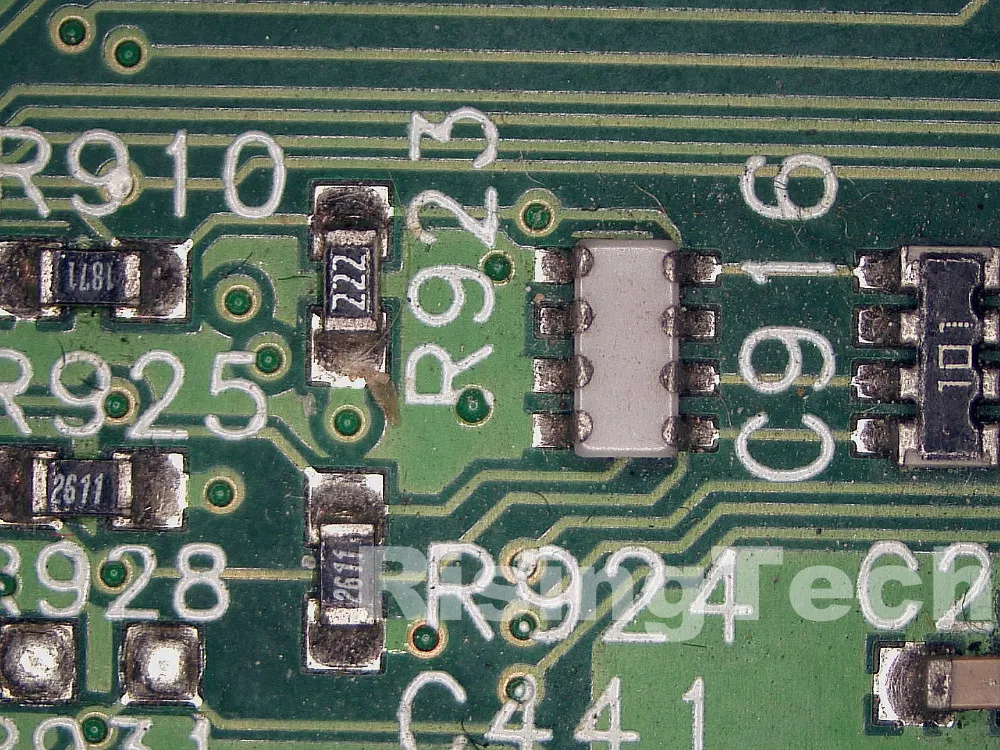

PCB Image

Metallurgical Image

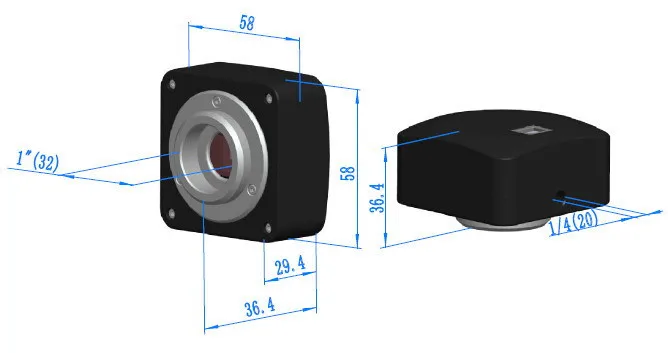

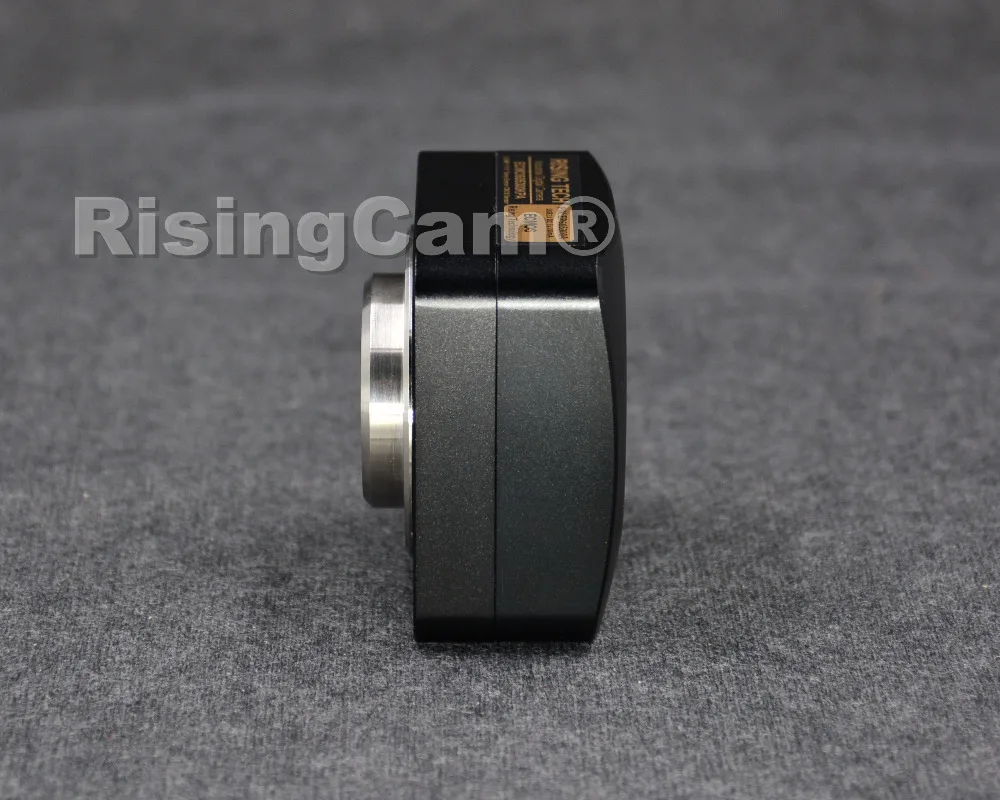

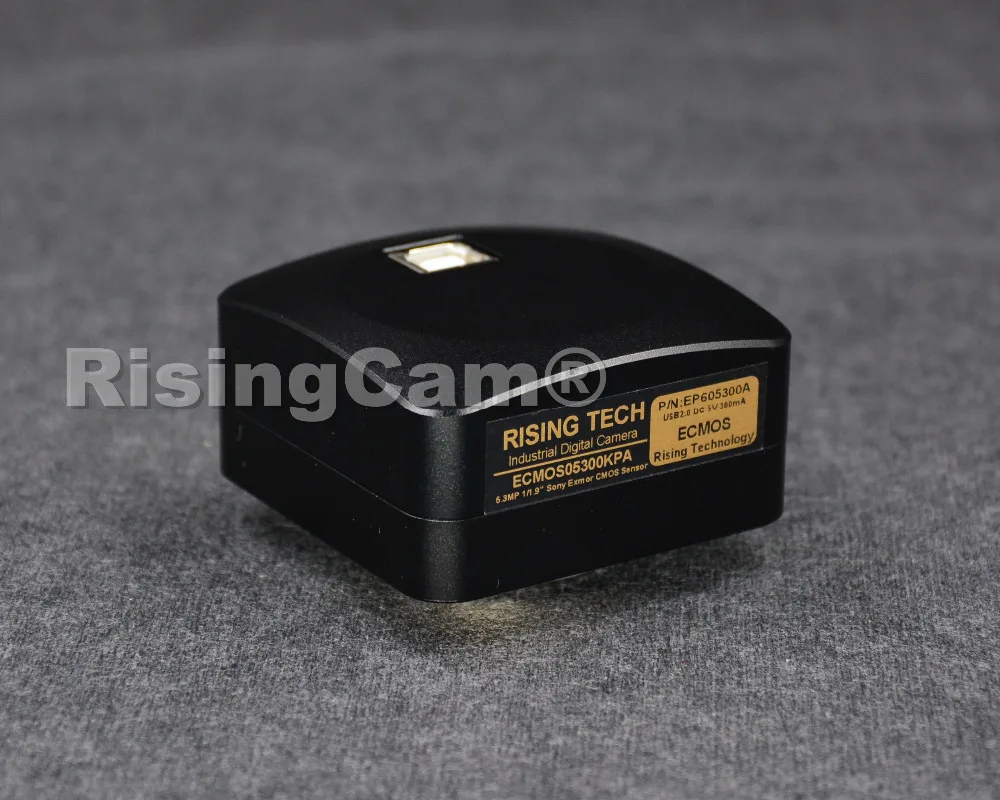

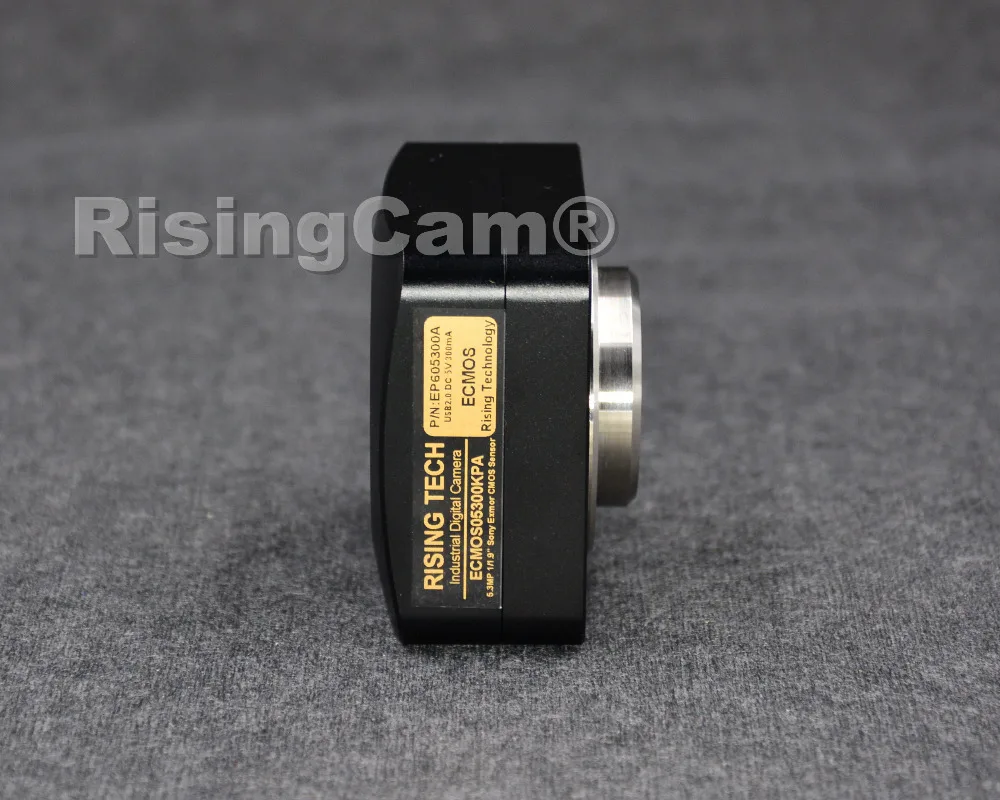

Camera Dimensions



The ECMOS body, made from tough, CNC aluminumalloy, ensures a heavy duty, workhorse solution.

The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included.

These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.





Packaging & Shipping

PACKING

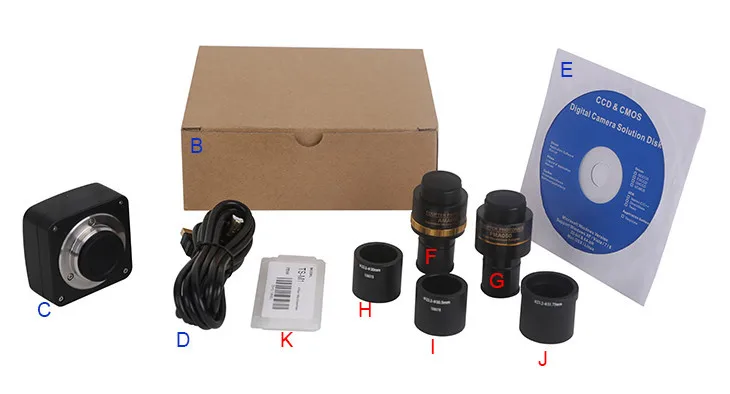

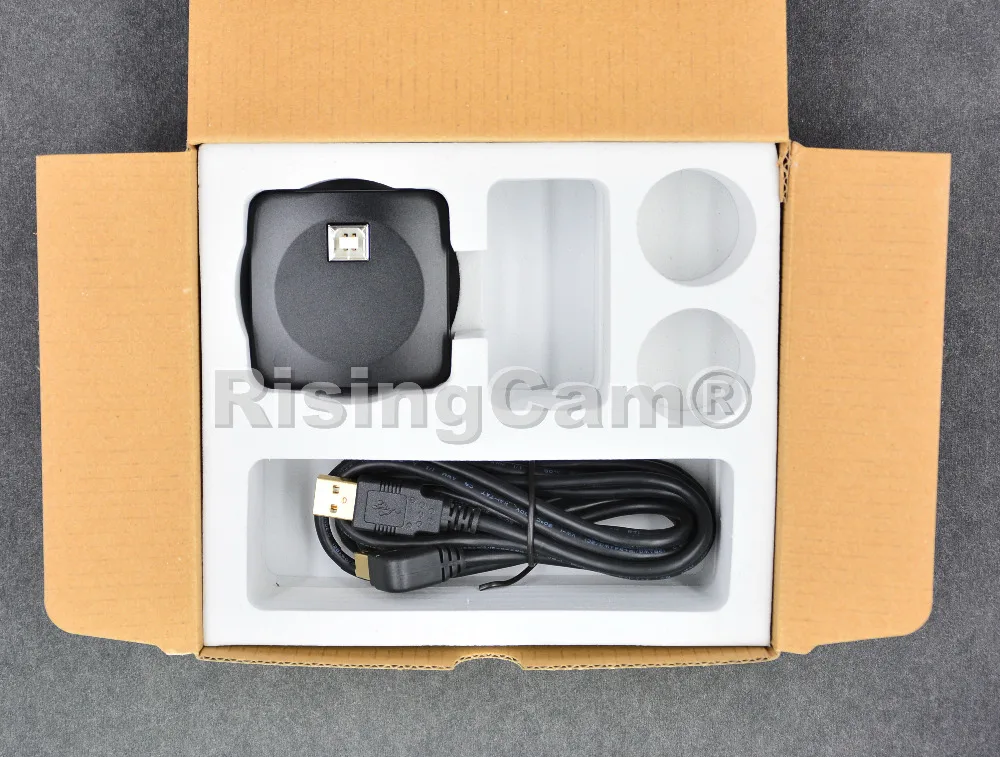

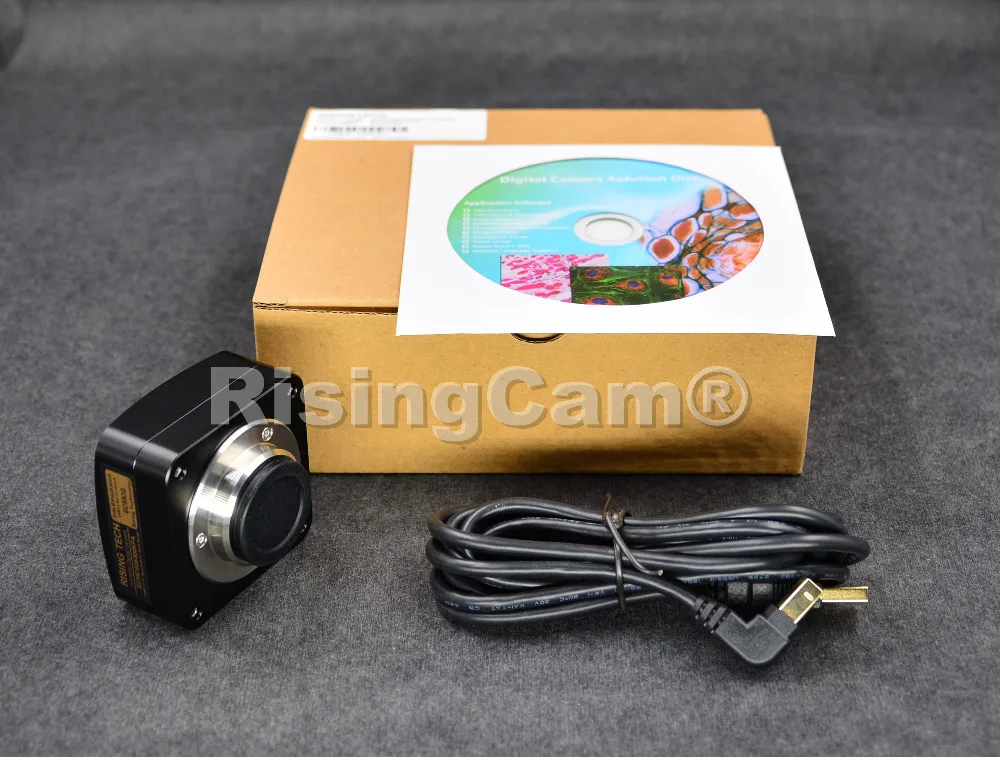

Standard Camera Packing List
A	Carton L:50cm W:30cm H:30cm (20pcs, 12-17Kg/ carton, 0.045m3), not shown in the Photo
B	Gift box L:15cm W:15cm H:10cm (0.8-1.0Kg/ box)

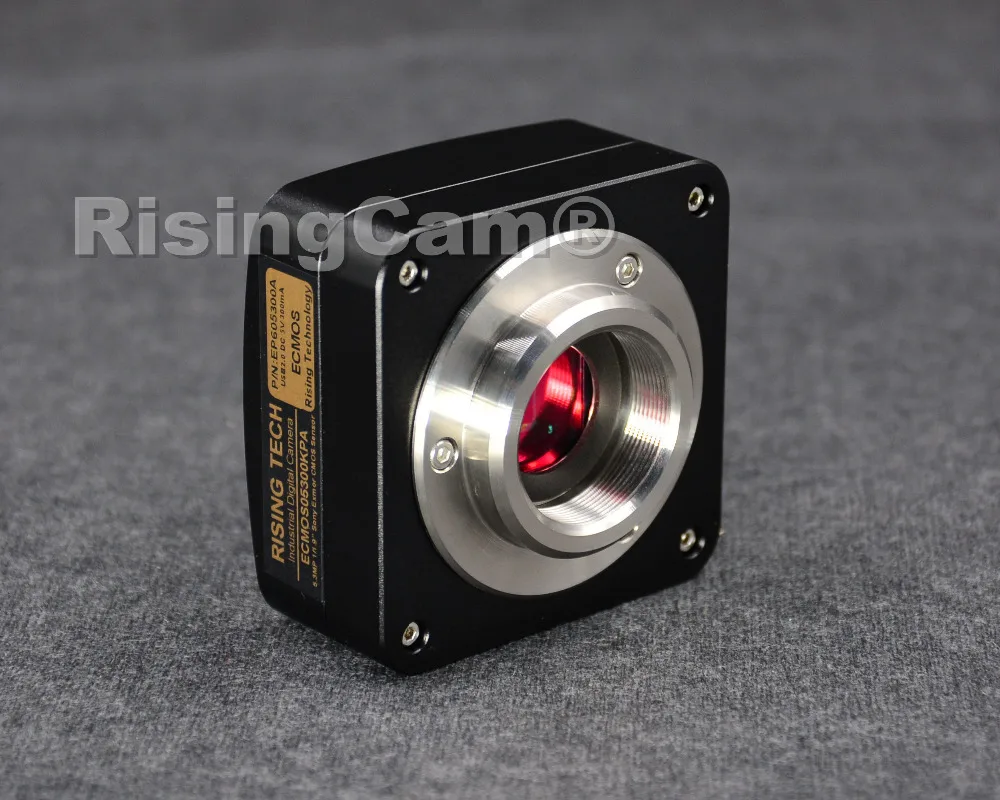

C	ECMOS series USB2.0 C-Mount camera
D	High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m
E	CD (Driver & utilities software, 12cm)
Optional Accessory
F	Adjustable lens adapter	C-Mount to Dia.23.2mm Eyepiece Tube
		(Please choose 1 of them for your microscope)
		C-Mount to Dia.31.75mm Eyepiece Tube
		(Please choose 1 of them for your telescope)
G	Fixed lens adaptor	C-Mount to Dia.23.2mm Eyepiece Tube
		(Please choose 1 of them for your microscope)
		C-Mount to Dia.31.75mm Eyepiece Tube
		(Please choose 1 of them for your telescope)
	Note: For F and G optional accessory, please specify your camera type(C-mount, microscope camera or telescope camera) RisingTech engineer will help you to determine the right microscope or telescope camera adapter for your application;
H	108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube
I	108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
J	108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube
H	Calibration Lit	106011/TS-M1(X=0.01mm/100Div.);
		106012/TS-M2(X,Y=0.01mm/100Div.);
		106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)



Standard Packing photo
