Product Type: Electric Motor |
Replaces: D468210XWF02 MBD-5112S D482252X7707A D468242XWF07 D468250XWF07 MBD5112 |
  • Rotation: Clockwise |
  • Volts: 24 |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today
Rare Electrical
Parts for all applications

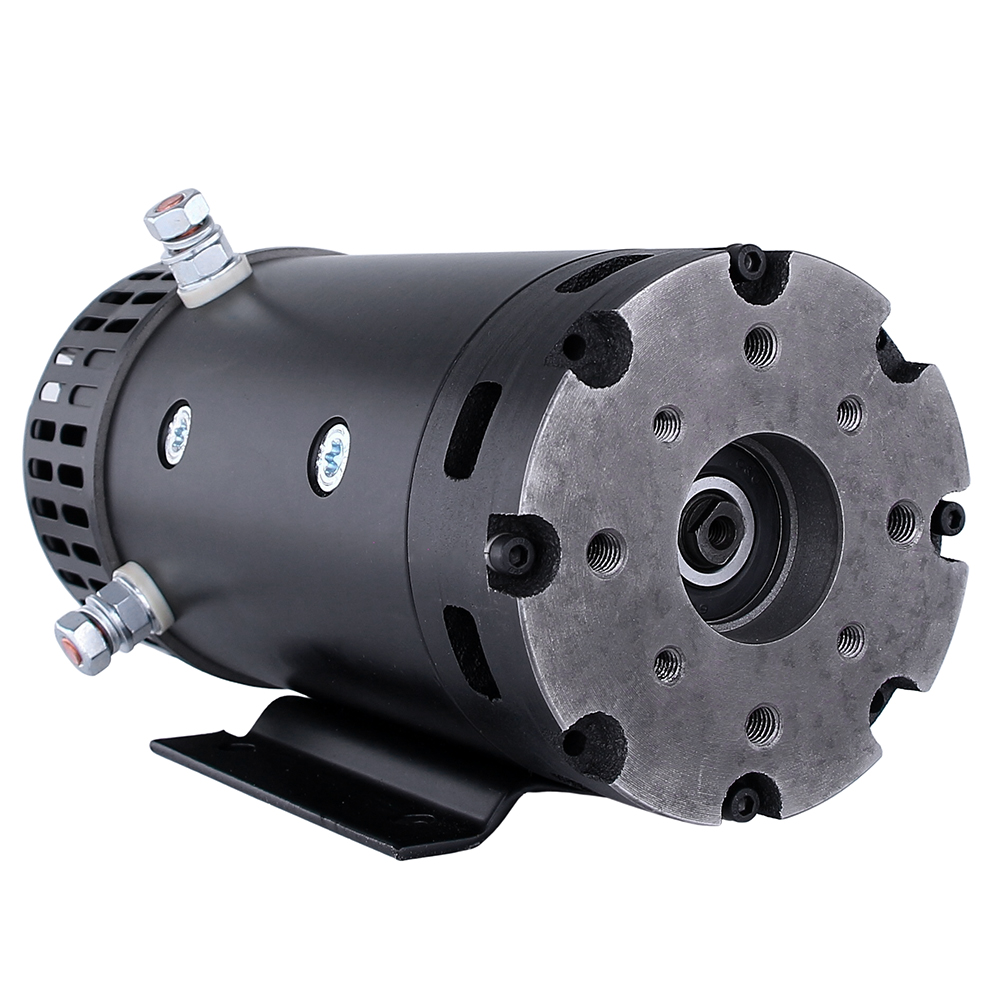

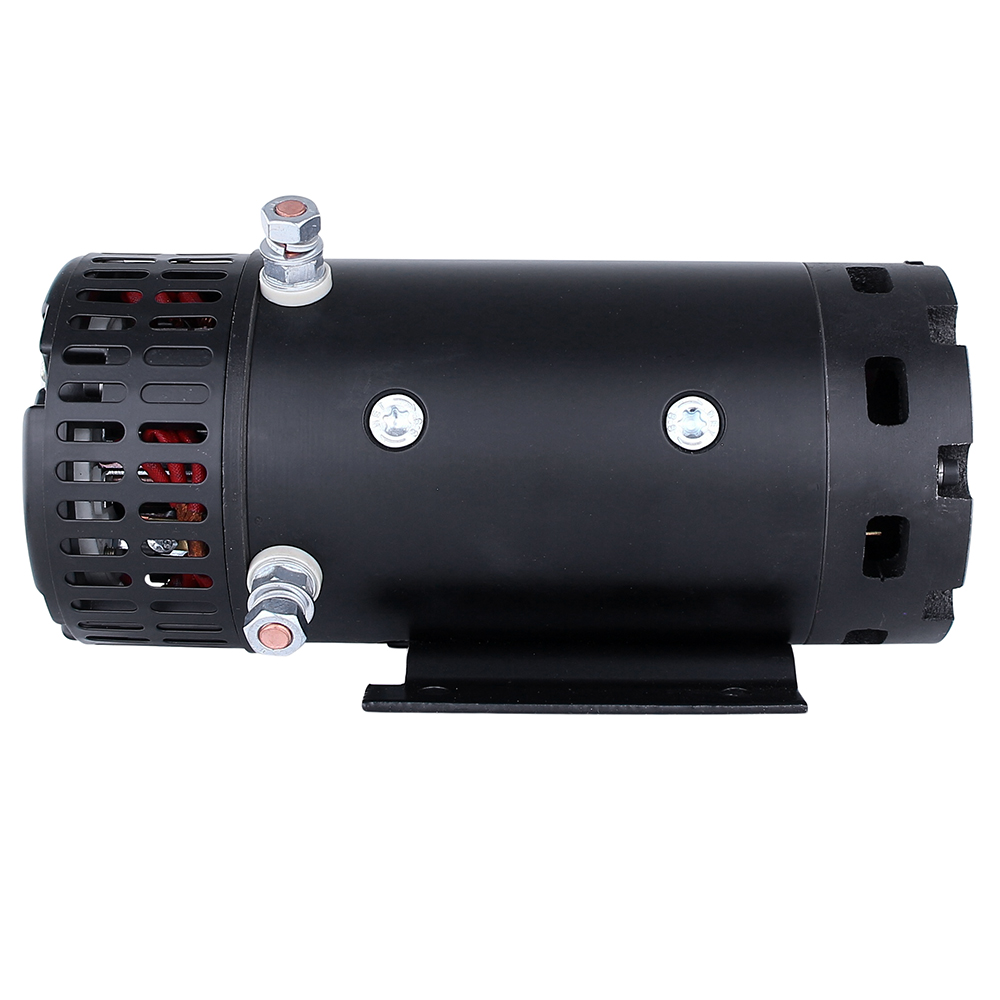

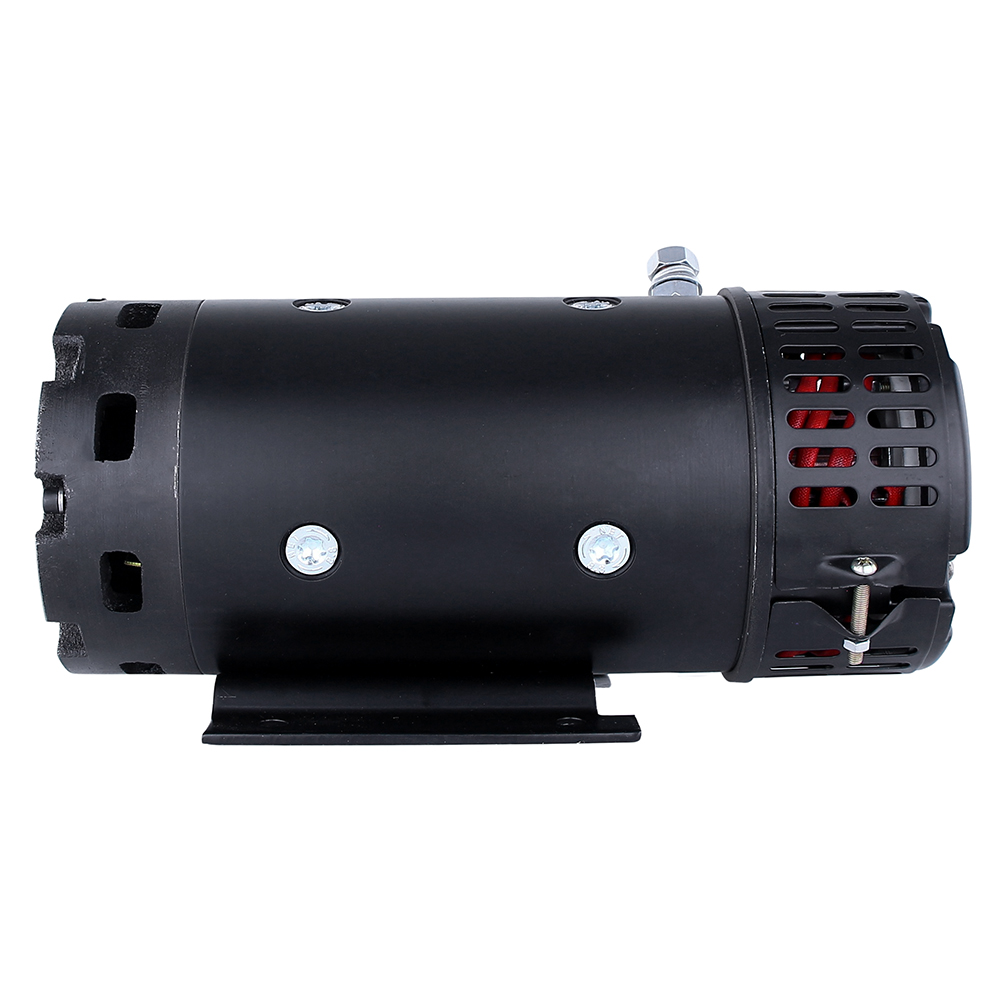

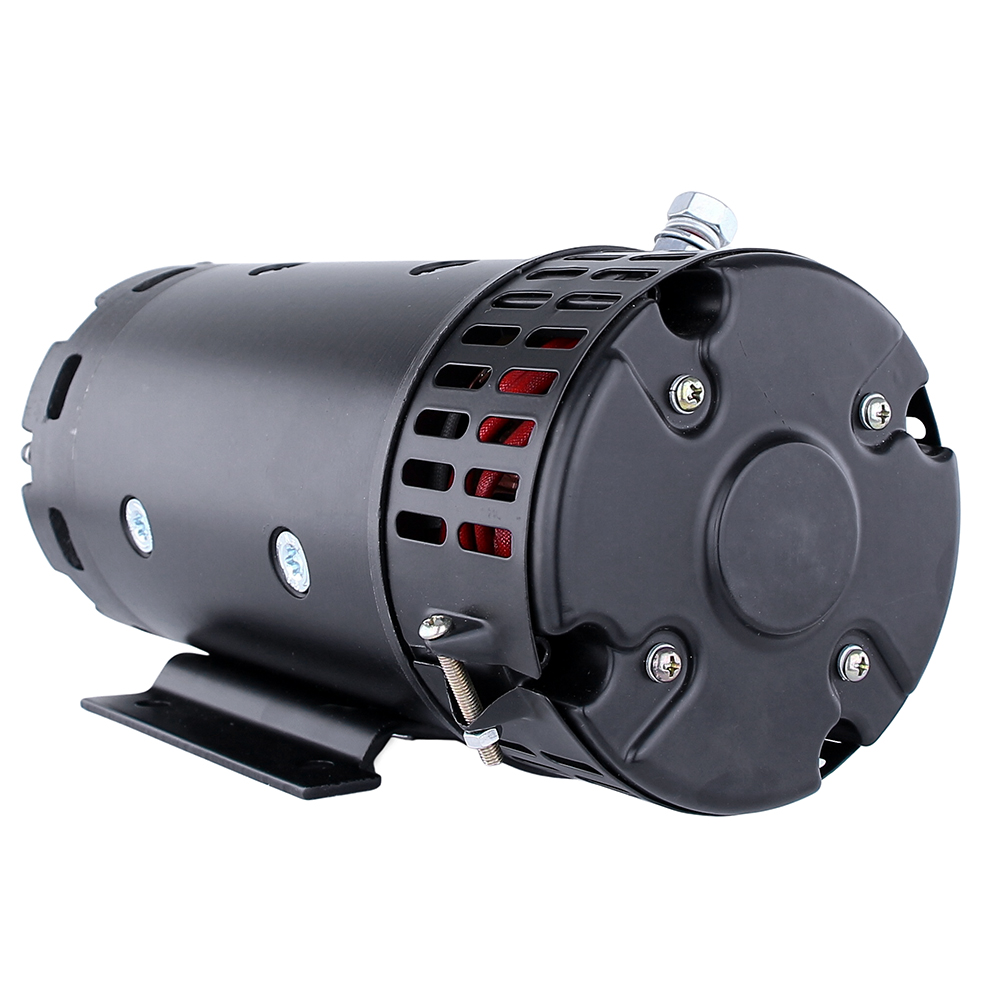

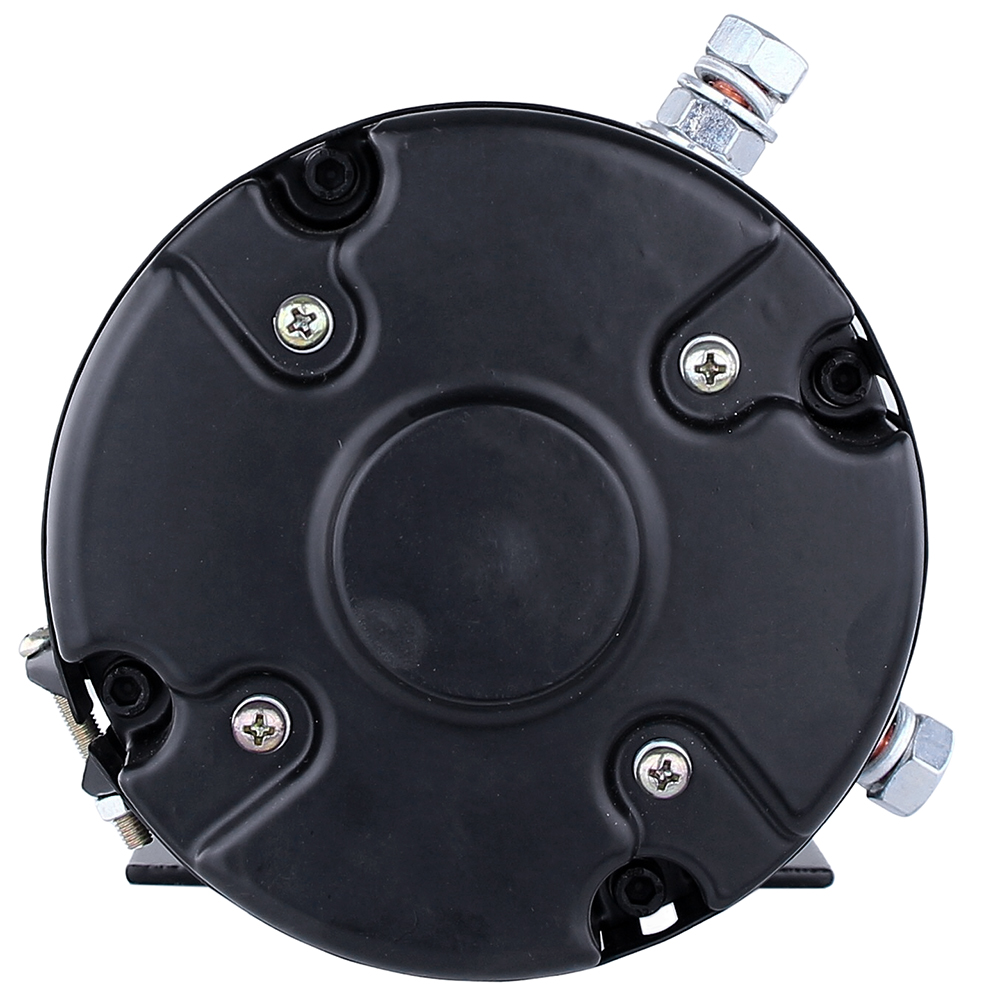

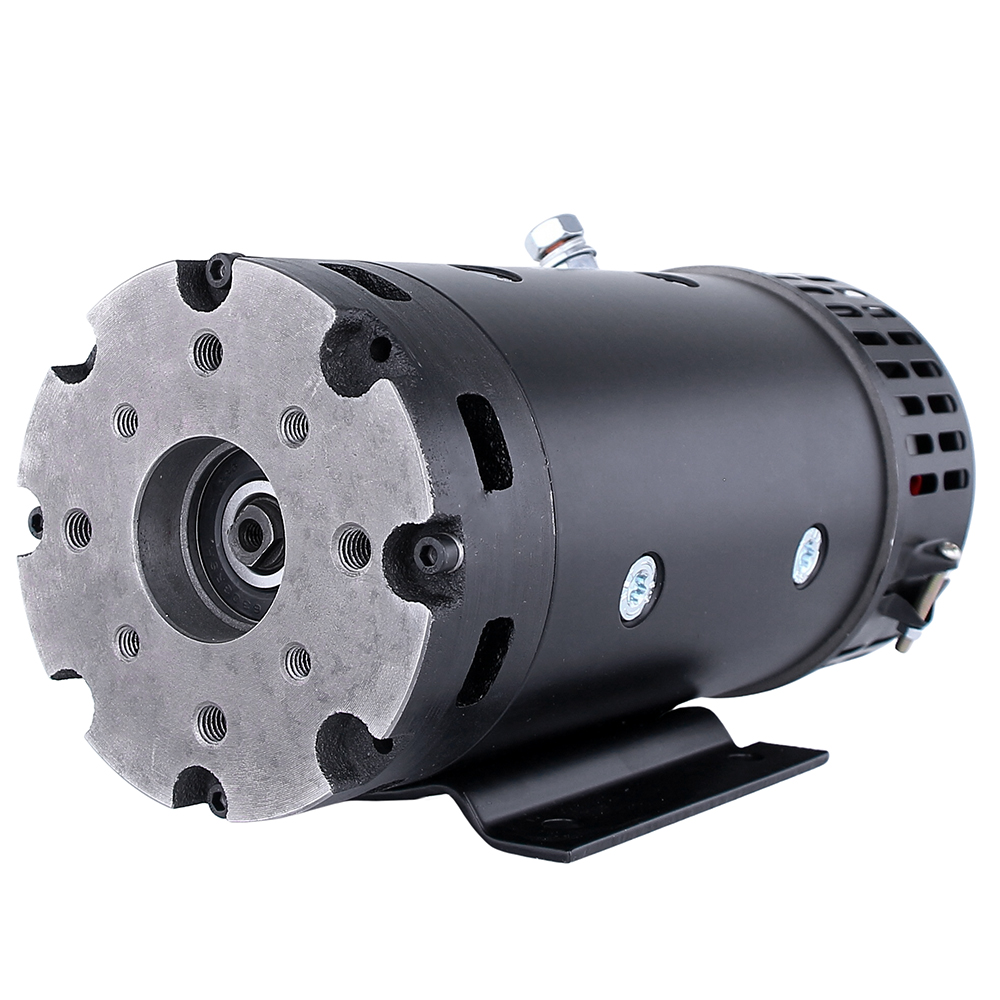

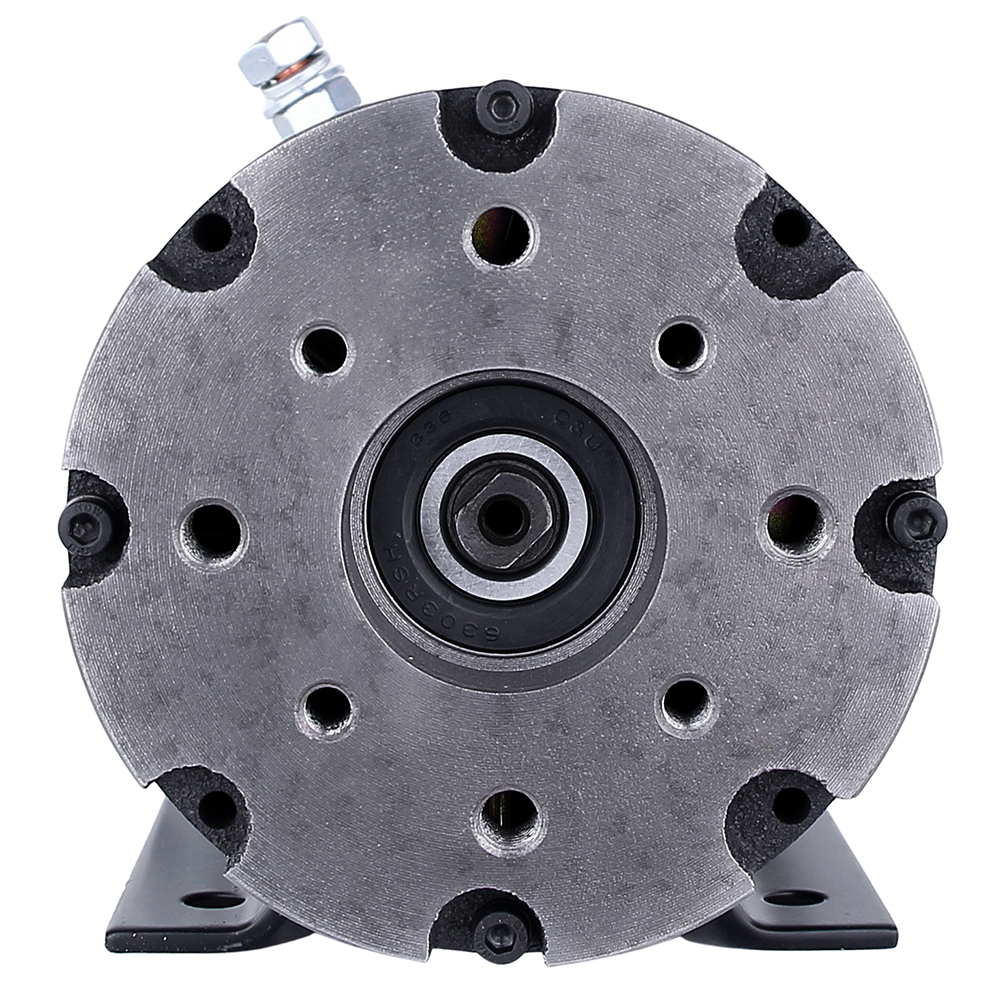

24 Volt Pump Motor JLG 1532E2 1932E2 2032E2 Ohio D468250XWF07A W-5112

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• JS Barnes / Haldex: 2200353, 2200858, 2200980
• Prestolite: MBD5112, MBD5112S
• Ohio Motors: D468210XWF02, D468237XWF07A, D468242XWF07, D468247XW07A, D468247XWF07A, D468250XWF07, D468250XWF07A, D468255XWF07A, D482252X7707A
• JLG: 3160263, 3160264, 7011041
• Western Motor: W-5112, W5112

SPECIFICATIONS:
• Voltage: 24V DC
• Power: 4 HP
• Rotation: CW (Clockwise)
• Field Housing OD: 127mm / 5.000in
• Overall Length: 285mm / 11.220in
• Shaft: Chrysler Amplex Coupler Type
• Terminal 1: 3/8-16
• Terminal 2: 3/8-16
• Bearings: Double Ball Bearing
• Amp Draw: 40A No-Load / 380A Max Load
• Housing: Cast Aluminum Comm. and Drive Ends with Black Field Case
• Weight: 34.5 lbs / 15.68 kg
• Condition: New

APPLICATION:
• JLG E2 Series Electric Scissor Lifts (1998-2012)
• Haldex Barnes Hydraulic Pump Applications


Heavy Duty 24V Pump Motor - Cast Aluminum Double Ball Bearing
Professional grade 24 Volt electric hydraulic pump motor with cast aluminum commutator and drive ends and double ball bearing construction for maximum durability. This 4 HP clockwise motor features a 5-inch diameter field housing, Chrysler Amplex coupler type shaft, and 3/8-16 terminals. Designed for Haldex Barnes and Ohio Motors hydraulic pump assemblies used in JLG E2 series electric scissor lifts including 1532E2, 1932E2, 2032E2, 2632E2, 2646E2, and 3246E2 models from 1998-2012. Cross-references Ohio D468237XWF07A, Prestolite MBD5112, and Haldex 2200858.

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



AERIAL WORK PLATFORM APPLICATIONS:
• JLG 1532E2 Electric Scissor Lift (1998-2012)
• JLG 1932E2 Electric Scissor Lift (1998-2012)
• JLG 2032E2 Electric Scissor Lift (1998-2012)
• JLG 2632E2 Electric Scissor Lift (1998-2012)
• JLG 2646E2 Electric Scissor Lift (1998-2012)
• JLG 3246E2 Electric Scissor Lift (1999-2012)

HYDRAULIC SYSTEM APPLICATIONS:
• Haldex Barnes Hydraulic Pump Assemblies
• Ohio Motors Hydraulic Pump Systems
• 24 Volt Material Handling Hydraulic Equipment

NOTE: Verify OEM part number before ordering.
