Product Type: Hydraulic Motor |
Replaces: 98-529.50-00 9852950-0000014 IM-0117, AMJ-5701, 11.212.077, 98-52950 |
  • Amperage: 230 |
  • Rotation: Clockwise |
  • Shaft Outside Diameter: 18 mm |
  • Shaft Specifications: 8 mm Slotted Shaft |
  • Volts: 12 |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today

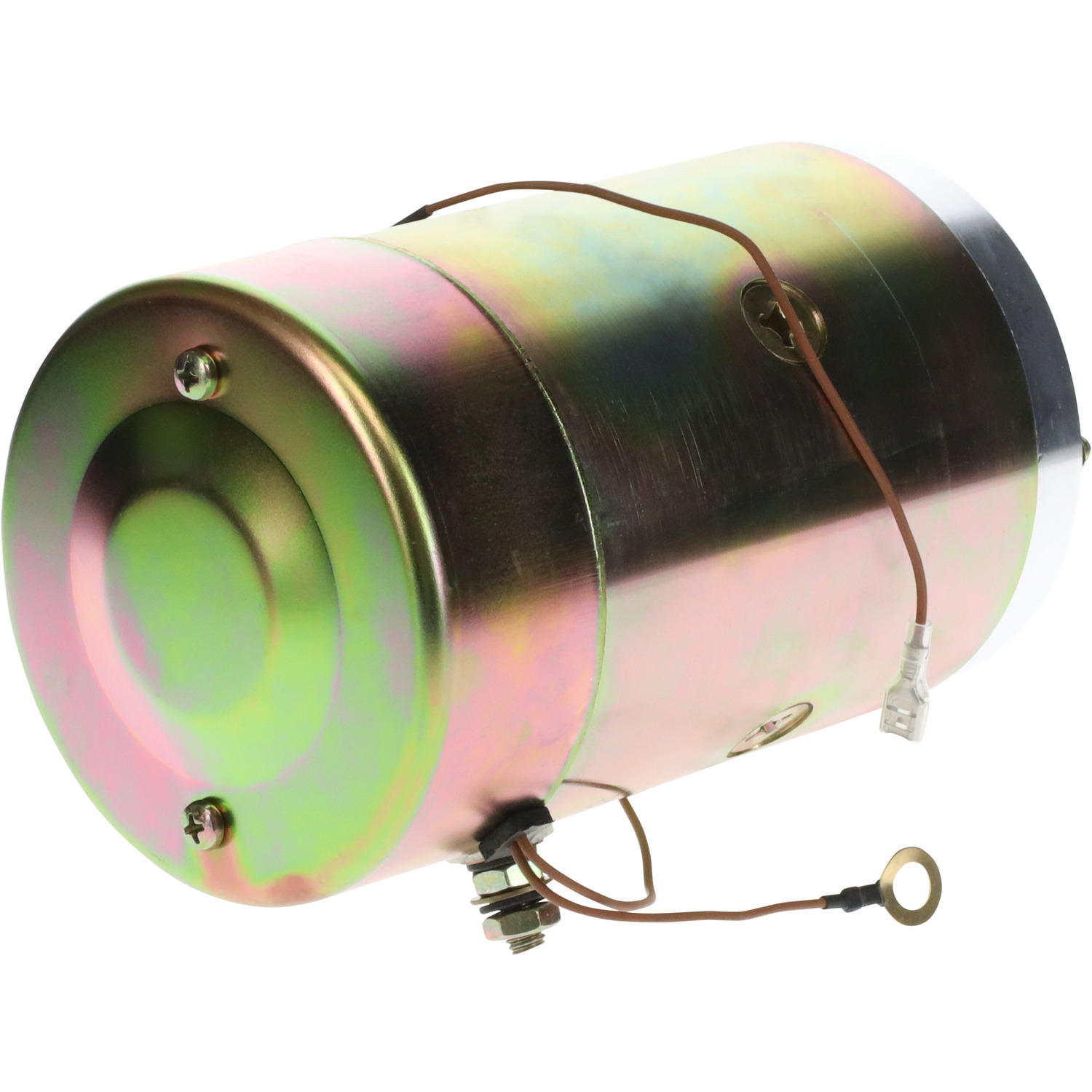

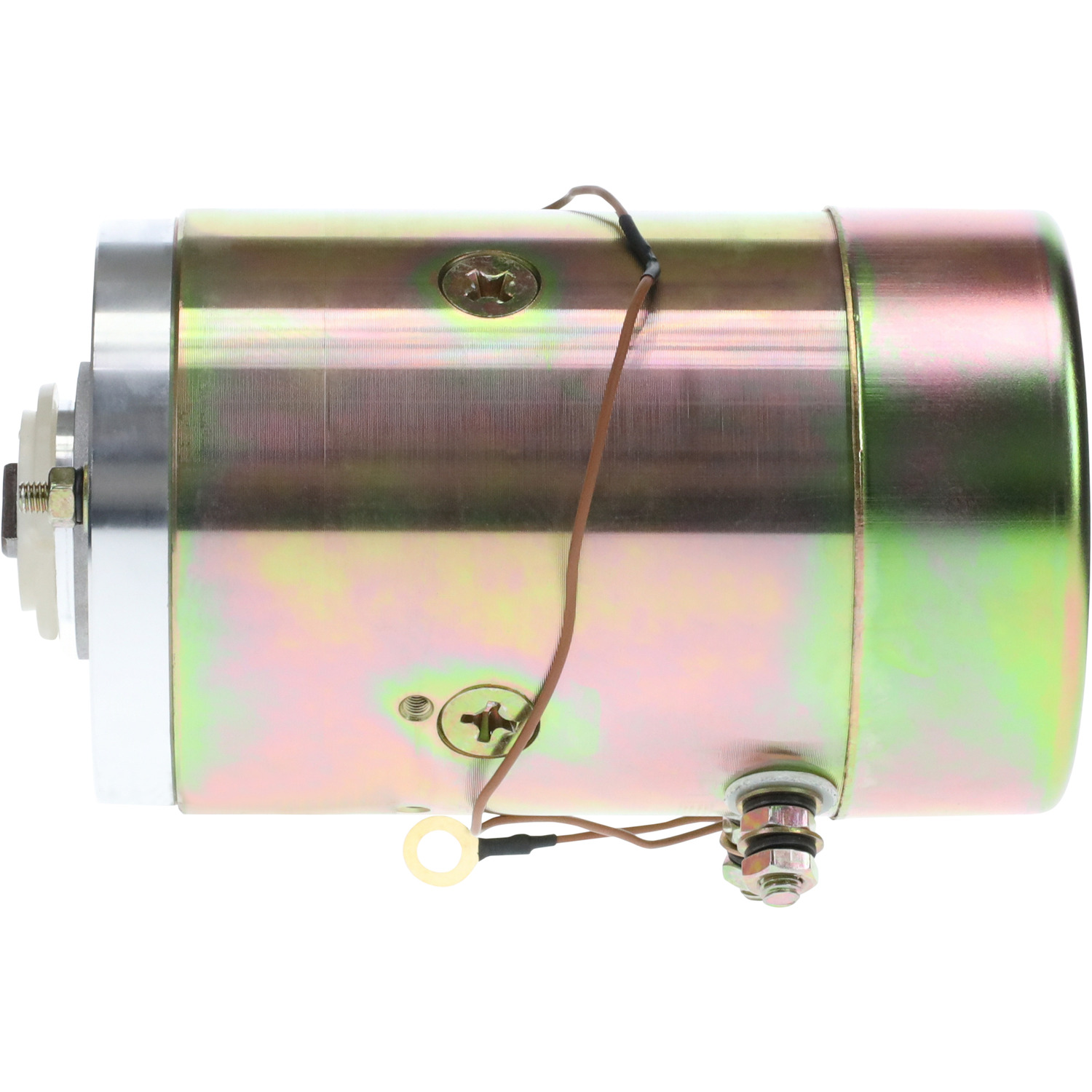

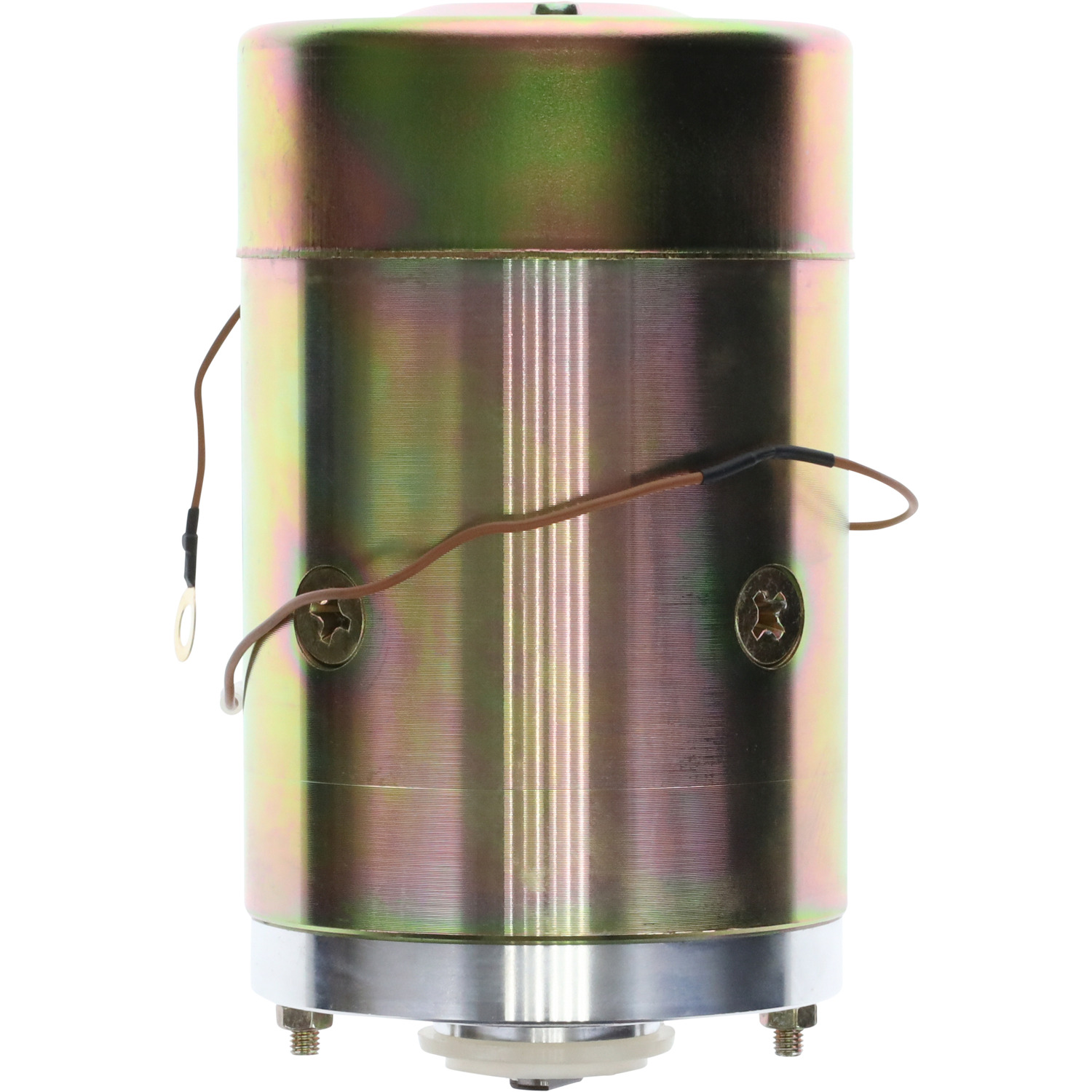

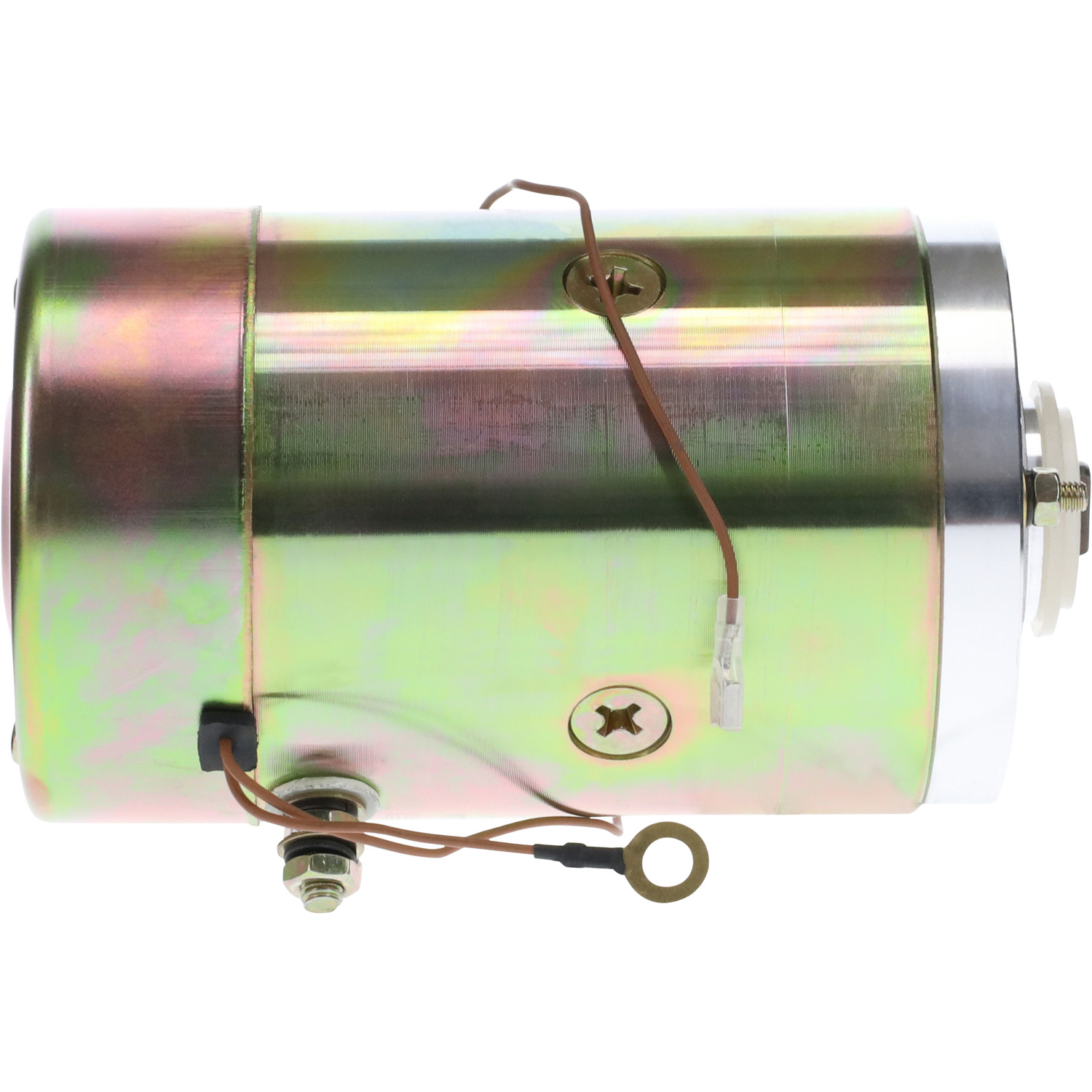

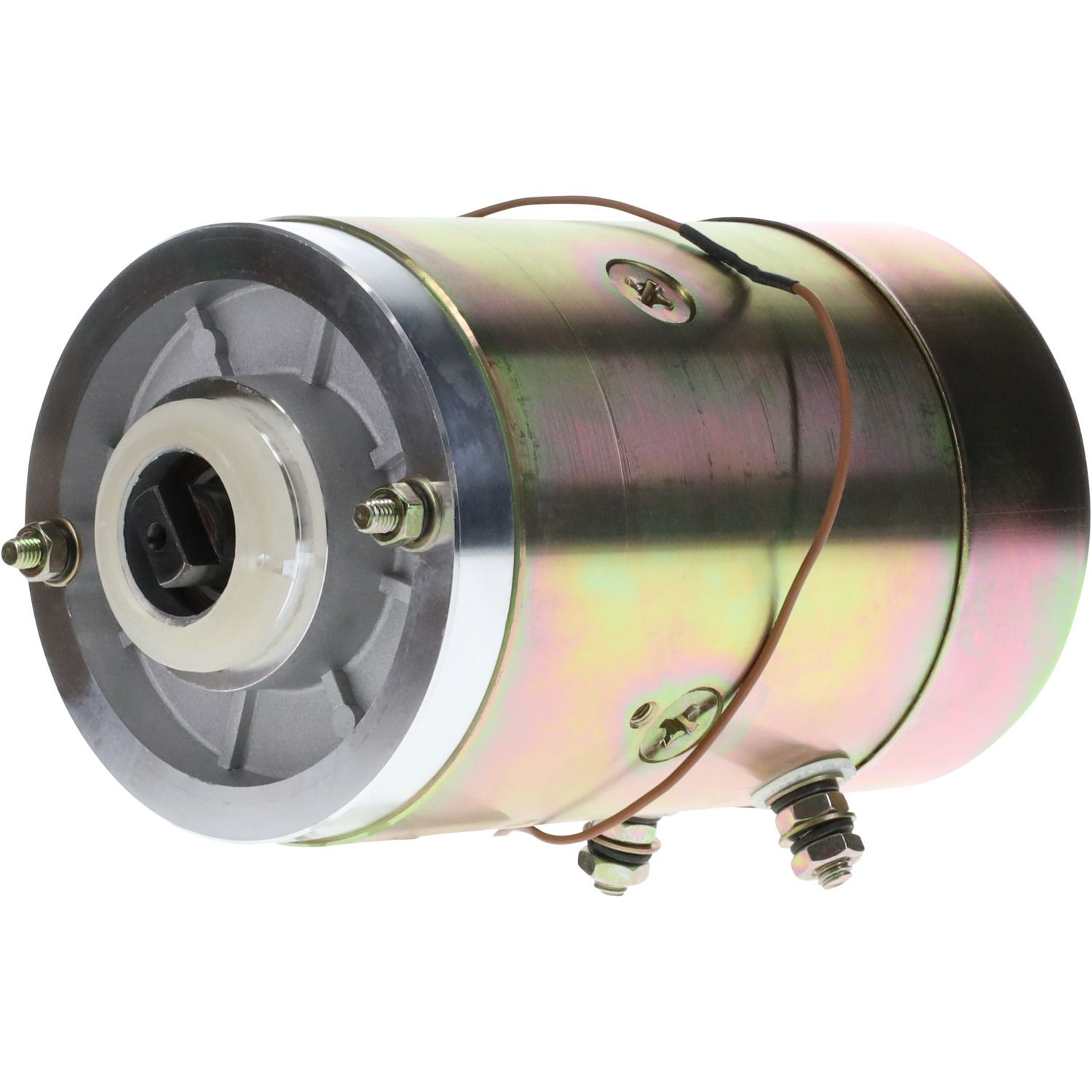

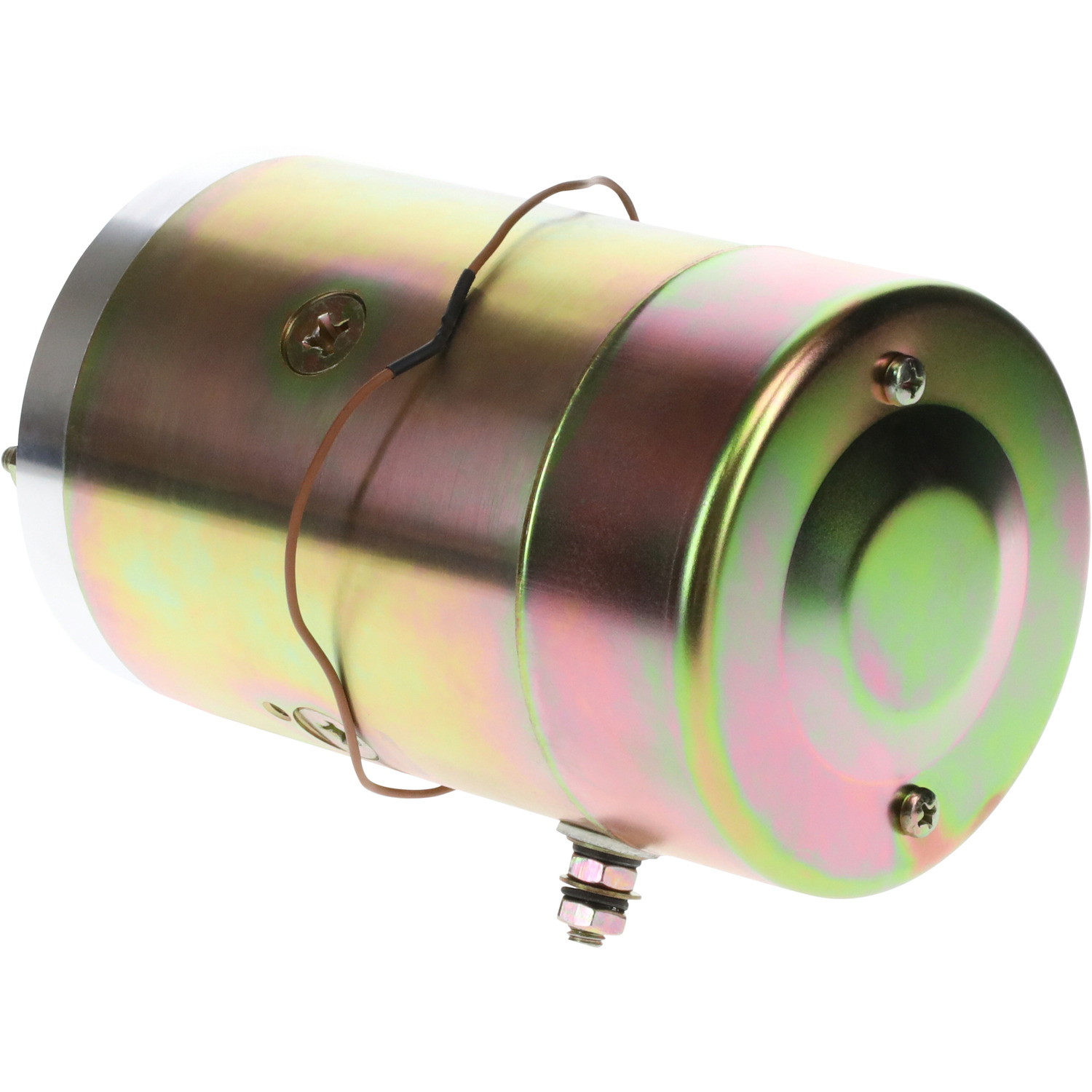

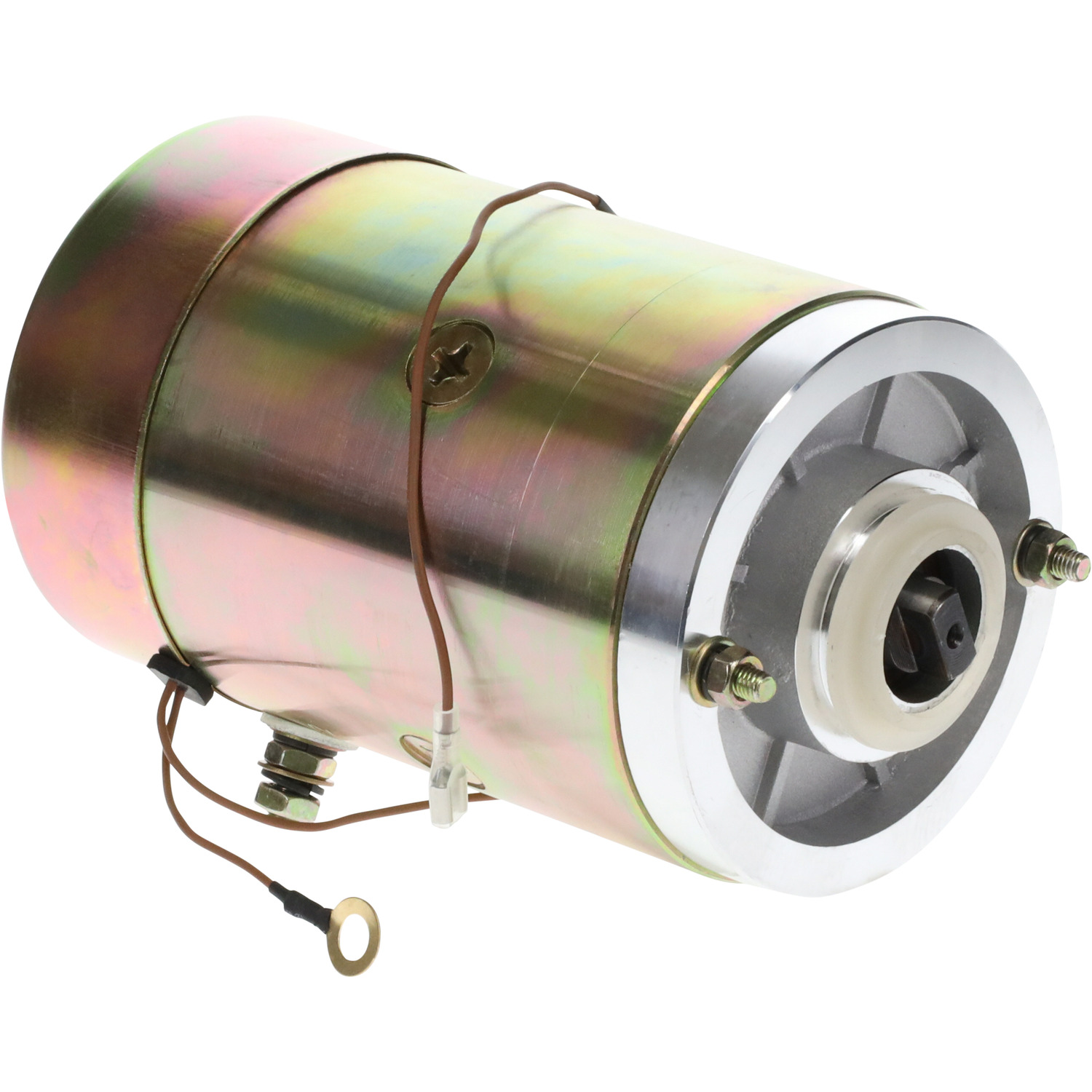

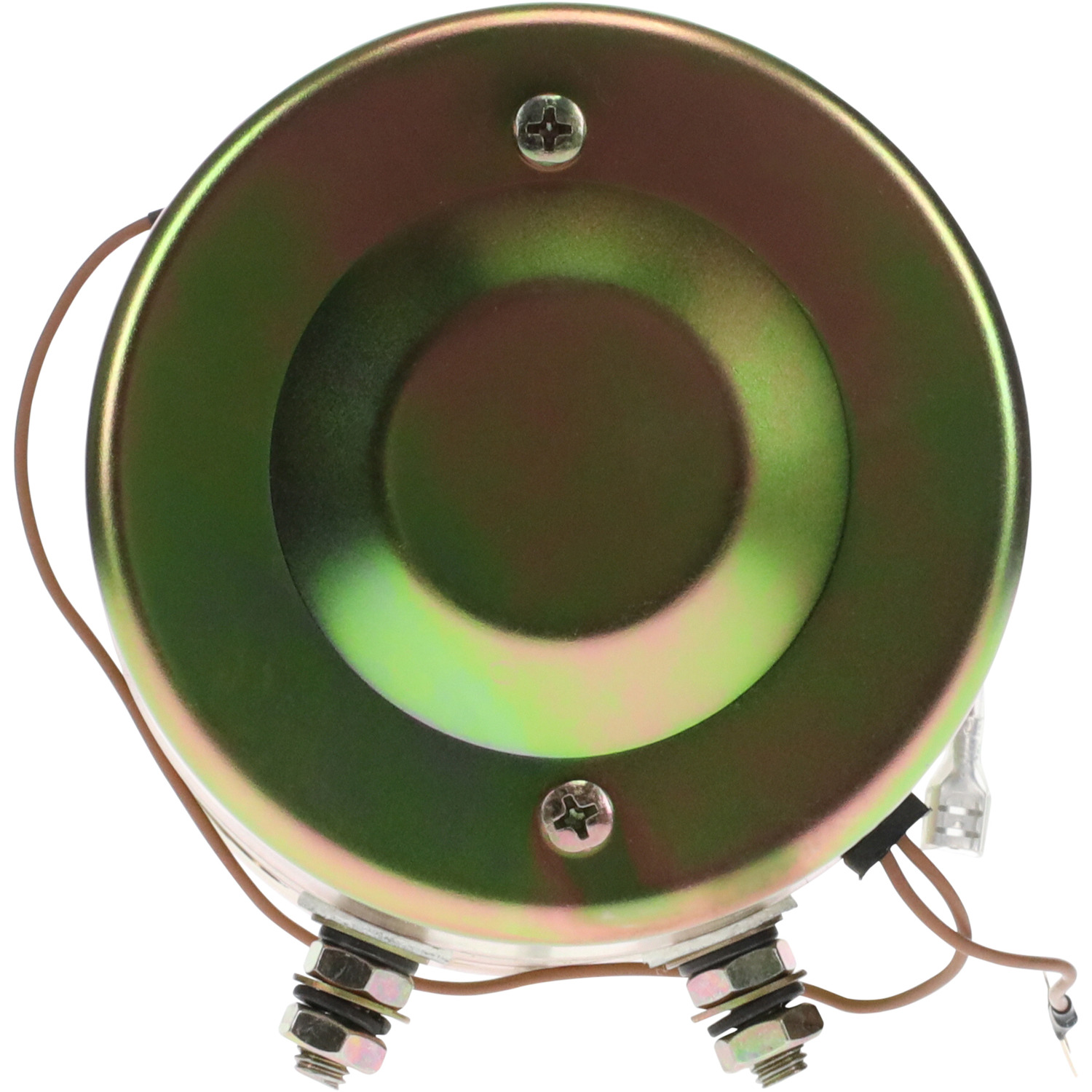

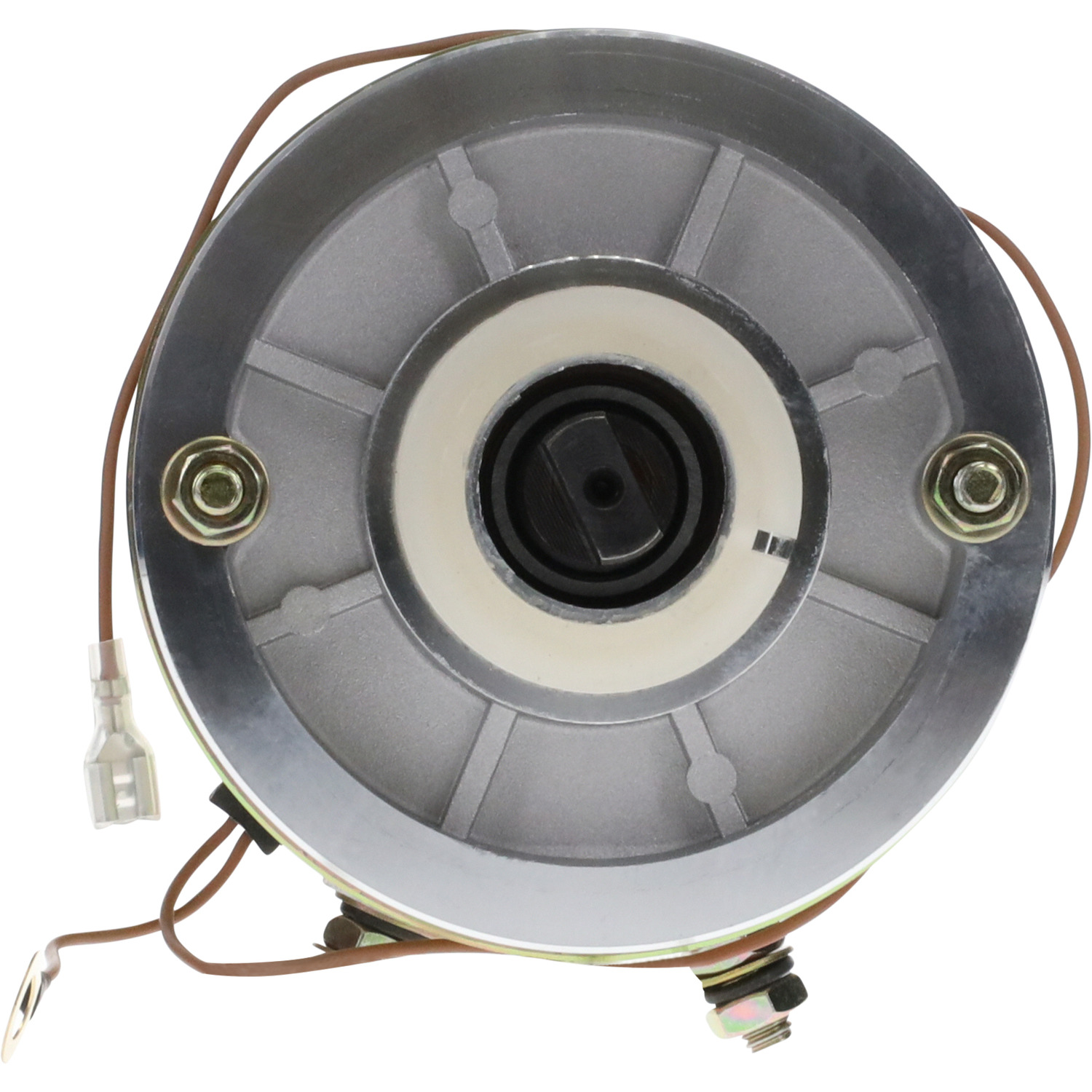

Hydraulic Pump Motor Oil Sistem Georgi Kostov 11.212.077 AMJ5701 IM0117

Replaces Part Numbers & Specifications

ISKRA LETRIKA (MAHLE) OEM PART NUMBERS:
• 11.212.864 (AMJ5238) - Superseded by 11.216.994
• 11.212.077 (AMJ5701) - Superseded by 11.216.077
• 11.212.684 (AMJ5189)
• 11.212.611 (AMJ5177) - Superseded
• 11.212.087 (AMJ5651) - Superseded
• 11.212.068 (AMJ5634) - Superseded
• 11.216.077 (AMJ5701) - Current with thermal protection
• 11.216.994 (AMJ5882) - Current without thermal protection
• 11.216.996 (AMJ5884) - Current with thermal protection
• IM0028
• IM0117

MAHLE PART NUMBERS:
• MM59
• MM61
• MM379 - Superseded by MM59

WESTERN MOTORS PART NUMBERS:
• W-7864
• W-7864A
• W7864
• W7864A

OIL SISTEM PART NUMBERS:
• C162010000
• C162086000
• C162090000
• 98-529.50-00
• 98-5295.50-0000002
• 98-529500000002
• 9852950-0000014
• 98-52950000014
• 98-52950

DAUTEL PART NUMBERS:
• 84522

EFEL PART NUMBERS:
• 36531
• 36611

MBB PALFINGER PART NUMBERS:
• 1404310
• 1410332

SPECIFICATIONS:
• Type: Hydraulic Pump Motor
• Design: DC Motor - Iskra Letrika Type
• Voltage: 12V DC
• Amperage: 230 Amps
• Power: 1.6kW / 2.14HP
• RPM: 2750
• Rotation: Clockwise (CW)
• Shaft Outside Diameter: 18mm / 0.709 in
• Shaft: 8mm Slotted Tang
• Shaft Tang Thickness: 8mm / 0.31 in
• Shaft Tang Width: 18mm / 0.70 in
• Shaft Tang Depth: 9.65mm / 0.38 in
• Terminal 1 Size: M8-1.25
• Terminal 2 Size: M8-1.25
• Outside Diameter: 114.5mm / 4.508 in
• Overall Length: 191mm / 7.52 in
• Field Housing OD: 113mm / 4.449 in
• Insulated Ground
• Double Ball Bearing
• IP54 Protection Rating
• S2: 3 min Duty Cycle
• Current Type: DC

FITS HYDRAULIC POWER UNITS:
• Georgi Kostov Oil Sistem - Models 1.5, 1.2, 27, EC 2, EC 1.2, EC 23-OR
• Dautel Tail Lift Systems
• MBB Palfinger Tail Lift Systems
• Anteo Tail Lift Systems
• Behrens-Eurolift Tail Lift Systems
• Broc Oil Sistem Hydraulic Power Units
• Smoes Hydraulic Systems

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



GEORGI KOSTOV OIL SISTEM:

OIL SISTEM 1.5:
• Georgi Kostov Oil Sistem 1.5 Hydraulic Power Unit

OIL SISTEM 1.2:
• Georgi Kostov Oil Sistem 1.2 Hydraulic Power Unit

OIL SISTEM 27:
• Georgi Kostov Oil Sistem 27 Hydraulic Power Unit

OIL SISTEM EC 2:
• Georgi Kostov Oil Sistem EC 2 Hydraulic Power Unit

OIL SISTEM EC 1.2:
• Georgi Kostov Oil Sistem EC 1.2 Hydraulic Power Unit

OIL SISTEM EC 23-OR:
• Georgi Kostov Oil Sistem EC 23-OR Hydraulic Power Unit

DAUTEL:

TAIL LIFT SYSTEMS:
• Dautel Tail Lift / Liftgate Hydraulic Systems
• Dautel Part Number: 84522

MBB PALFINGER:

TAIL LIFT SYSTEMS:
• MBB Palfinger Tail Lift / Liftgate Hydraulic Systems
• MBB Palfinger Part Numbers: 1404310, 1410332

BROC (OIL SISTEM):

HYDRAULIC POWER UNITS:
• Broc Oil Sistem Hydraulic Power Units
• Oil Sistem Part Numbers: C162010000, C162086000, C162090000

SMOES:

HYDRAULIC SYSTEMS:
• Smoes Hydraulic Power Systems

ANTEO:

TAIL LIFT SYSTEMS:
• Anteo Tail Lift / Liftgate Hydraulic Systems

BEHRENS:

TAIL LIFT SYSTEMS:
• Behrens-Eurolift Tail Lift Hydraulic Systems
