| SUB MINI THROUGH HOLE SOLDER SOCKETS
|
|
|
|
|
|
|
 |

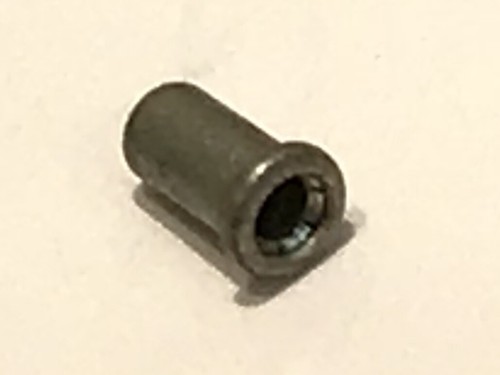

Manufactured by ICI Cambion in the 1970's, these are a sub-miniature through hole pcb mount 'jack' receptical, or solder socket, to accept either a removable pin, or a hard wired cable. Manufactured from tin plated brass, with nickle plated insert.
Overall length is 3.7mm, with the below board part been 3.3mm.
Diameter of the main body is 1.75mm (so thats the size of mounting hole required)
Diameter of the collar is 2.26mm.
The internal diameter of the recepticle for a pin or cable is 1mm and 3.9mm deep.
Very nice vintage quality sockets.
Priced and supplied in packs of 10.
