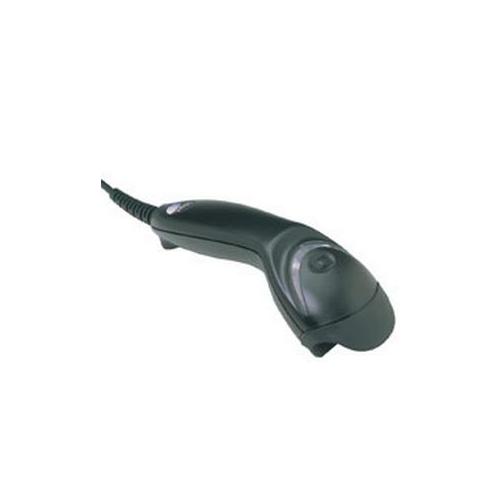

Metrologic MS5145 Eclipse Hand-Held Laser Scanner USB/Keyboard Wedge Black - EU

Metrologic MS5145 Eclipse Hand-Held Laser Scanner USB/Keyboard Wedge Black - EU

Product Details
Model NameMS5145
Warranty3 year warranty.
Product TypeScanner
Product FamilyEclipse
Dimensions6.3cm (W) x 16.9cm (D) x 5.1cm (H) - Weight 0.1kg
Product information

Honeywell's MS5145 Eclipse is a low cost laser-based alternative to CCD scanners. Its compact form factor and high end feature set simplify its use in a variety of applications at the press of a button. Eclipse is a single-line, hand-held laser scanner. Equipped with Honeywell's patented CodeGate technology, Eclipse can be used in a wide variety of applications. CodeGate technology allows the user to easily target the desired bar code and complete data transmission with the press of a single button. This makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control. With Honeywell's state-of-the-art scanning technology, the MS5145 Eclipse has a longer working range and a wider scan field than a typical CCD. The width of the scan line grows as the scanner moves further away from bar codes. CodeSense is a unique feature employed by Eclipse in the absence of infrared object detection. It provides the user with a pulsing laser line for bar code detection. When a bar code is detected, the laser line switches to a constant state to allow for scanning via CodeGate.

Product Features
  • CodeGate: Ideal for menu scanning applications
  • CodeSense: Automatically switches from “pulse mode” to continuous beaming when a bar code is detected
  • Powerlink cables: Uses the same user-replaceable cables and power supplies as Voyager, Orbit and Cubit
  • Flash ROM: Update firmware from any PC via MetroSet2 software provided by Metrologic
  • OPOS and JPOS system compatible: Easily adaptable to any end-user system environment
Product Specifications
Performance
Decoding CapabilityReads standard 1D and GS1 DataBar symbologies
Reading RangesScan Pattern: Single scan line • Scan Speed: 72 scan lines per second • Scan Angle: Horizontal: 50° • Print Contrast: 35% minimum reflectance difference • Pitch, Skew: 68°, 52°
Light SourceVisible Laser Diode 650 nm ± 10 nm
Audible/Visual IndicatorsVisual Indicators: Green = ready to scan; Red = good read
Interfaces/Ports
InterfacesUSB, RS232, Keyboard Wedge, IBM 468xx (RS485)
Compliance
CertificationsLaser Class: EMC: Class 1: IEC60825-1, EN60825-1 • FCC Part 15, ICES-003, EN55022 Class B
Electrical
Power SupplyOperating Power (typical): 675 mW (125 mA @ 5 V)
Environmental
EnvironmentalOperating Temperature 0 to 40°C - Humidity 5% to 95%
Environmental StandardsEnvironmental Sealing: Sealed to resist airborne particulate contaminants • Light Levels: 4842 Lux (450 foot-candles)
Physical
Case ColourBlack
